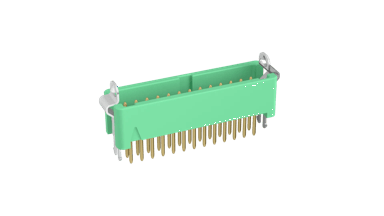

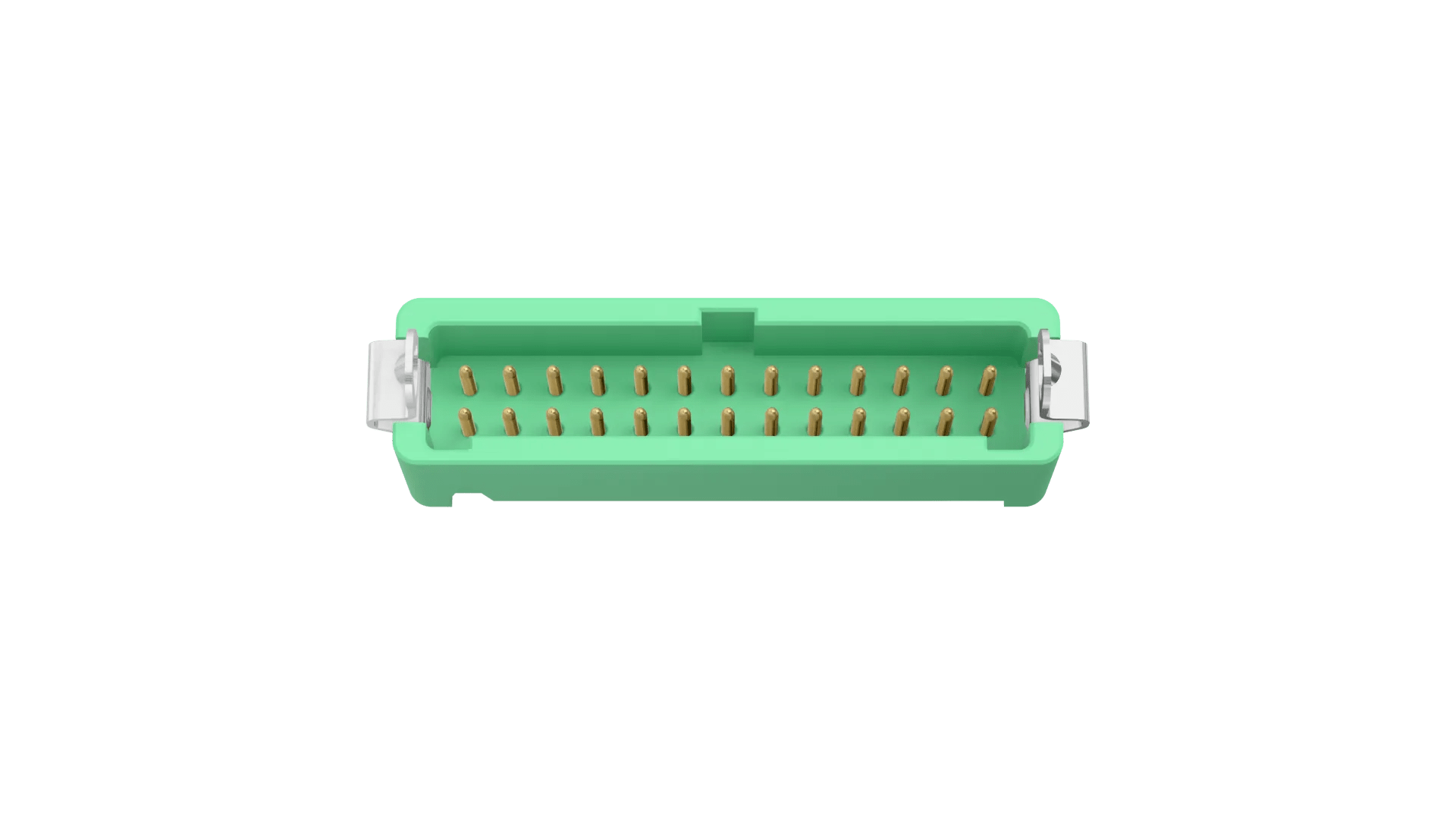

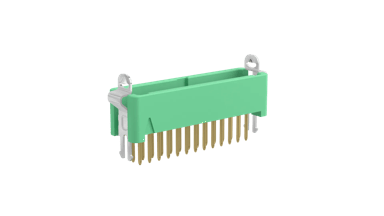

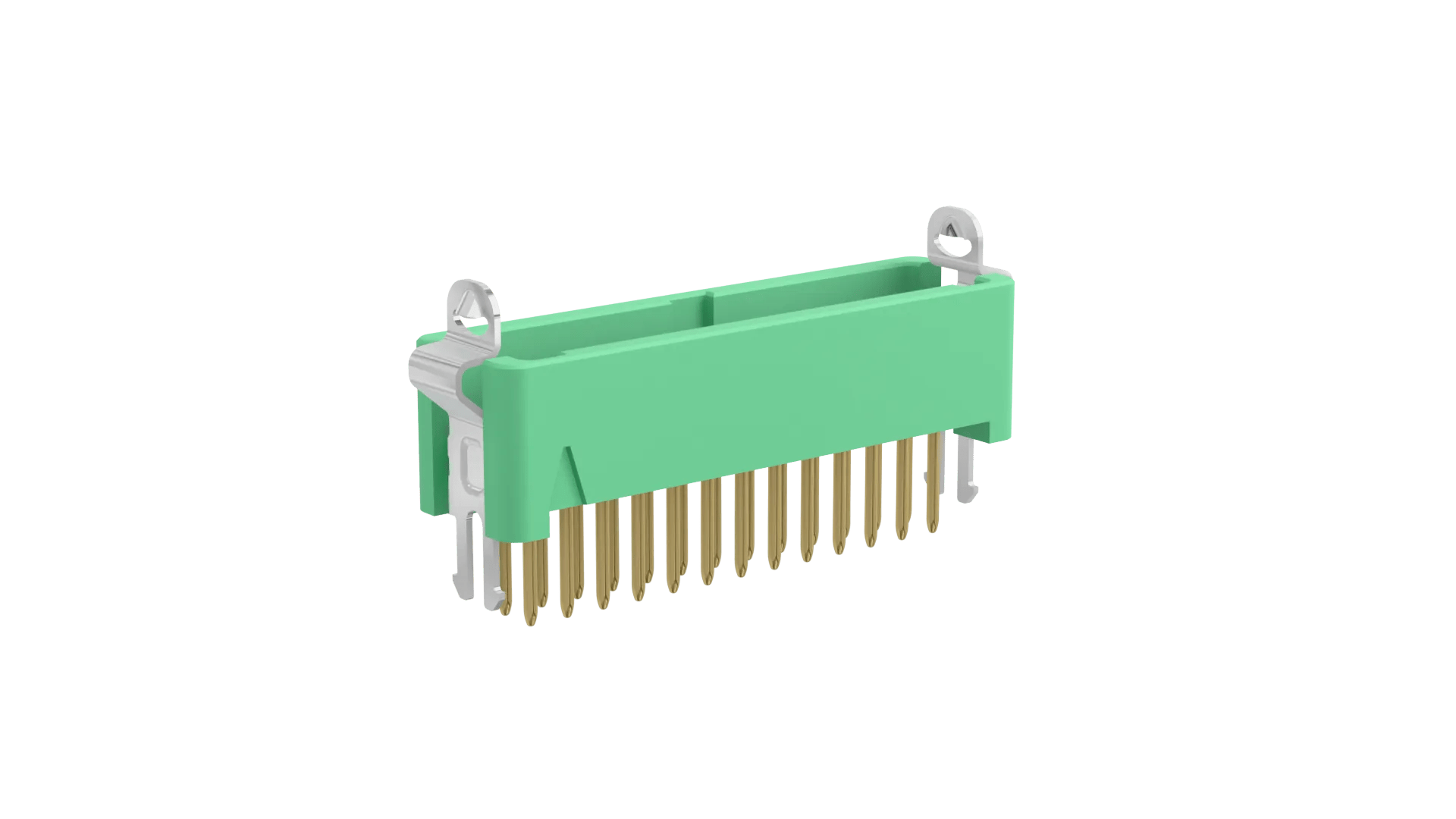

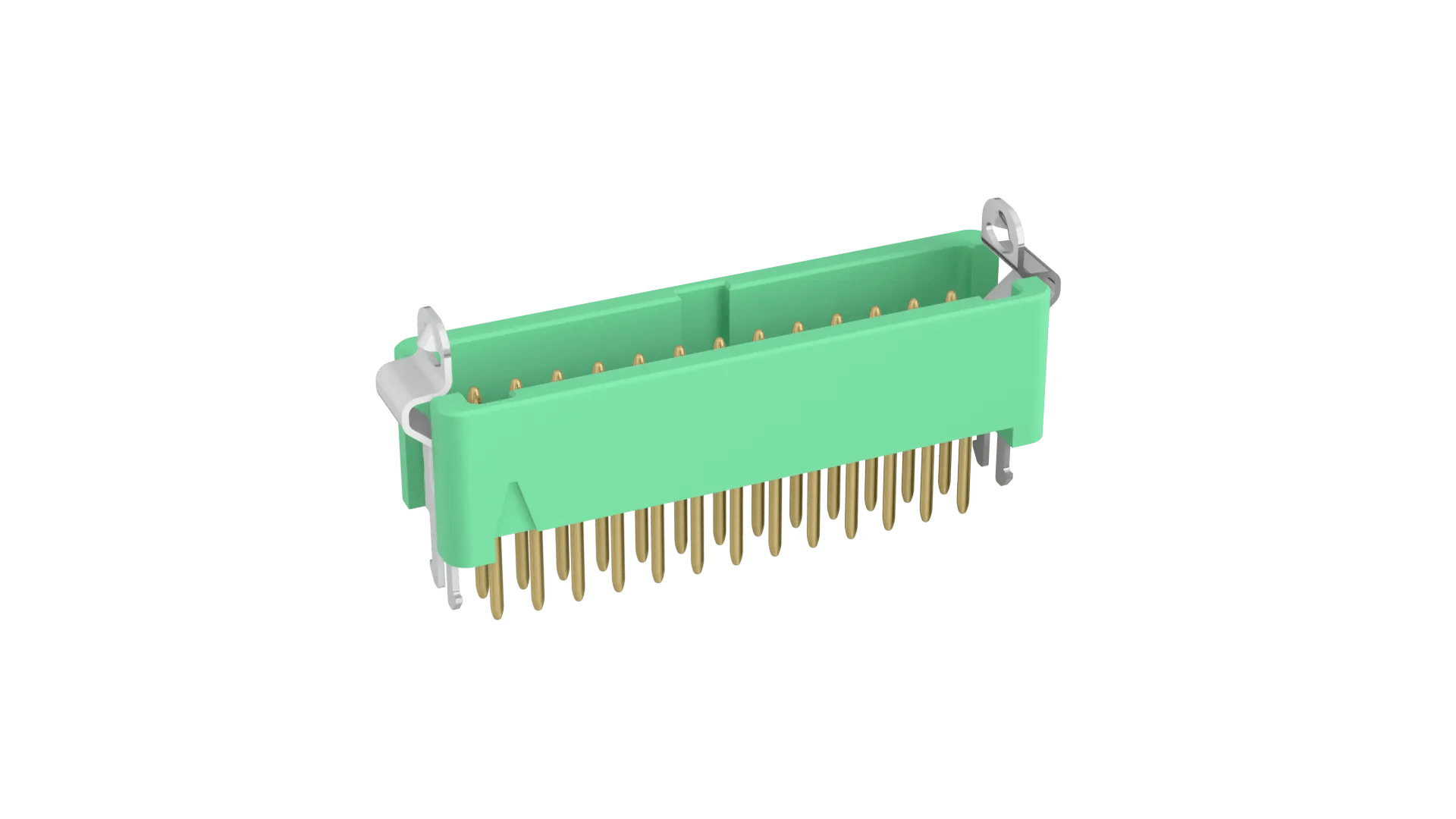

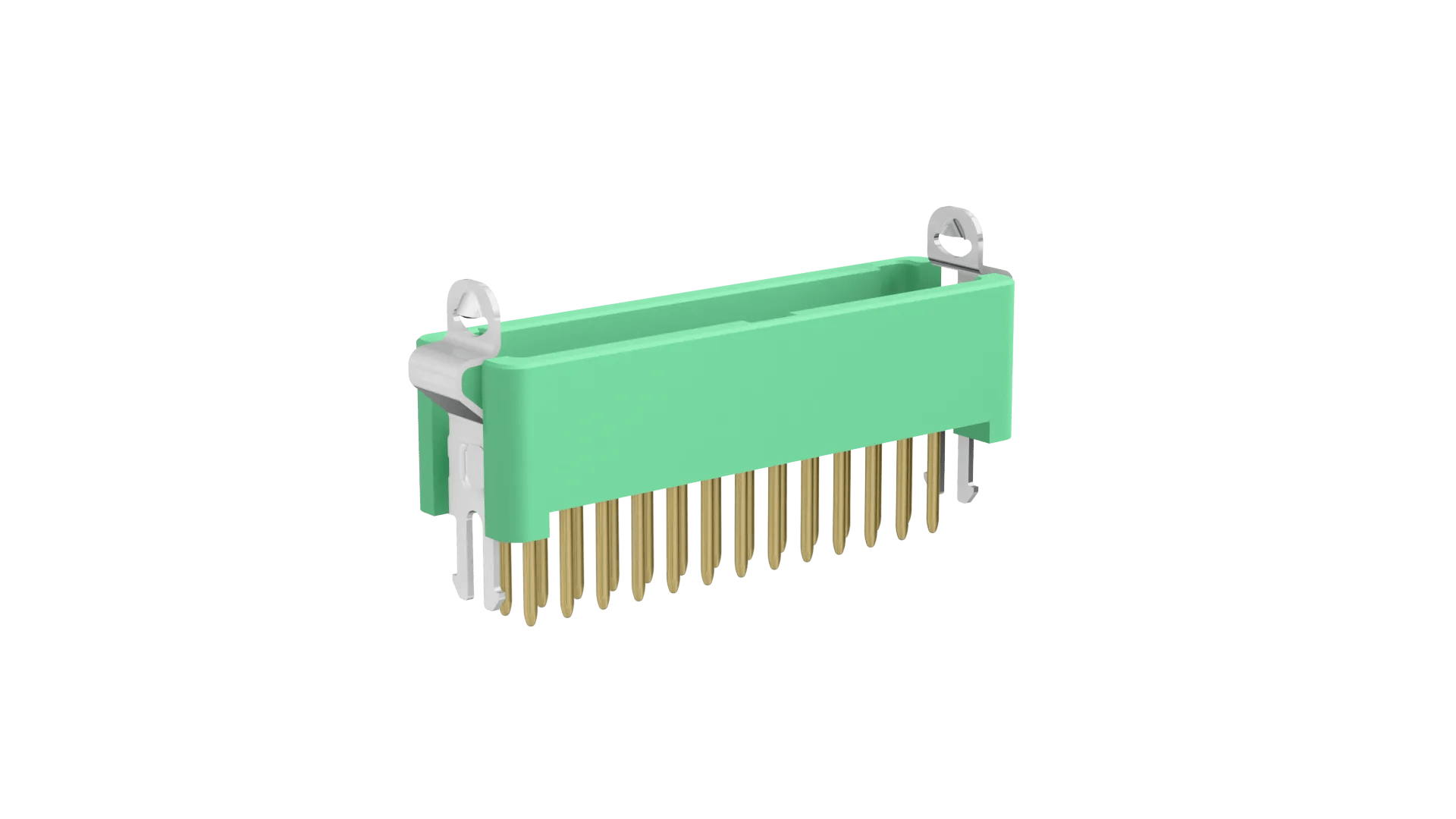

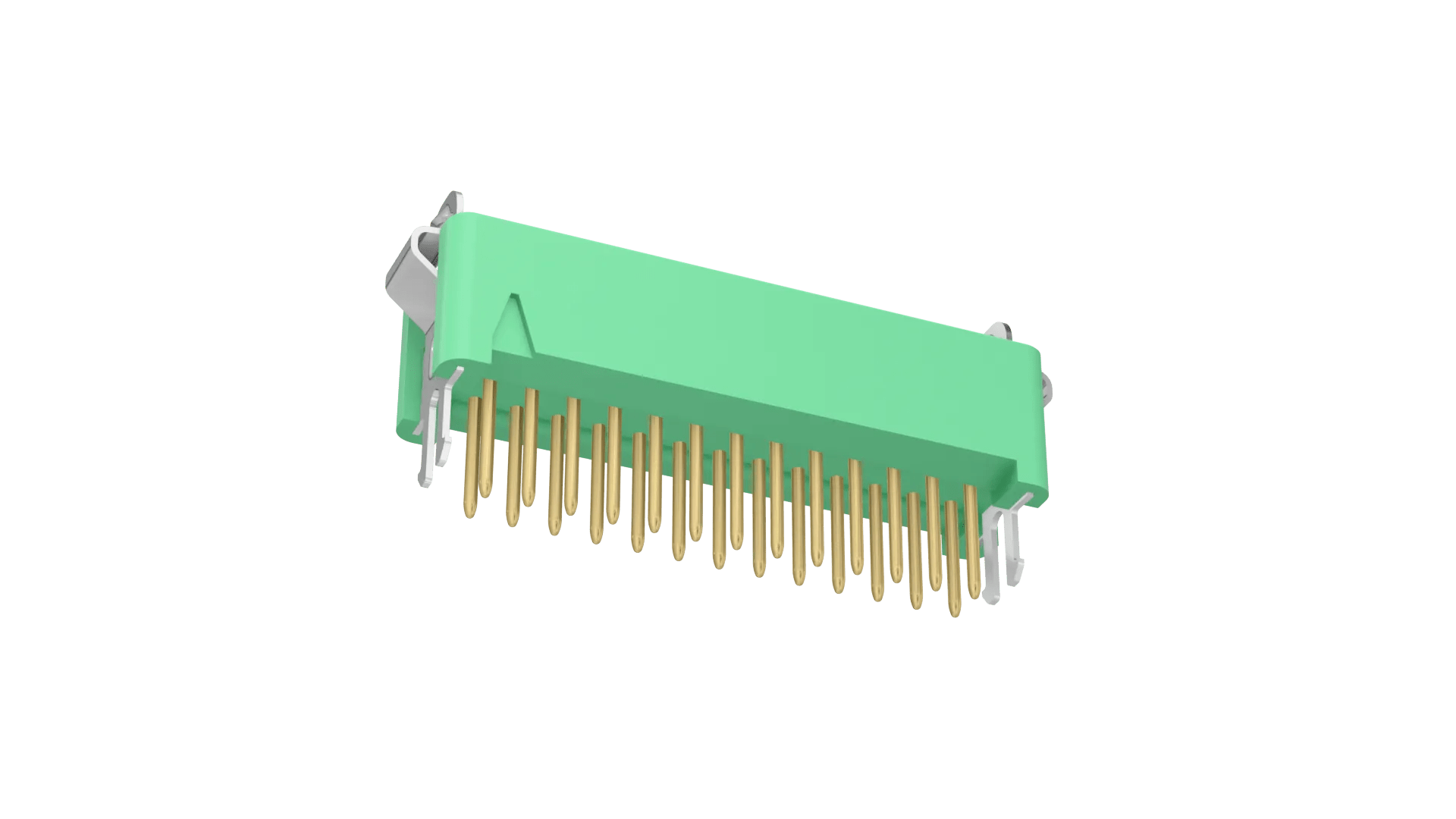

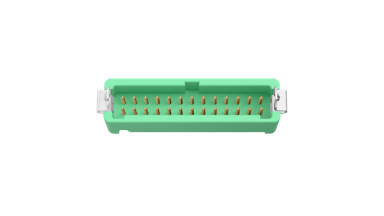

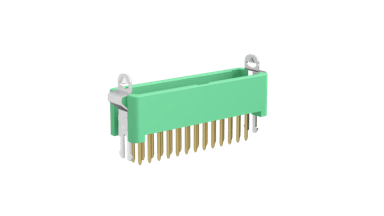

13+13 Pos. Male DIL Vertical Throughboard Conn. Latches (T+R)
1.25mm Pitch High-Reliability Connector - Gecko with Latches
- Double Row male 3mm PC Tail connector, Latches with through-hole barbs for 1.6mm PCB thickness – 26 contacts (13+13). Through-hole barbs can be used as location pegs, or soldered to PCB for additional strain relief.
- Supplied on Tape and Reel with pick and place cap. Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C125XX.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
2.8A max individual contact, 2A max simultaneous (25°C)
-65°C to +150°C
Max Solder Temperature: 260°C for 10 seconds
Style of Latches:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 4T
Housing Material UL Rating:
Tape and Reel
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
20.20 x 4.90 x 9.80
Height of Connector above PCB:
Length of Throughboard Tail:
500 in stock
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
