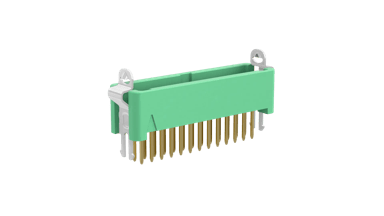

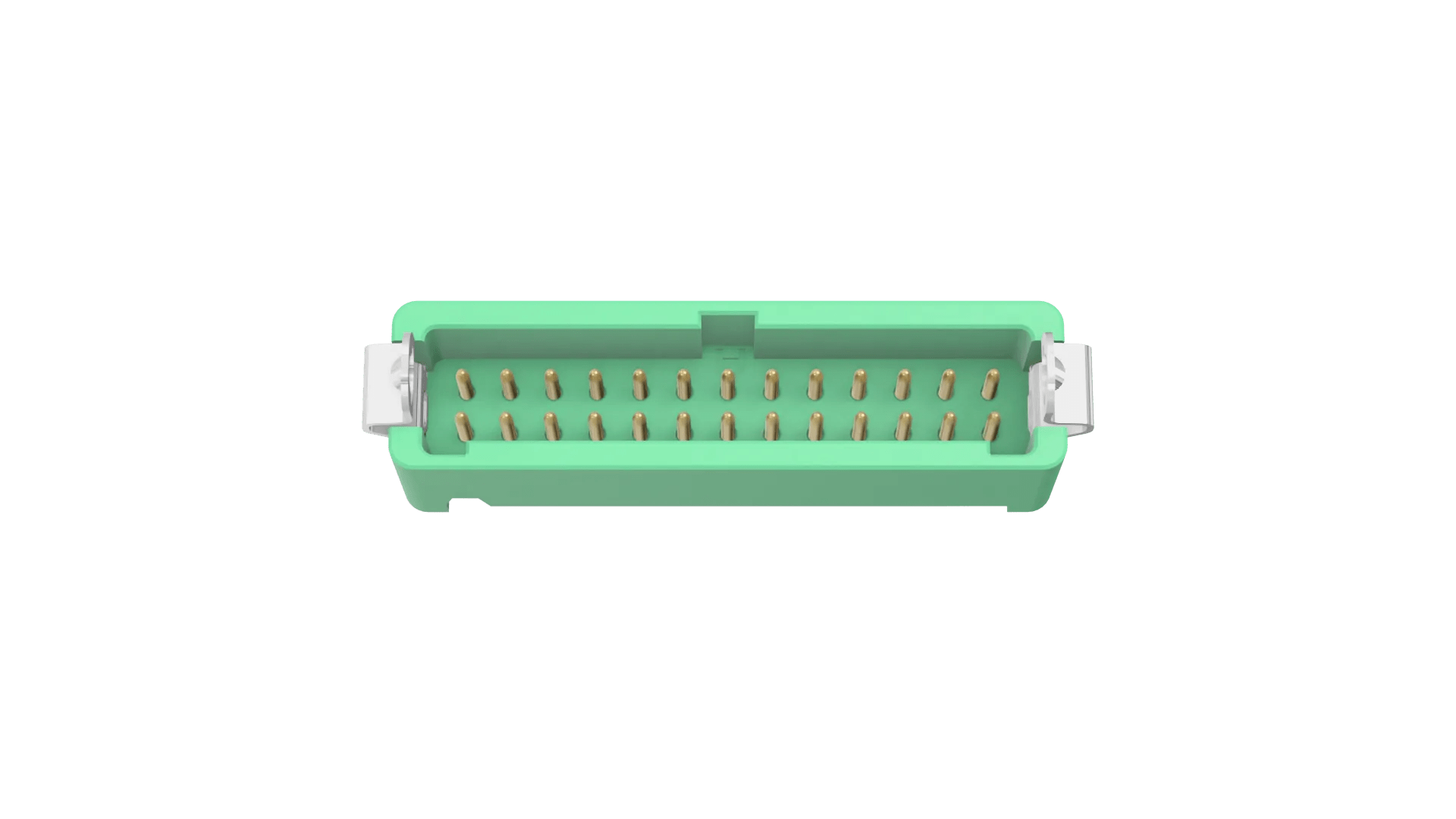

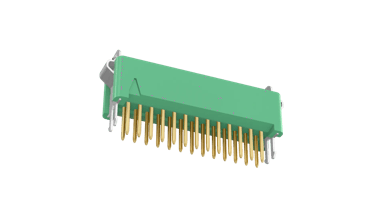

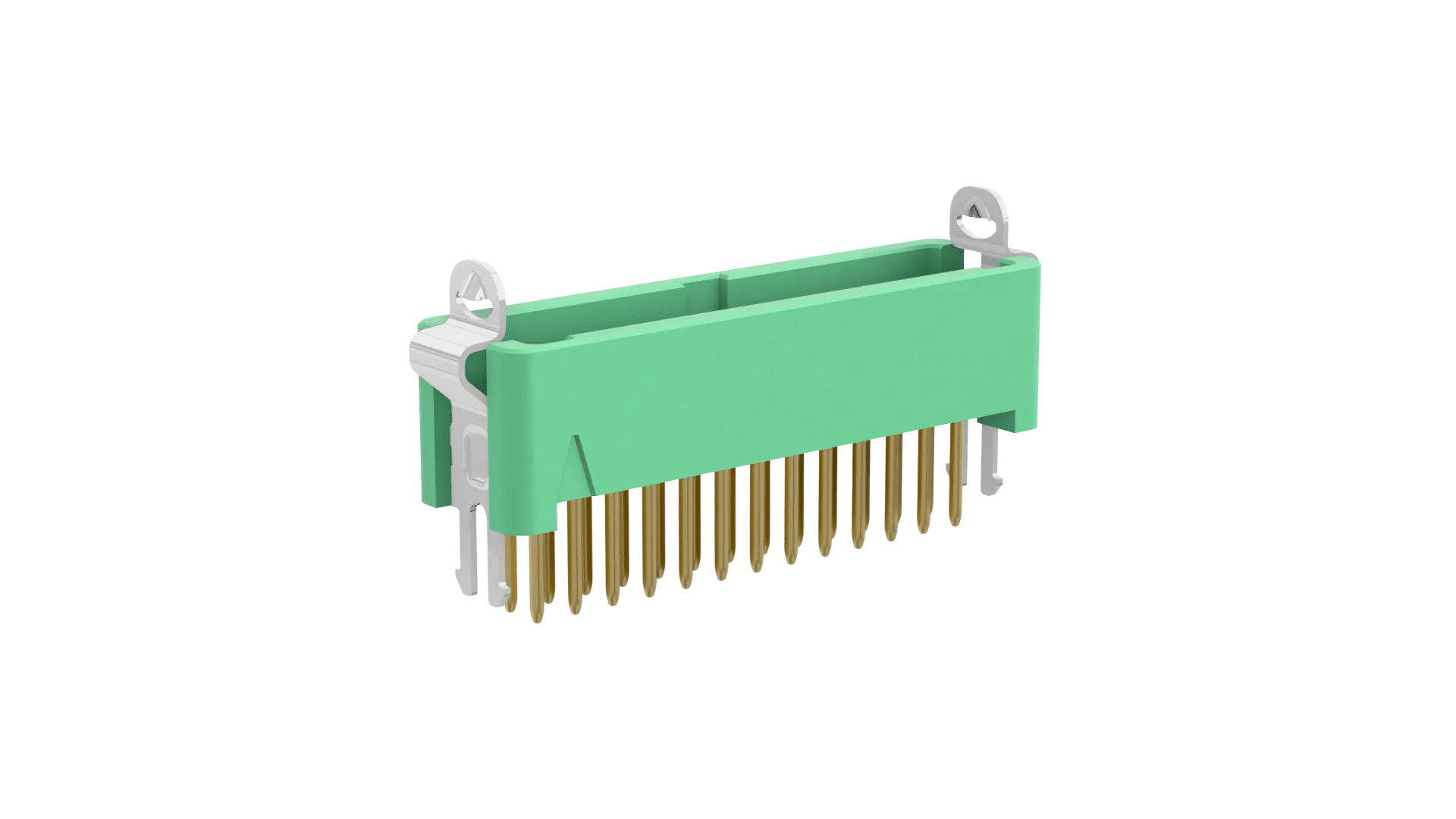

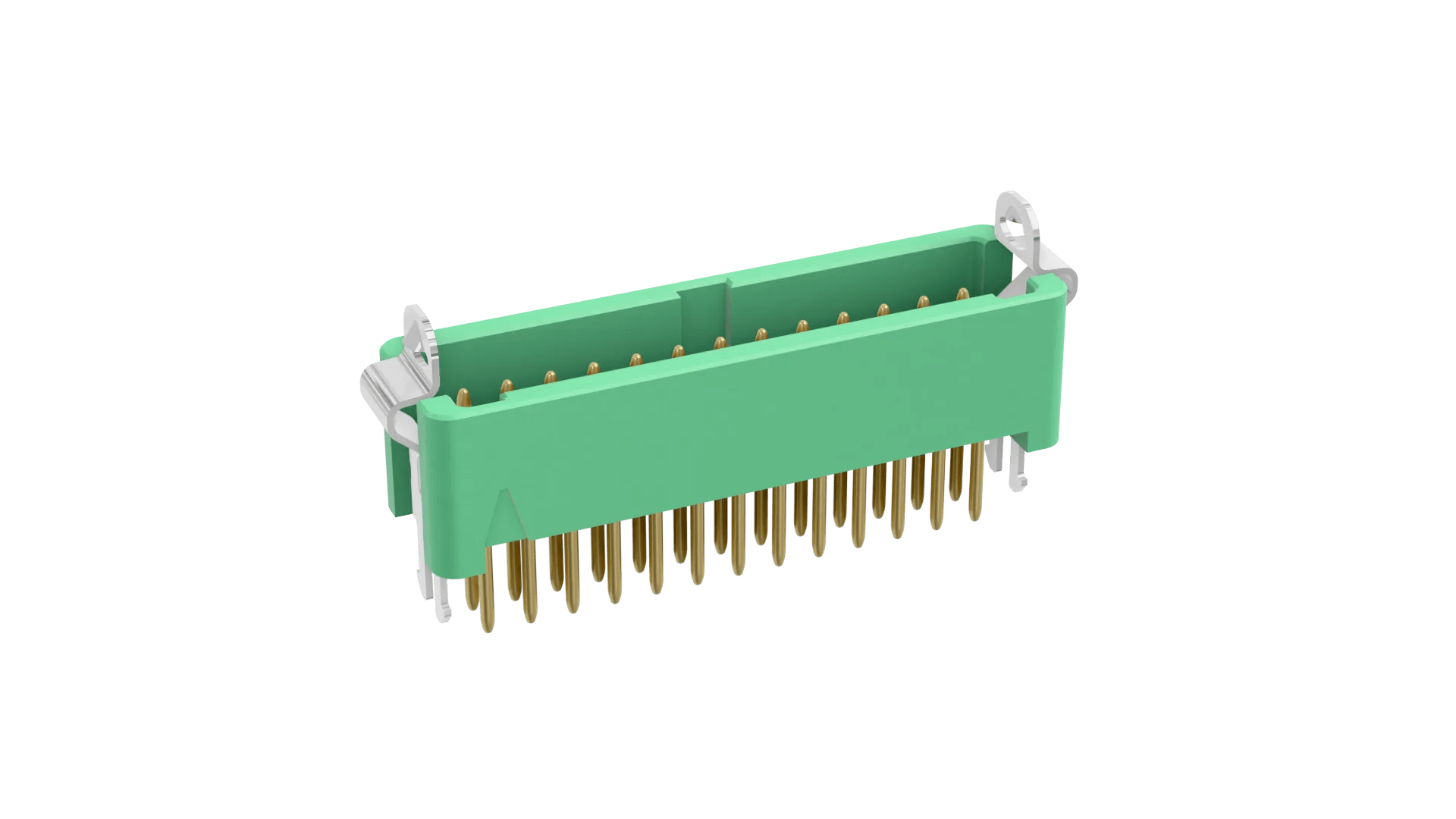

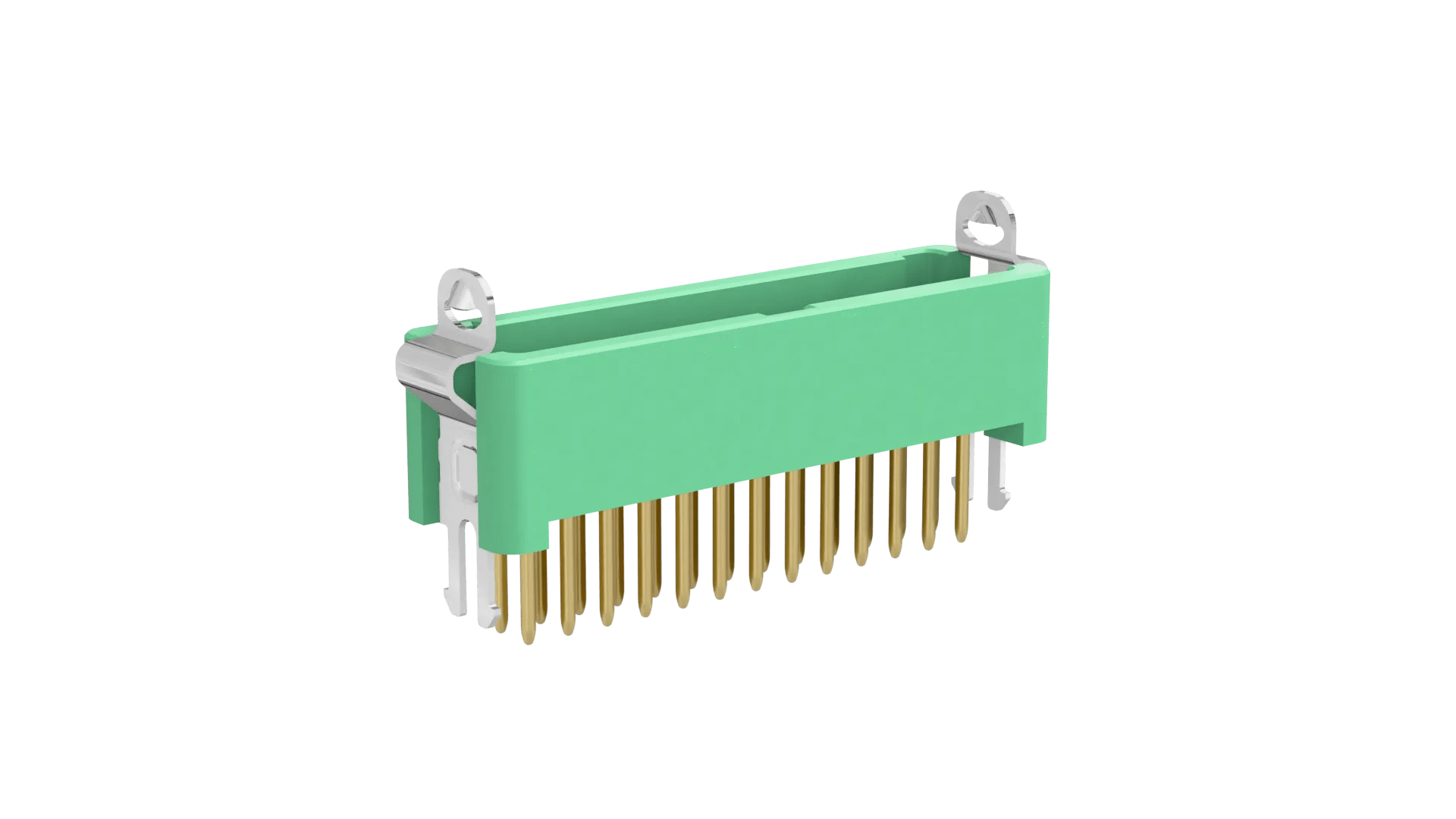

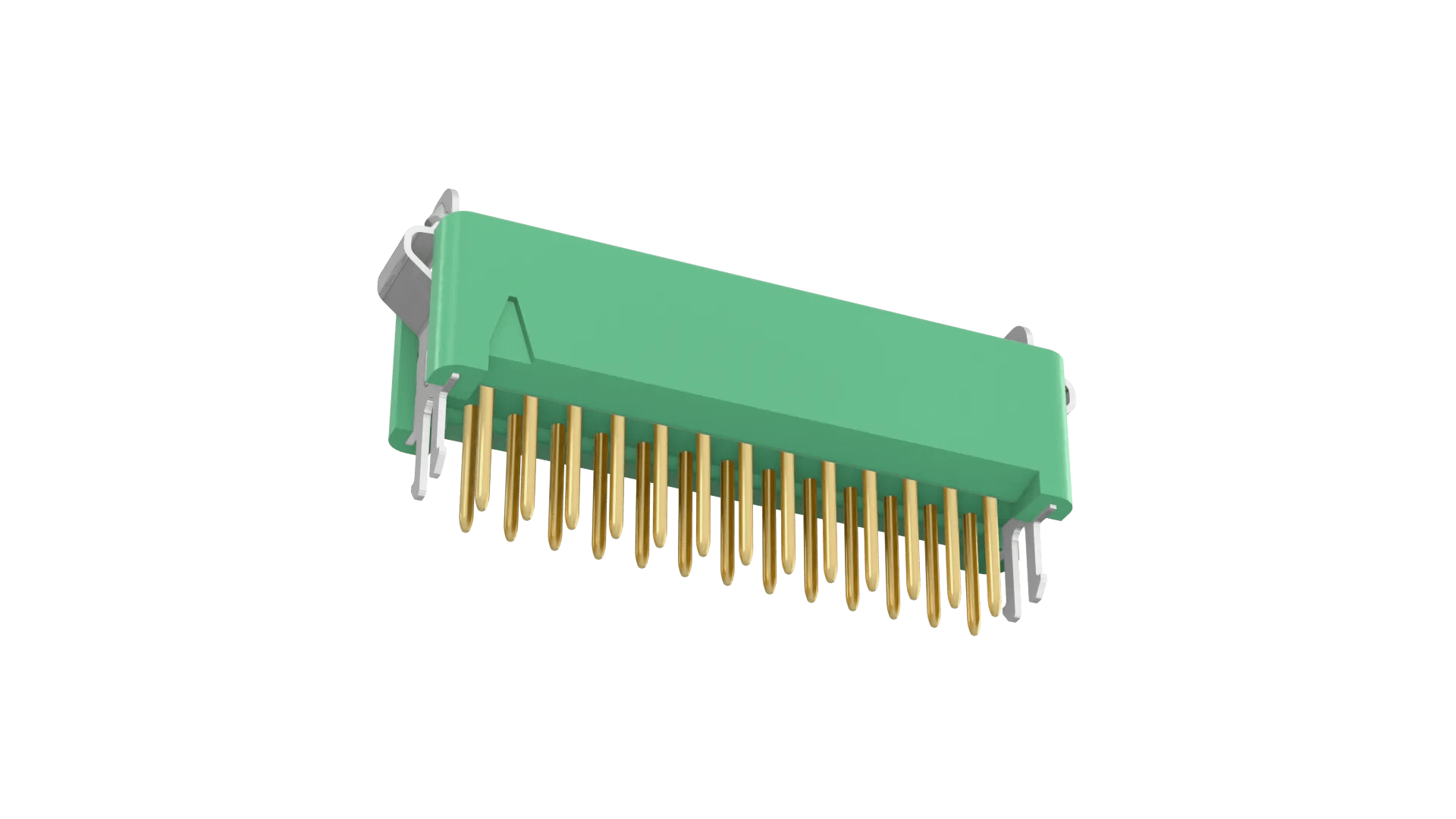

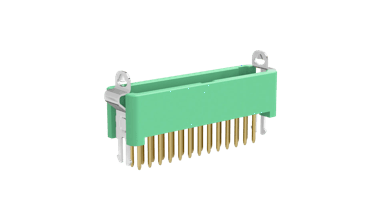

G125-MV12605L1P

13+13 Pos. Male DIL Vertical Throughboard Conn. Latches

1.25mm Pitch High-Reliability Connector - Gecko with Latches

  • Double Row male 3mm PC Tail connector, Latches with through-hole barbs for 1.6mm PCB thickness – 26 contacts (13+13).
  • Supplied in tape strips with pick and place cap.
  • Through-hole barbs can be used as location pegs, or soldered to PCB for additional strain relief.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.4mm

Current Rating:

2A

Operating Temperature:

-65°C to +150°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Latches:

Locking Latch

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

26

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel Strip

Dimensions

Individual Part Weight:

0.729g

Overall Dimensions (L x W x D) in mm:

20.20 x 4.90 x 9.80

Height of Connector above PCB:

6.80mm

Length of Throughboard Tail:

3.00mm

Availability

Popular product
Distributor Location Quantity
Anglia
Europe
Status25
Digi-Key
Global
Status224
Farnell
Europe
Status123
Harwin
Global
Status707
Mouser Electronics Inc
Global
Status37
Newark
USA
Status123
TTI Inc
USA
Status86

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

Do you have a tool to help separate this connector when it is latched to the mating half?

The tool you need is the Z125-9262600 – this will help push in the two latch buttons when the connectors are engaged, so you can then separate the mated connectors. Consult the training video for more information on using this tool. It is also possible to push in the two buttons by hand as well, if you have good access.
