Home > G125-MV12005M1P
Active

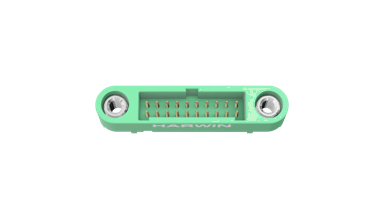

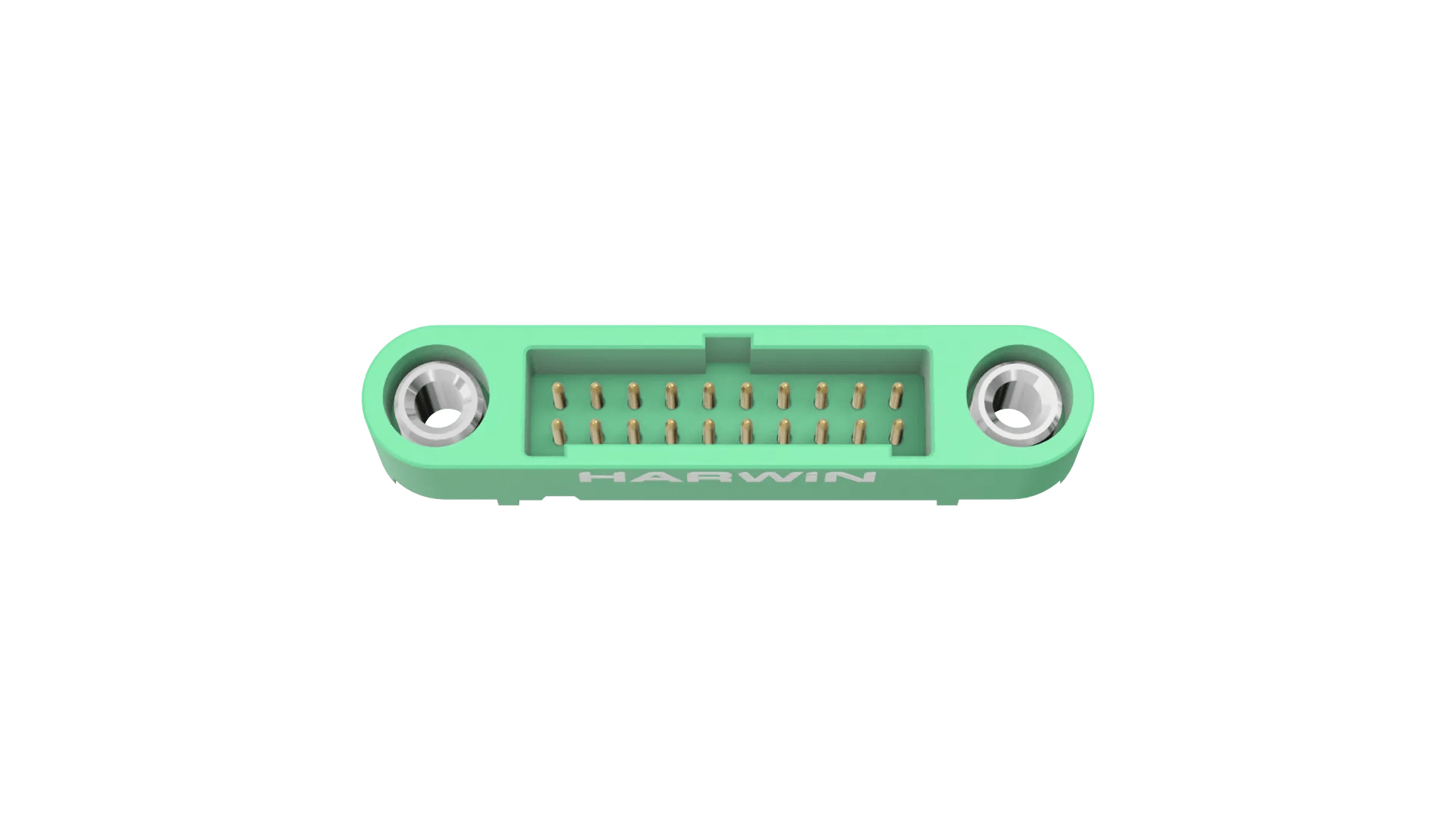

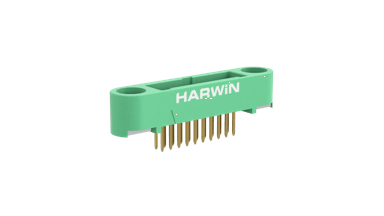

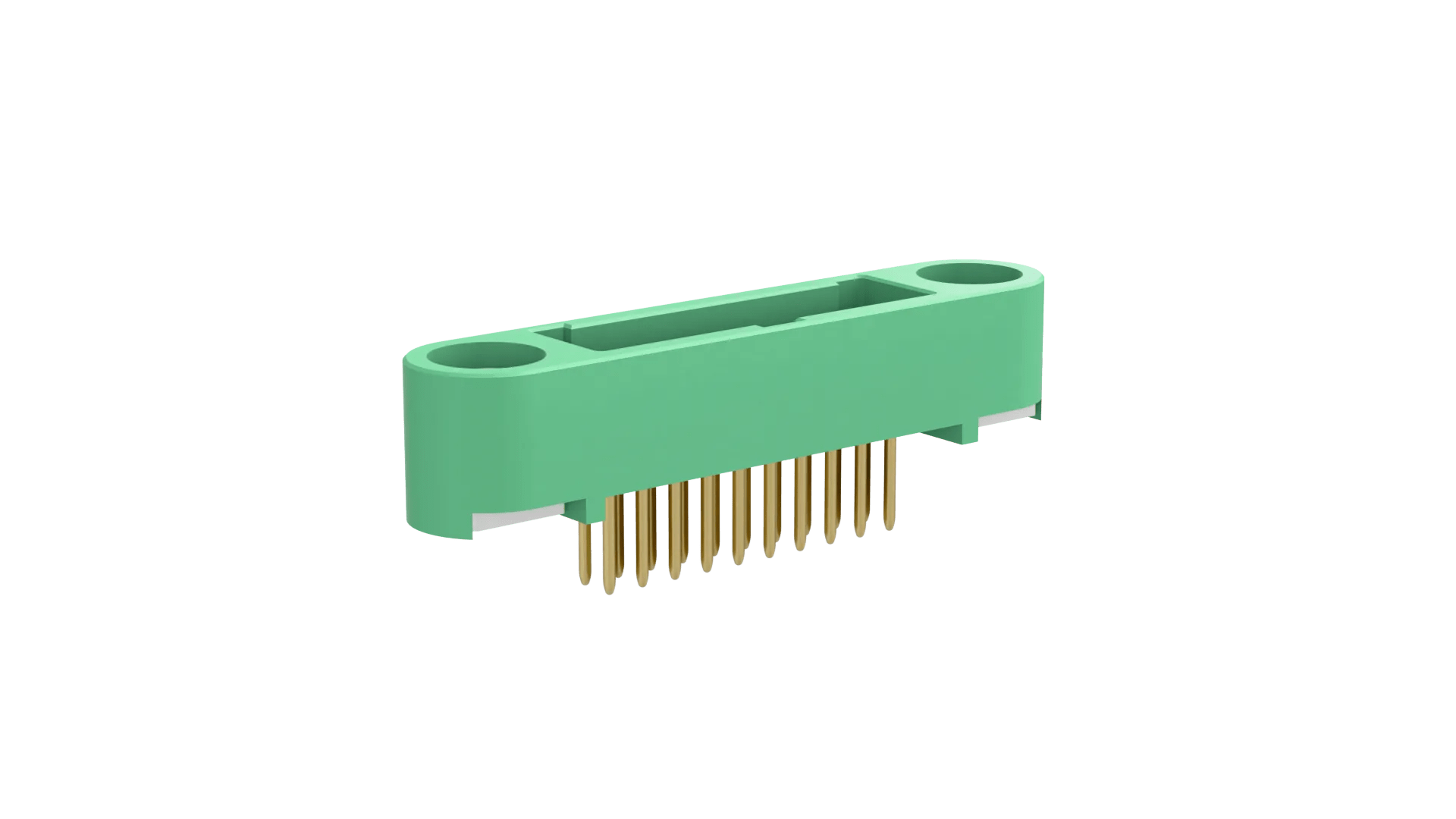

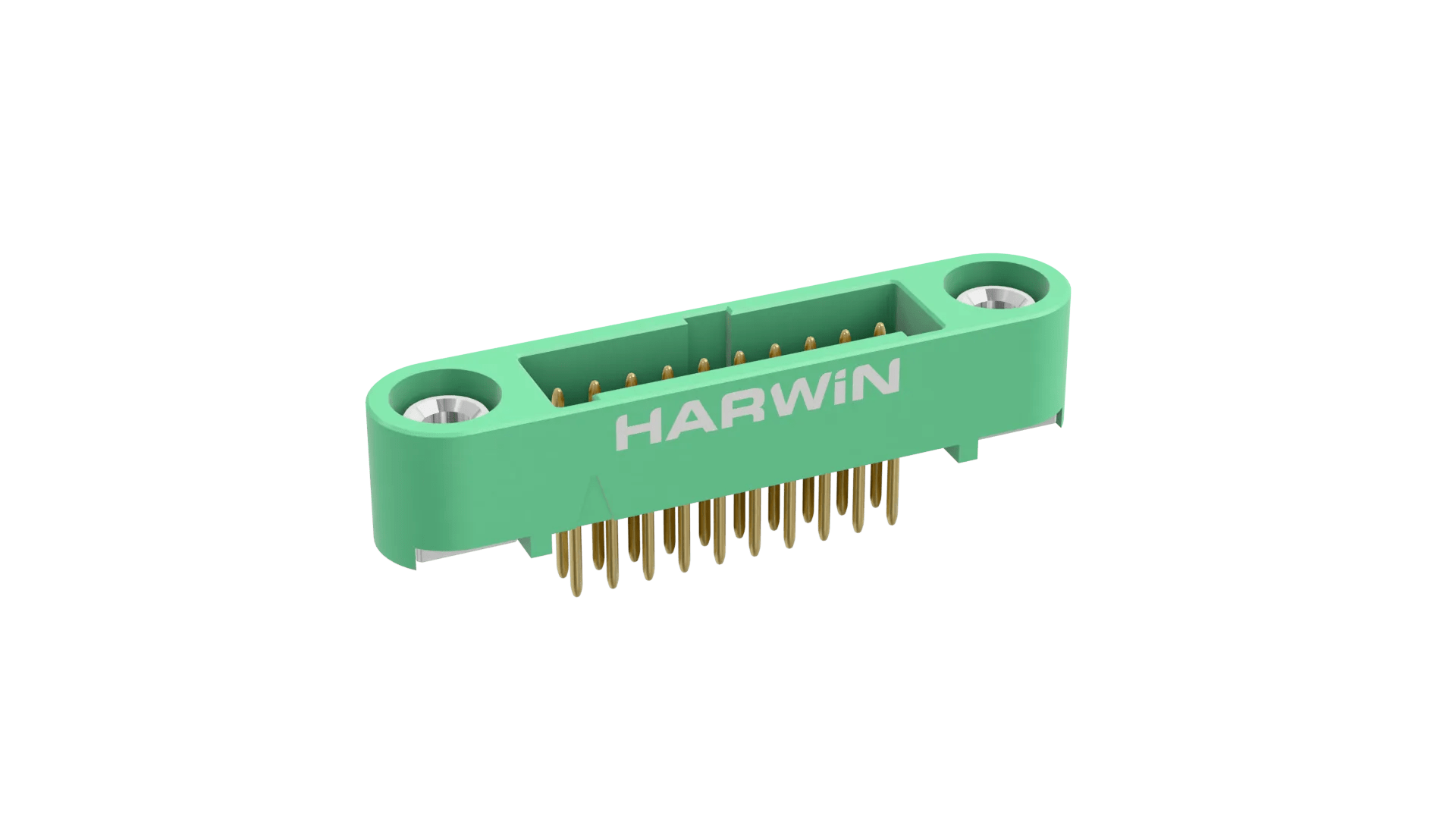

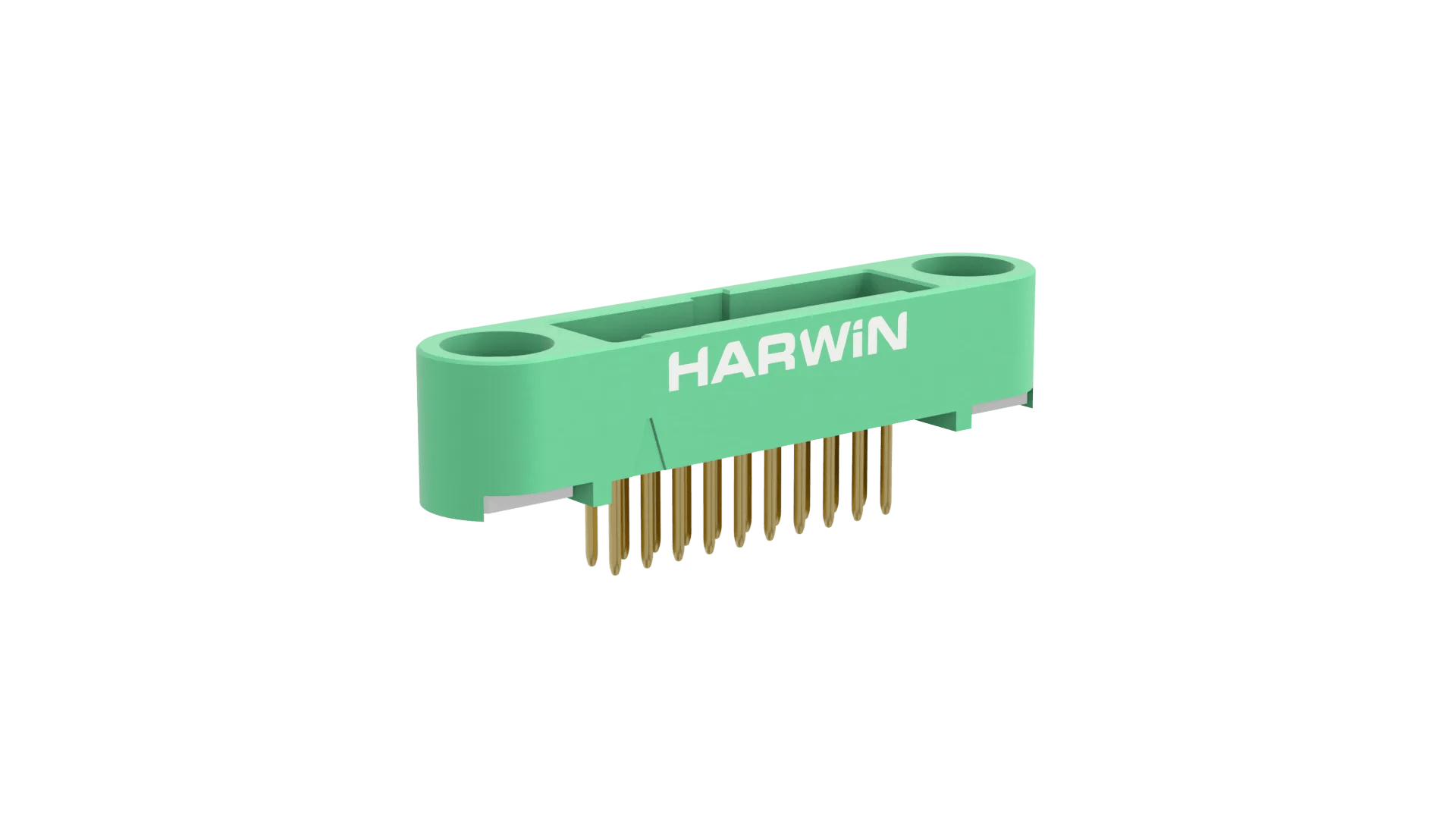

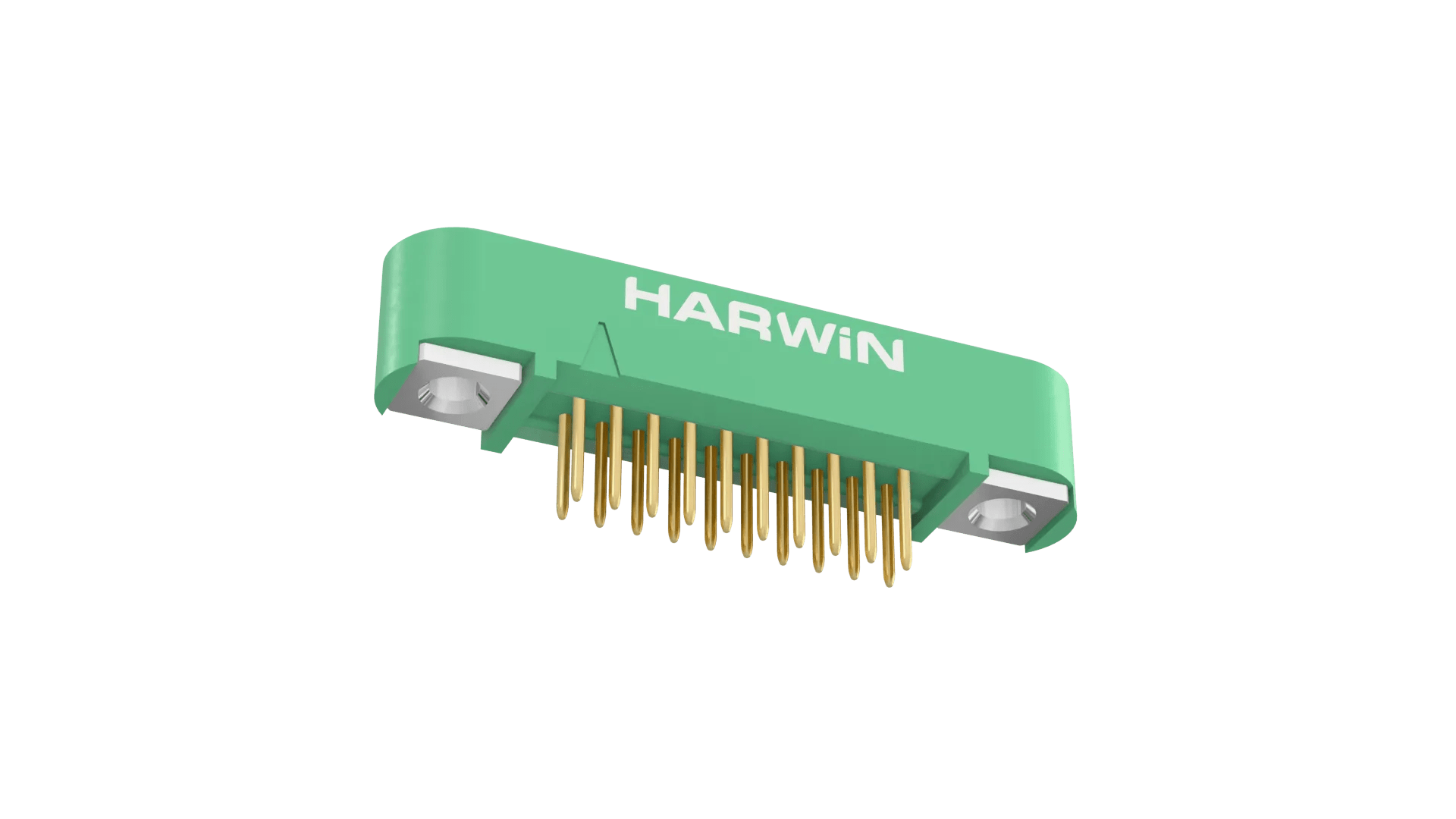

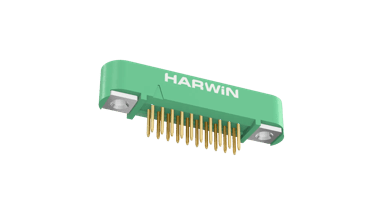

G125-MV12005M1P

10+10 Pos. Male DIL Vertical Throughboard Conn. Screw-Lok

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

  • Male Double Row 3mm PC Tail connector, internally threaded Screw-Lok fixings – 20 contacts (10+10).
  • Supplied in tape strips with pick and place cap. Gold finish on contact area and termination.
  • For complete pin numbering or pin out information, see Component Specification C125XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Screw-Lok

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

20

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel Strip

Dimensions

Individual Part Weight:

0.996g

Overall Dimensions (L x W x D) in mm:

23.95 x 4.90 x 7.90

Thread Size:

M2

Height of Connector above PCB:

4.90mm

Length of Throughboard Tail:

3.00mm

Availability

Popular product
Distributor Location Quantity
Digi-Key
Global
Status95
Farnell
Europe
Status16
Harwin
Global
Status520
Mouser Electronics Inc
Global
Status198
TTI Inc
USA
Status50

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

What torque value should be used for these screw-loks?

The torque value for mating screw-loks is 16-18cmN. This value is given in the Component Specification C125xx (page 3).

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - G125-MV1XX05M1P.pdf

ZIP

G125-MV12005M1x CAD Model (ZIP file containing STP and IGES)

Download
PDF

C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

TEST REPORTS

PDF

Test Report HT030 - Gecko (G125 Series) - Electrical, Mechanical and Environmental

PDF

Test Report HT067 - Gecko-SL (G125 Series) - Mechanical Screw-Lok test

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for G125-MV1XX05M1X series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Gecko Screw-Lok range, 1.25mm pitch High-Reliability

OTHER DOWNLOADS

PDF

Catalog page - Gecko Screw-Lok Male Vertical Throughboard

PDF

Catalog page - Gecko Screw-Lok Specification, Pin Numbering

PDF

Catalog page - Gecko Screw-Lok Mating Profiles

PDF

Catalog page - Gecko Introduction

PDF

Product Summary - Gecko-SL High-Reliability Connectors
