Home > G125-MV11605M3P
Active

G125-MV11605M3P

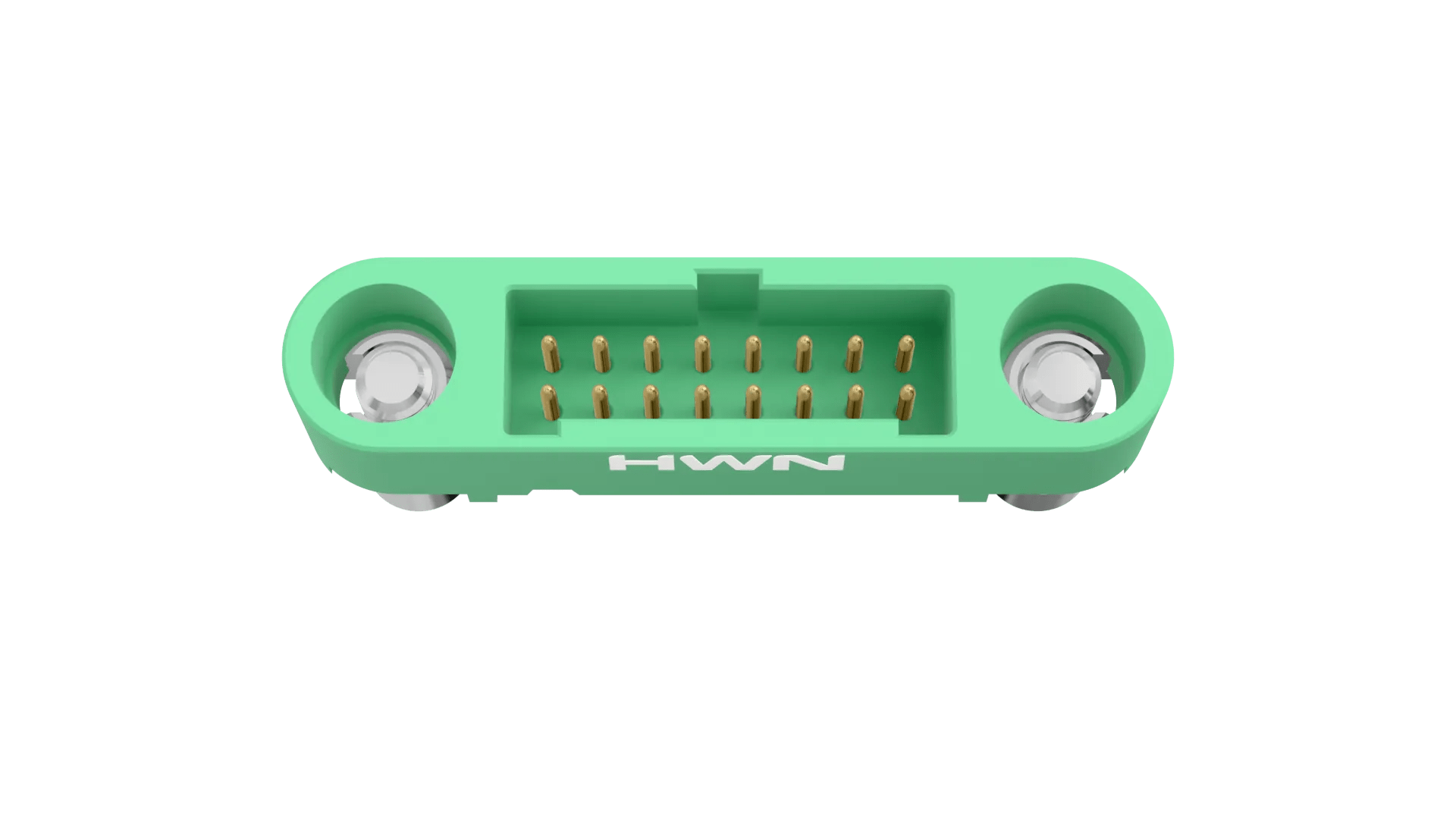

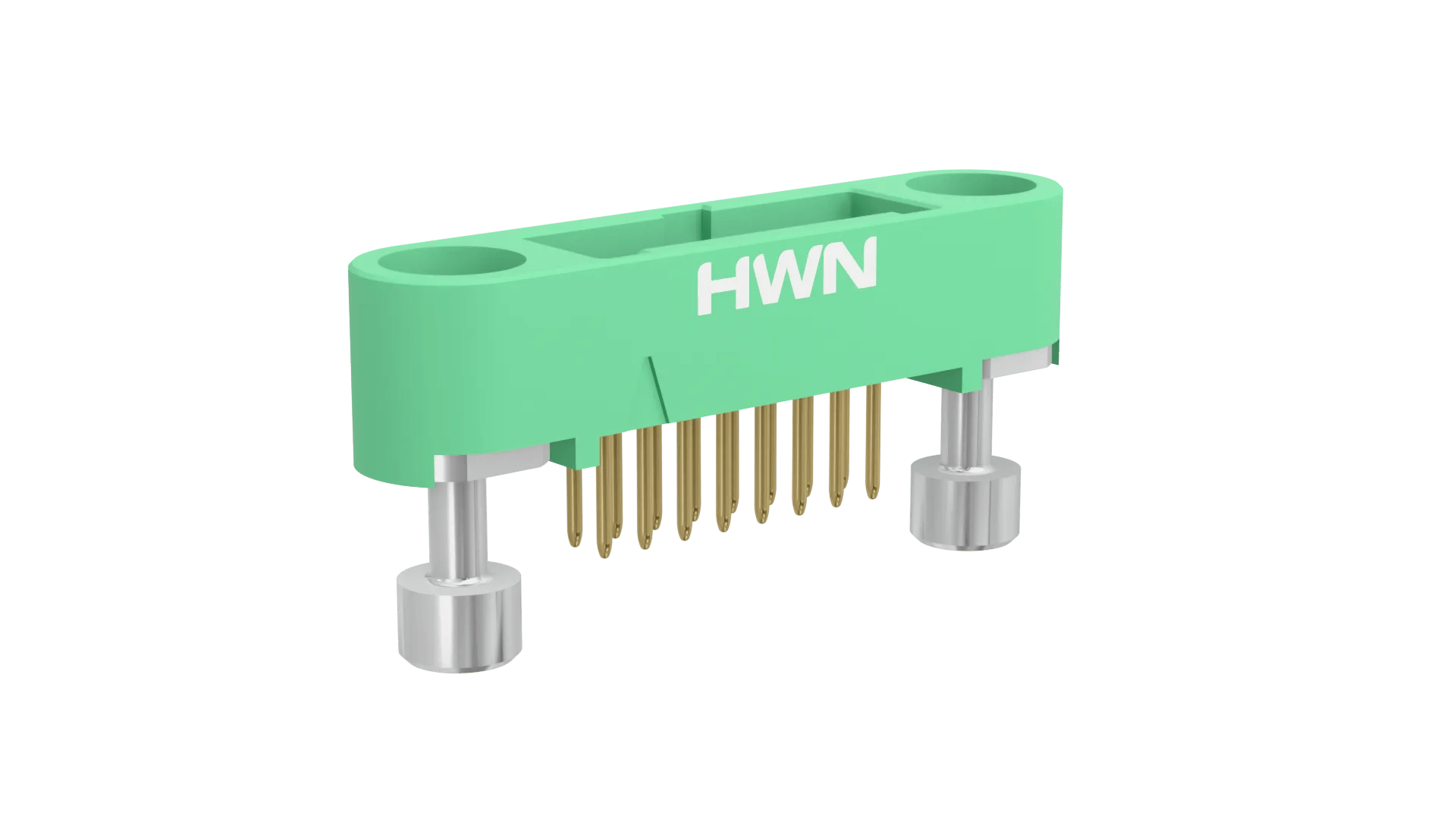

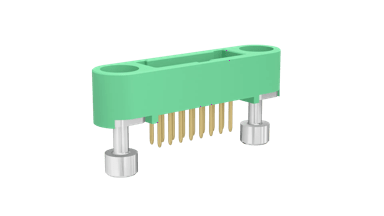

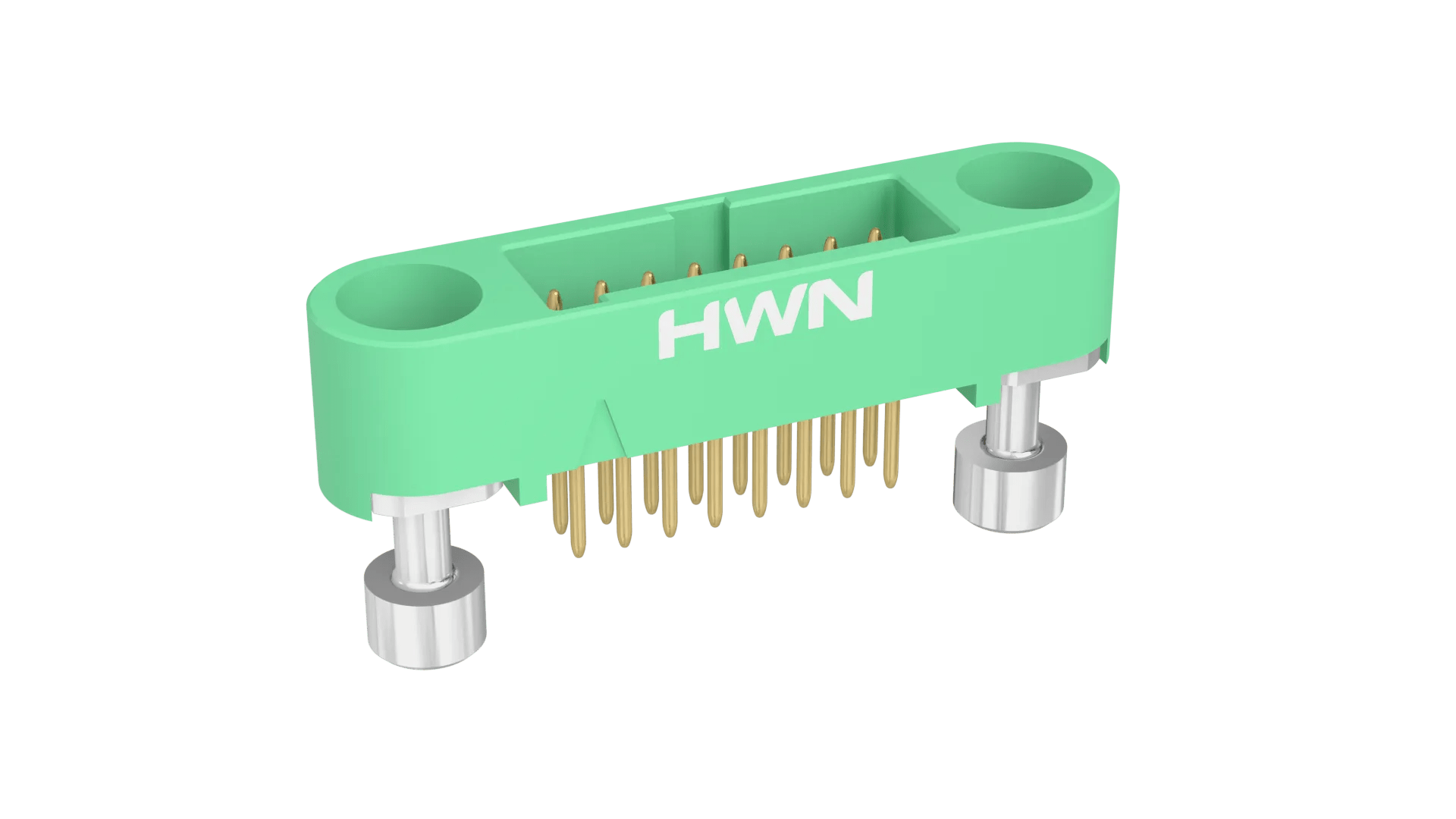

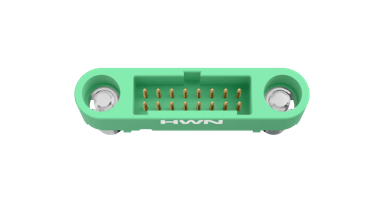

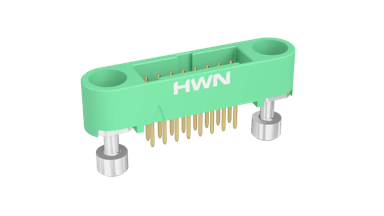

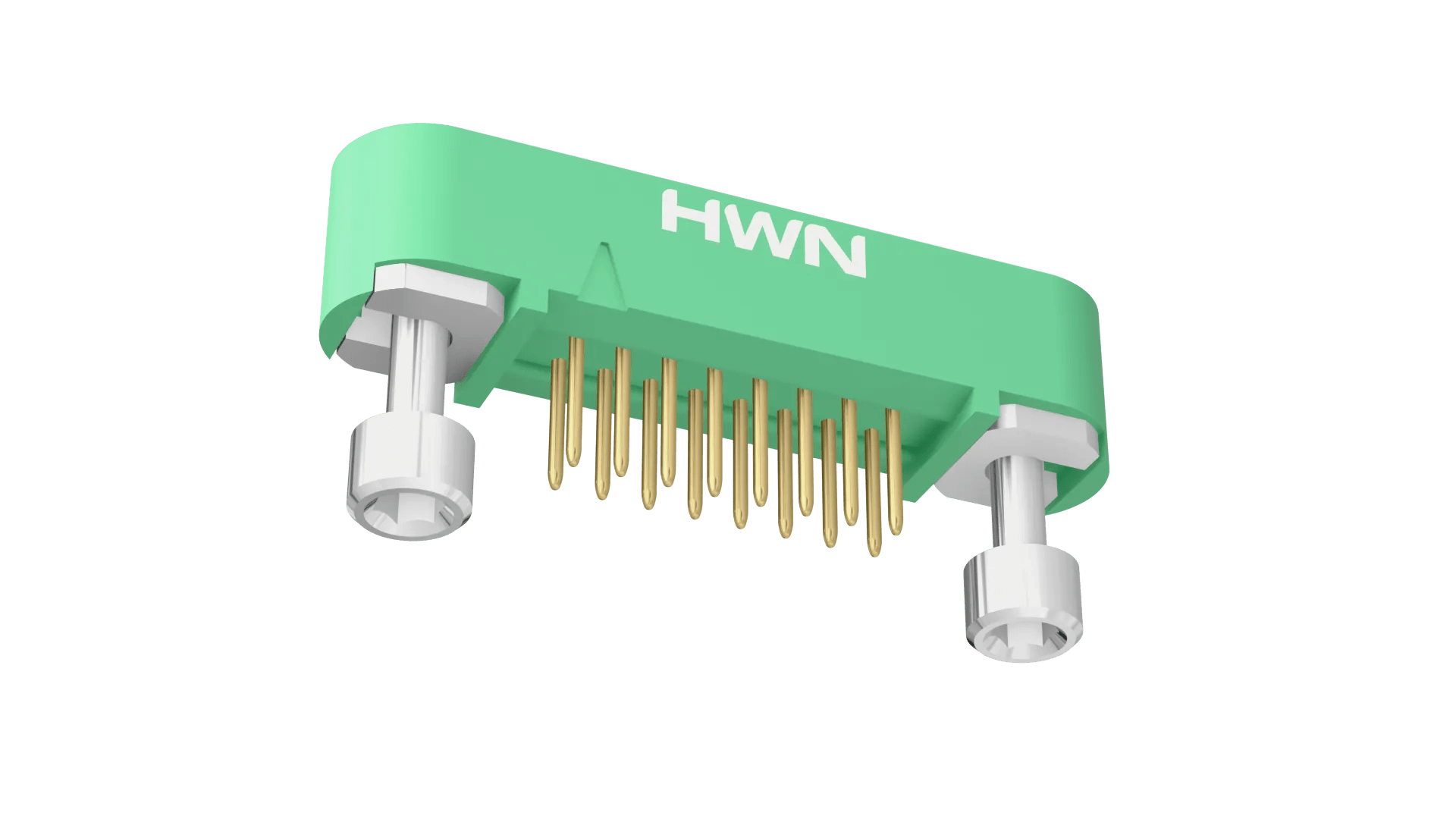

8+8 Pos. Male DIL Vertical Throughboard Conn. Screw-Lok Reverse Fix

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

  • Male Double Row Vertical 3mm PC Tail connector – 16 contacts (8+8). Fitted with floating Screw-Lok fixings, Hexagonal socket head, Mate-before-Lock.
  • Supplied in tape strips with pick and place cap. Gold finish on contact area and termination.
  • For complete pin numbering or pin out information, see Component Specification C125XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Floating Screw-Lok with Hex Socket Head (Reverse Fix)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

16

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel Strip

Dimensions

Individual Part Weight:

1.093g

Overall Dimensions (L x W x D) in mm:

21.45 x 4.90 x 7.90

Thread Size:

M2

Height of Connector above PCB:

4.90mm

Length of Throughboard Tail:

3.00mm

Availability

182 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 54
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 50
Distributor Newark
Location USA
Quantity (Updated Daily) 32
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 30
Distributor Farnell
Location Europe
Quantity (Updated Daily) 16

Questions & Answers Ask a Question

What torque value should be used for these screw-loks?

The torque value for mating screw-loks is 16-18cmN. This value is given in the Component Specification C125xx (page 3).

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required
