G125-MV11205L1R

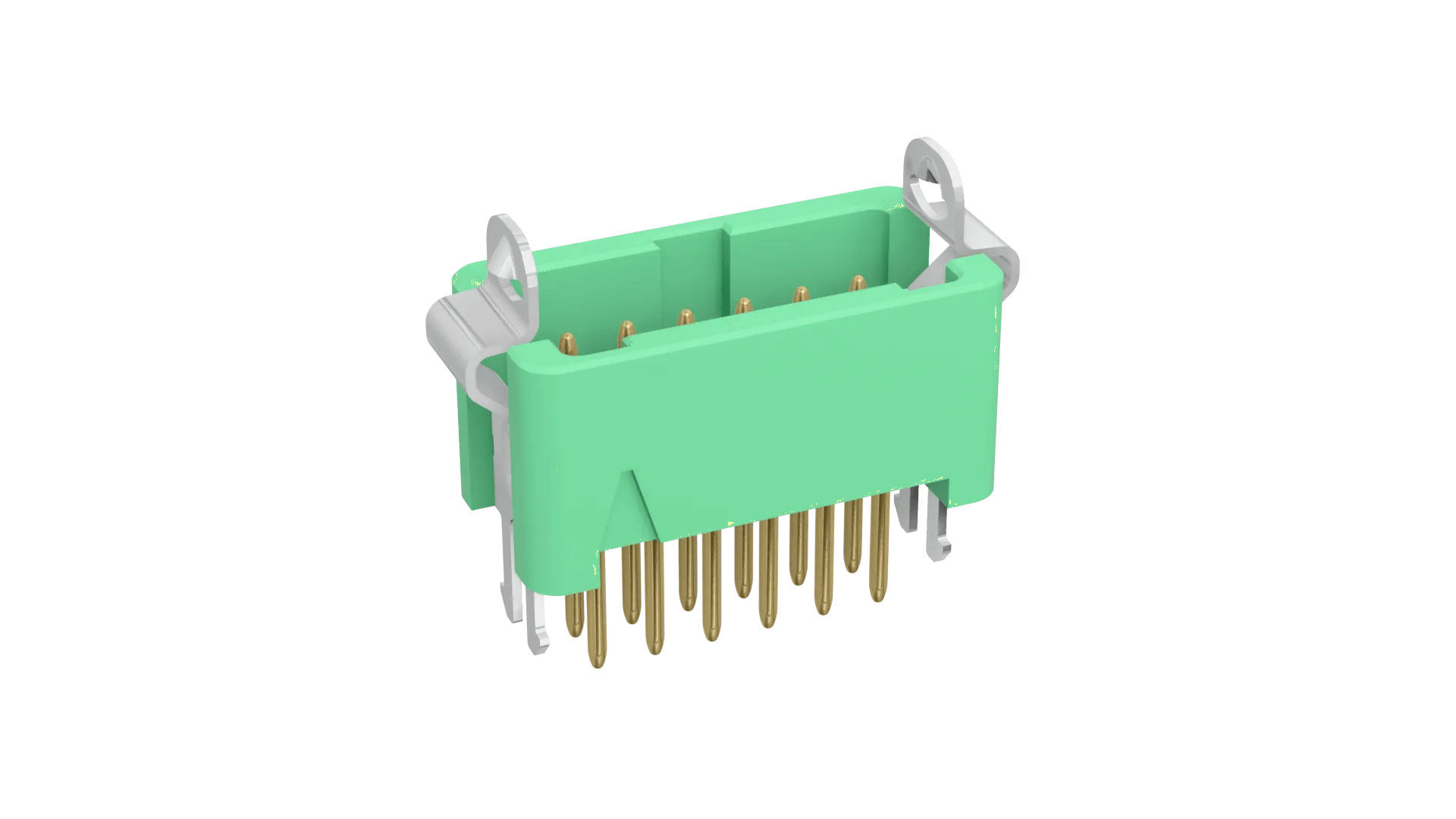

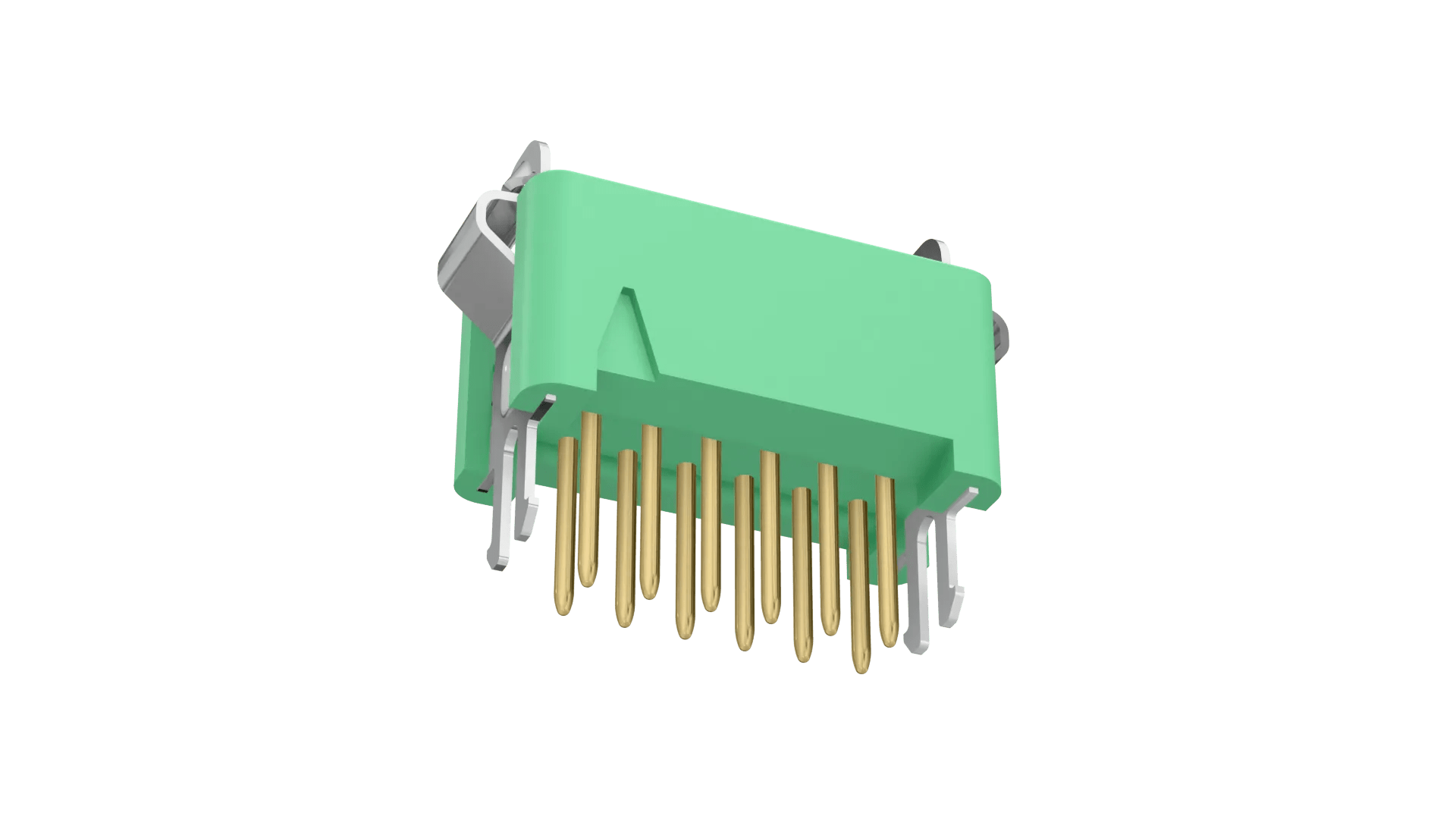

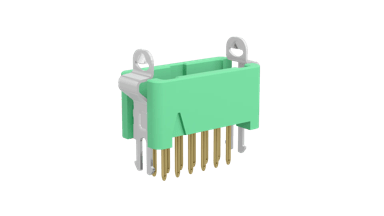

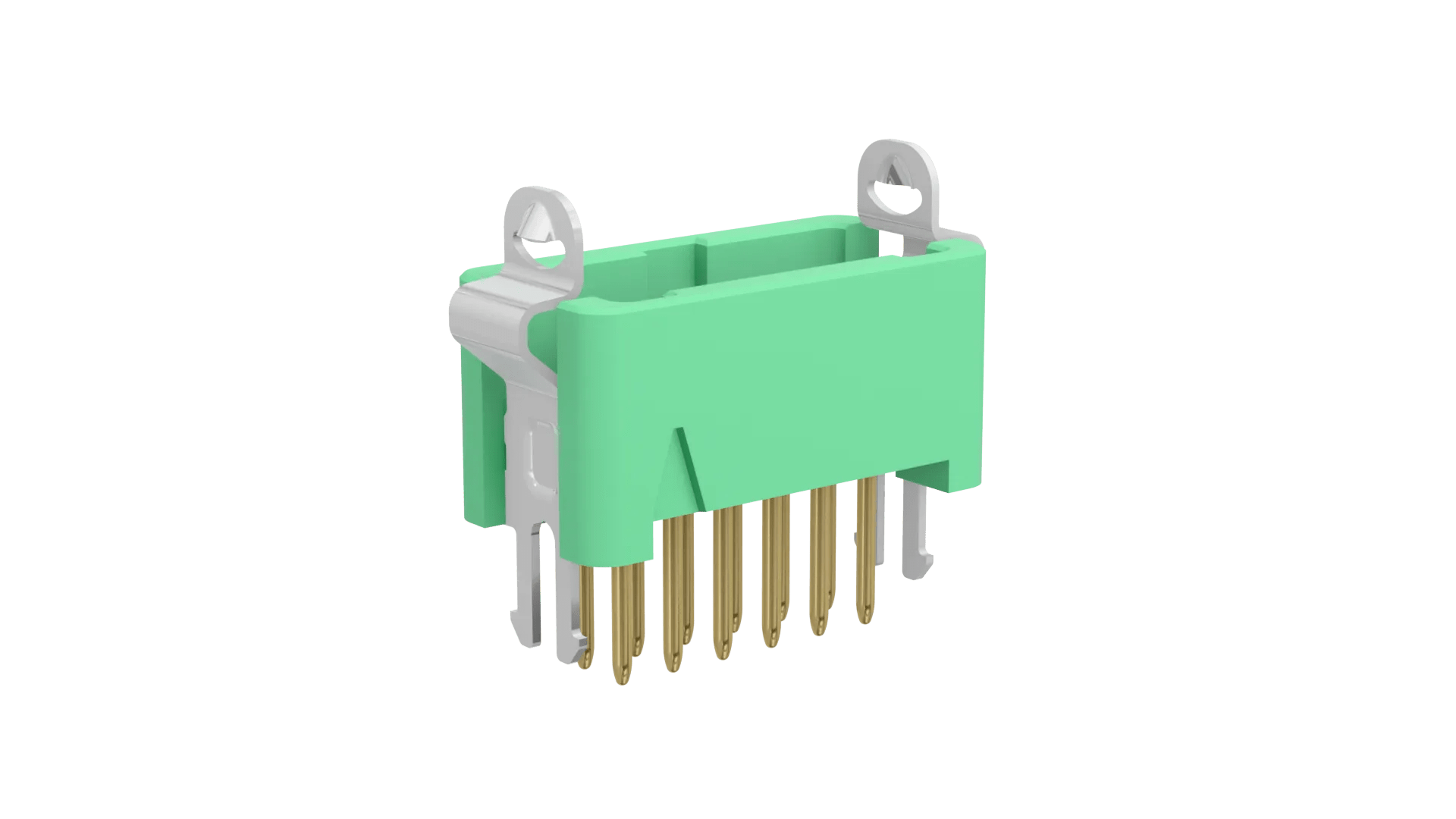

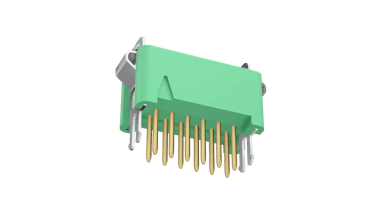

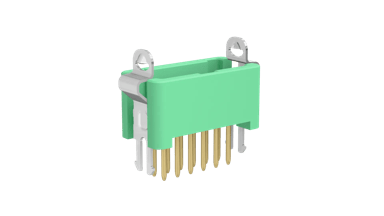

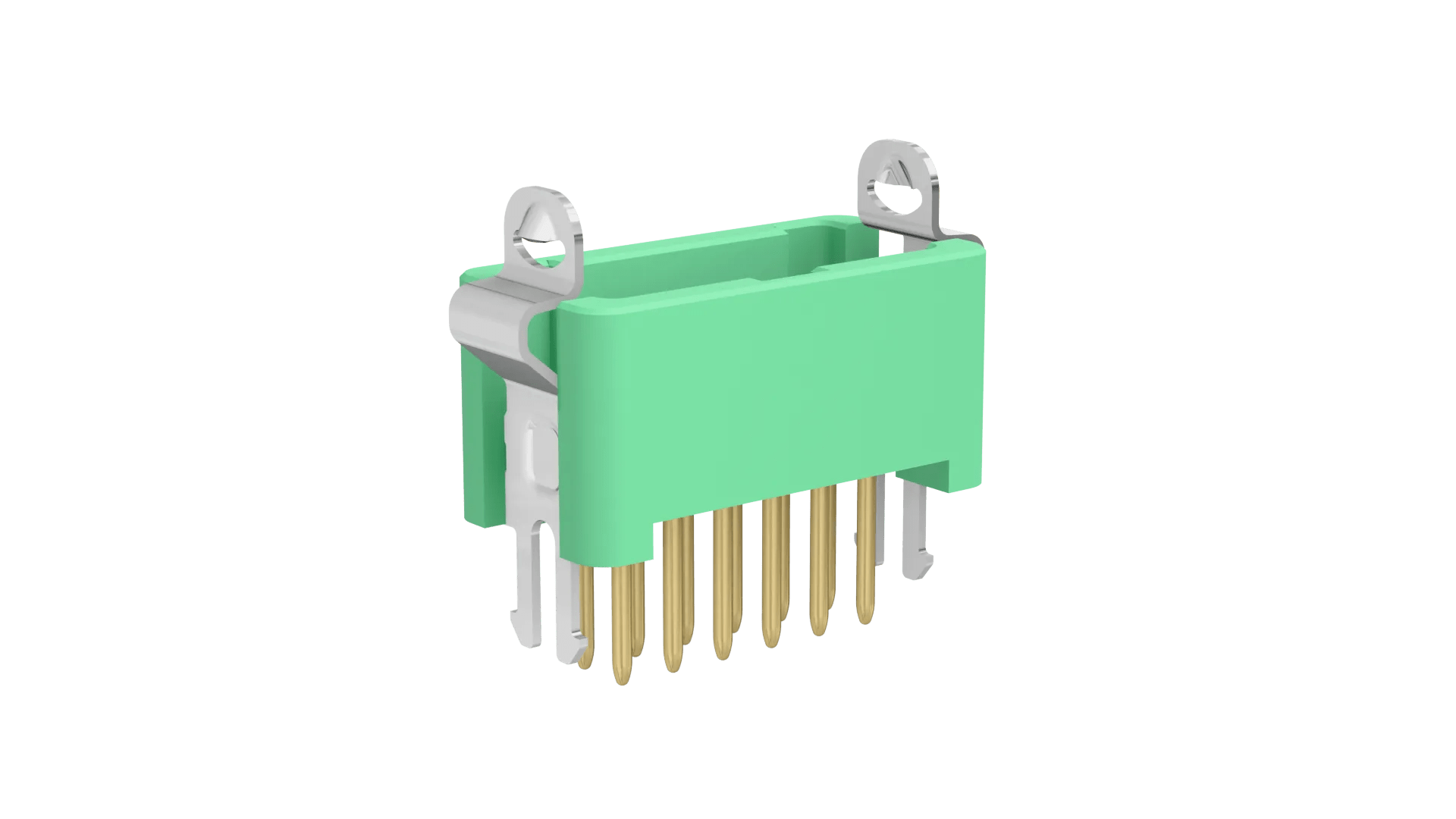

Gecko DIL Male Vertical 3mm Throughboard Connector, Latches for 1.6mm thick PCB, gold, pick & place (Tape & Reel packing), 6+6 contacts


1.25mm Pitch High-Reliability Connector - Gecko with Latches

  • Double Row male 3mm PC Tail connector, Latches with through-hole barbs for 1.6mm PCB thickness - 12 contacts (6+6). Through-hole barbs can be used as location pegs, or soldered to PCB for additional strain relief.

  • Supplied on Tape and Reel with pick and place cap. Gold finish on contact area and termination.

  • For complete pin numbering or pin out information, see Component Specification C125XX.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Information

Technical Documentation

Environmental Compliance

Test Reports

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Latching Style:

    Locking Latch

  • Mating Pin Size:

    Ø0.4mm

  • Number of Rows:

    2

  • Connector Orientation:

    Vertical

  • Country of Origin:

    GB

  • Side Stackable:

    No

  • Number of Signal Contacts:

    12

  • Operating Temperature:

    -65°C to +150°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Current Rating:

    2.8A max individual contact, 2A max simultaneous (25°C)

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Polarised:

    Yes

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    Polyamide (Nylon) 4T

  • Base Material of Contact:

    Phosphor Bronze

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tape and Reel

  • Finish / Plating on Termination:

    Gold

  • Housing Colour:

    Green

Dimensions

  • Contact Pitch:

    1.25mm (0.049")

  • Weight:

    0.462g

  • Dimensions:

    11.45 x 4.90 x 9.80

  • PC Tail Length:

    3.00mm

  • Height of Connector above PCB:

    6.80mm

Downloads

    Product Information

  • Catalog page - Gecko with Latches Mating Profiles

  • Product Training Module - Introduction to the Gecko connectors + 1.25mm pitch High-Reliability

  • Product Datasheet - Gecko range: signal connectors (HRi)

  • Technical Documentation

  • Technical Drawing / Datasheet - G125-MVXXX05LXR.pdf

  • C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

  • Plating thickness on Gecko contacts (signal and power)

  • Outgassing data for Harwin products (plastics)

  • Environmental Compliance

  • RoHS - G125-MV11205L1R

  • Material composition for Gecko G125-MVXXX05LXX series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Test Reports

  • Test Report HT030 - Gecko (G125 Series) - Electrical + Mechanical and Environmental
