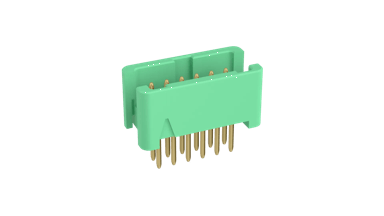

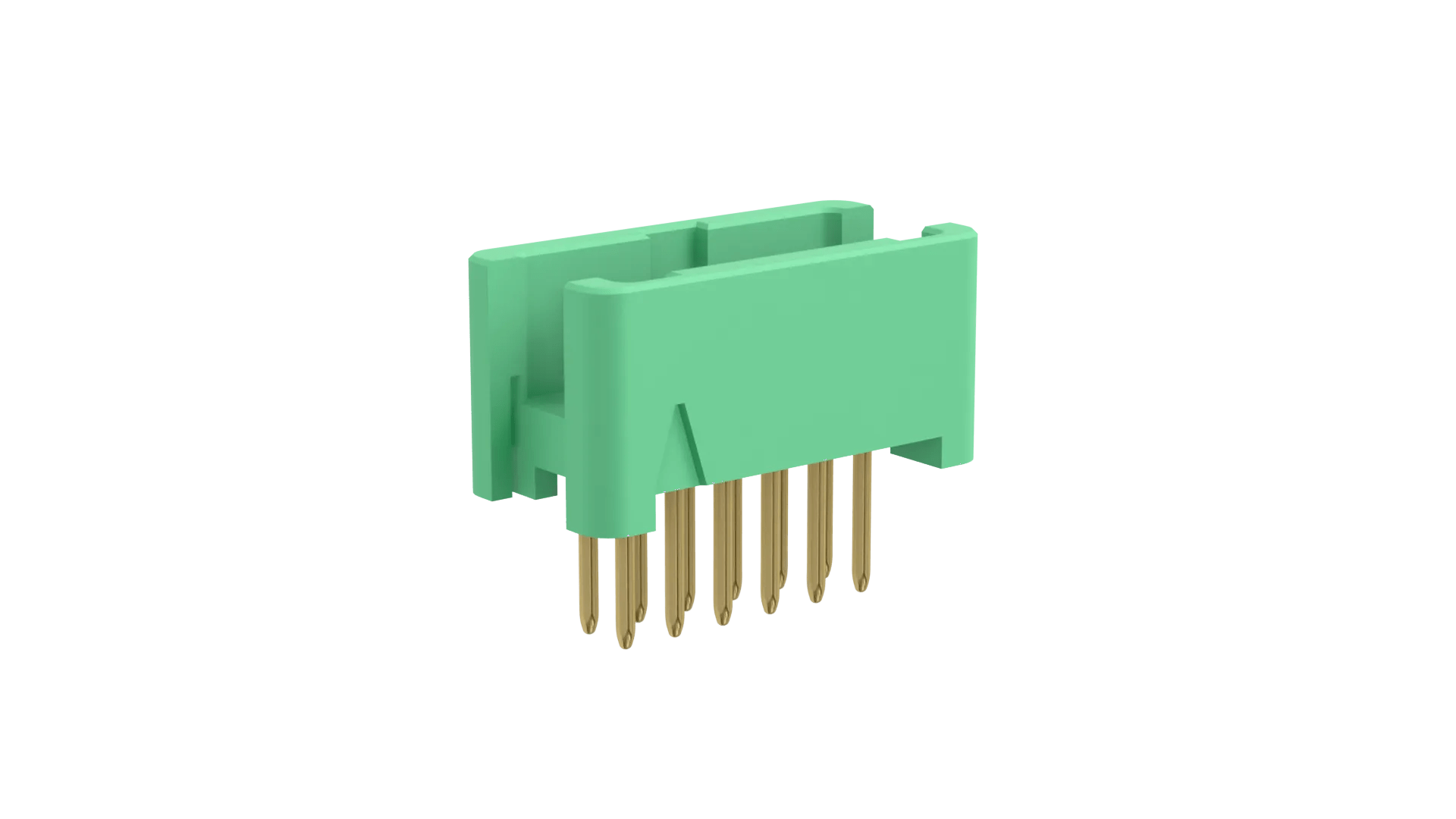

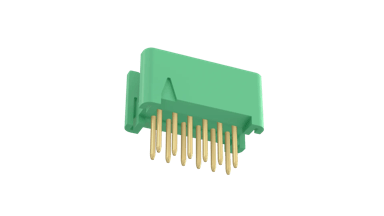

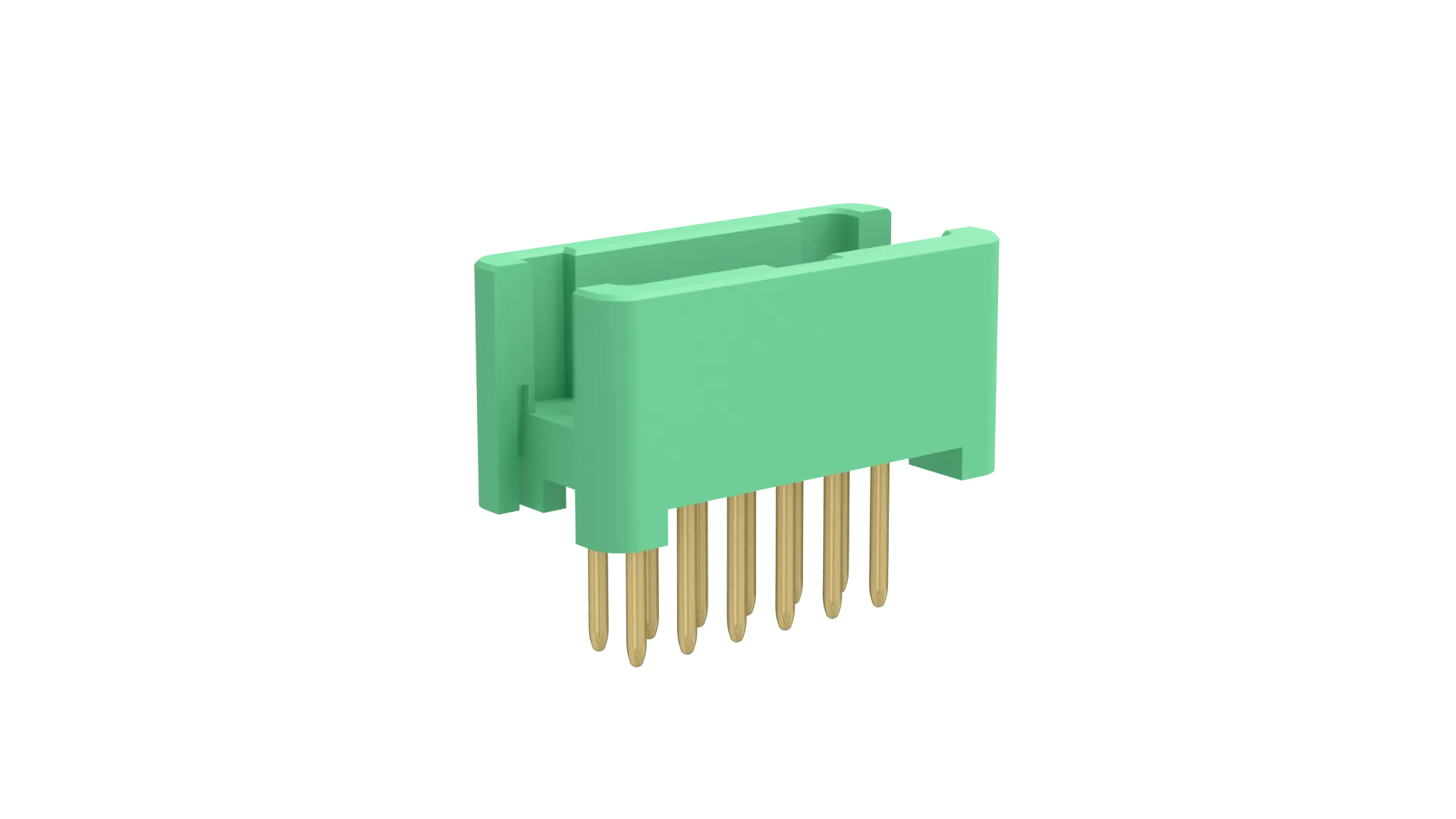

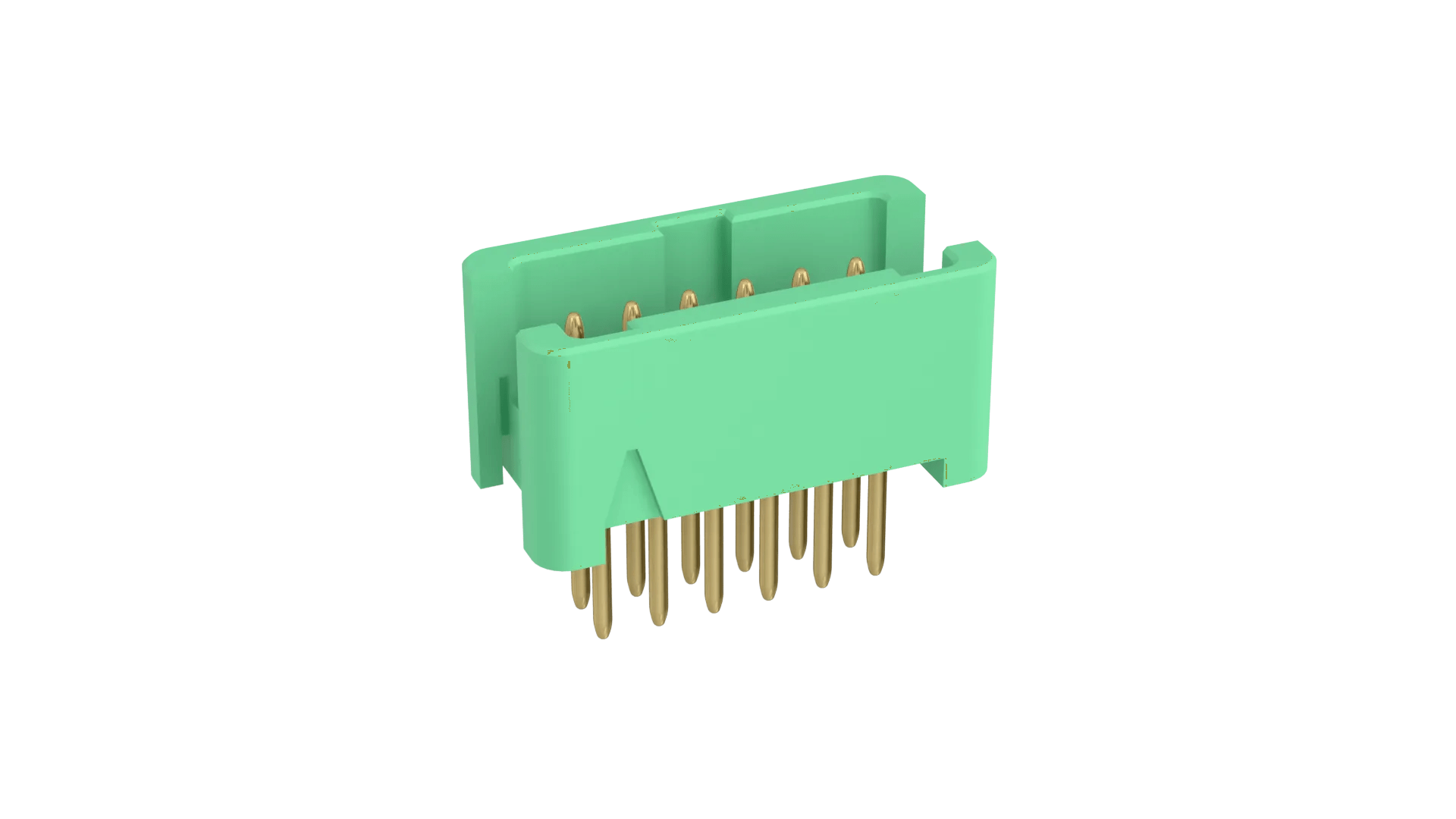

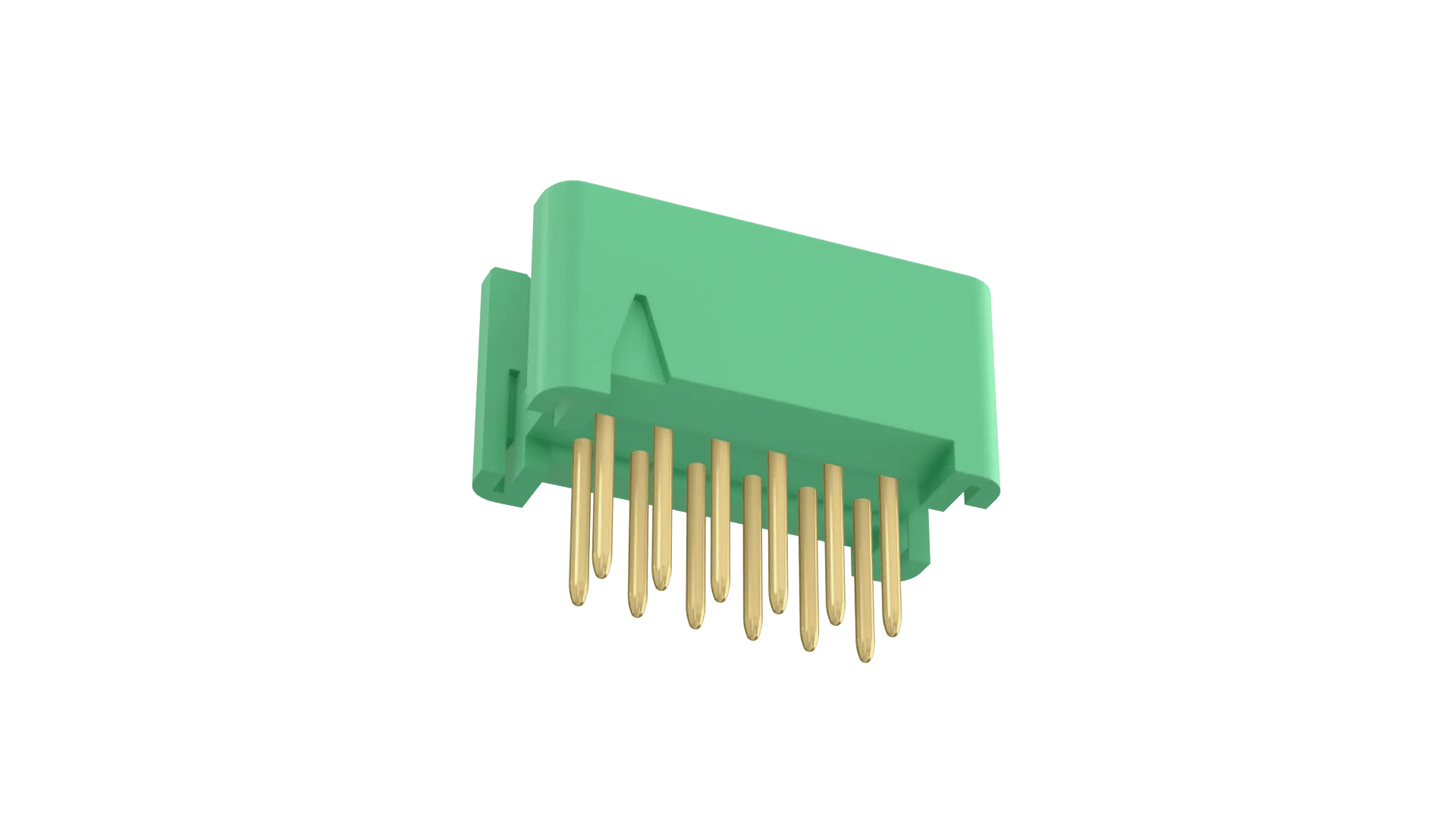

6+6 Pos. Male DIL Vertical Throughboard Conn. no Latches
1.25mm Pitch High-Reliability Connector - Gecko with Latches
- Double Row male 3mm PC Tail connector, no latches – 12 contacts (6+6). Connector housings are not fitted with latches.
- Supplied in tape strips with pick and place cap. Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C125XX.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
2.8A max individual contact, 2A max simultaneous (25°C)
-65°C to +150°C
Max Solder Temperature: 260°C for 10 seconds
Style of Latches:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 4T
Housing Material UL Rating:
Tape and Reel Strip
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
10.05 x 4.90 x 7.90
Height of Connector above PCB:
Length of Throughboard Tail:
