G125-MV11005L0P

5+5 Pos. Male DIL Vertical Throughboard Conn. no Latches

1.25mm Pitch High-Reliability Connector - Gecko with Latches

Order Sample

Add to Favorites

Loading… Check availability

7 similar products View products

Traceparts account required

Product Description

Double Row male 3mm PC Tail connector, no latches – 10 contacts (5+5). Connector housings are not fitted with latches.
Supplied in tape strips with pick and place cap. Gold finish on contact area and termination.
For complete pin numbering or pin out information, see Component Specification C125XX.

G125-MV11005L0P - 5+5 Pos. Male DIL Vertical Throughboard Conn. no Latches

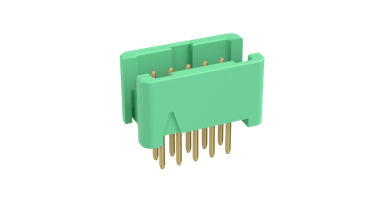

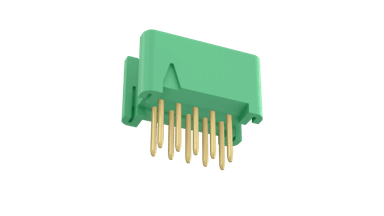

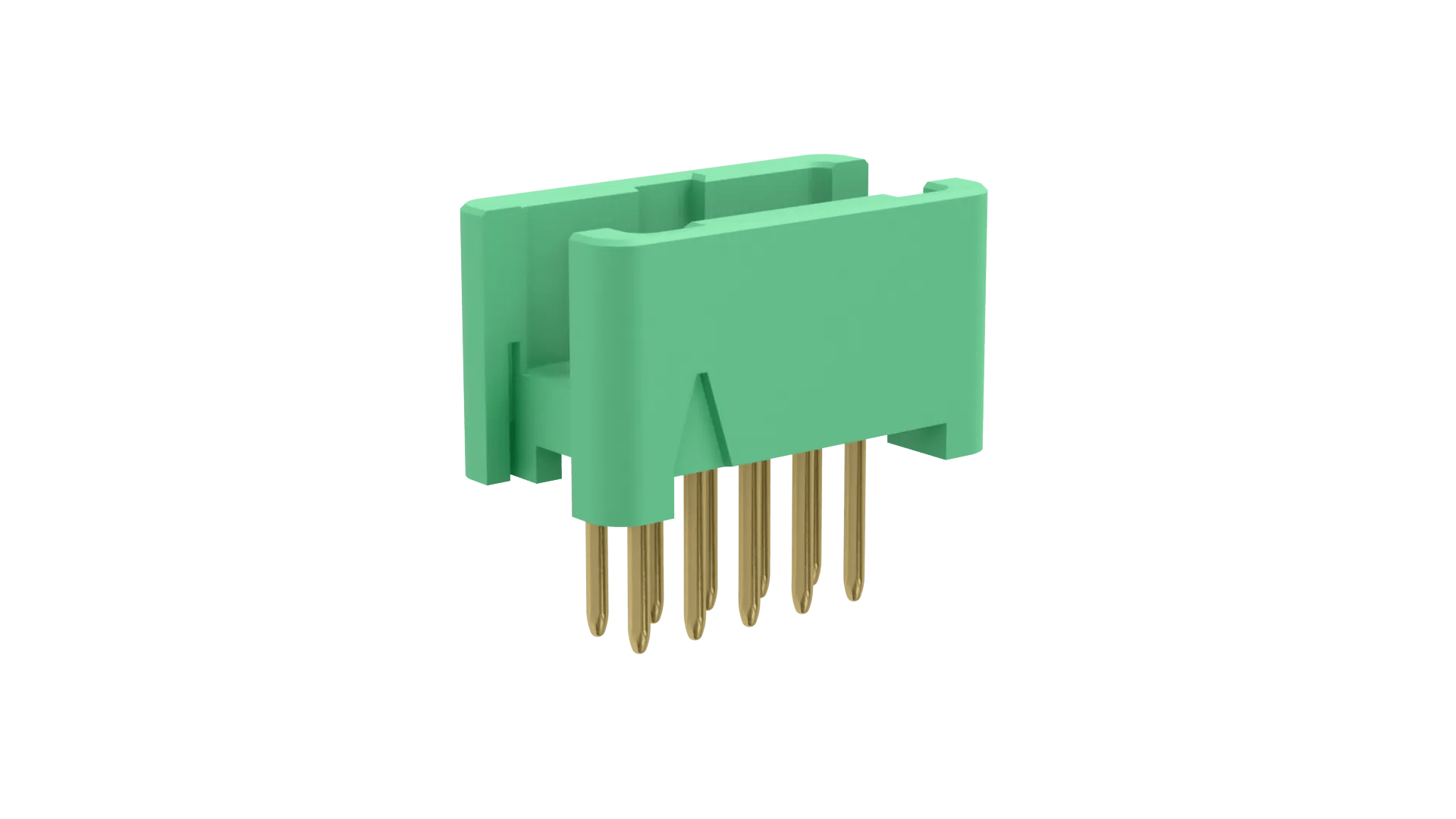

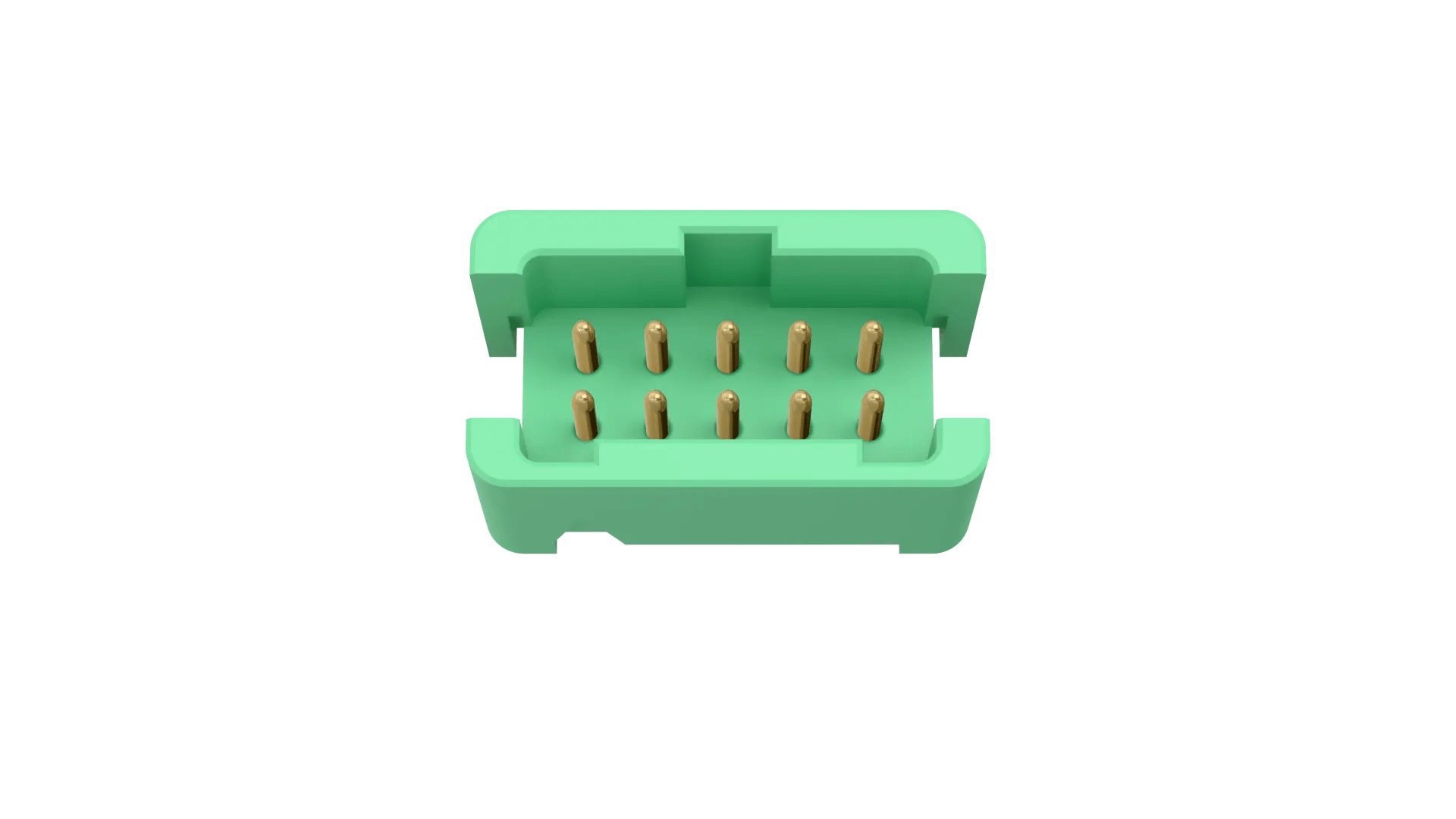

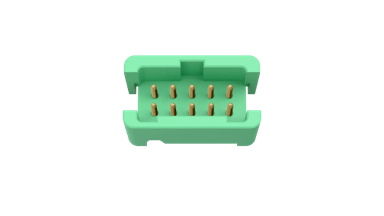

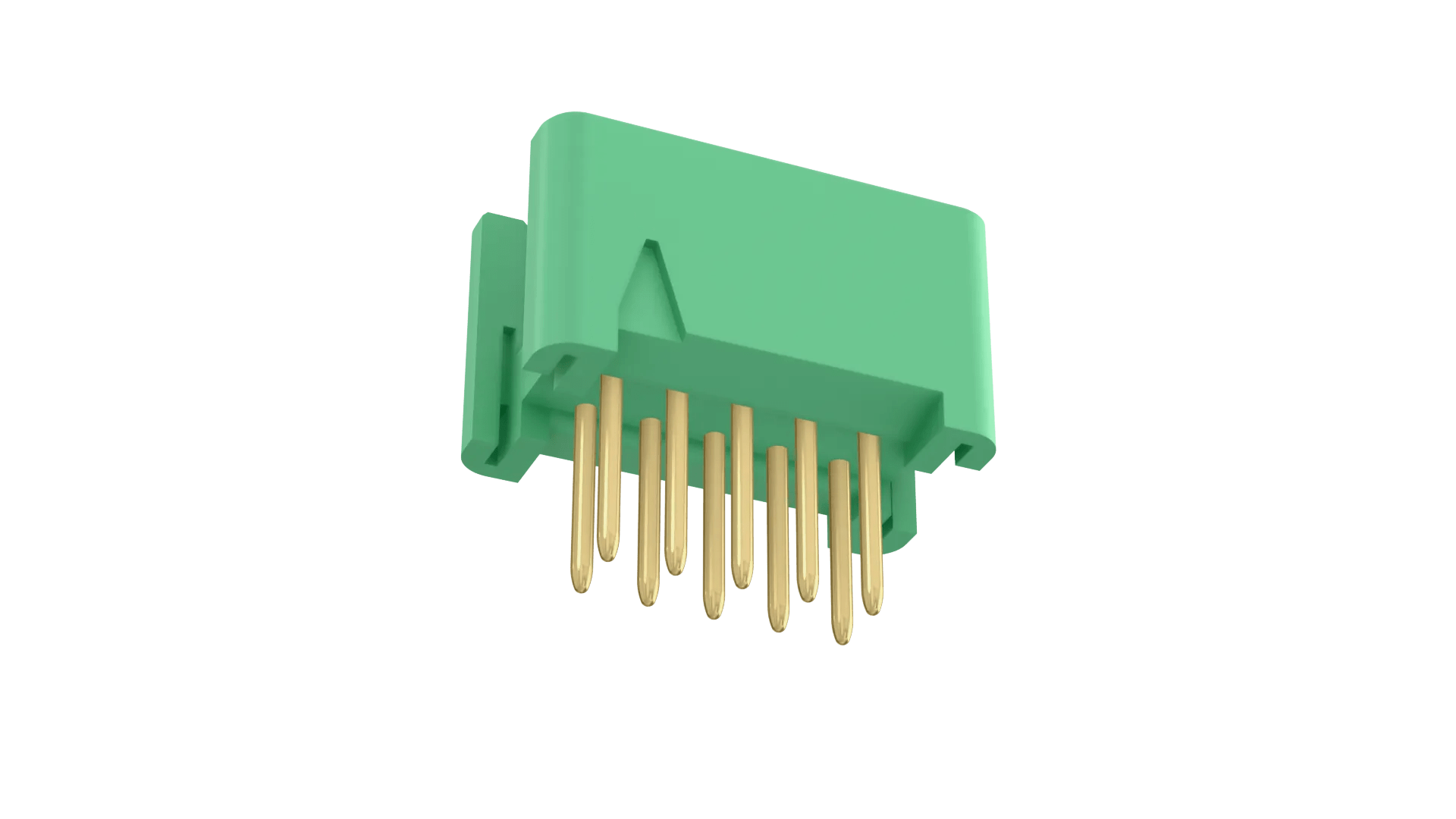

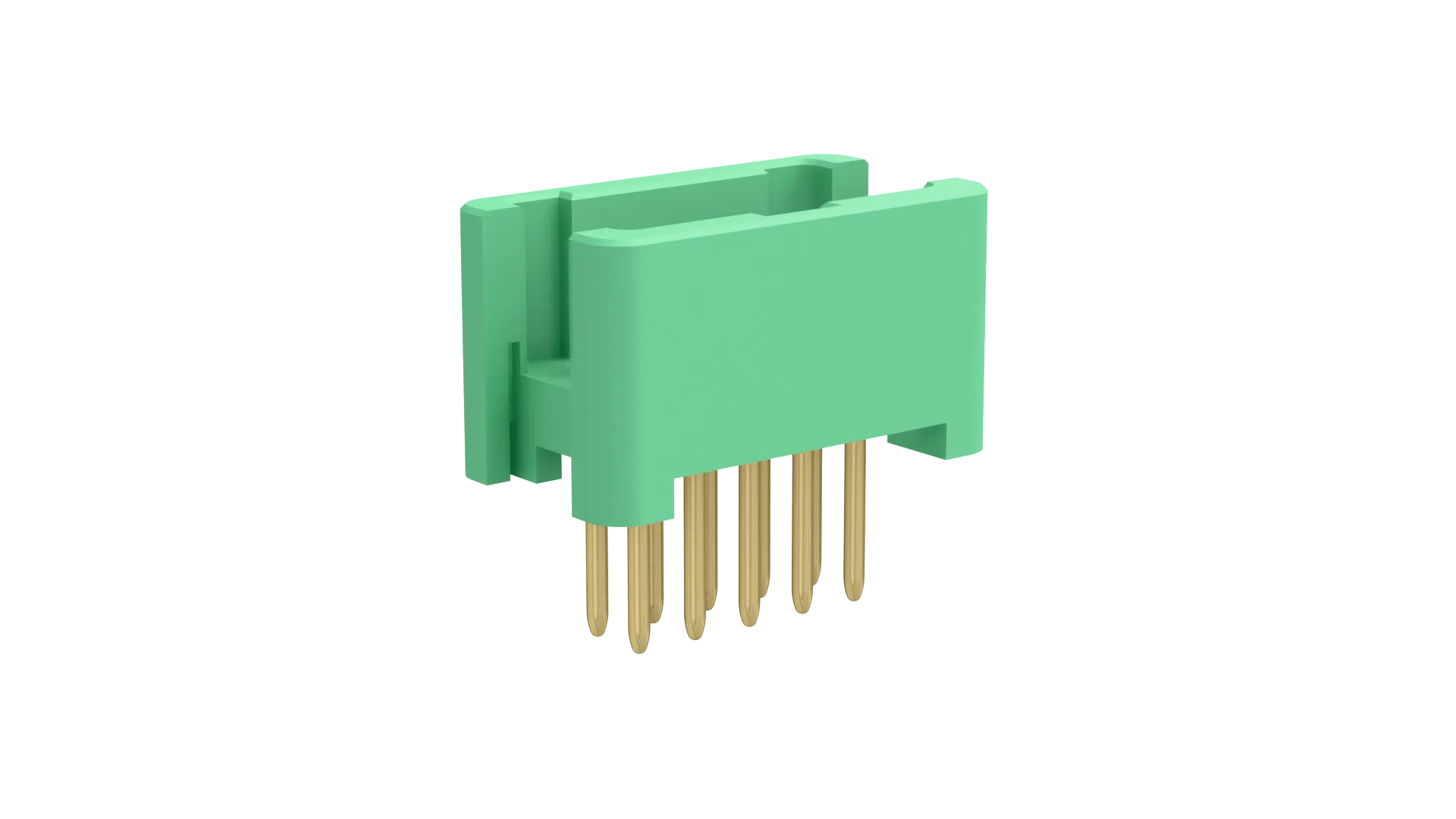

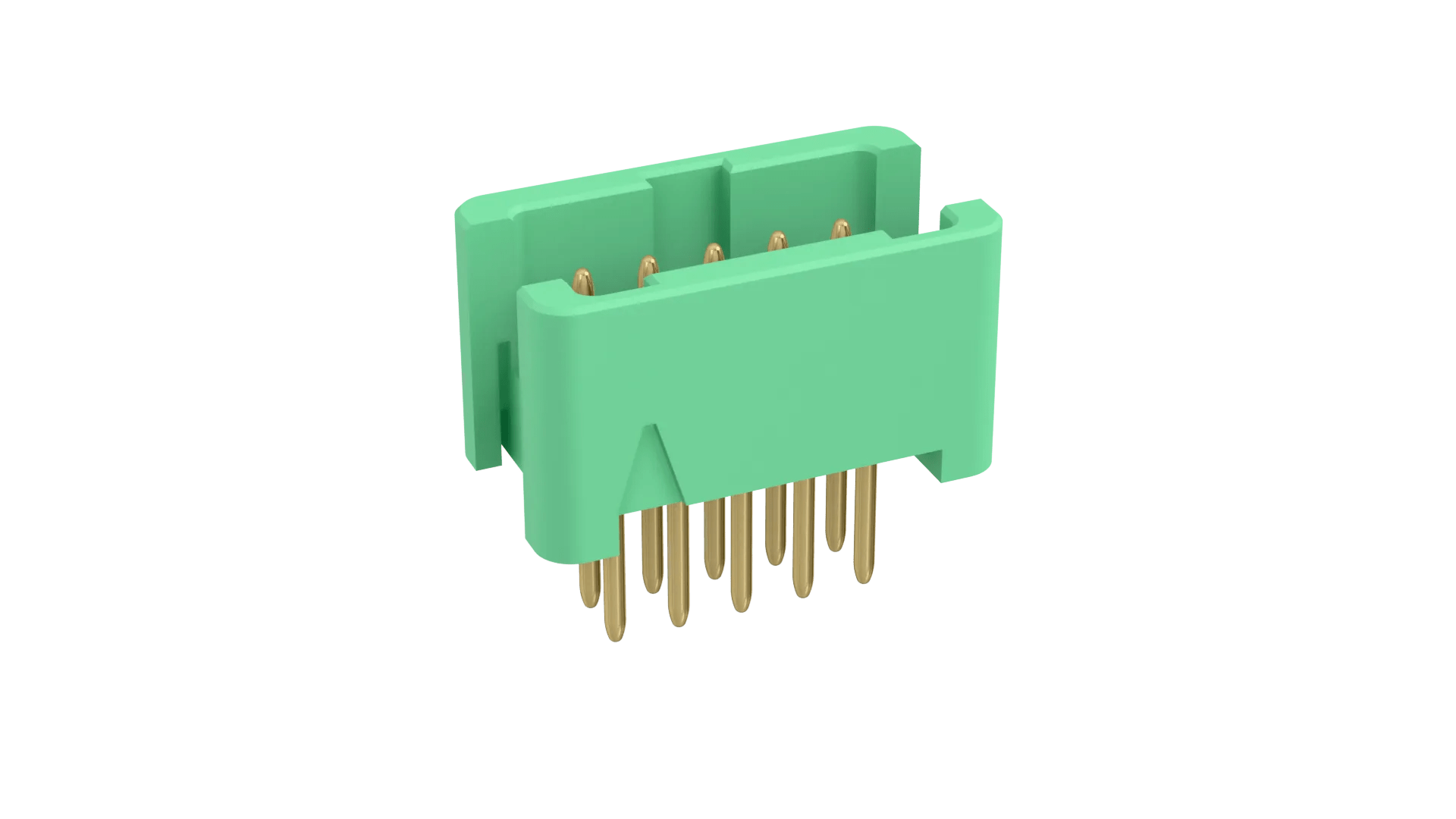

Representative image of product family

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Latches:

None

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel Strip

Individual Part Weight:

0.346g

Overall Dimensions (L x W x D) in mm:

8.80 x 4.90 x 7.90

Height of Connector above PCB:

4.90mm

Length of Throughboard Tail:

3.00mm

Mating Profiles:

Catalog page - Gecko with Latches Mating Profiles
