1.25mm Pitch High-Reliability Connector - Gecko Latch

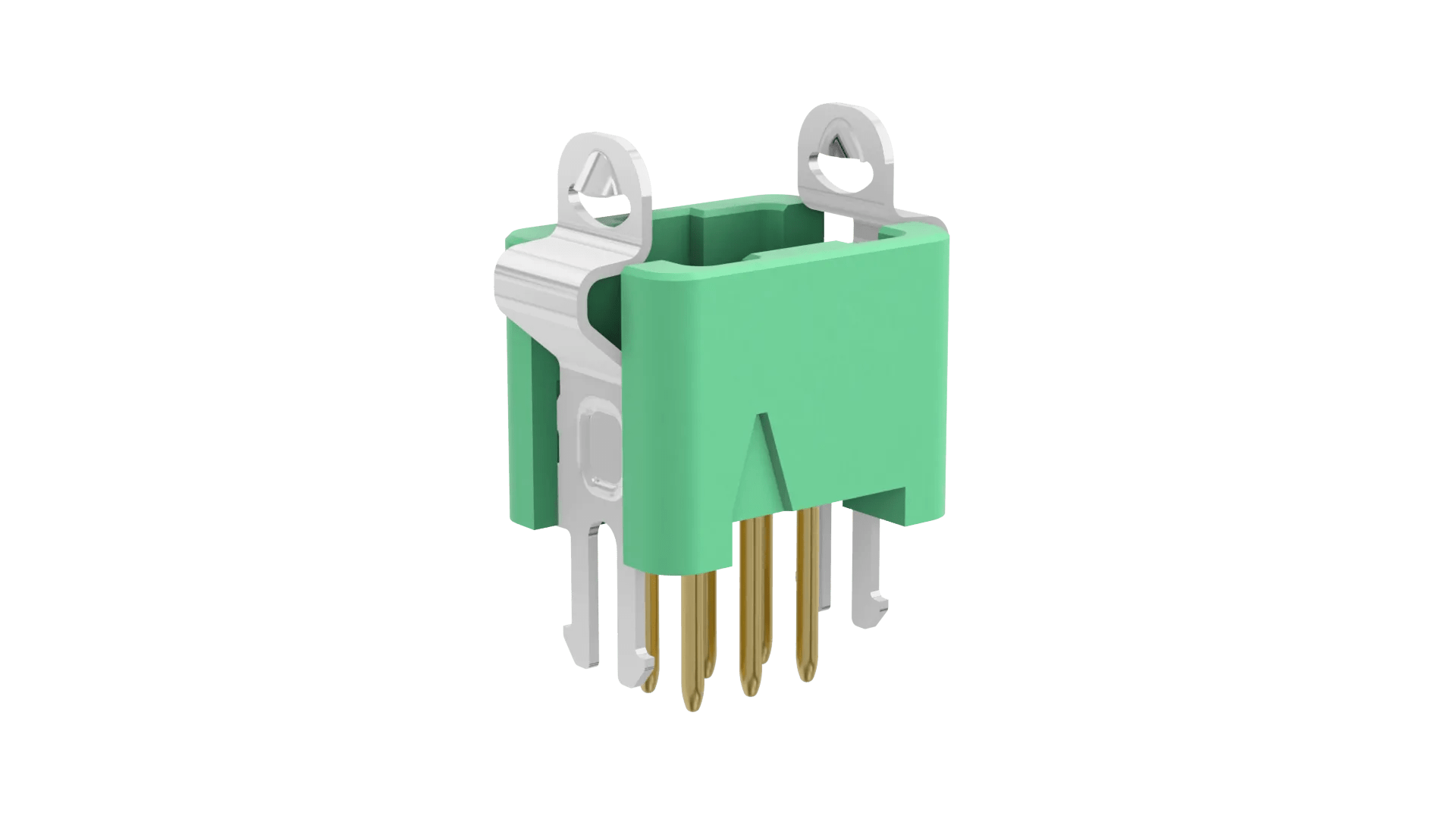

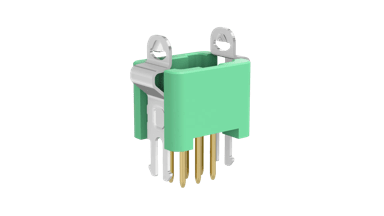

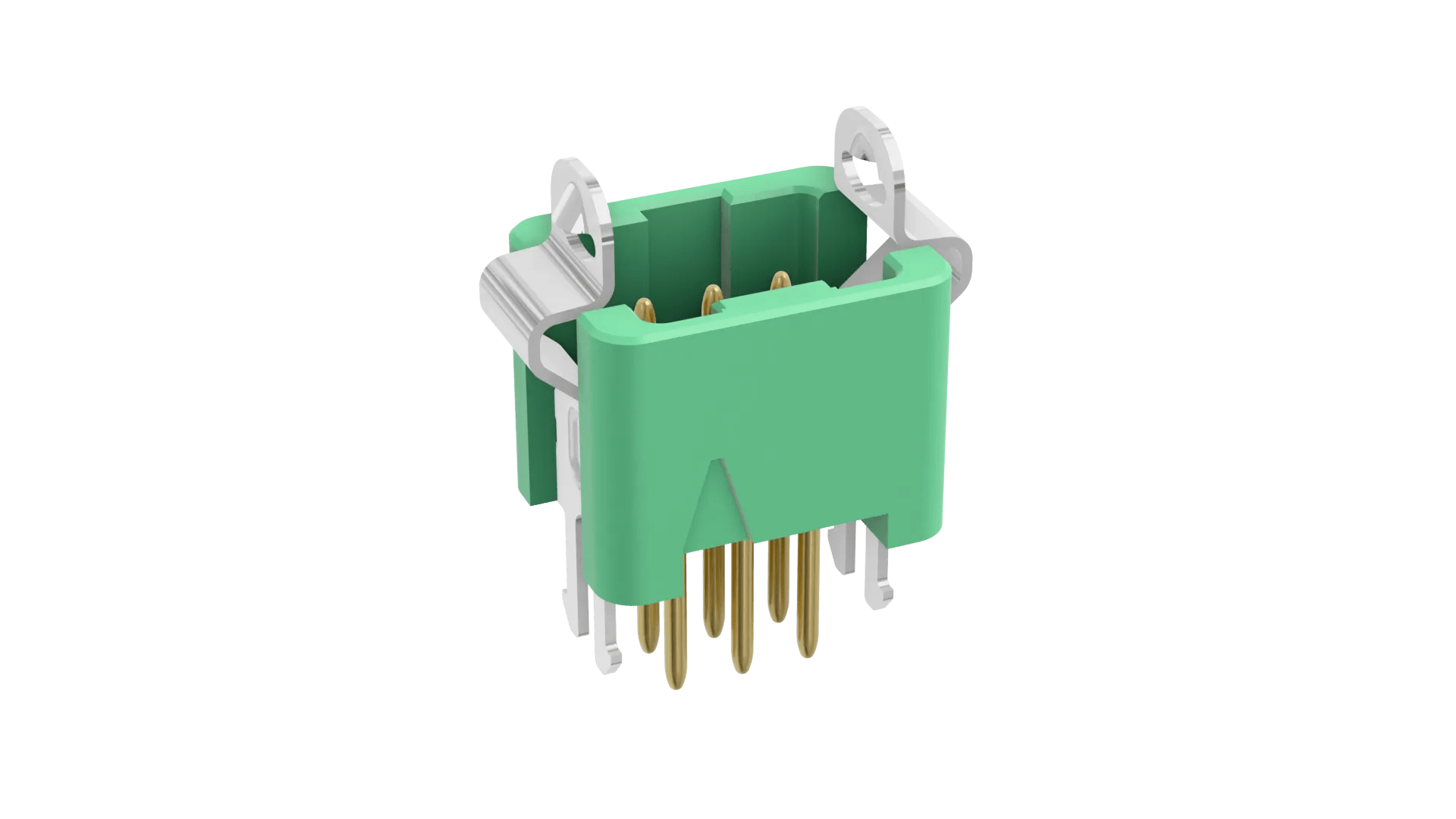

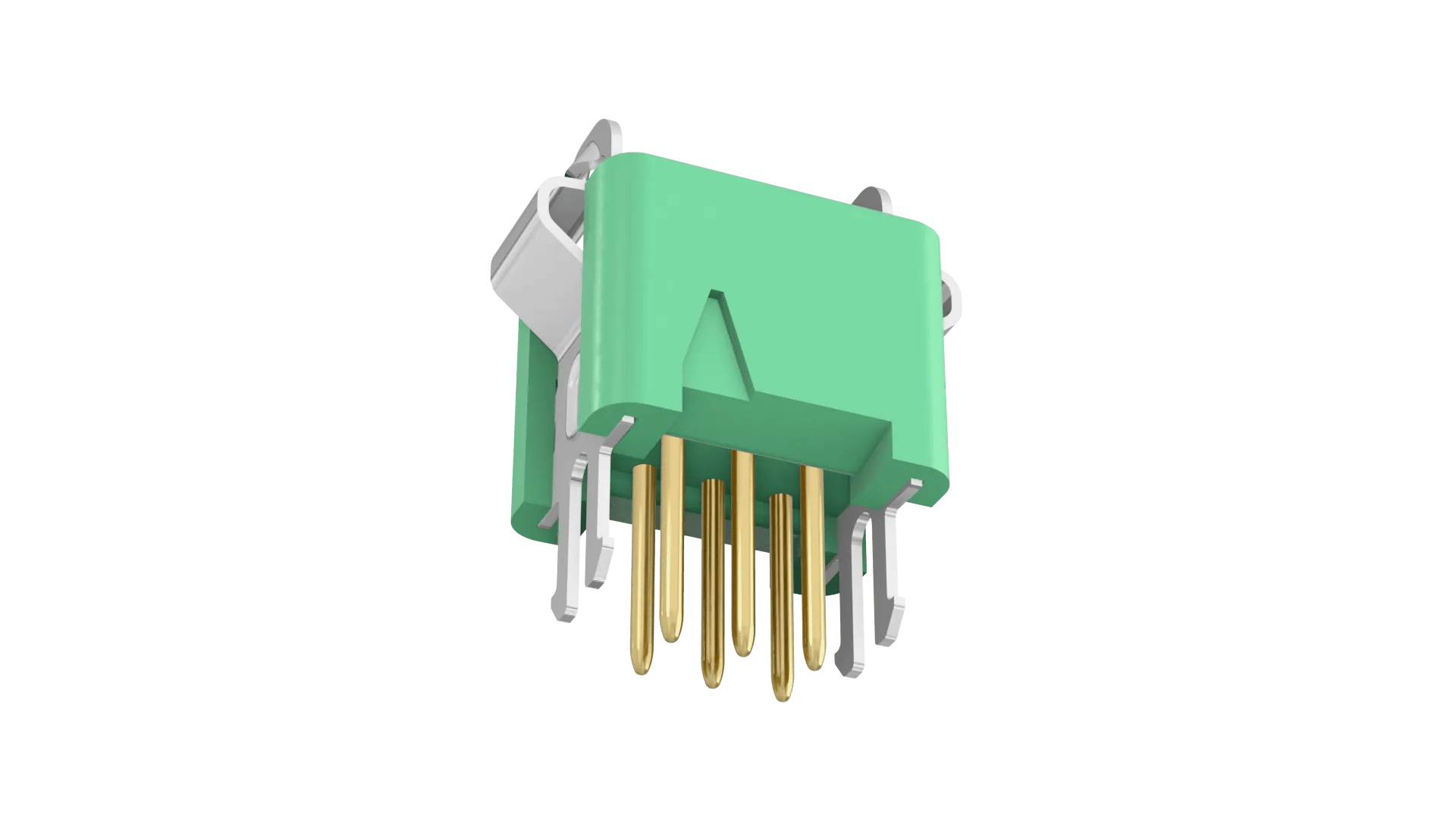

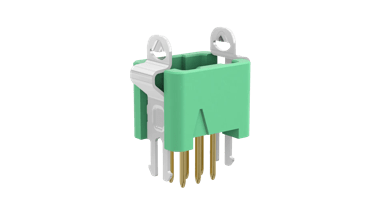

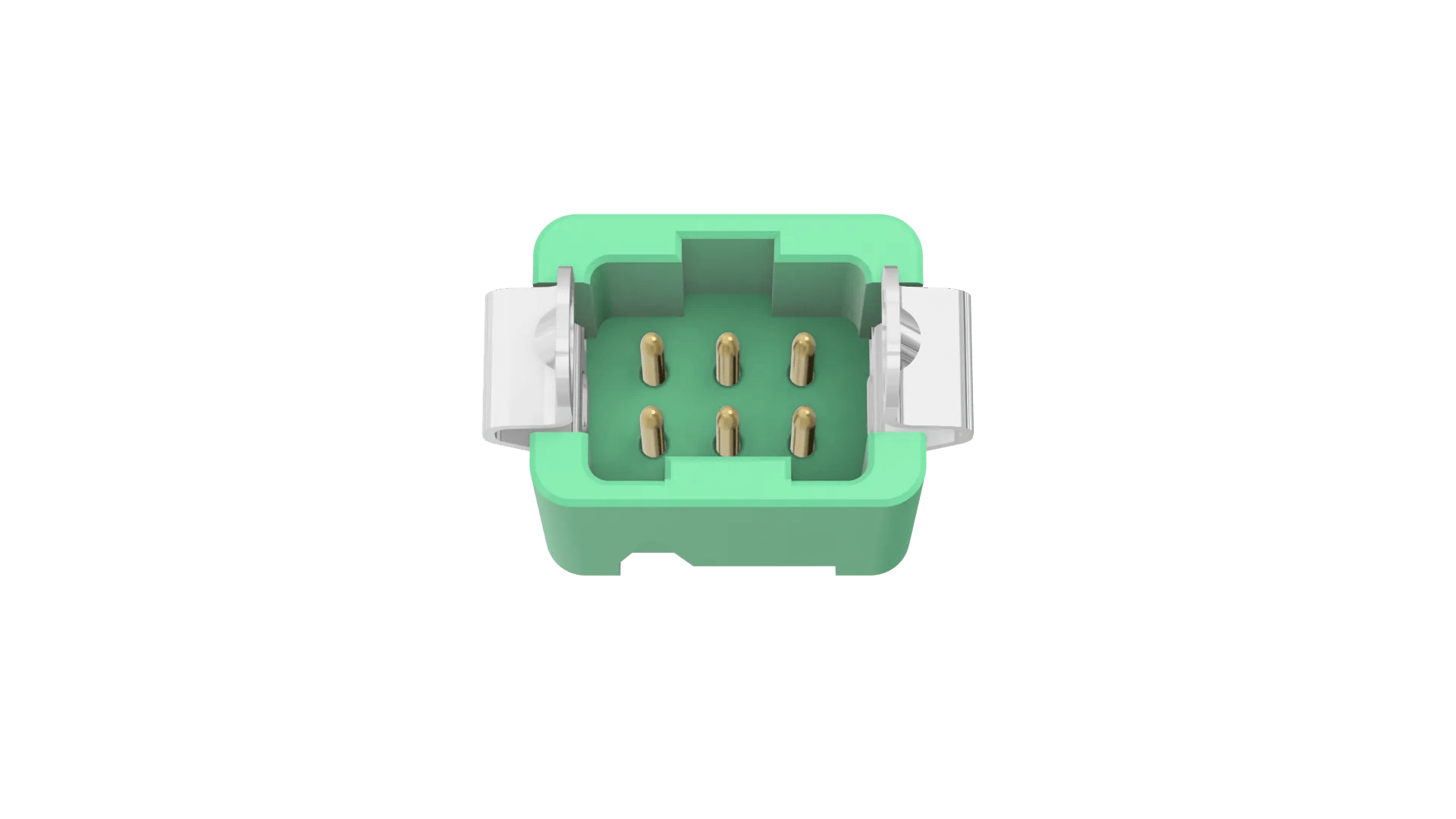

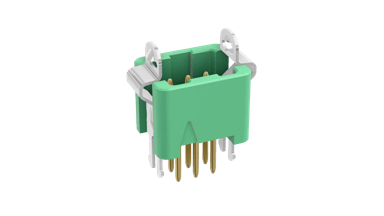

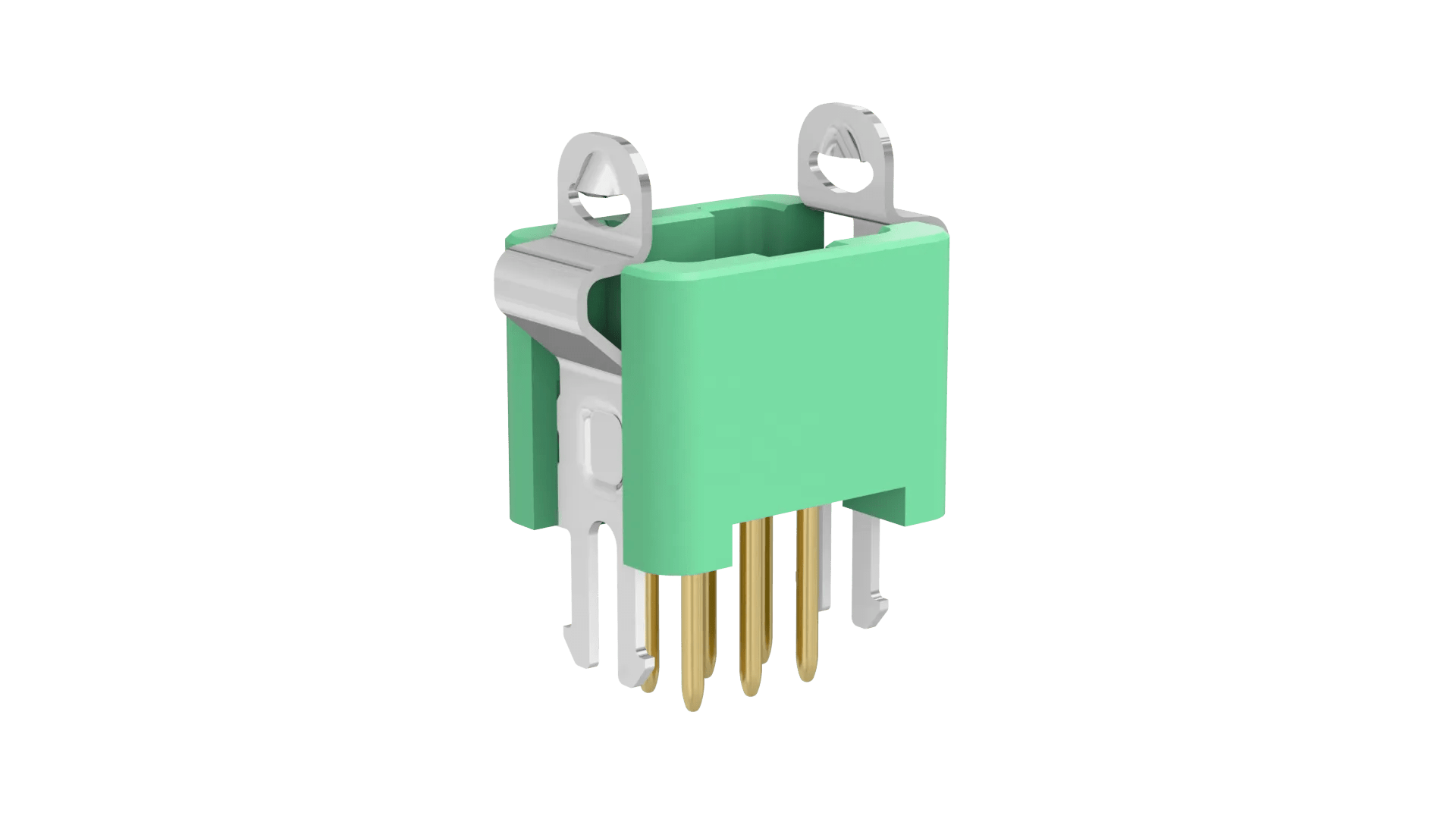

Double Row male 3mm PC Tail connector, Latches with through-hole barbs for 1.6mm PCB thickness - 6 contacts (3+3). Through-hole barbs can be used as location pegs, or soldered to PCB for additional strain relief.
Supplied in tape strips with pick and place cap. Gold finish on contact area and termination.
For complete pin numbering or pin out information, see Component Specification C125XX.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Change Notifications
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Latching Style:
Locking Latch
Mating Pin Size:
Ø0.4mm
Number of Rows:
2
Connector Orientation:
Vertical
Country of Origin:
GB
Side Stackable:
No
Number of Signal Contacts:
6
Operating Temperature:
-65°C to +150°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
2.8A max individual contact, 2A max simultaneous (25°C)
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
Polyamide (Nylon) 4T
Base Material of Contact:
Phosphor Bronze
Flammability Rating:
UL94V-0
Packaging Style:
Tape and Reel Strip
Finish / Plating on Termination:
Gold
Housing Colour:
Green
Dimensions
Contact Pitch:
1.25mm (0.049")
Weight:
0.347g
Dimensions:
7.70 x 4.90 x 9.80
PC Tail Length:
3.00mm
Height of Connector above PCB:
6.80mm
Downloads
Technical Drawing / Datasheet - G125-MVXXX05LXP.pdf
C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)
Outgassing data for Harwin products (plastics)
Plating thickness on Gecko contacts (signal and power)
Catalog page - Gecko with Latches Mating Profiles
Product Training Module - Introduction to the Gecko connectors + 1.25mm pitch High-Reliability
Product Datasheet - Gecko range: signal connectors (HRi)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
Material composition for Gecko G125-MVXXX05LXX series
RoHS - G125-MV10605L1P
