G125-MS15005M1P

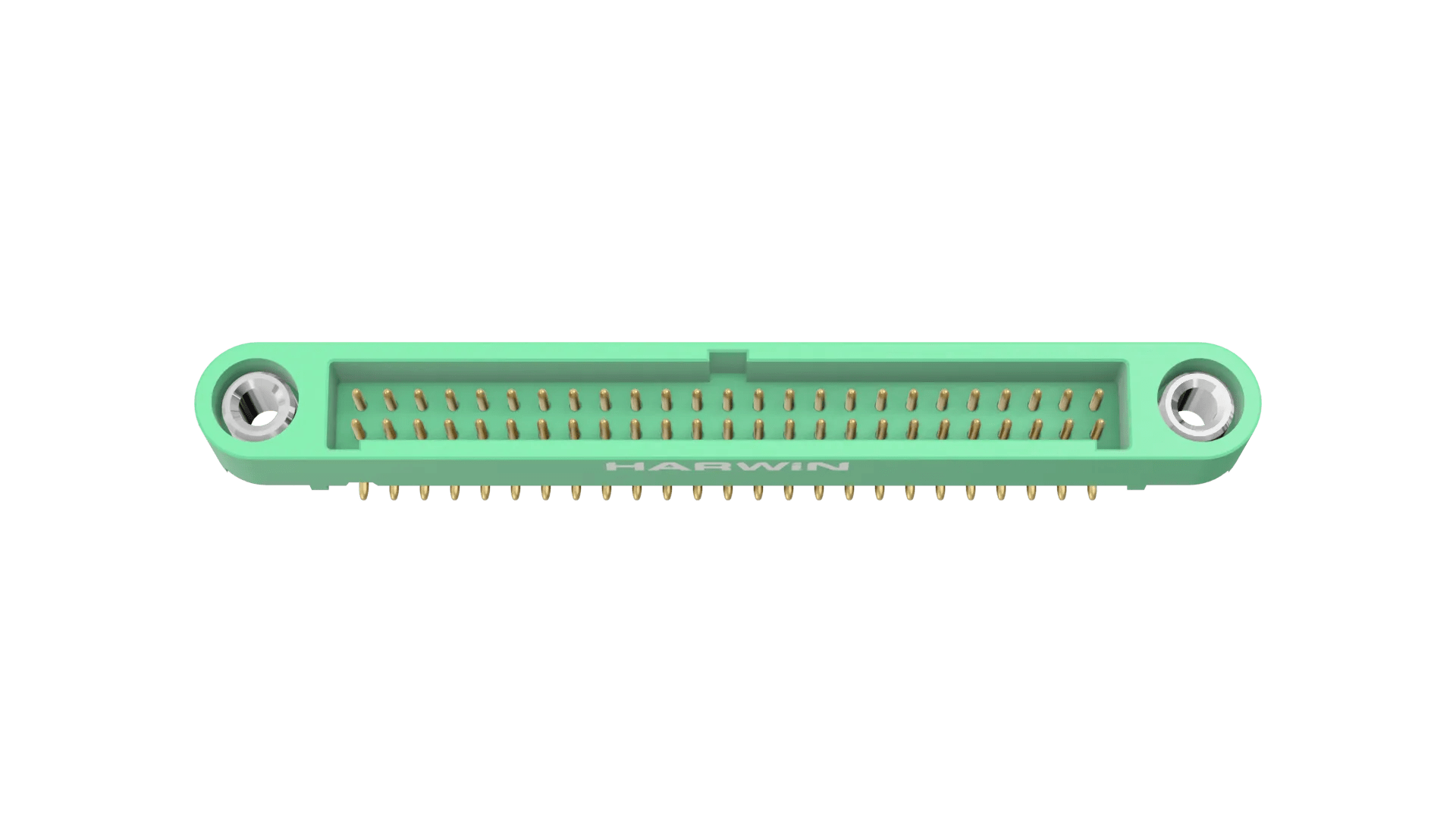

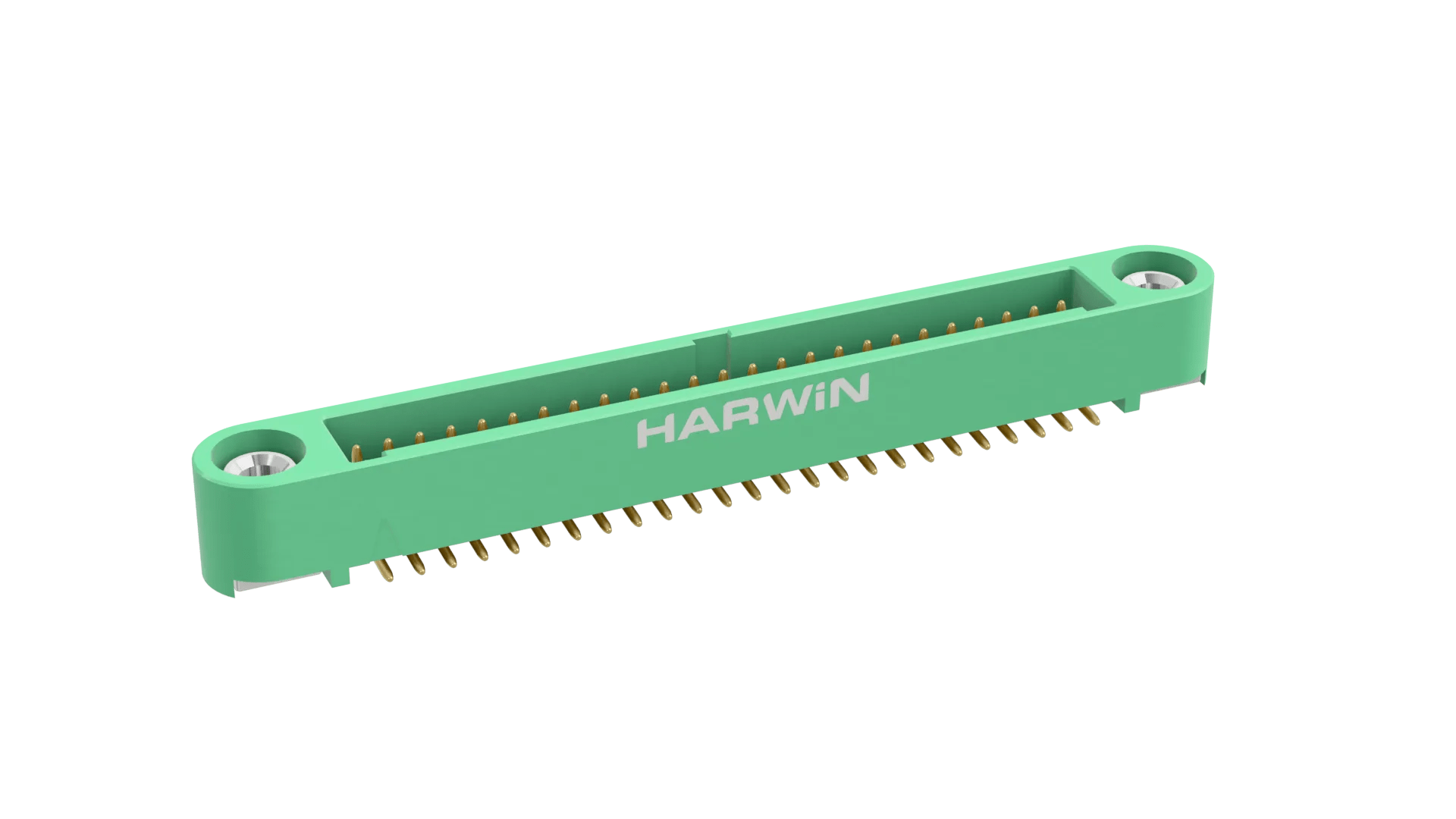

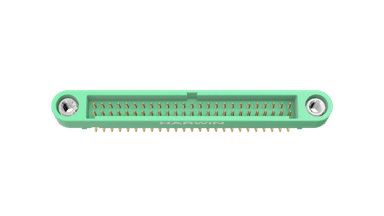

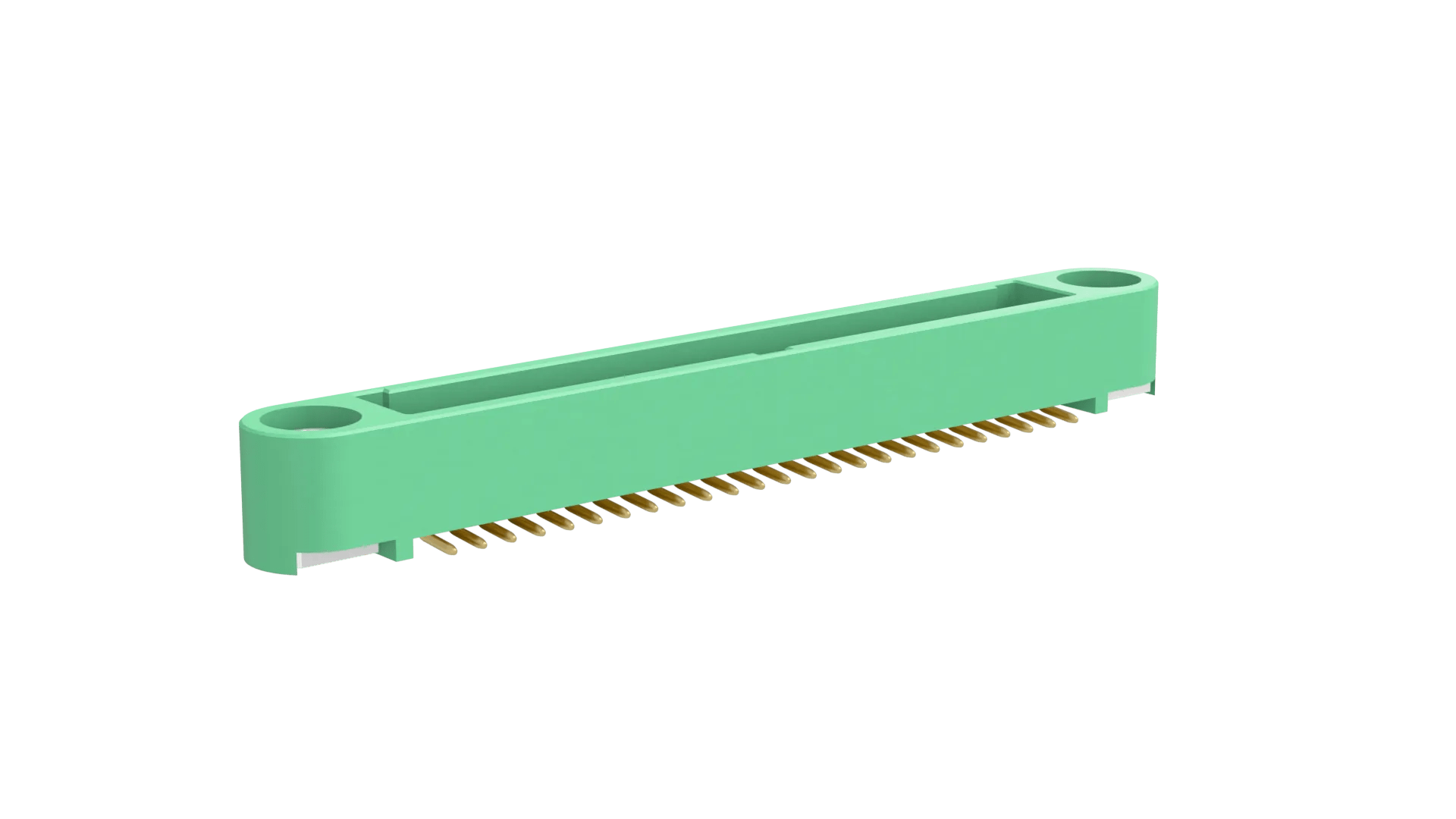

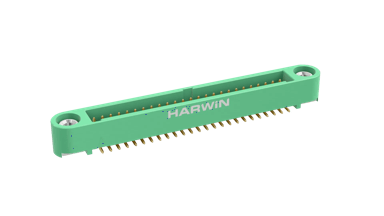

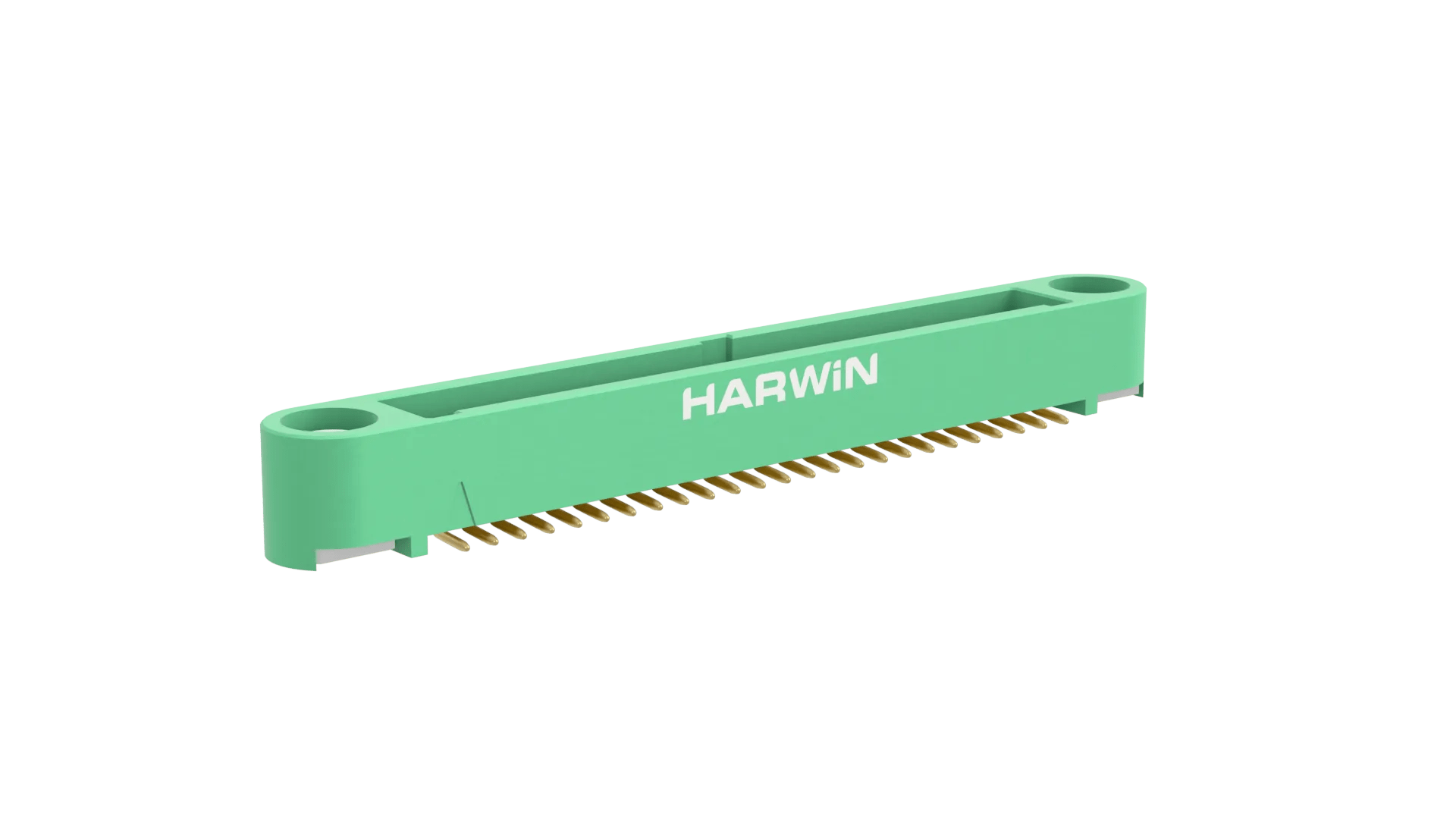

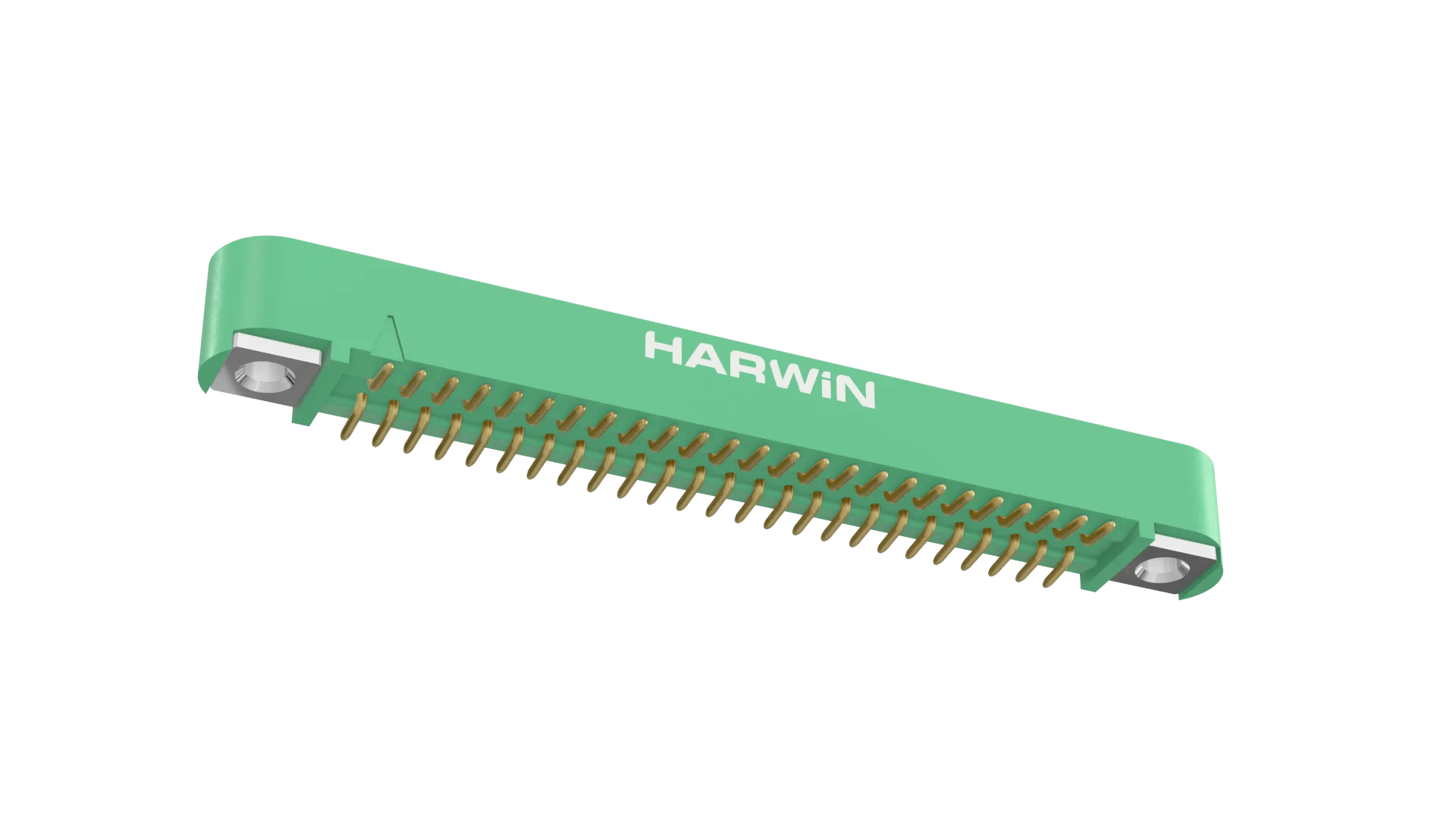

25+25 Pos. Male DIL Vertical SMT Conn. Screw-Lok

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

Male Double Row Surface Mount connector, internally threaded Screw-Lok fixings – 50 contacts (25+25).
Supplied in tape strips with pick and place cap. Gold finish on contact area and termination.
For complete pin numbering or pin out information, see Component Specification C125XX.

Add to Basket

Availability

G125-MS15005M1P - 25+25 Pos. Male DIL Vertical SMT Conn. Screw-Lok

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Internal Thread Screw-Lok (Standard Gender)

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel Strip

Individual Part Weight:

1.463g

Overall Dimensions (L x W x D) in mm:

42.70 x 5.80 x 4.98

Thread Size:

Height of Connector above PCB:

4.98mm

Mating Profiles:

Catalog page - Gecko-SL Mating Profiles

Availability

20 in stock

Questions & Answers Ask a Question

What torque value should be used for these screw-loks?

The torque value for mating screw-loks is 16-18cmN. This value is given in the Component Specification C125xx (page 3).

Downloads

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

Want to talk to someone?

Contact one of our technical experts via “Ask an Expert”, or book a 30 minute technical consultation.

Ask an Expert
Book a meeting
