G125-MS13405M2P

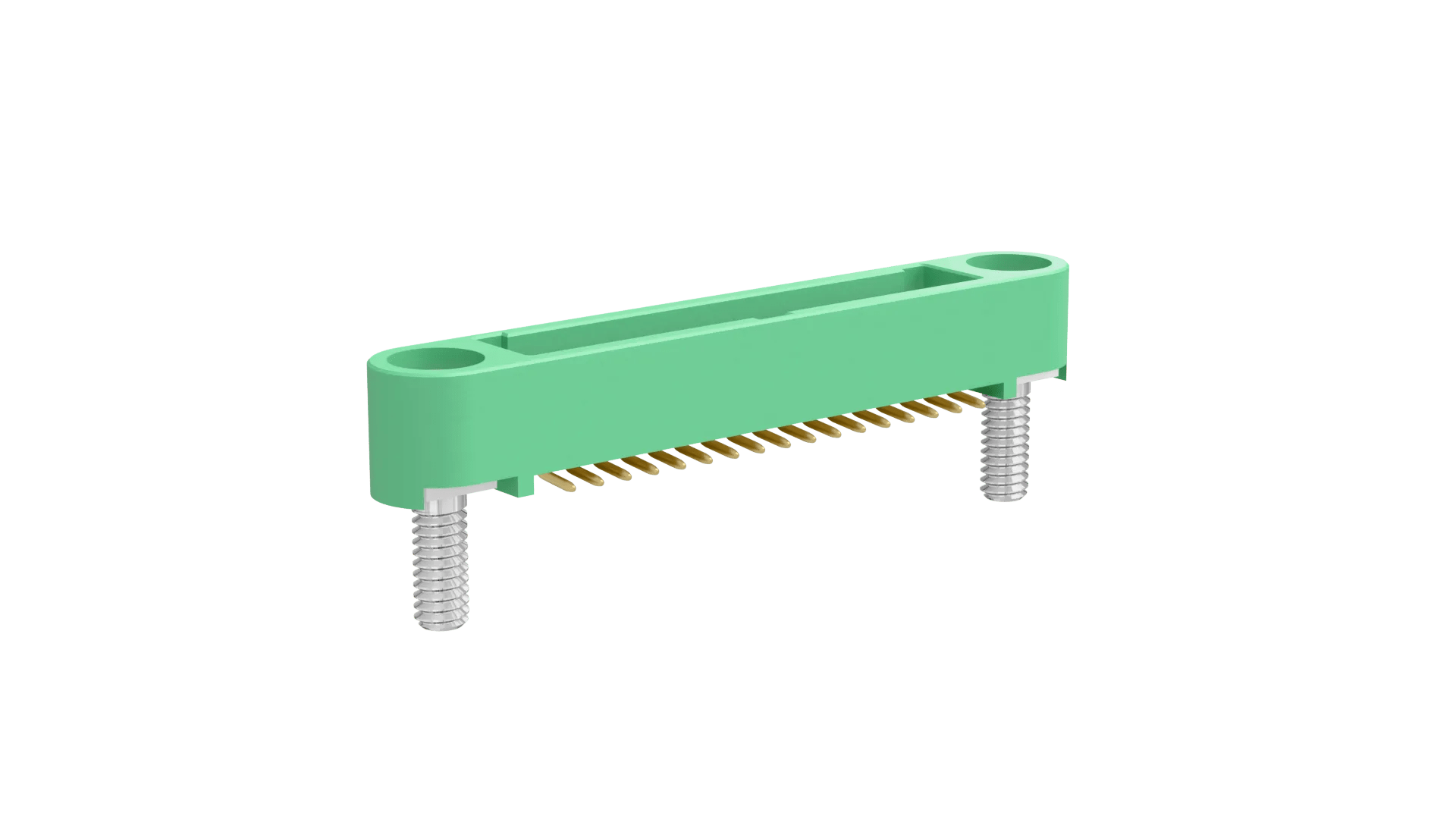

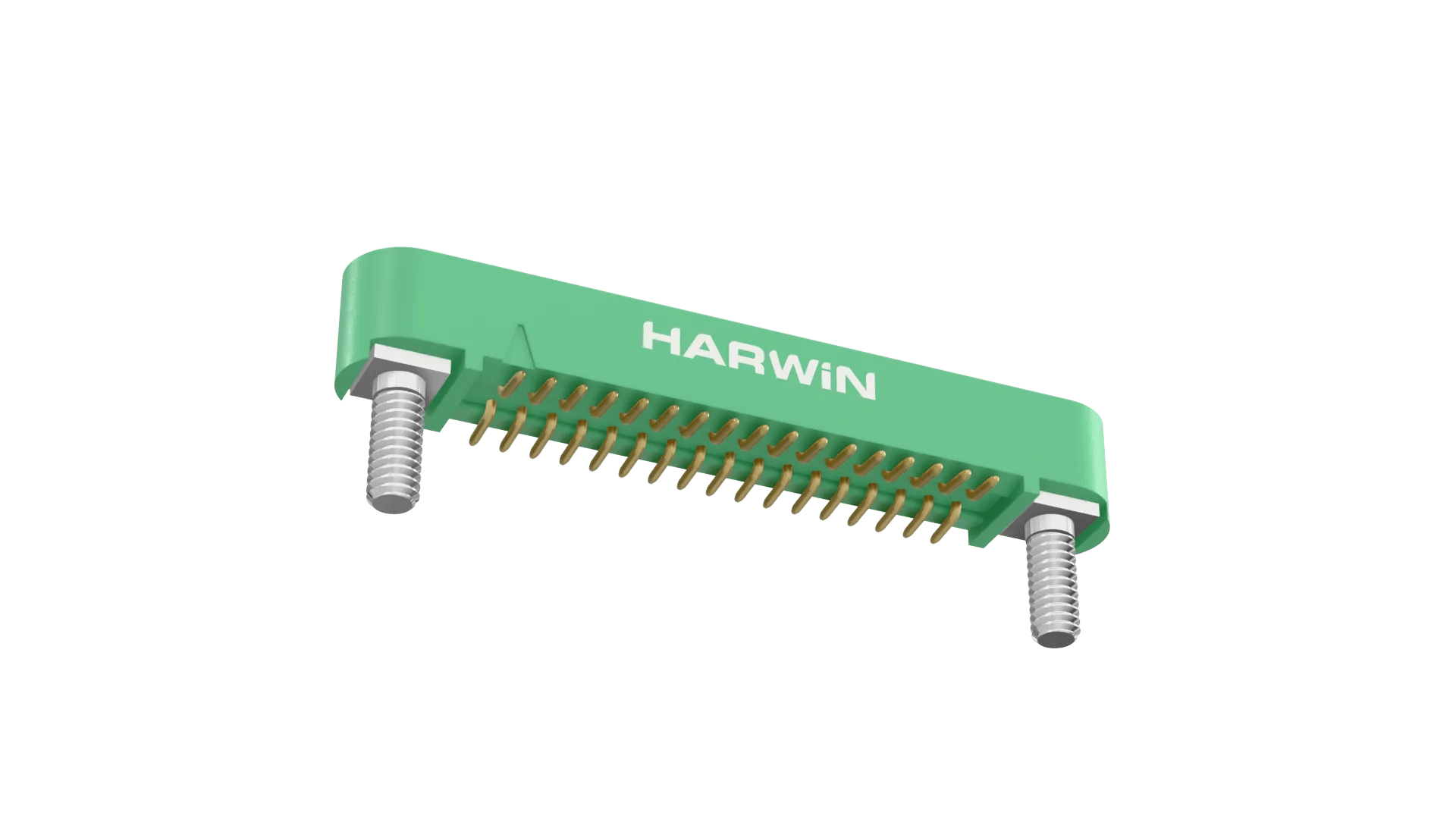

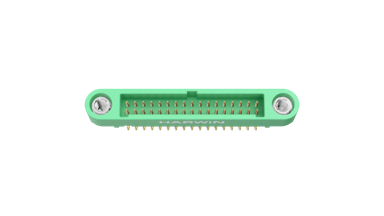

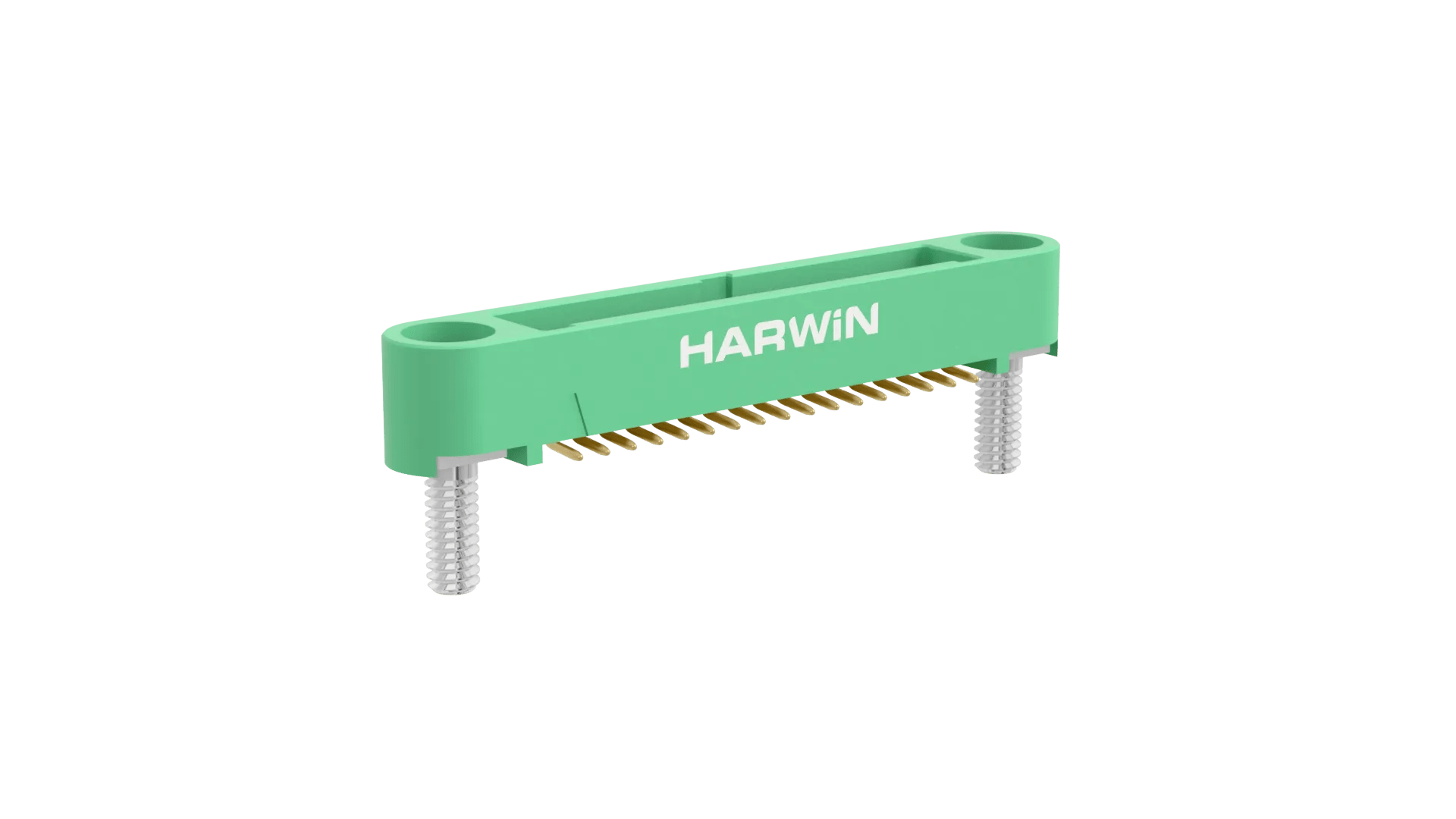

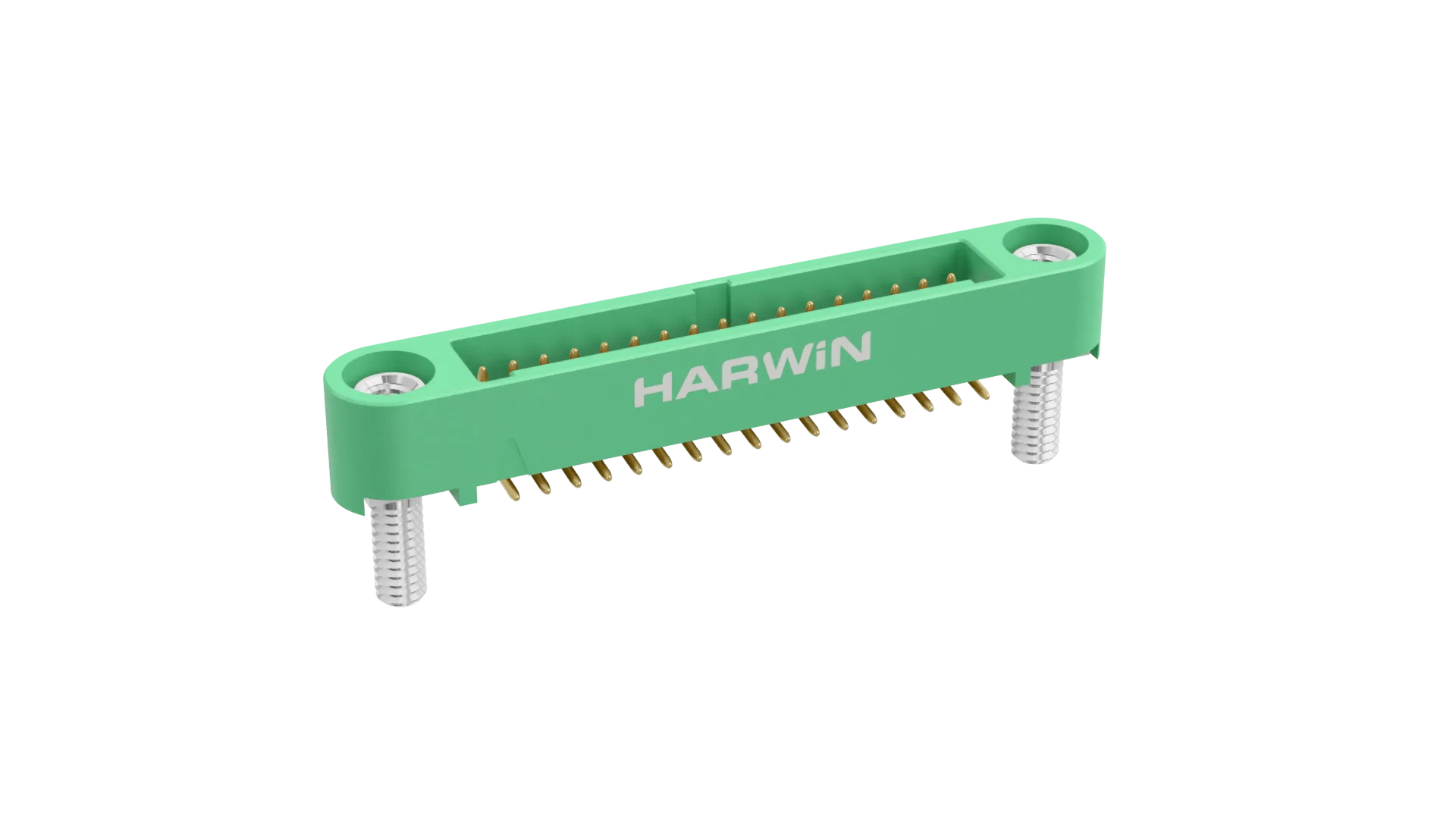

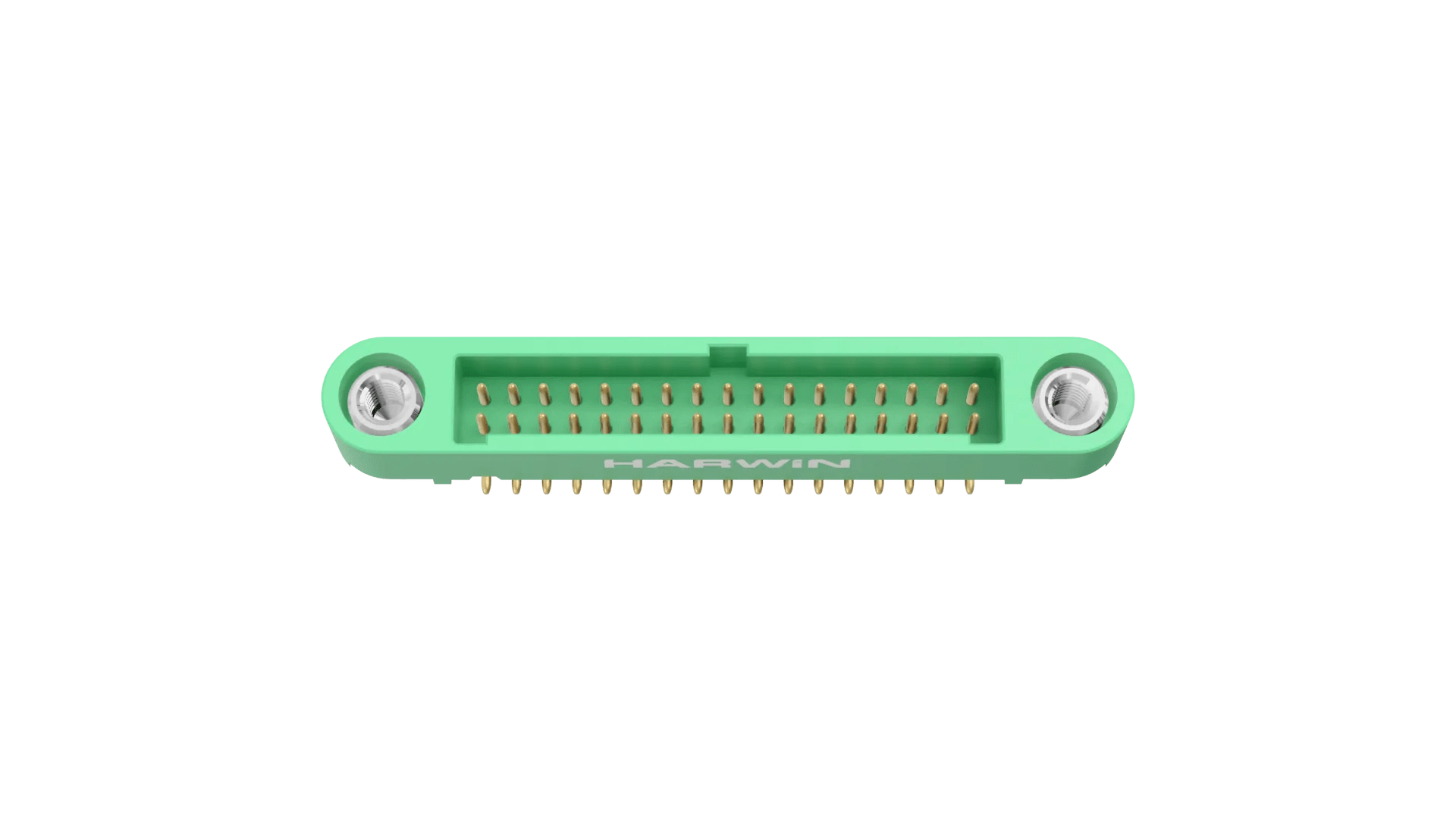

17+17 Pos. Male DIL Vertical SMT Conn. Screw-Lok Board Mount

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Digi-Key Global 76 Buy Now
Mouser Electronics Inc Global 10 Buy Now
TTI Inc USA 23 Website
Harwin Europe 107

Stock available: contact distributor to purchase

Product Information

Specification

+
Product Type: 1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok
Contact Pitch: 1.25mm
Contact Gender: Male/Plug
Connector Orientation: Vertical
Connection Type: Surface Mount (SMT)
Mating Pin Size: Ø0.4mm
Current Rating: 2A
Operating Temperature: -65°C to +150°C
Maximum Soldering Temperature: 260°C for 10 seconds
Style of Jackscrews: Screw-Lok with Board Mount

Materials

+
Finish/Plating on Termination: Gold
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Phosphor Bronze
Housing Material: Polyamide (Nylon) 4T
Housing Color: Green
Housing Material UL Rating: UL94V-0
Individual Part Weight: 1.397g
Packaging Style: Loose

Dimensions

+
Number of Rows: 2
Total Number of Contacts: 34
Body Length: 32.7mm
Height of Connector above PCB: 4.98mm
End Stackable: No
Side Stackable: No
Polarising Features: Yes
Can be cut to another size: No
Thread Size: M2
Mating Profiles/Heights

Related Products

+
Product in Tape and Reel, or Reeled: G125-MS13405M2R
Other products to be used with this item: G125-4500000B G125-4510000B
Product Family: G125-MS1M2

Mating Products

Alternative products

G125-MS13405M2R - 17+17 Pos. Male DIL Vertical SMT Conn. Screw-Lok Board Mount (T+R)

Closest alternative:

G125-MS13405M2R

17+17 Pos. Male DIL Vertical SMT Conn. Screw-Lok Board Mount (T+R)
