17+17 Pos. Male DIL Vertical SMT Conn. Screw-Lok
1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

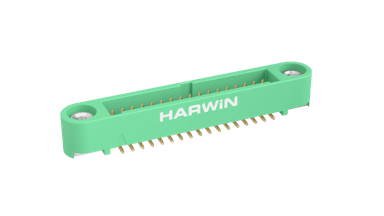

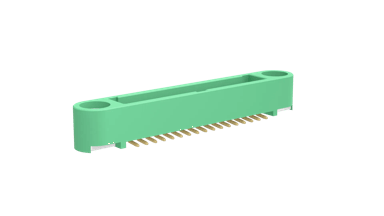

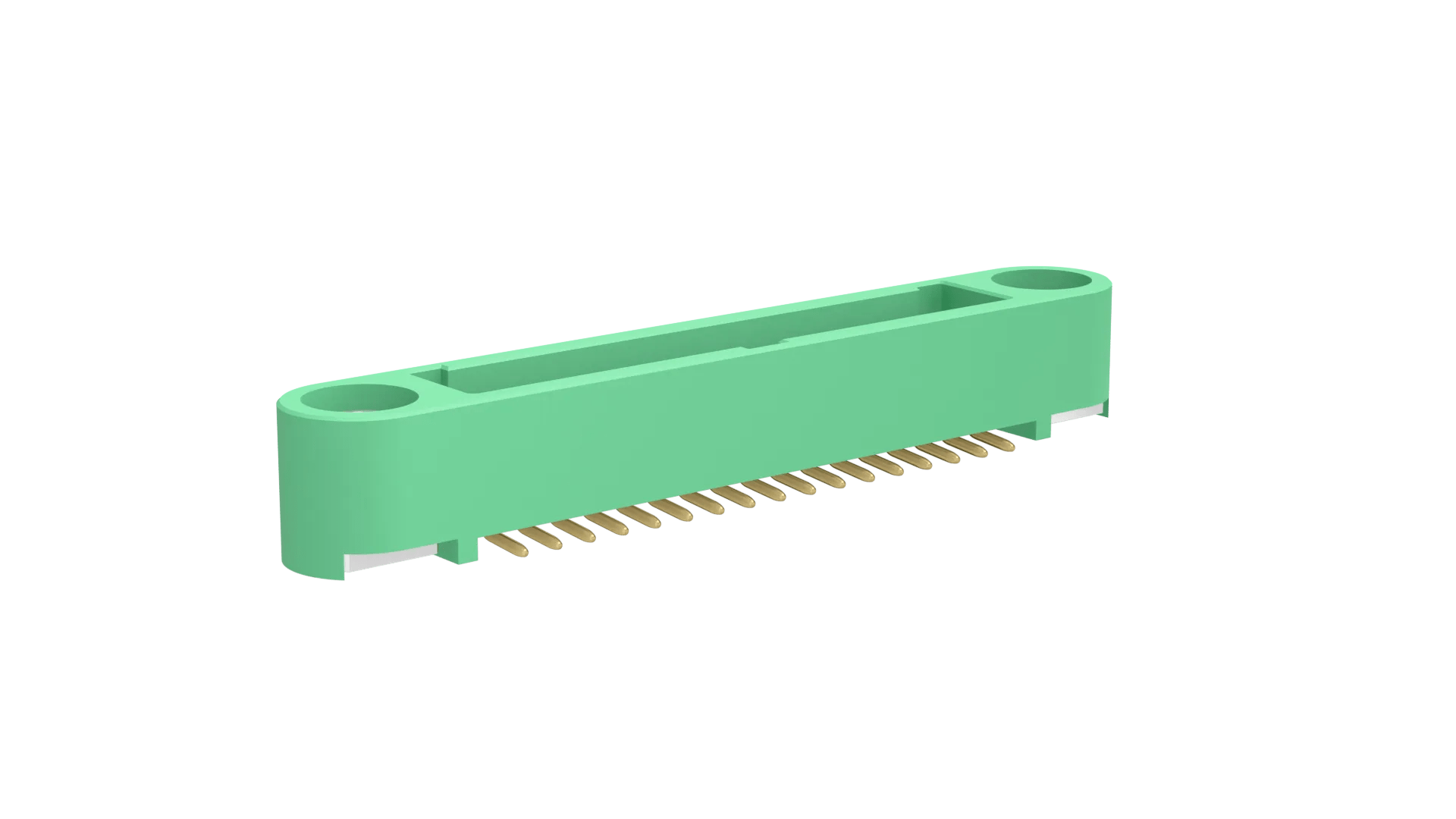

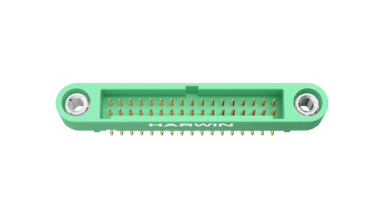

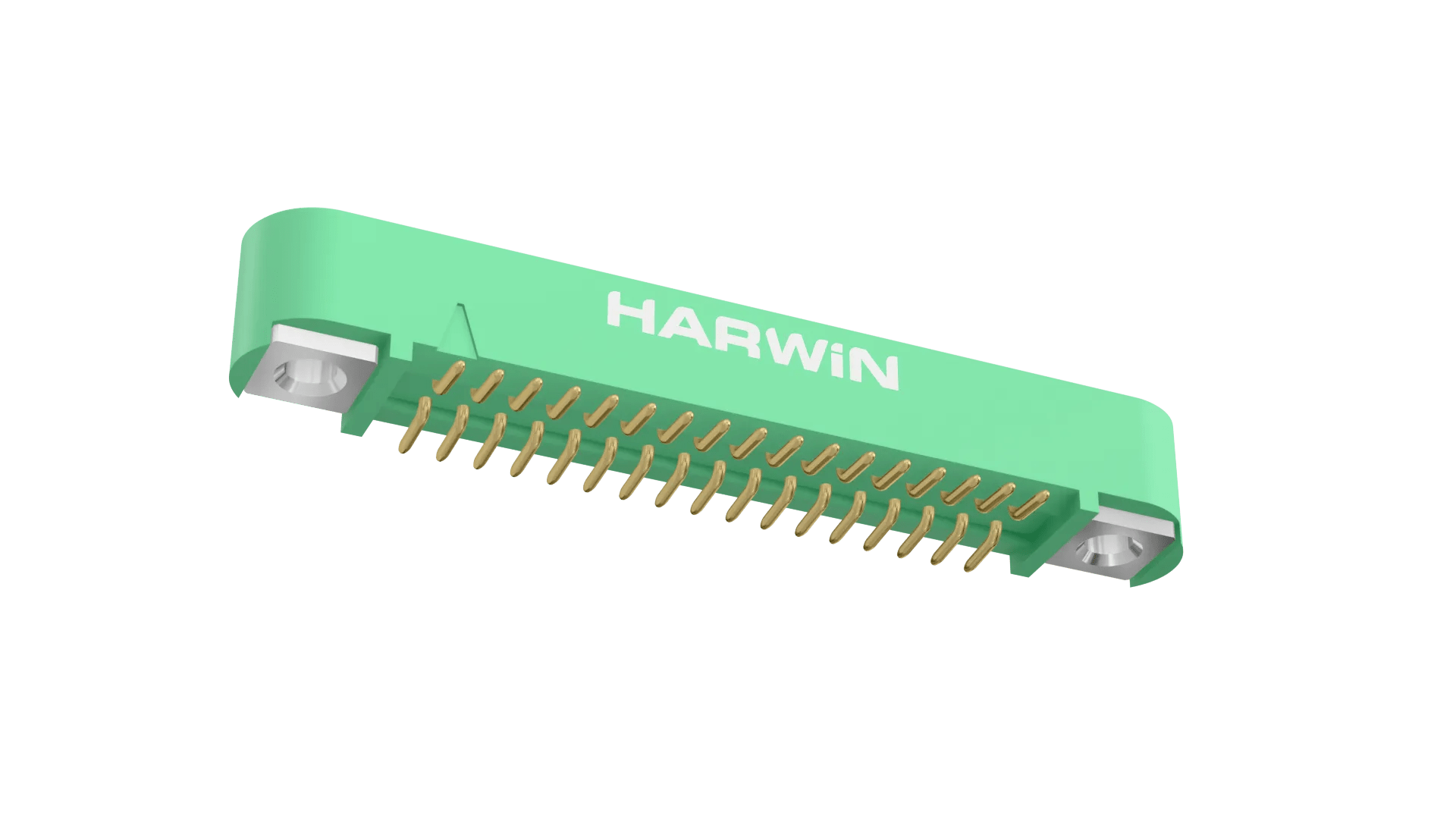

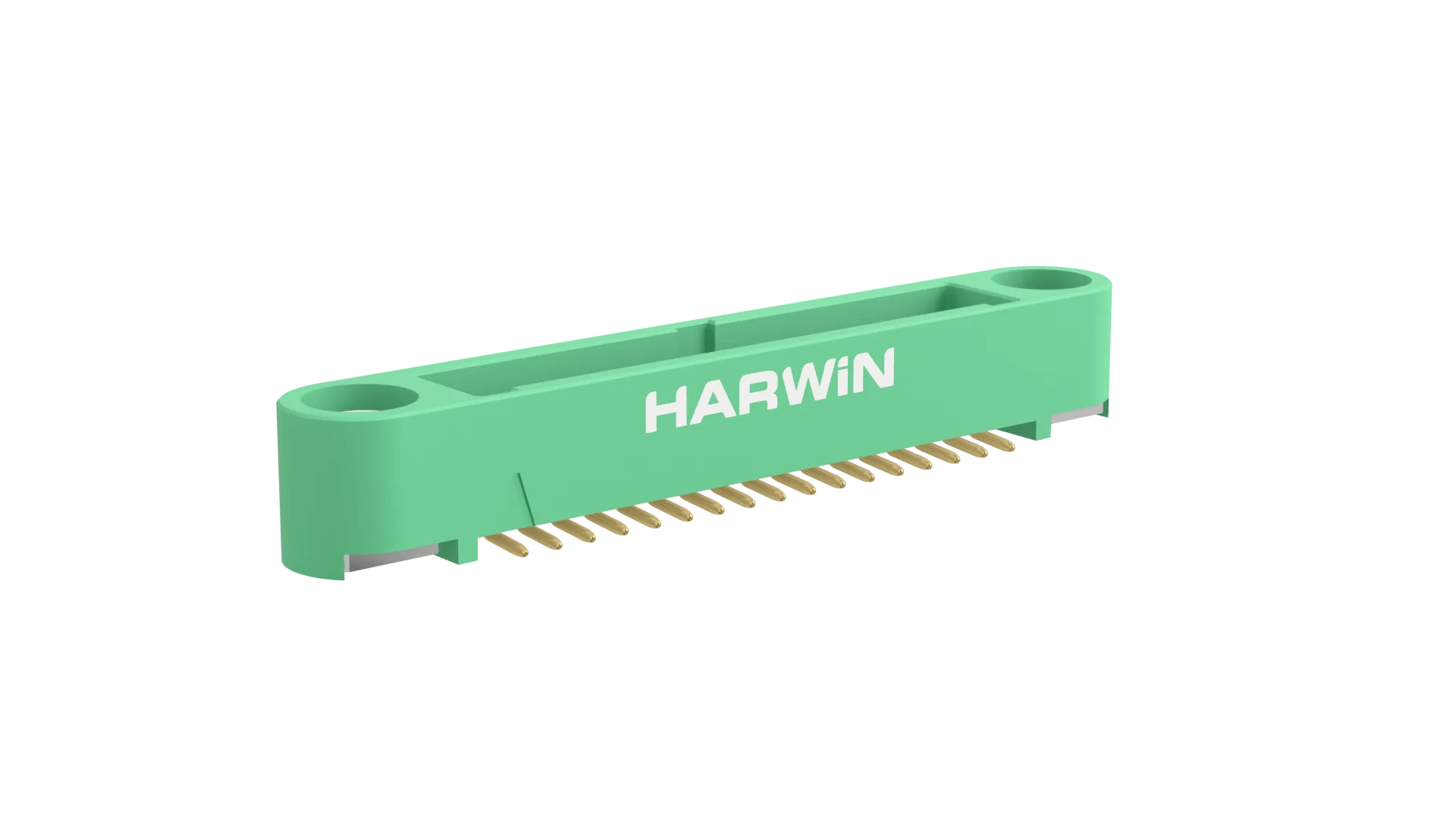

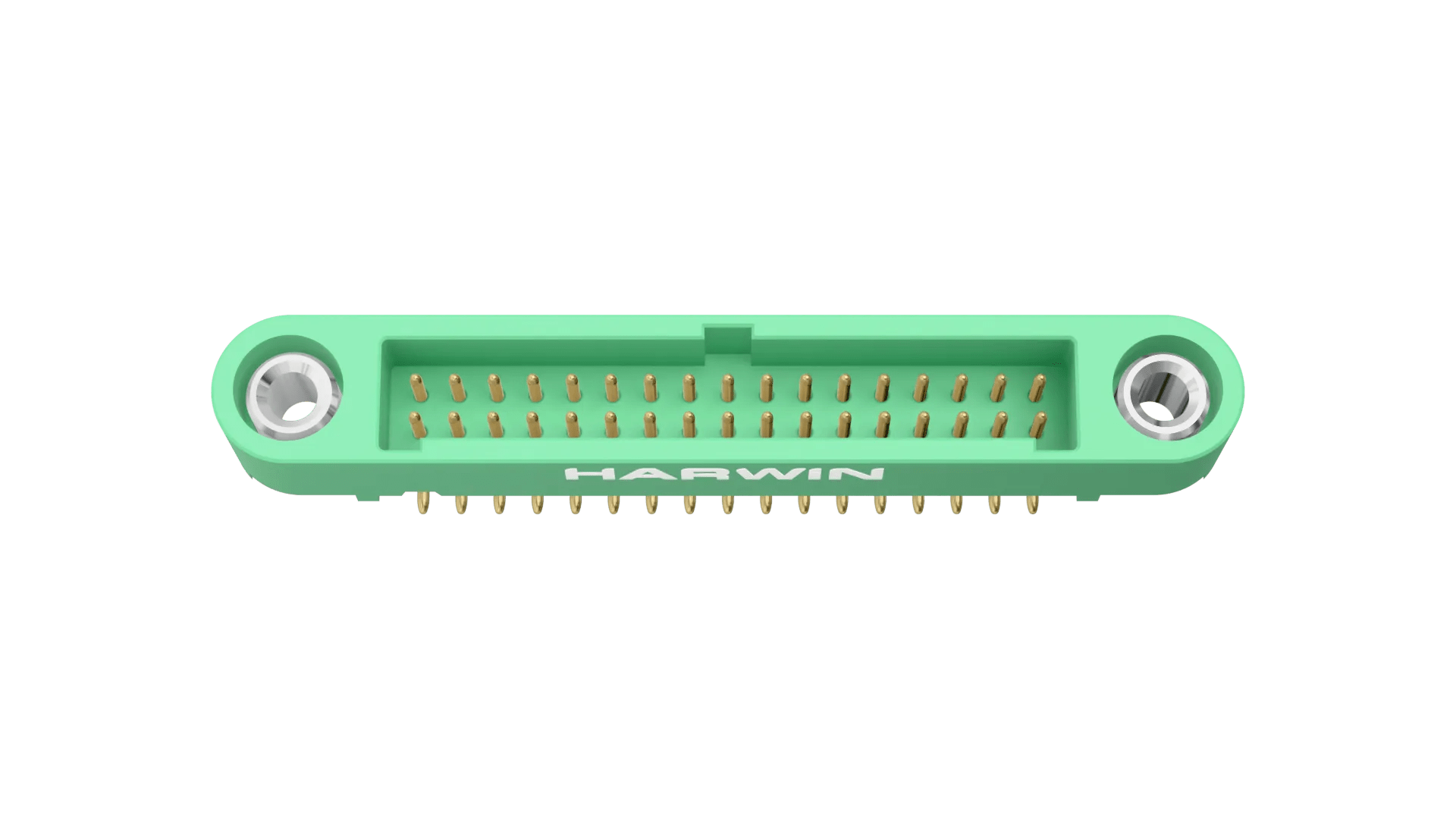

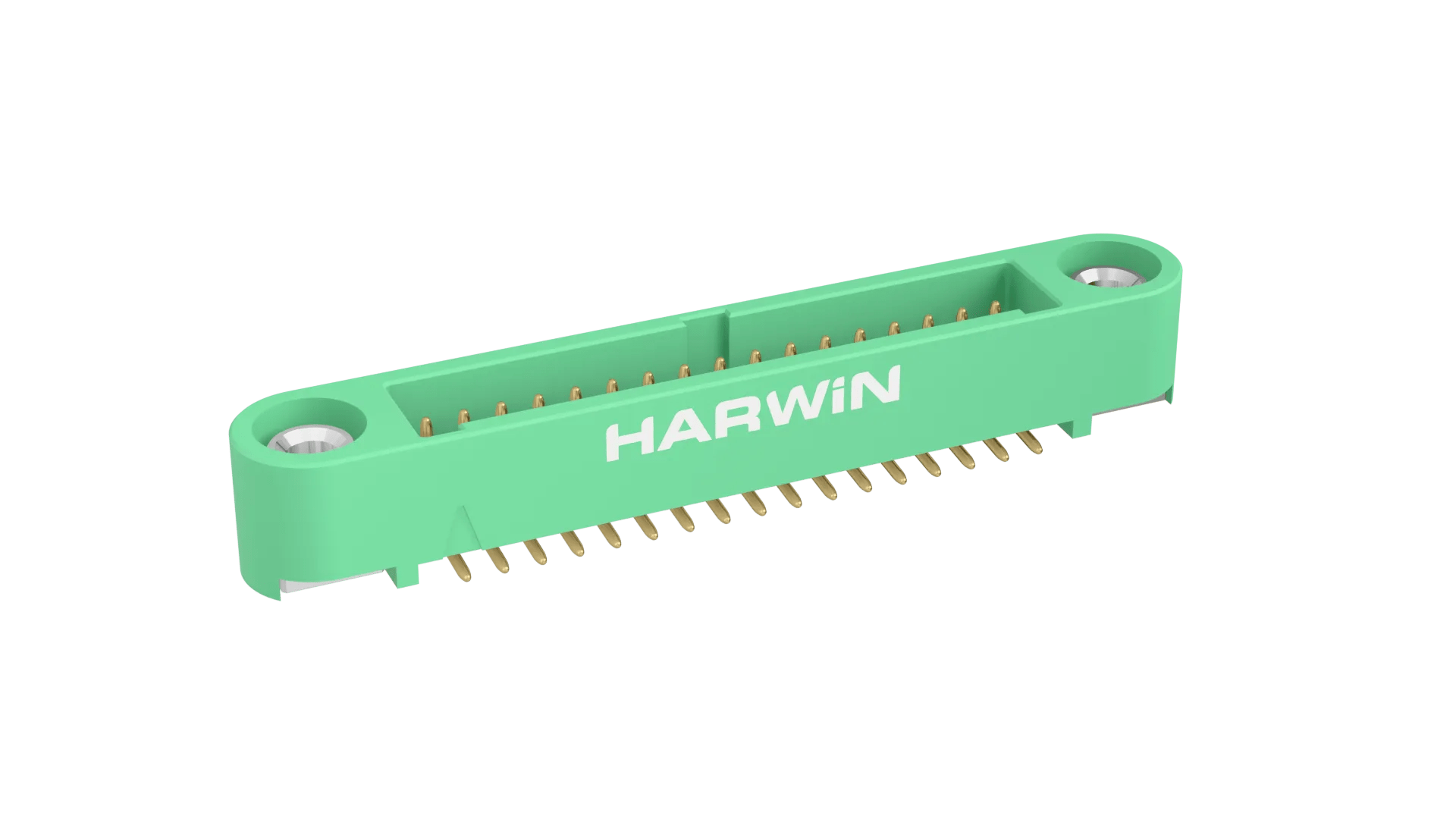

- Male Double Row Surface Mount connector, internally threaded Screw-Lok fixings – 34 contacts (17+17).
- Supplied in tape strips with pick and place cap. Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C125XX.
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
2.8A max individual contact, 2A max simultaneous (25°C)
-65°C to +150°C
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Internal Thread Screw-Lok (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 4T
Housing Material UL Rating:
Tape and Reel Strip
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
32.70 x 5.80 x 4.98
Height of Connector above PCB:
60 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
