Home > G125-MS13405L3P
Active Product

G125-MS13405L3P

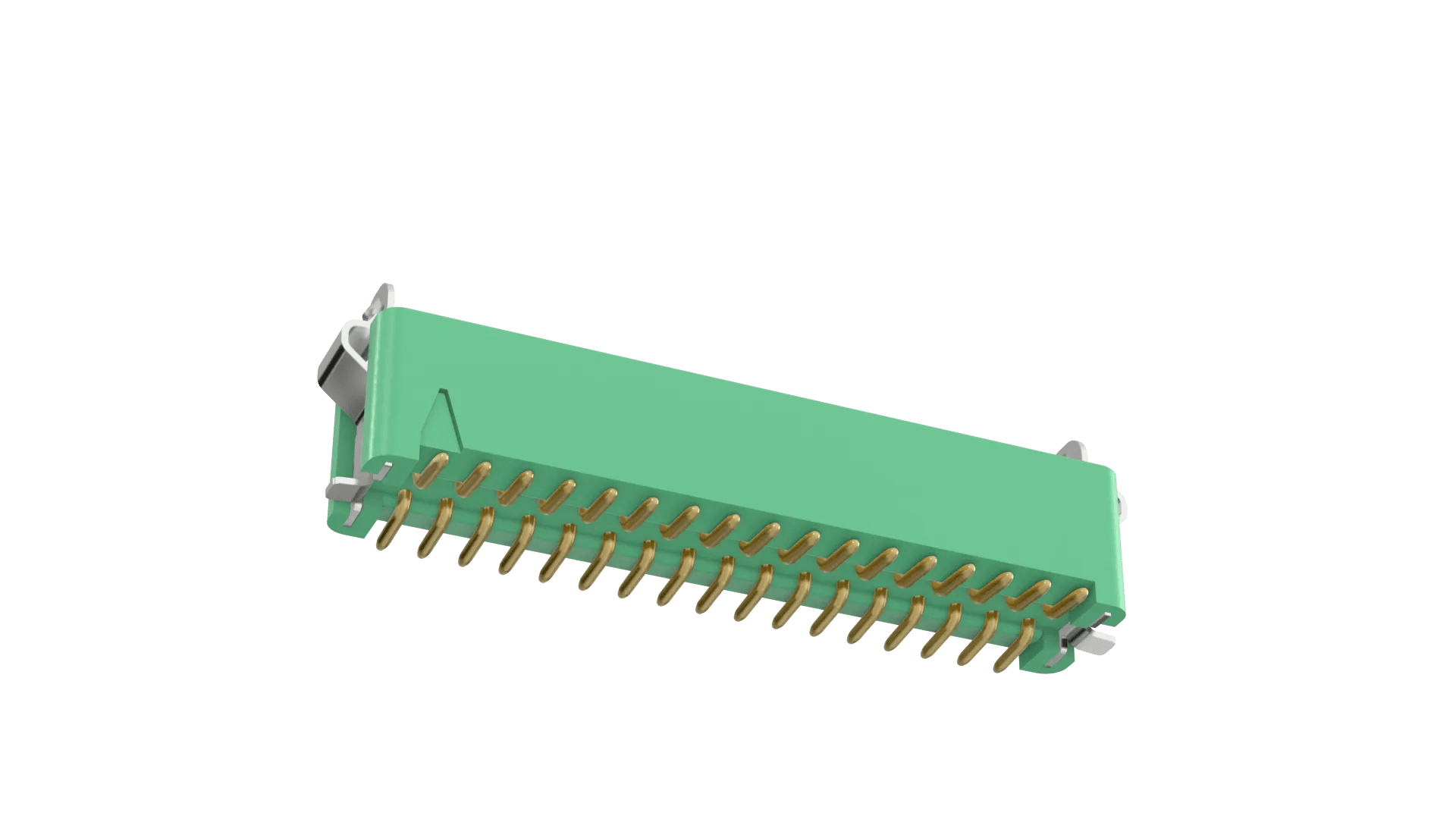

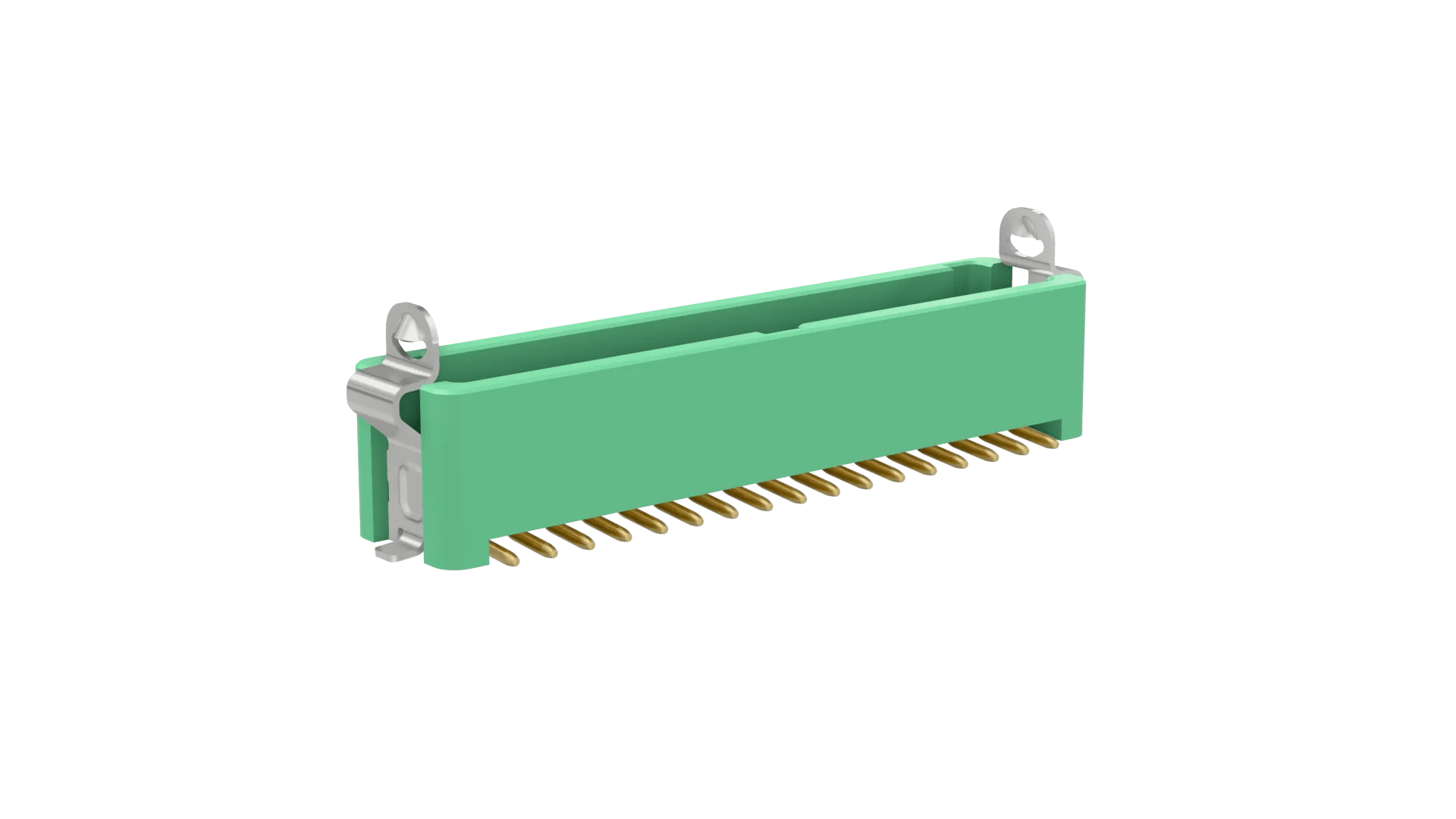

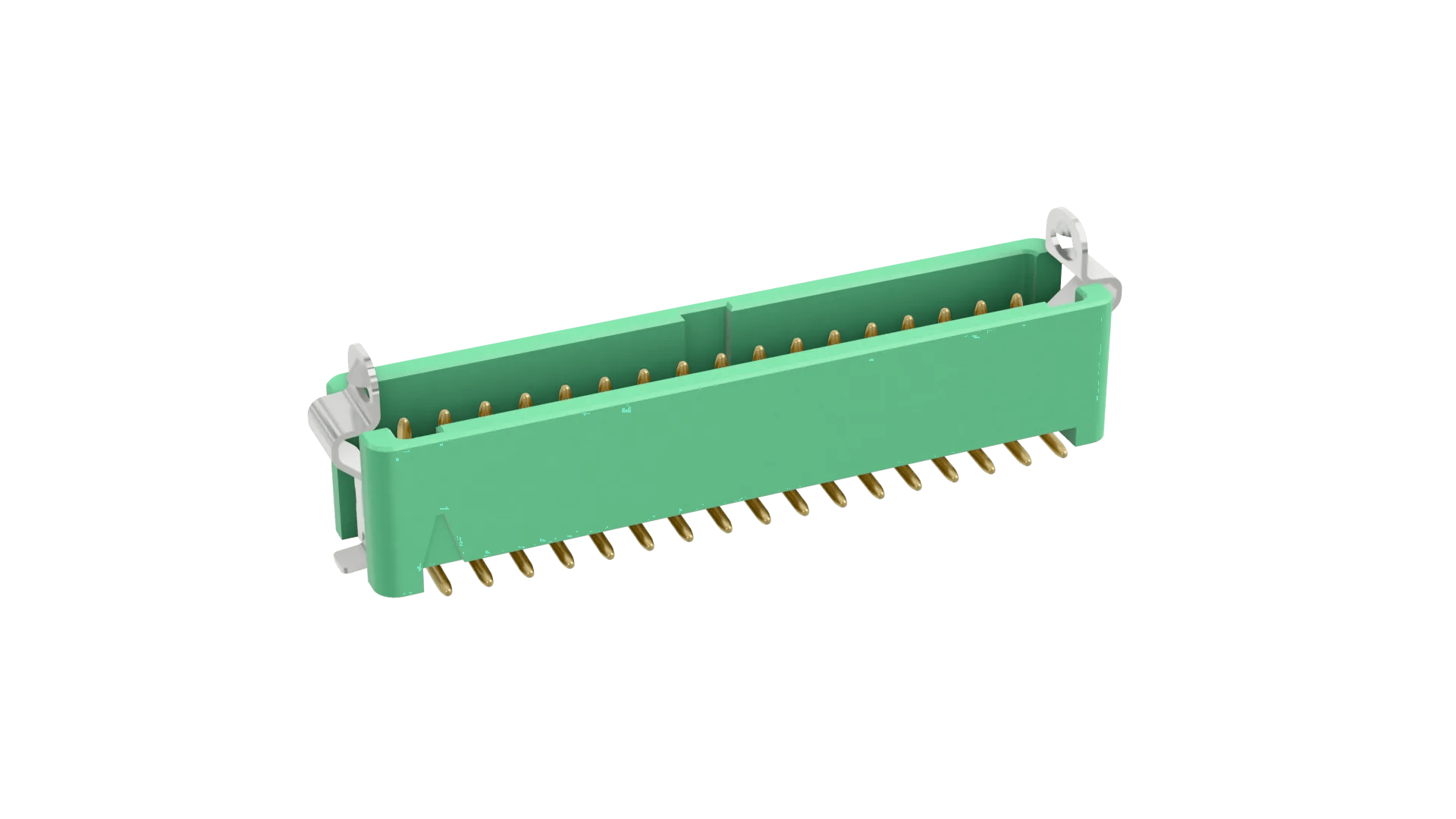

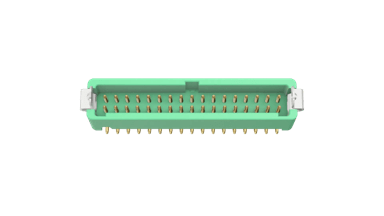

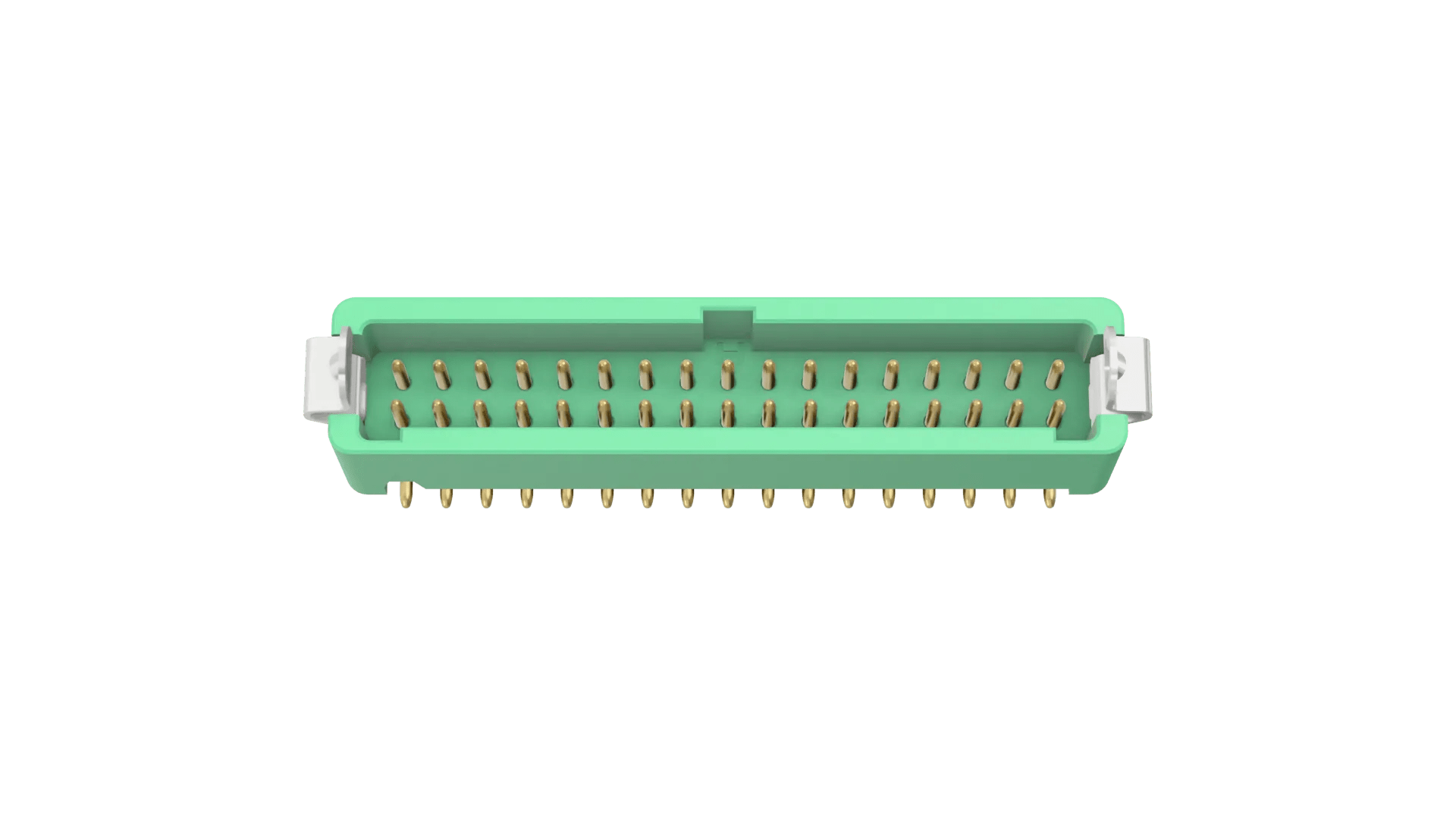

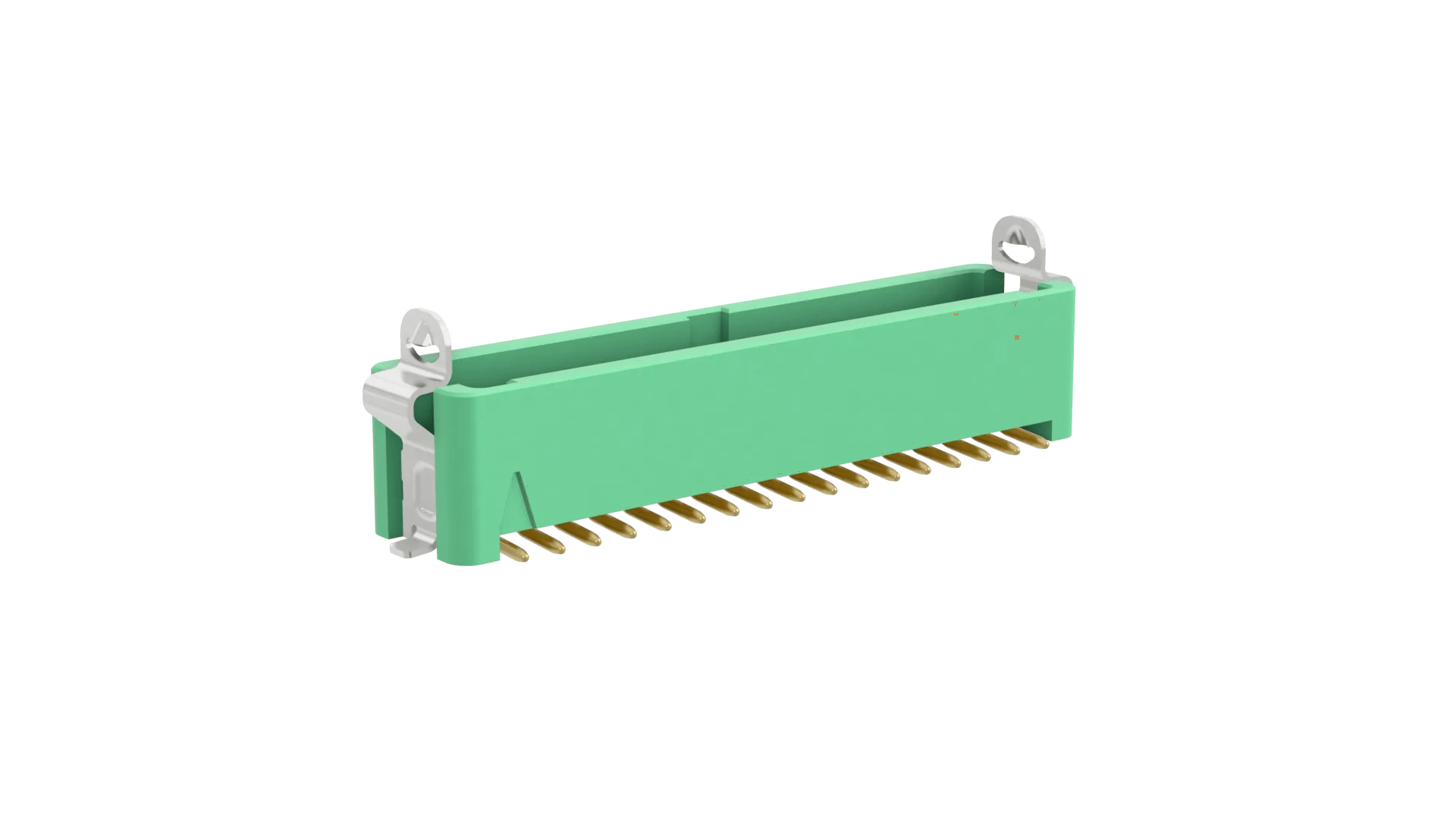

17+17 Pos. Male DIL Vertical SMT Conn. Latches

1.25mm Pitch High-Reliability Connector - Gecko with Latches

Add to Favorites

207 in stock   Check availability

8 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Double Row male Surface Mount connector, Latches with Surface Mount hold-down – 34 contacts (17+17). Surface Mount hold-down areas give additional strain relief when soldered to the PCB.
  • Supplied in tape strips with pick and place cap. Gold finish on contact area and termination.
  • For complete pin numbering or pin out information, see Component Specification C125XX.

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Latches:

Locking Latch

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

34

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel Strip

Dimensions

Individual Part Weight:

0.835g

Overall Dimensions (L x W x D) in mm:

25.20 x 5.80 x 6.88

Height of Connector above PCB:

6.88mm

Frequently Asked Questions Ask a Question

Do you have a tool to help separate this connector when it is latched to the mating half?

The tool you need is the Z125-9263400 – this will help push in the two latch buttons when the connectors are engaged, so you can then separate the mated connectors. Consult the training video for more information on using this tool. It is also possible to push in the two buttons by hand as well, if you have good access.
