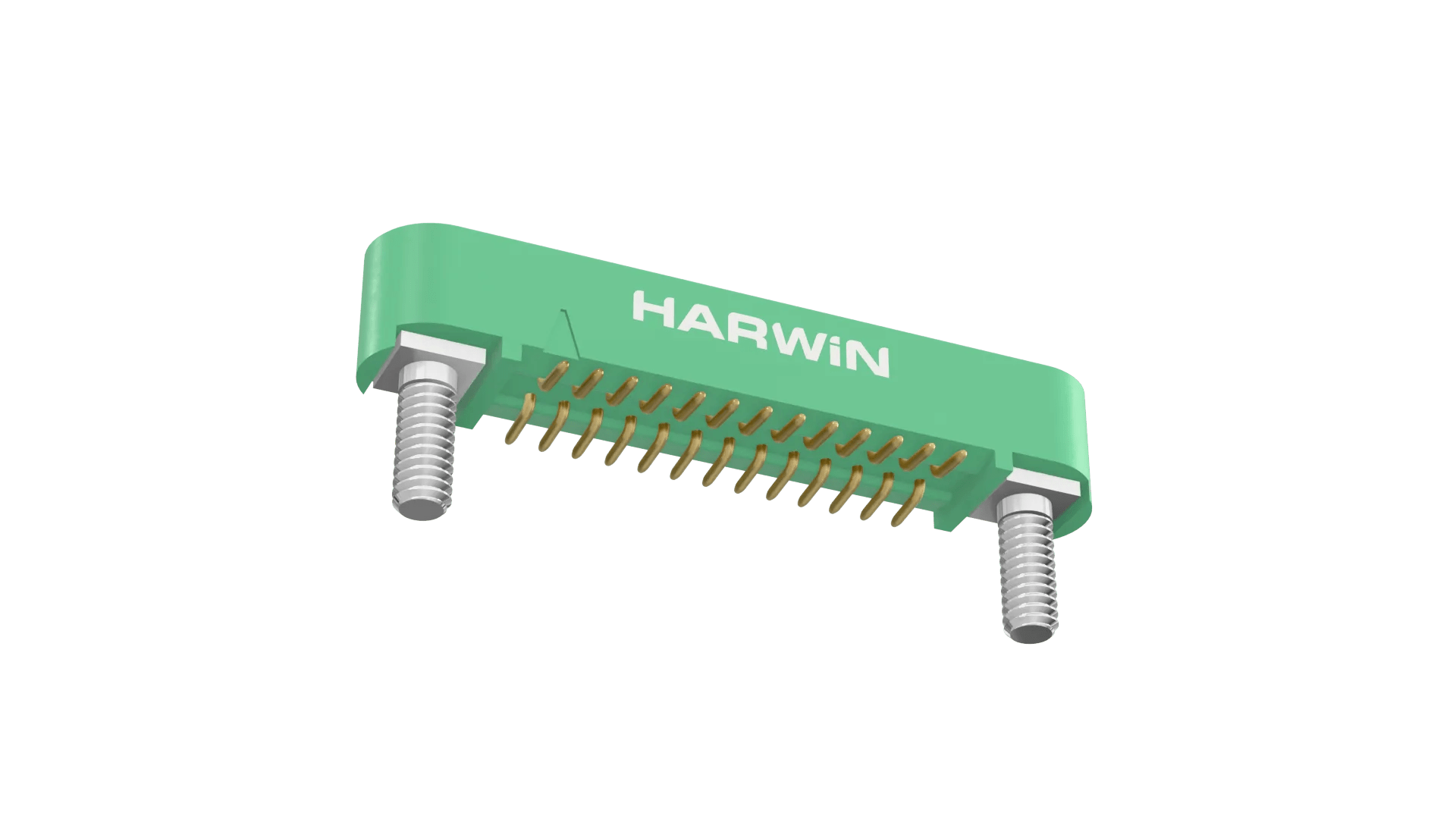

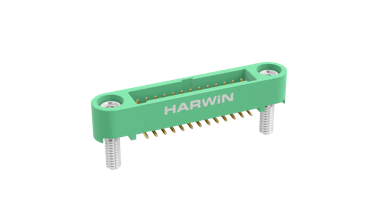

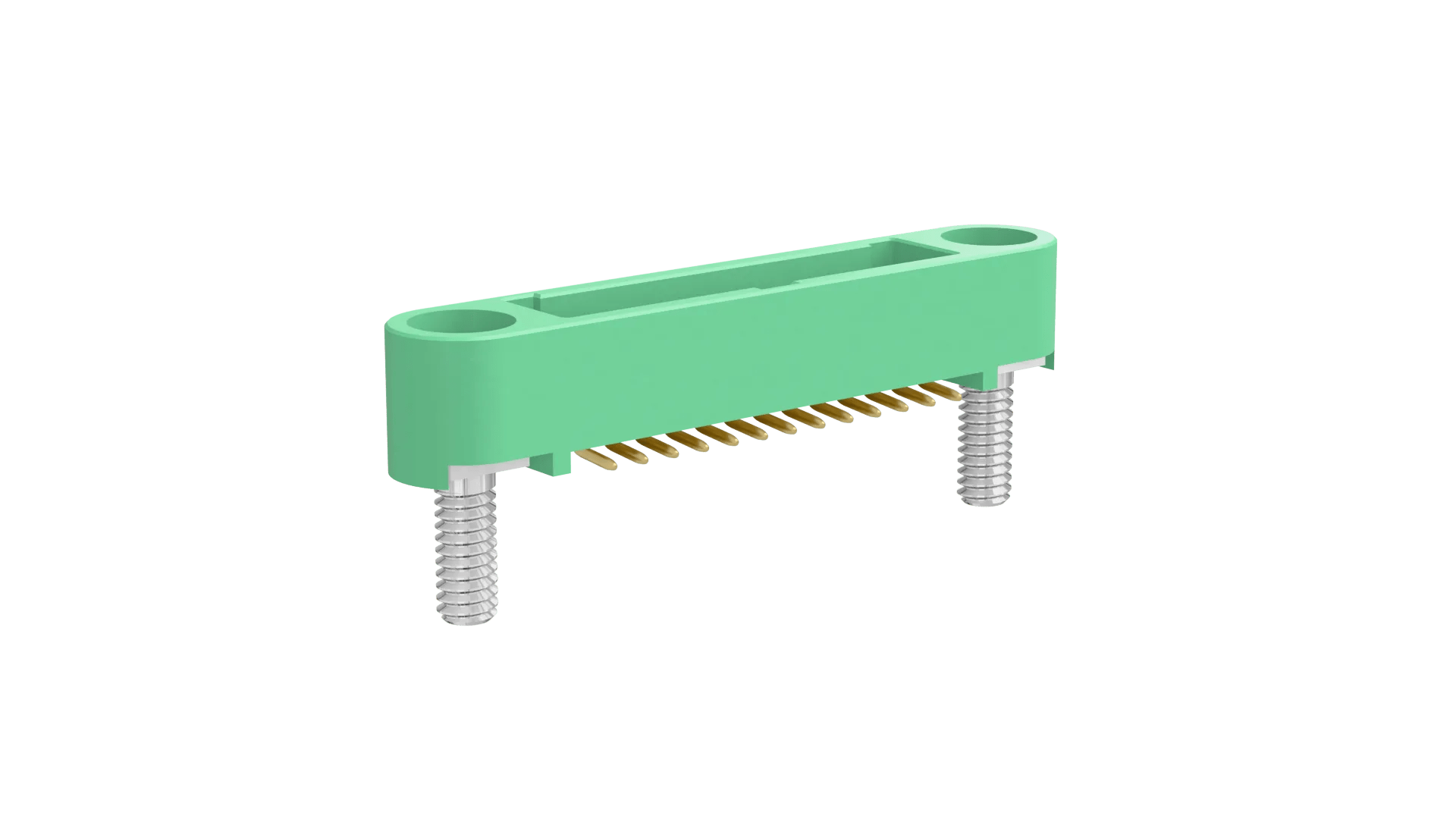

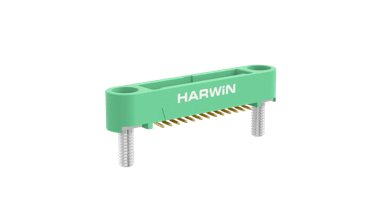

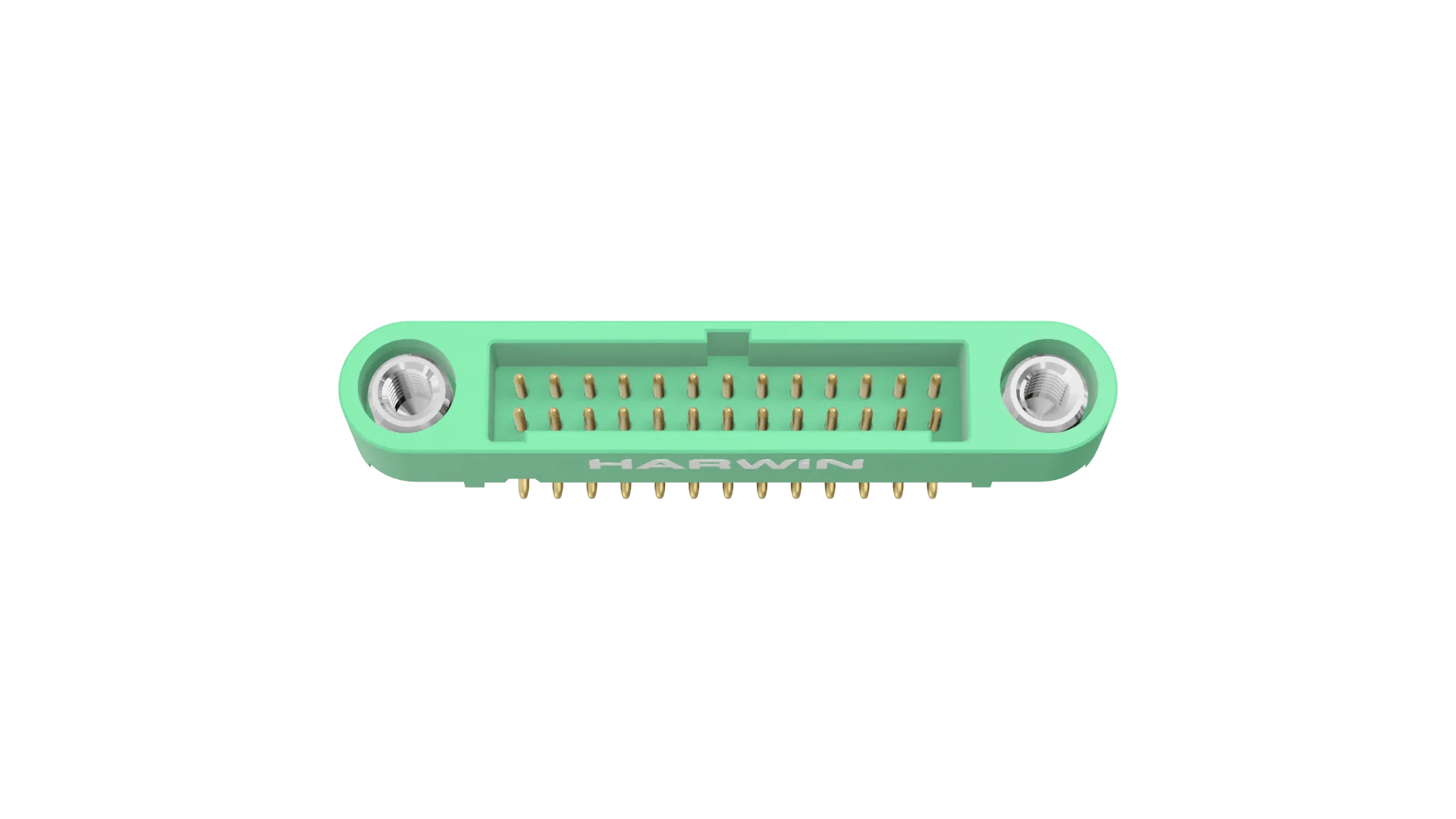

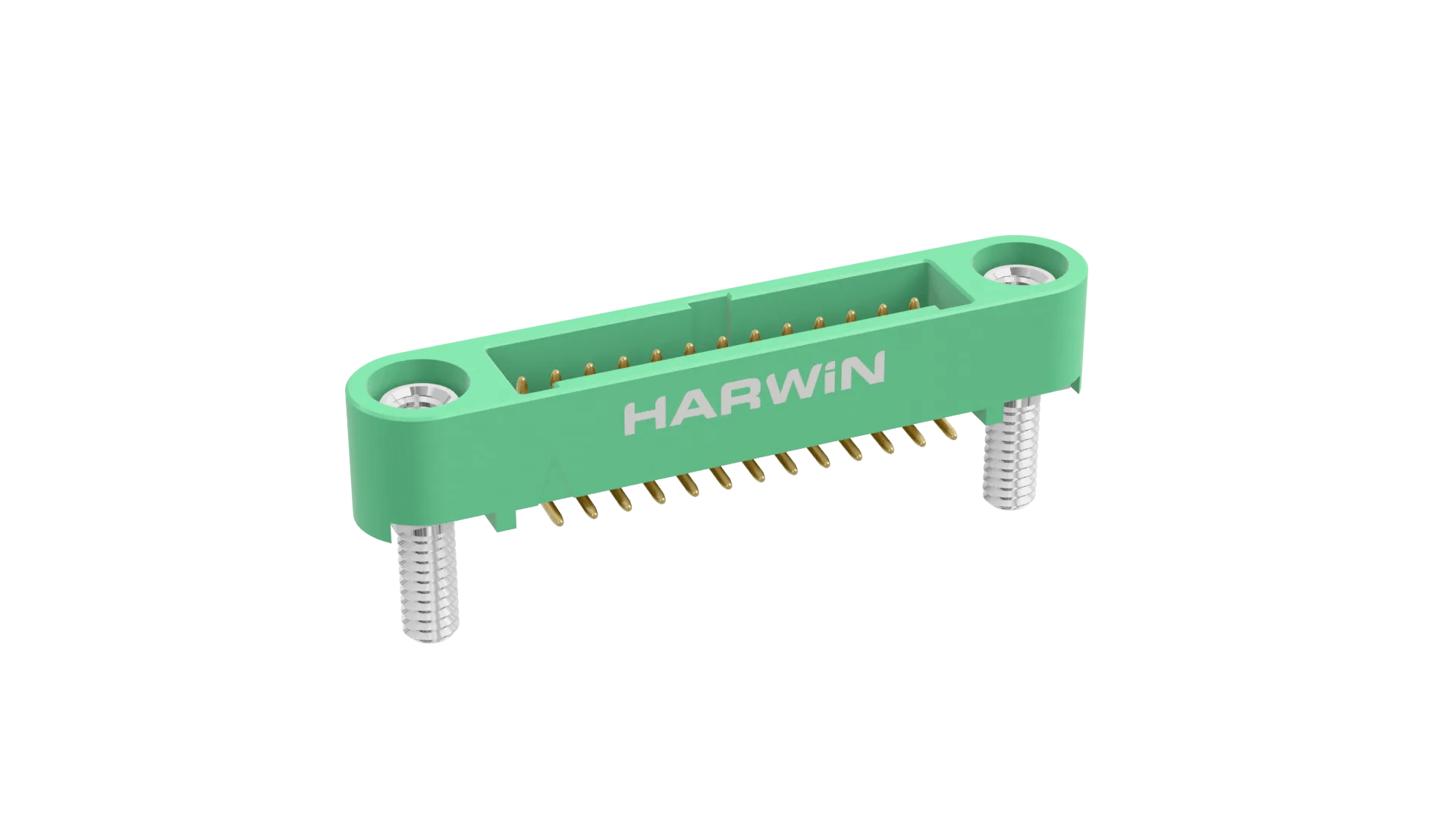

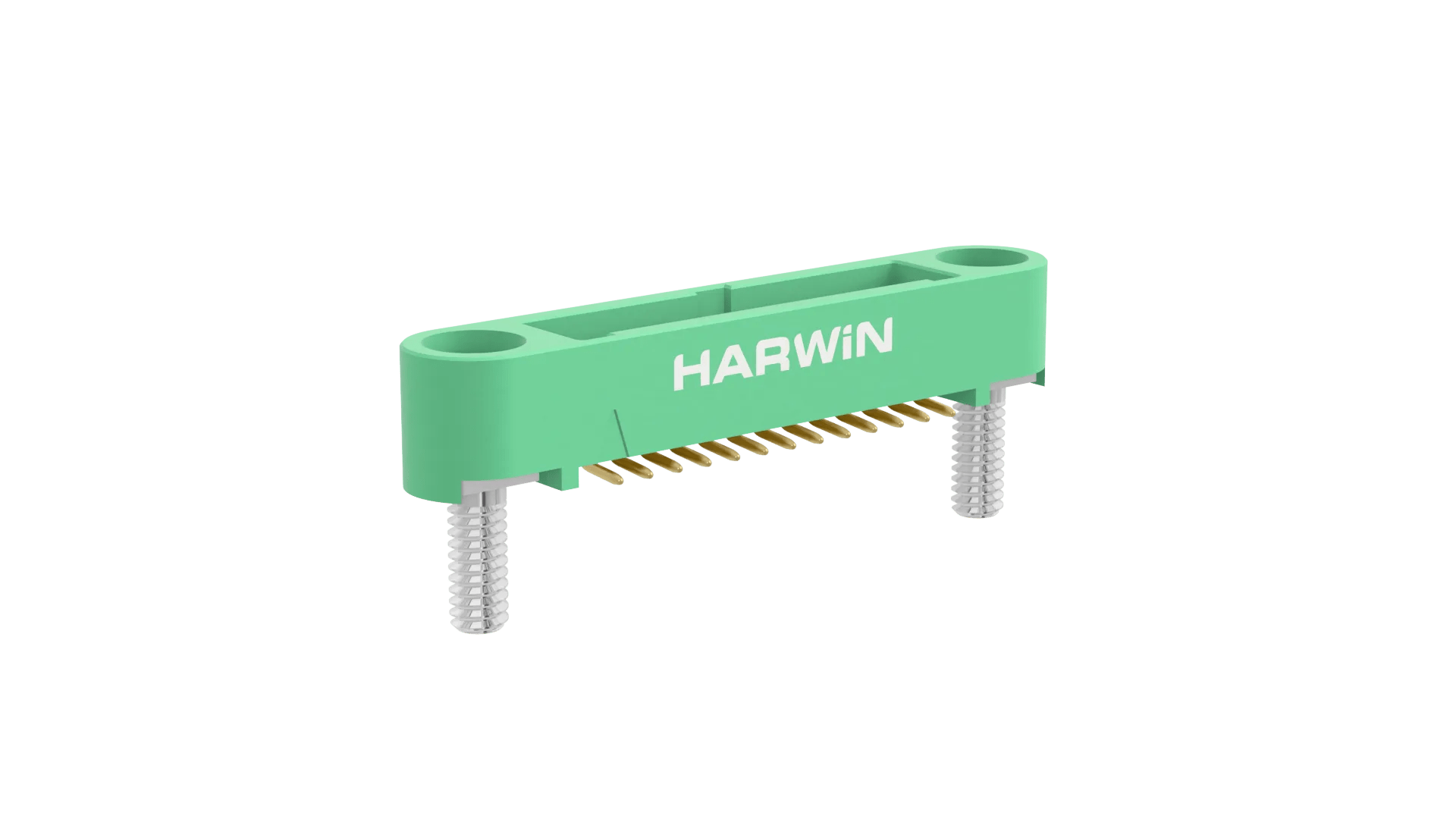

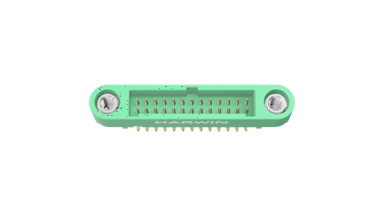

G125-MS12605M2P

13+13 Pos. Male DIL Vertical SMT Conn. Screw-Lok Board Mount

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Screw-Lok with Board Mount

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

26

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel Strip

Dimensions

Individual Part Weight:

1.266g

Overall Dimensions (L x W x D) in mm:

27.70 x 5.80 x 9.90

Male Stud Length:

5.00mm

Thread Size:

M2

Height of Connector above PCB:

4.98mm

Availability

326 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 178
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 128
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 20

Questions & Answers Ask a Question

Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?

No, these connectors are not supplied with the board/panel mount nuts – you will need to order them separately. You have a choice of G125-4500000B (hexagonal nut), or G125-4510000B (slotted circular nut).

What torque value should be used for these screw-loks?

The torque value for board or panel mounting and for mating screw-loks is 16-18cmN. Both values are given in the Component Specification C125xx (page 3).
