Home > G125-MS12005M1R
Active

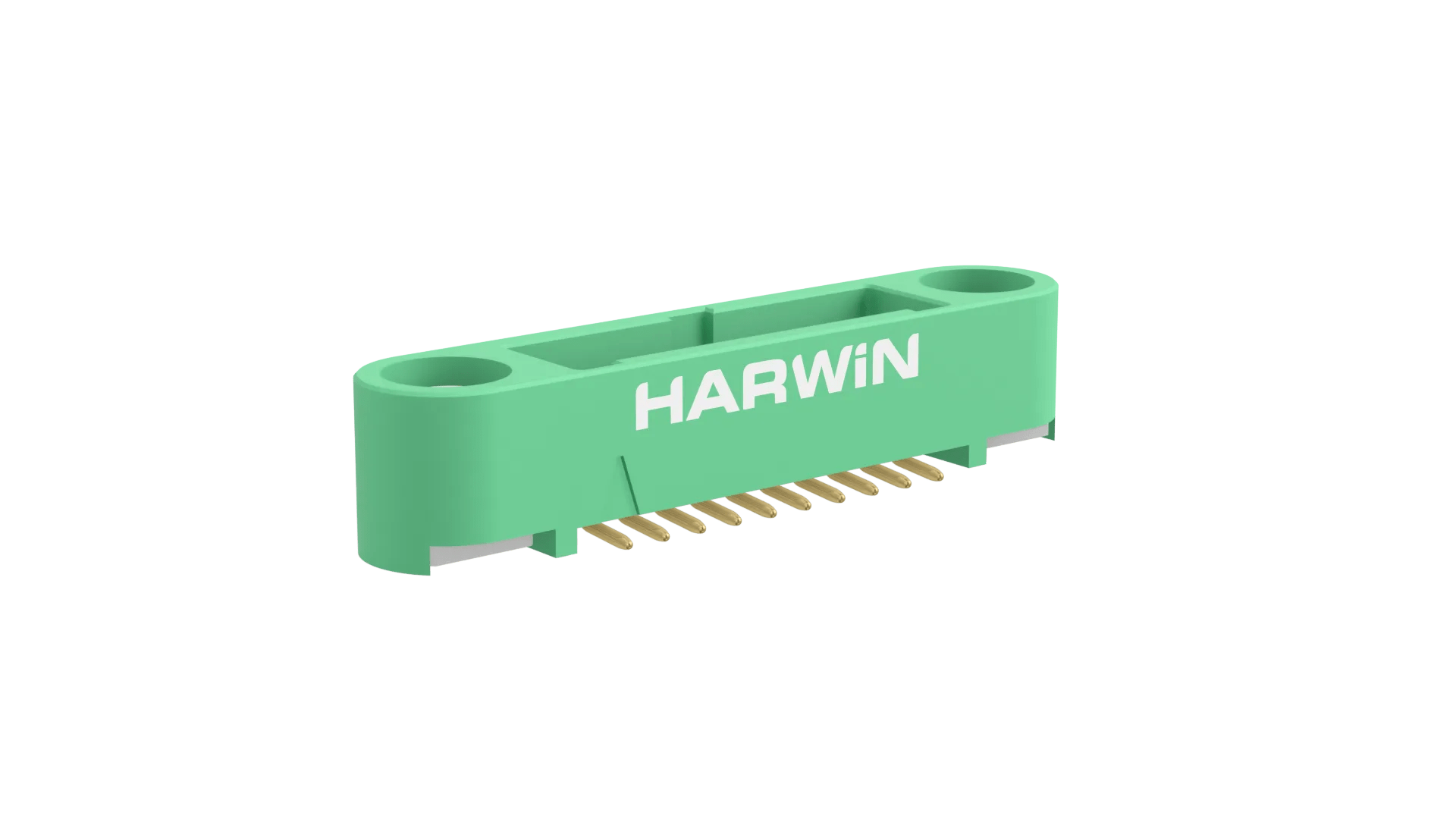

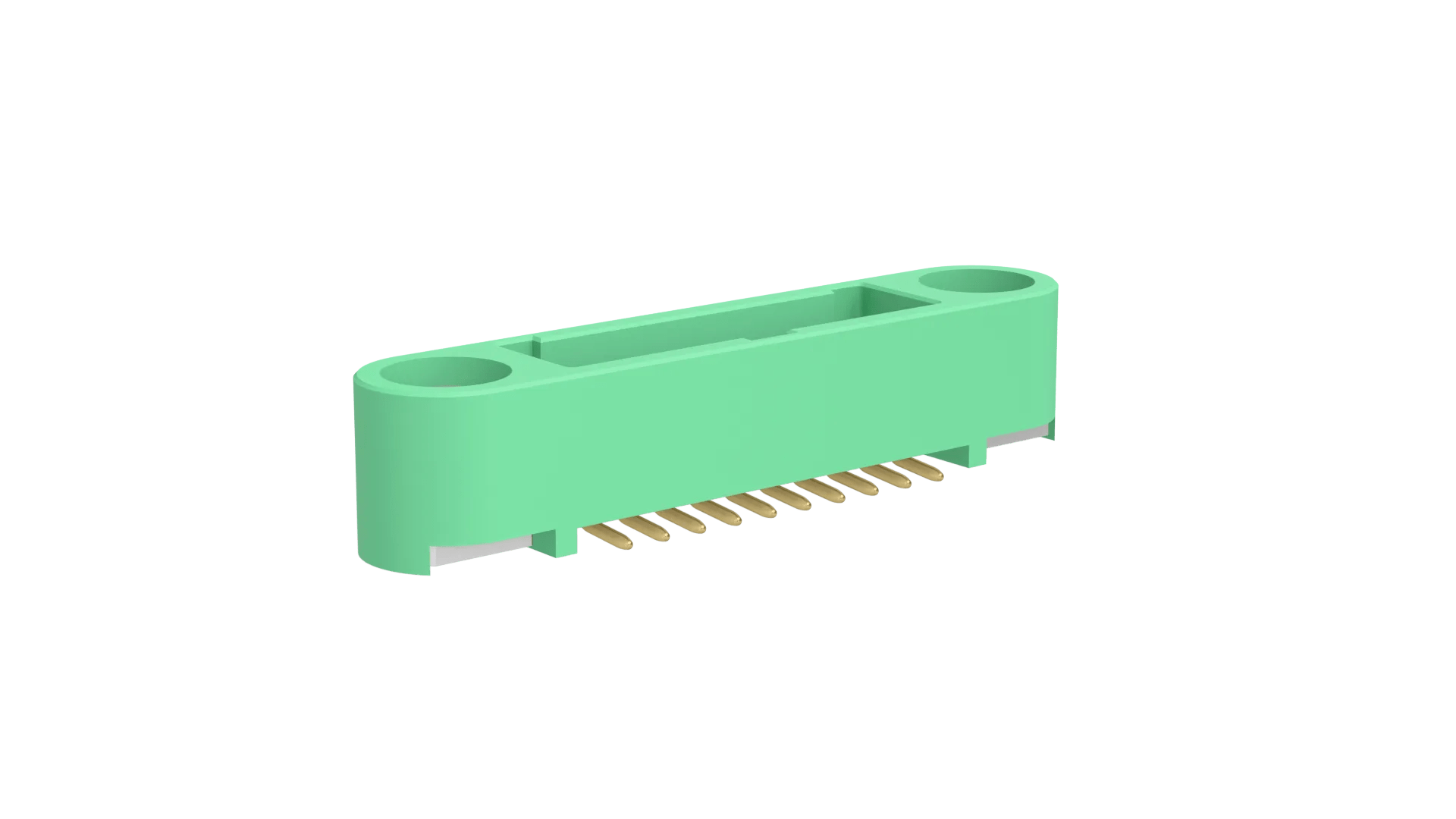

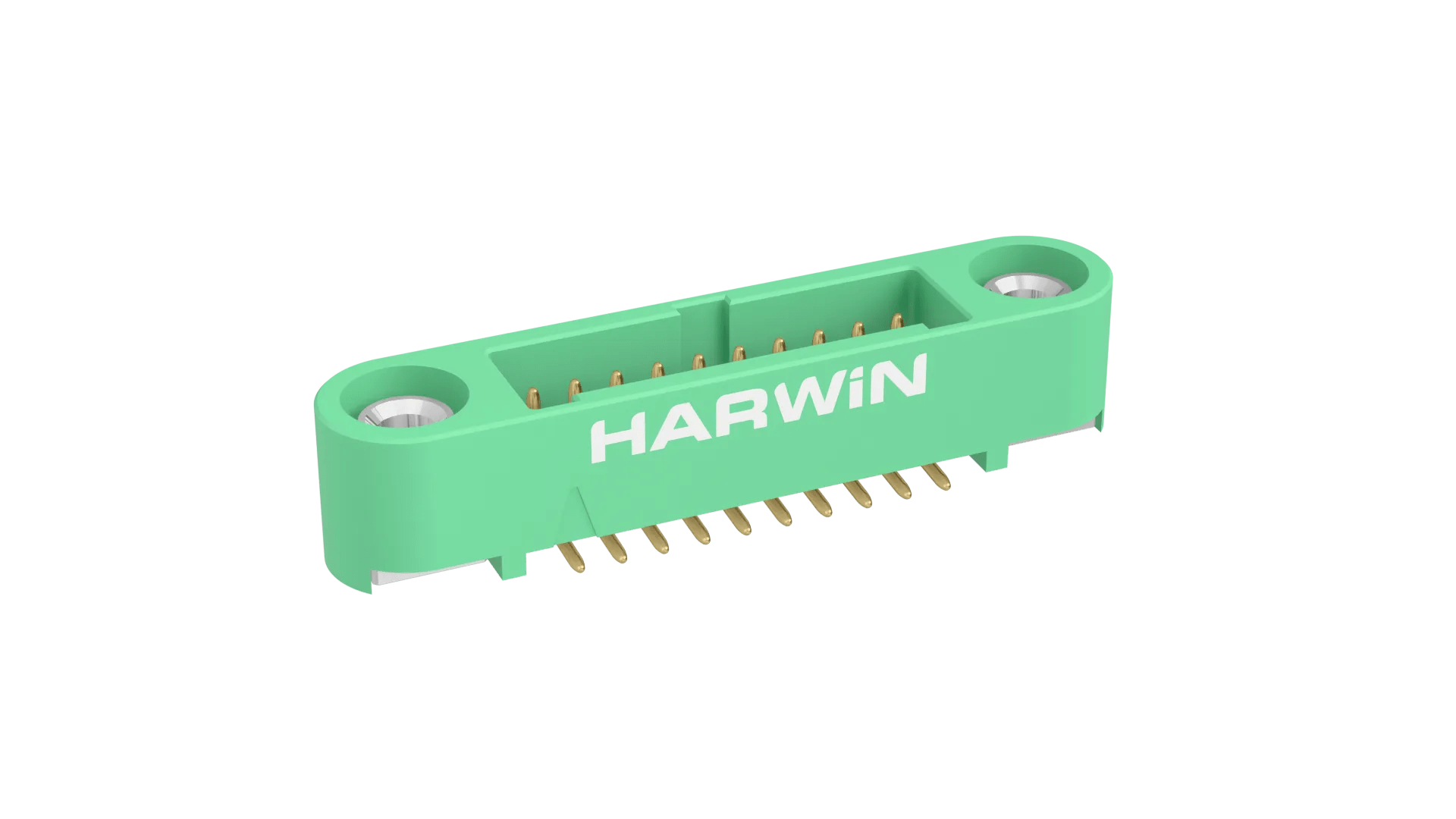

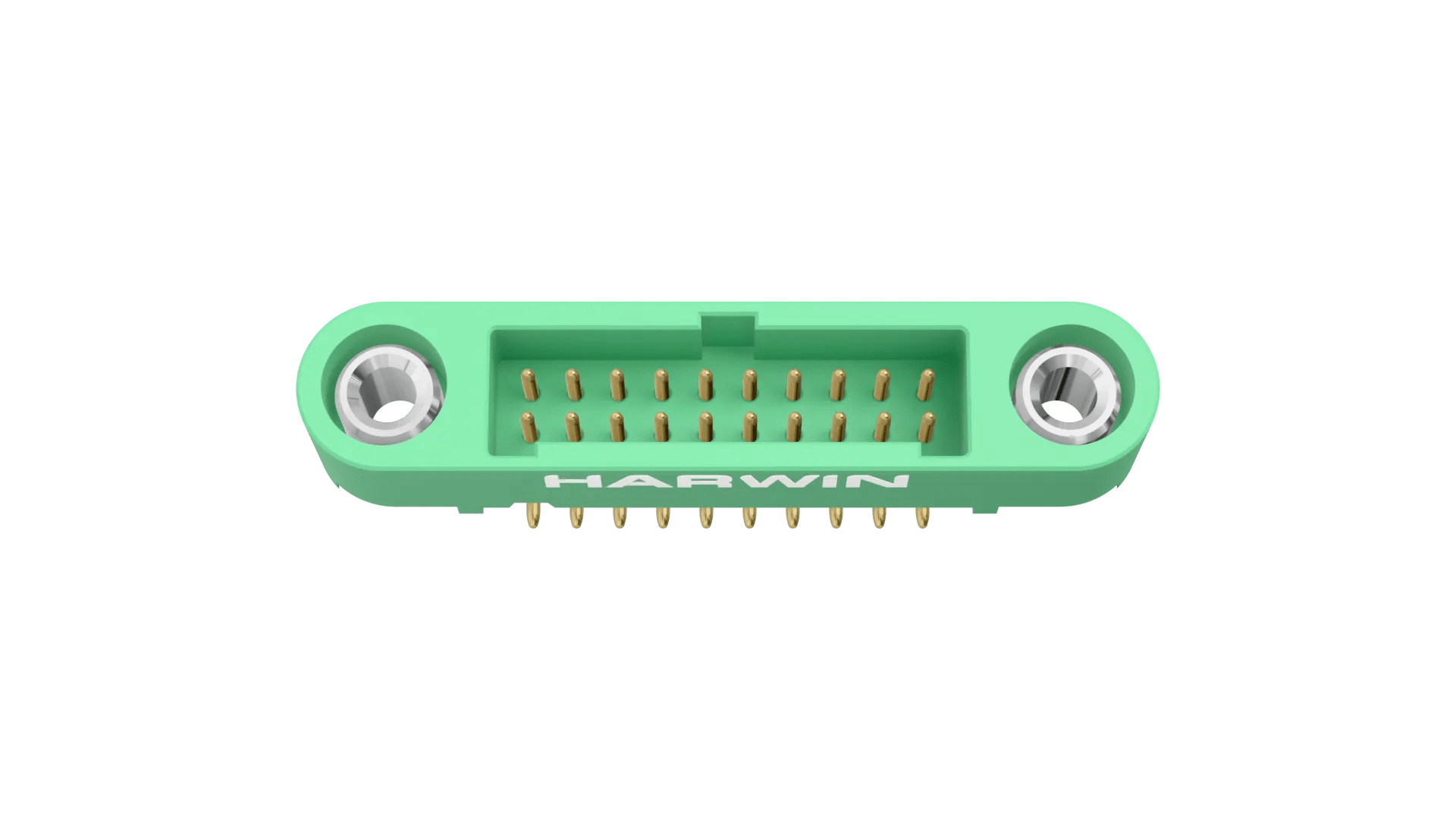

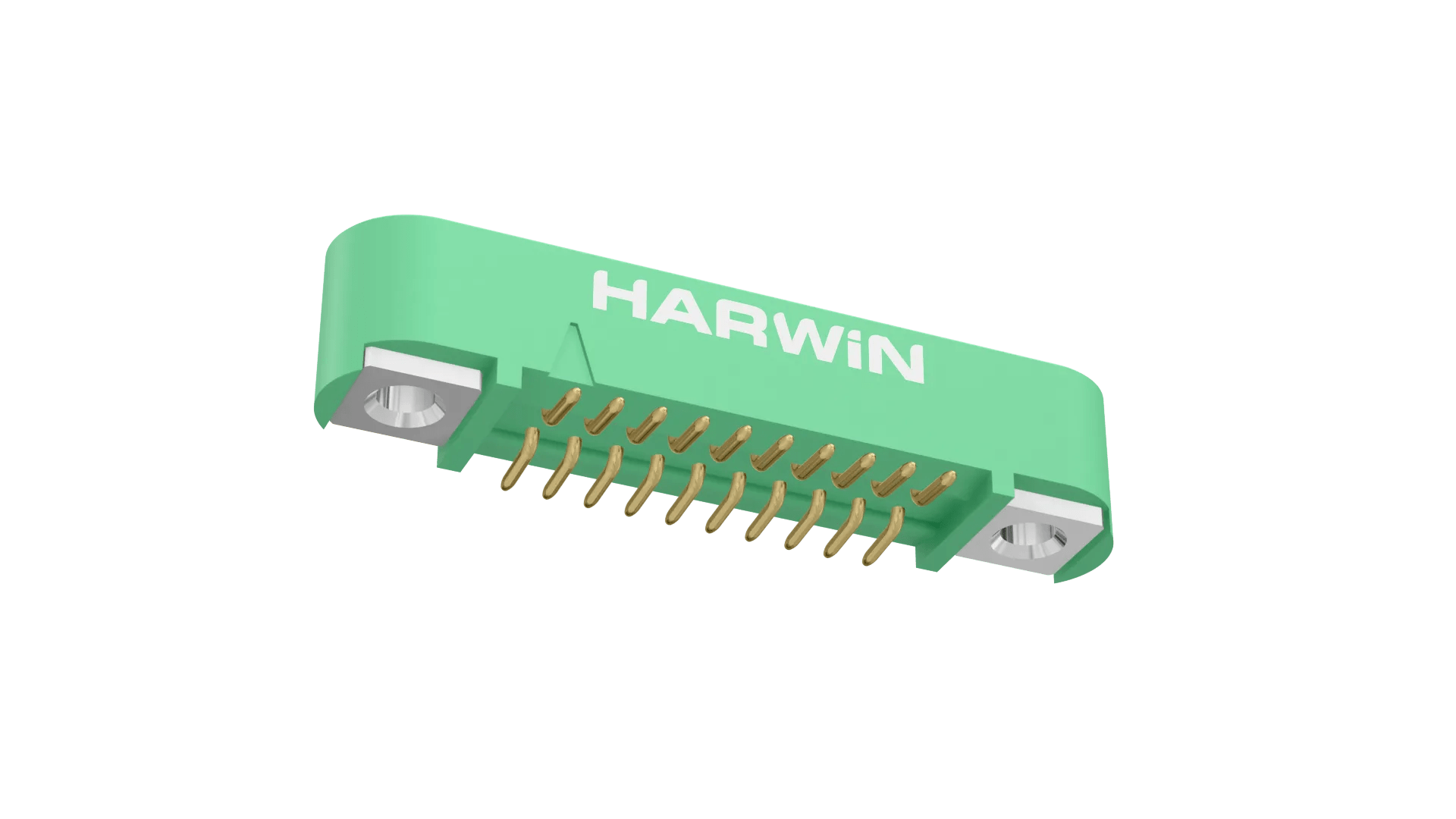

G125-MS12005M1R

10+10 Pos. Male DIL Vertical SMT Conn. Screw-Lok (T+R)

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

  • Male Double Row Surface Mount connector, internally threaded Screw-Lok fixings – 20 contacts (10+10).
  • Supplied on Tape and Reel with pick and place cap. Gold finish on contact area and termination.
  • For complete pin numbering or pin out information, see Component Specification C125XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Screw-Lok

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

20

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.972g

Overall Dimensions (L x W x D) in mm:

23.95 x 5.80 x 4.98

Thread Size:

M2

Height of Connector above PCB:

4.98mm

Availability

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Currently made to order*

* Please request minimum quantities, lead times and pricing from an authorized distributor.

Questions & Answers Ask a Question

What torque value should be used for these screw-loks?

The torque value for mating screw-loks is 16-18cmN. This value is given in the Component Specification C125xx (page 3).

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - G125-MS1XX05M1R.pdf

ZIP

G125-MS12005M1x CAD Model (ZIP file containing STP and IGES)

Download
PDF

C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

TEST REPORTS

PDF

Test Report HT030 - Gecko (G125 Series) - Electrical, Mechanical and Environmental

PDF

Test Report HT067 - Gecko-SL (G125 Series) - Mechanical Screw-Lok test

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for G125-MS1XX05M1X series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Gecko Screw-Lok range, 1.25mm pitch High-Reliability

OTHER DOWNLOADS

PDF

Catalog page - Gecko-SL Male Vertical SMT

PDF

Catalog page - Gecko-SL Specification, Pin Numbering

PDF

Catalog page - Gecko-SL Mating Profiles

PDF

Catalog page - Gecko Introduction

PDF

Product Summary - Gecko-SL High-Reliability Connectors

PDF

Outgassing data for Harwin products (plastics)

PDF

Plating thickness on Gecko contacts (signal and power)
