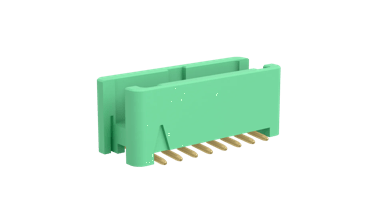

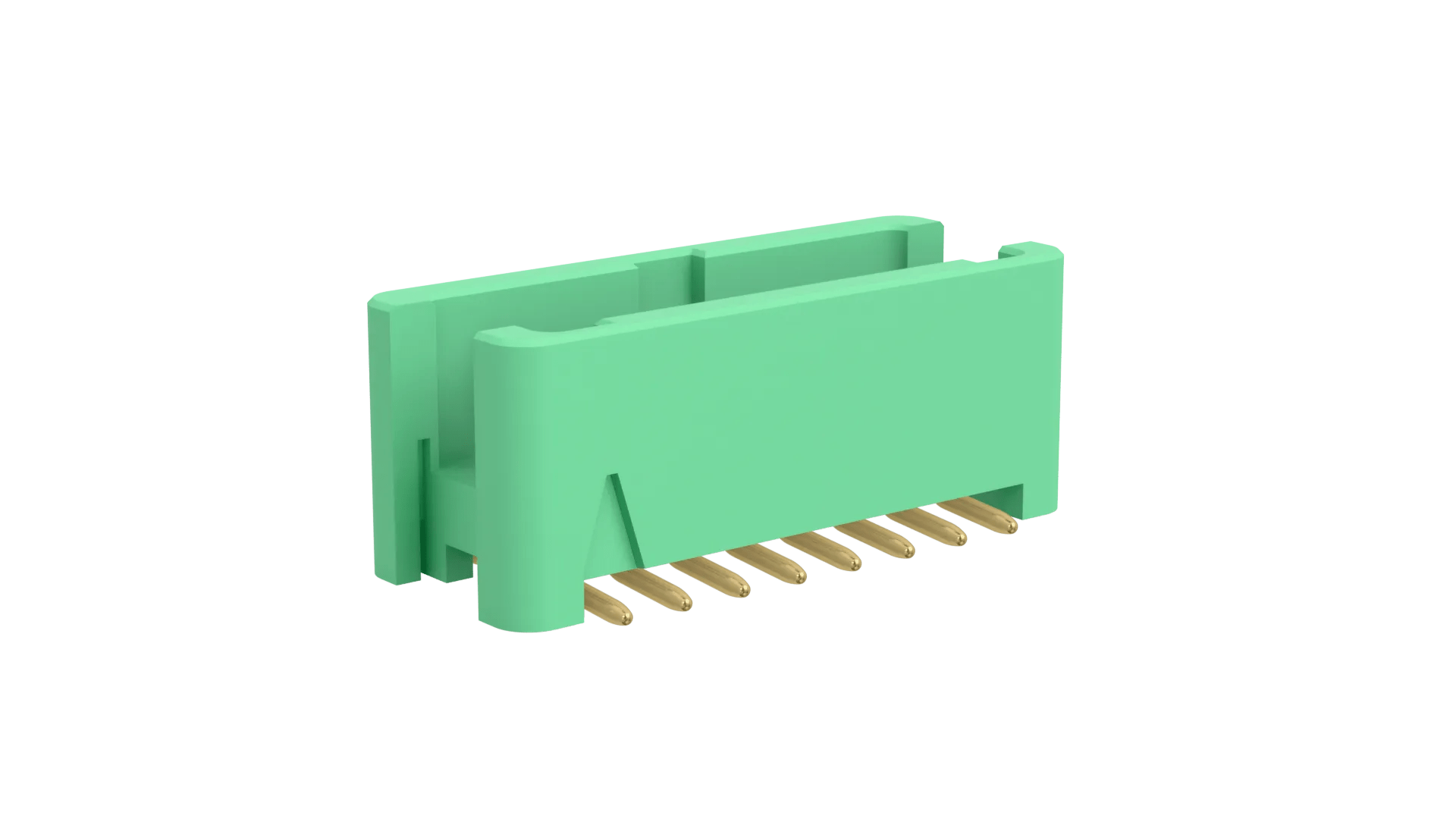

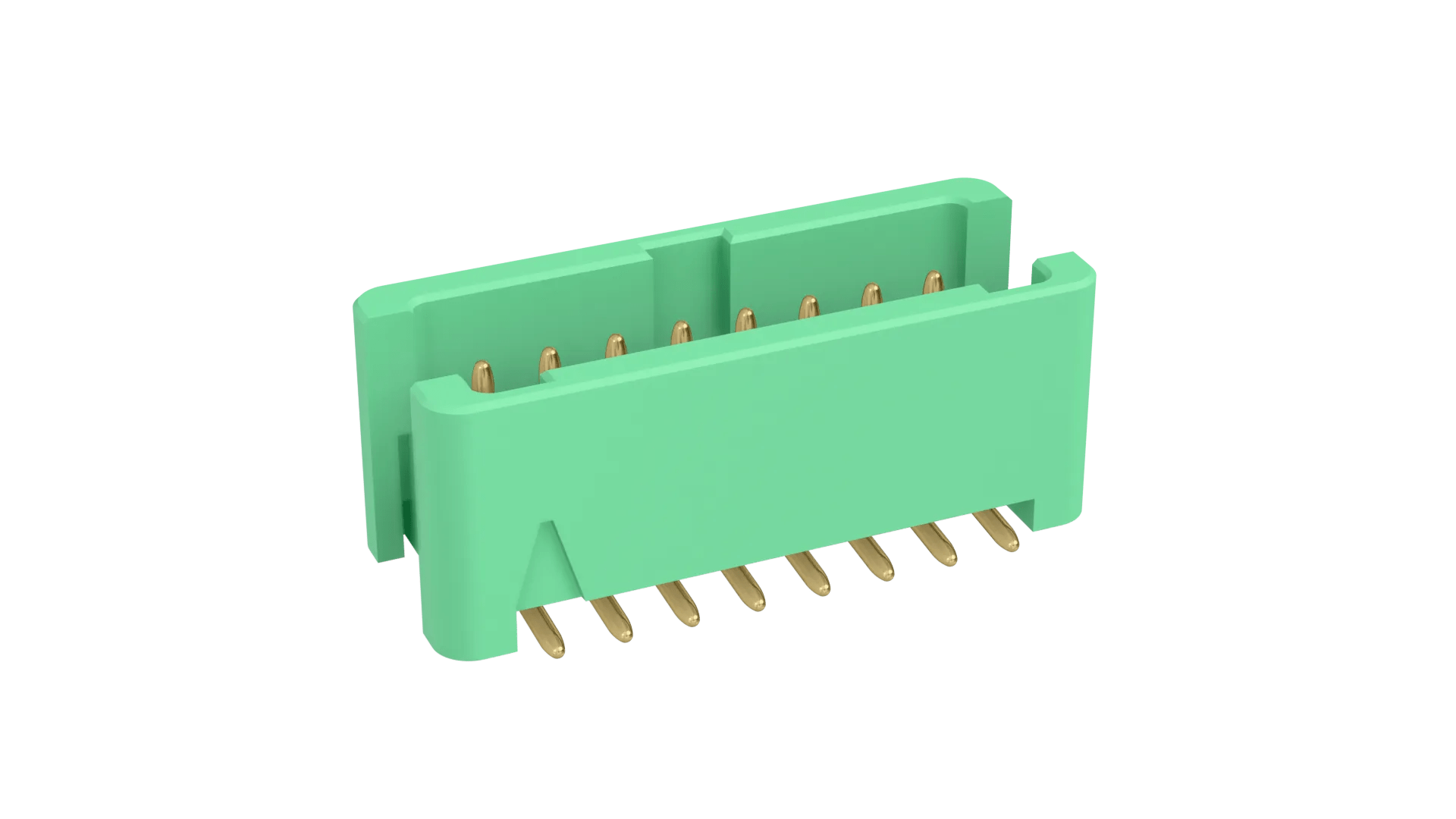

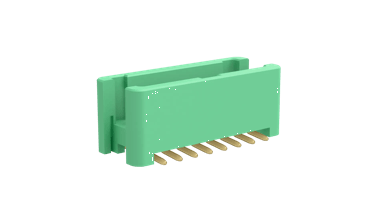

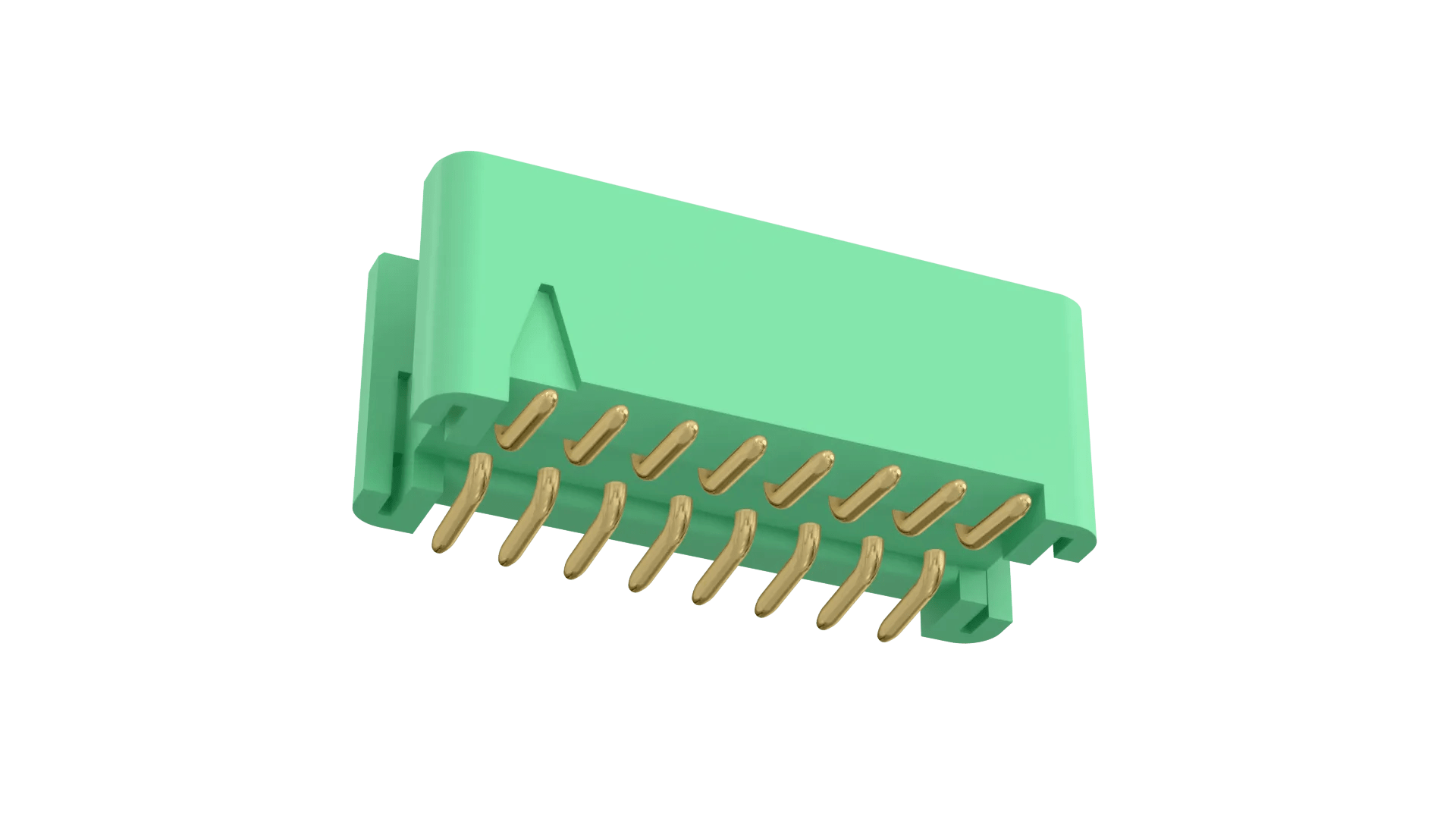

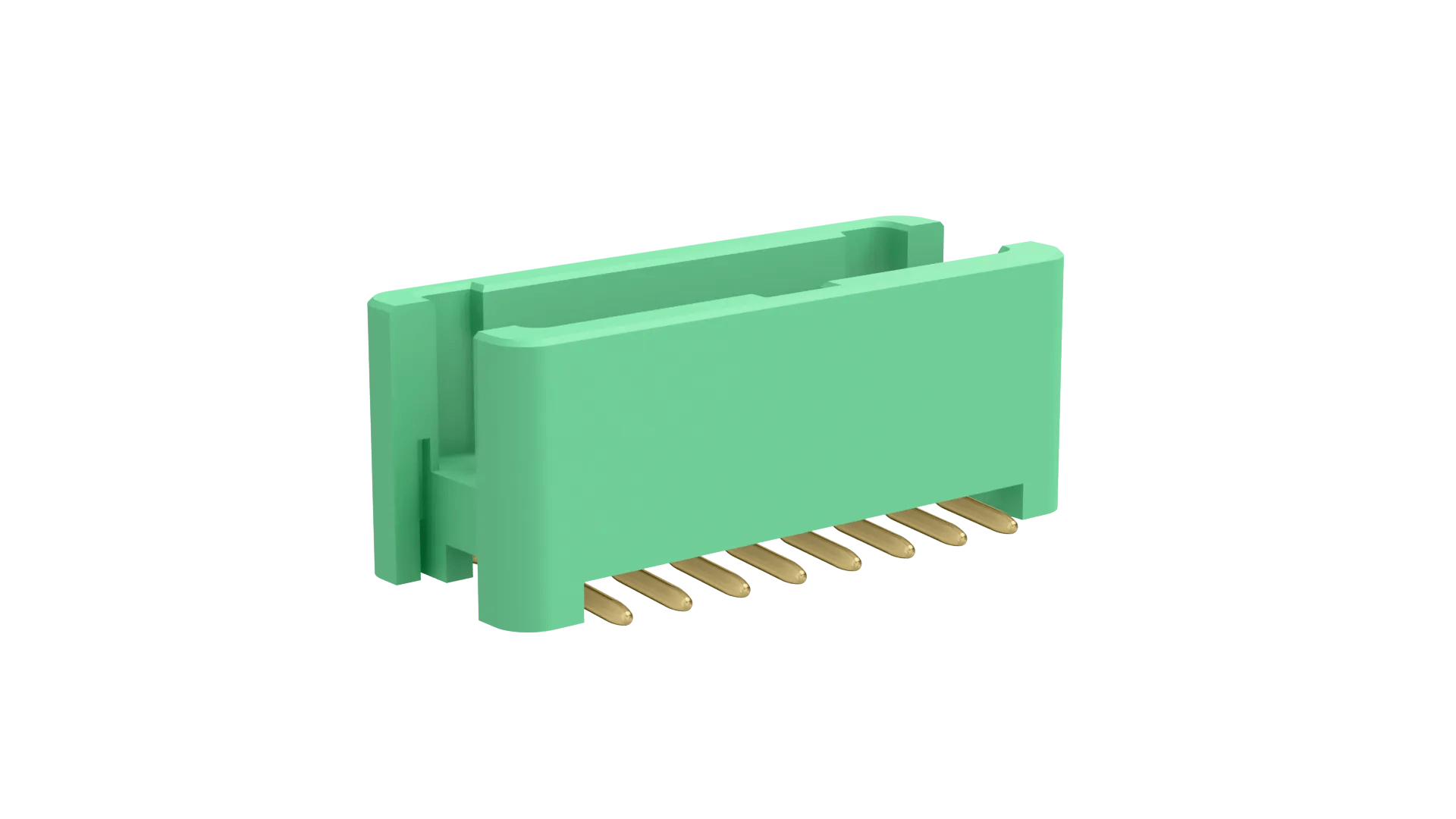

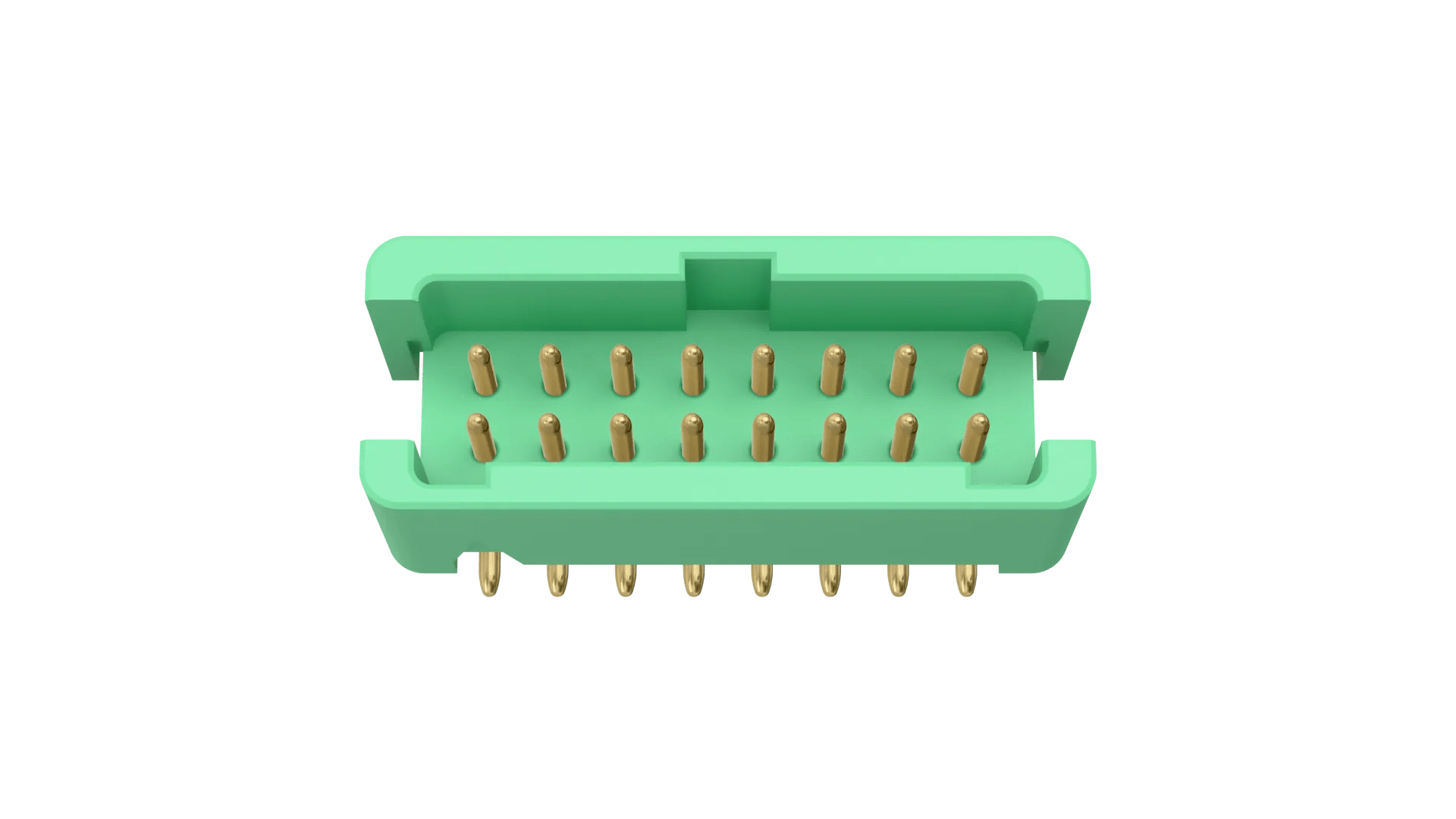

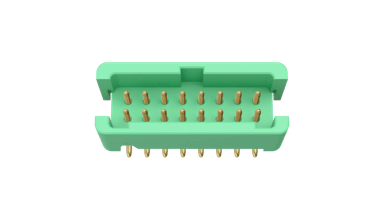

G125-MS11605L0P
8+8 Pos. Male DIL Vertical SMT Conn. no Latches
1.25mm Pitch High-Reliability Connector - Gecko with Latches
Loading… Check availability
10 similar products View products
Traceparts account required
Product Description
- Double Row male Surface Mount connector, no latches – 16 contacts (8+8). Connector housings are not fitted with latches.
- Supplied in tape strips with pick and place cap. Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C125XX.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.25mm (0.049")
Contact Gender:
Male/Plug
Connector Orientation:
Vertical
Connection Type:
Surface Mount (SMT)
Mating Pin Size:
Ø0.4mm
Current Rating:
2.8A max individual contact, 2A max simultaneous (25°C)
Operating Temperature:
-65°C to +150°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Style of Latches:
None
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
16
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze
Housing Material:
Polyamide (Nylon) 4T
Housing Colour:
Green
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tape and Reel Strip
Dimensions
Individual Part Weight:
0.442g
Overall Dimensions (L x W x D) in mm:
12.55 x 5.80 x 4.98
Height of Connector above PCB:
4.98mm
Mating Profiles:
Frequently Asked Questions Ask a Question
We want to use G125-MS11605L0P PCB male connector – what is the part number of a mating female connector for cable?
If you scroll down to the bottom of the page, you can see mating connectors in “Related Products” – just click on the tab “Mating” under the Related Products heading. You will see that the cable housing connector is shown – part number G125-2041696L0. This is just the housing – if you click through to this product, it will tell you the applicable contacts that can be used with this housing (depending on your cable size). You can also use the scroll bar under these mating products to view more items – on the next 4 you will see some ready-made cable assemblies that may also be suitable.
