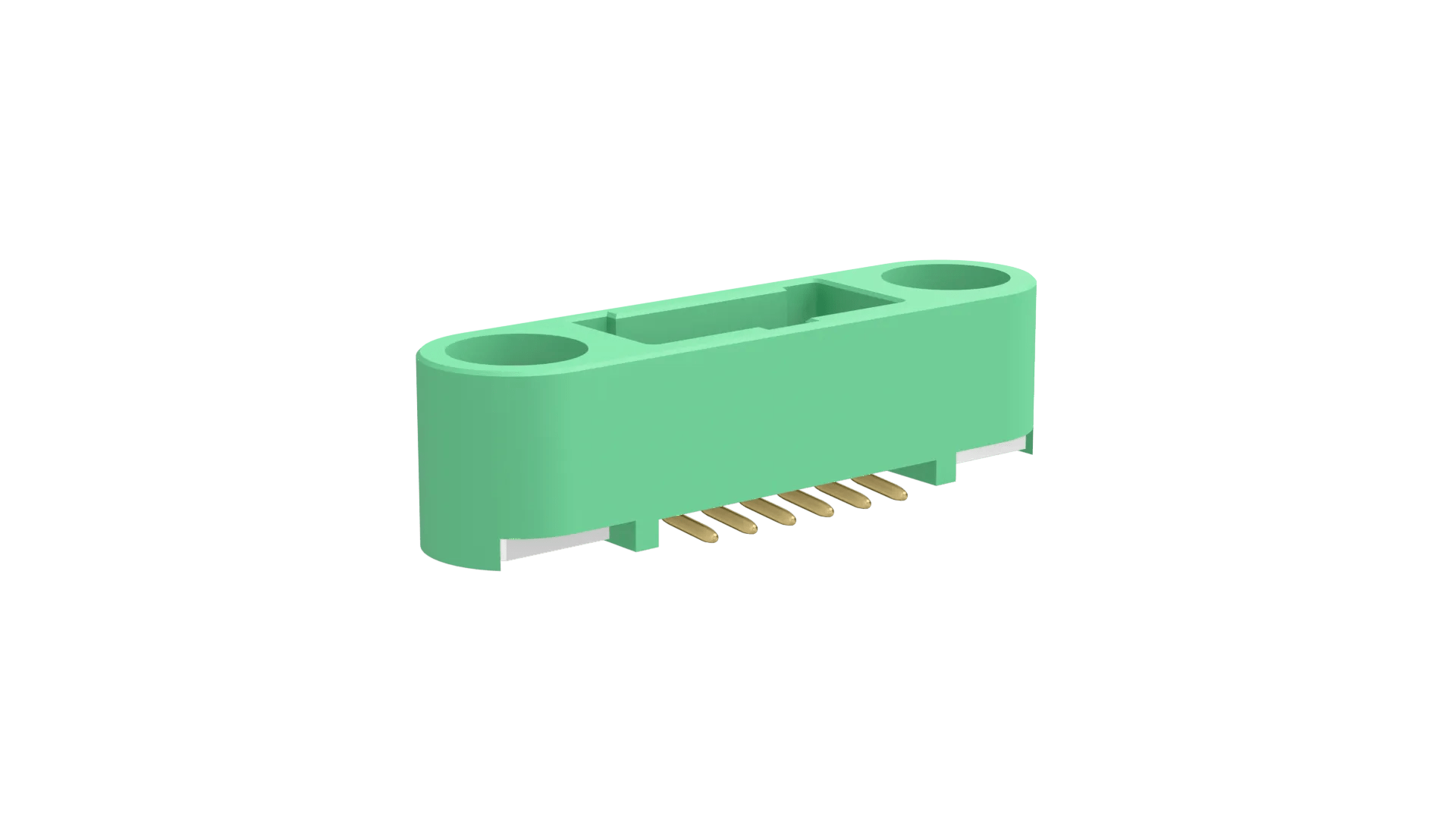

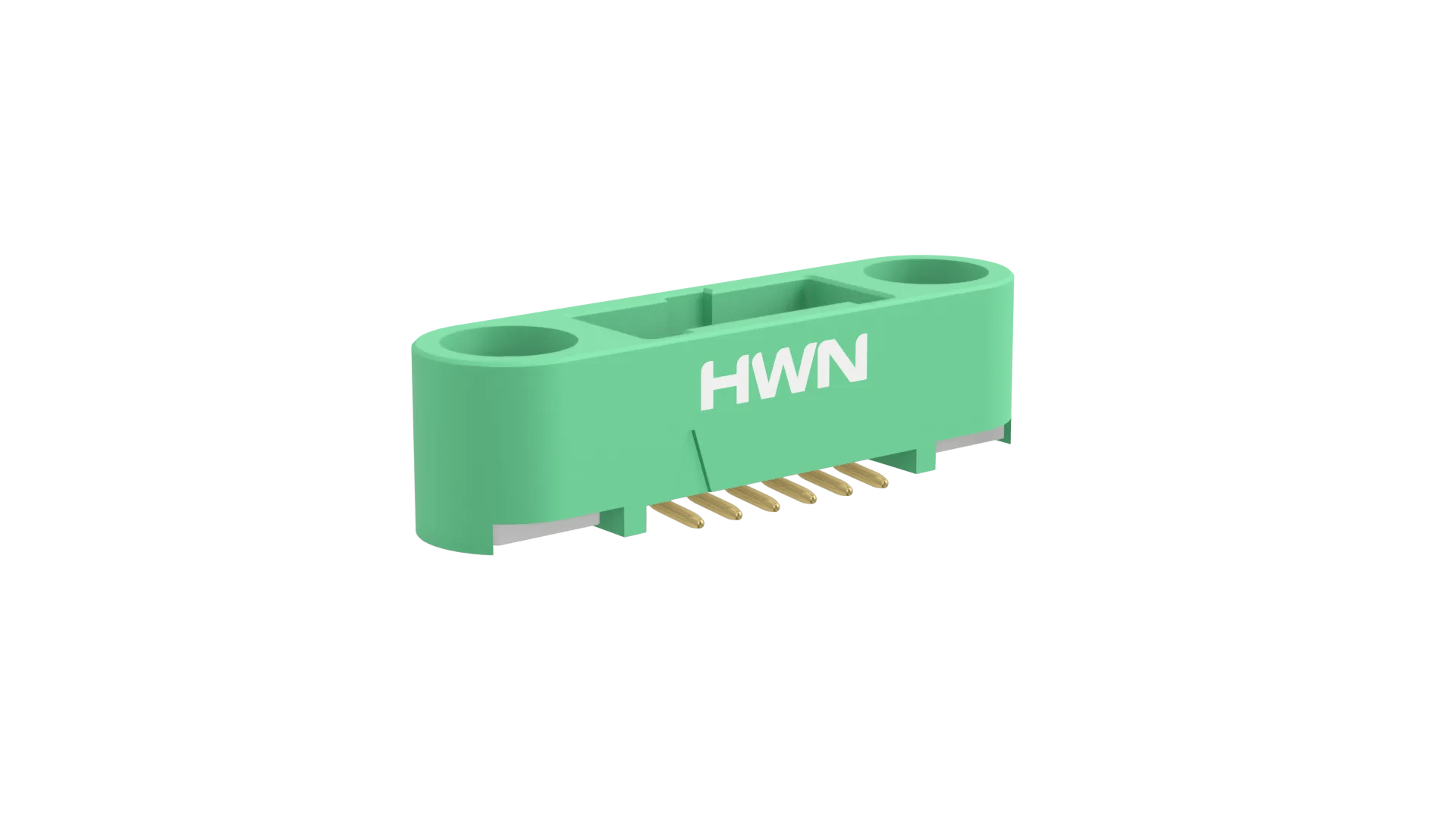

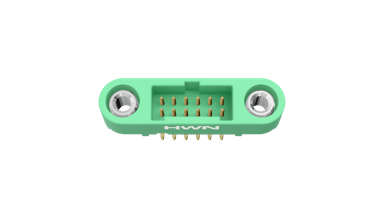

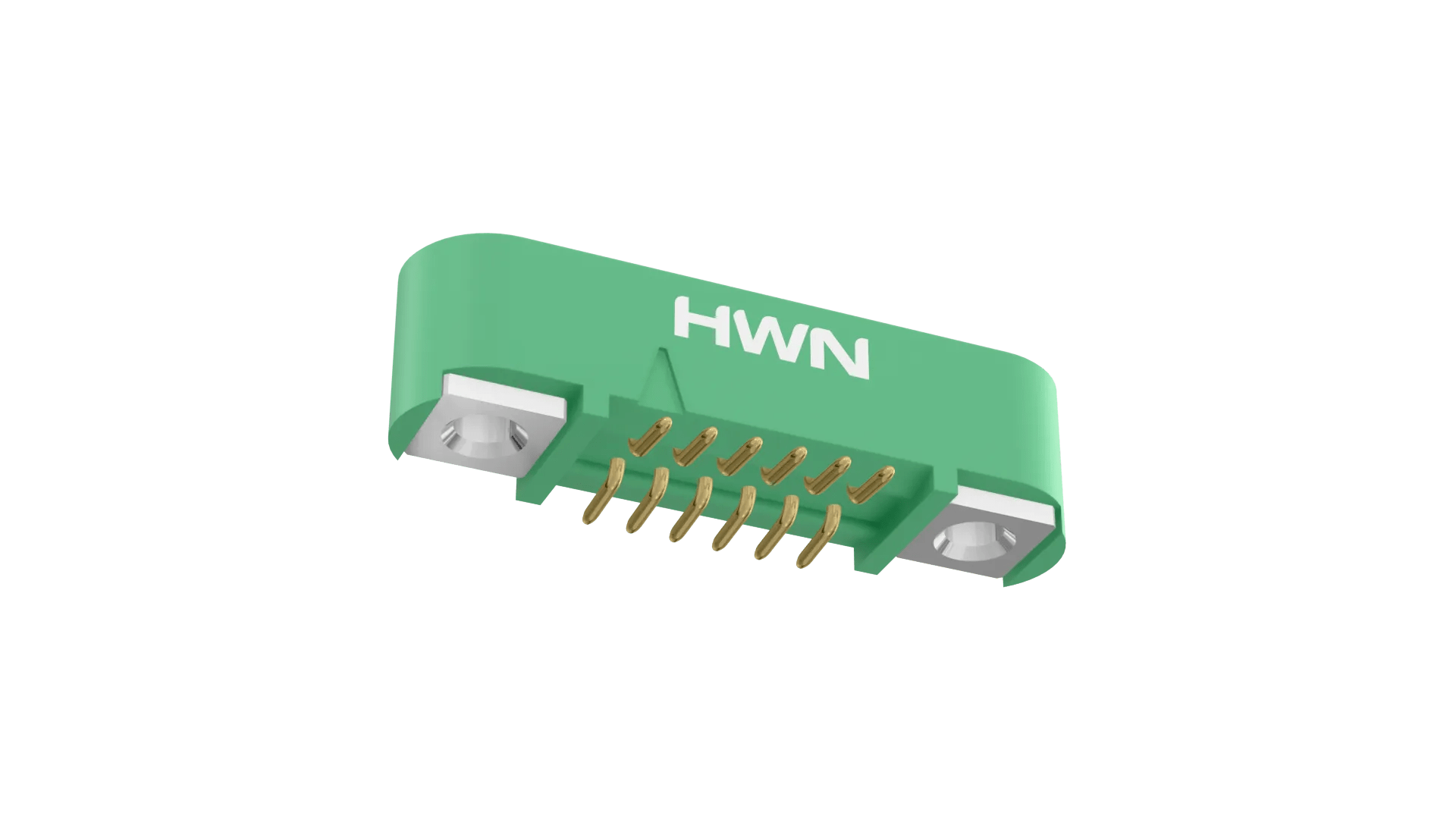

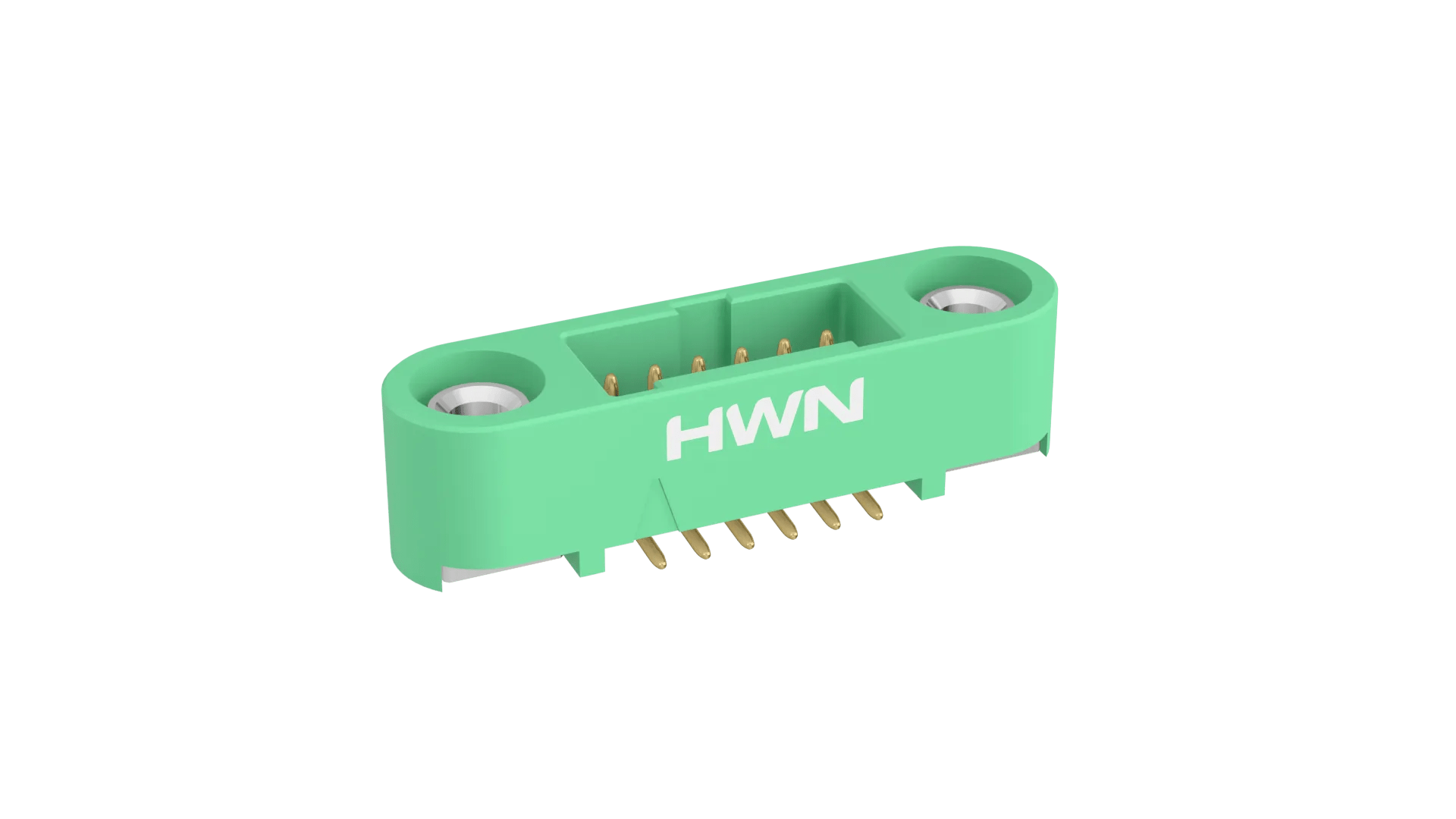

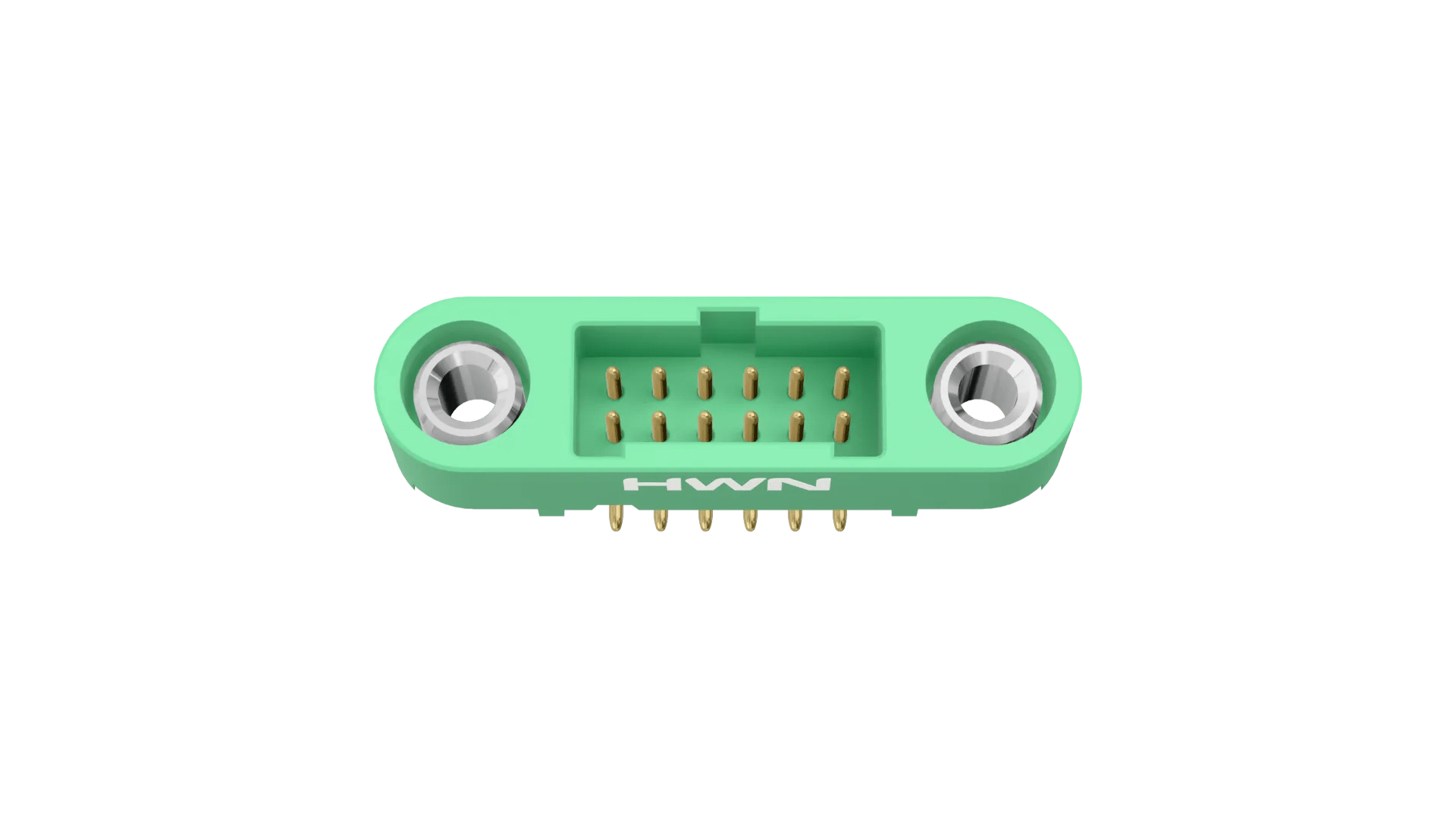

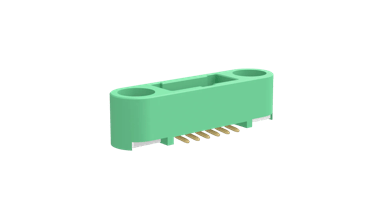

6+6 Pos. Male DIL Vertical SMT Conn. Screw-Lok
1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok
- Male Double Row Surface Mount connector, internally threaded Screw-Lok fixings – 12 contacts (6+6).
- Supplied in tape strips with pick and place cap.
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
-65°C to +150°C
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 4T
Housing Material UL Rating:
Tape and Reel Strip
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
18.95 x 5.80 x 4.98
Height of Connector above PCB:
