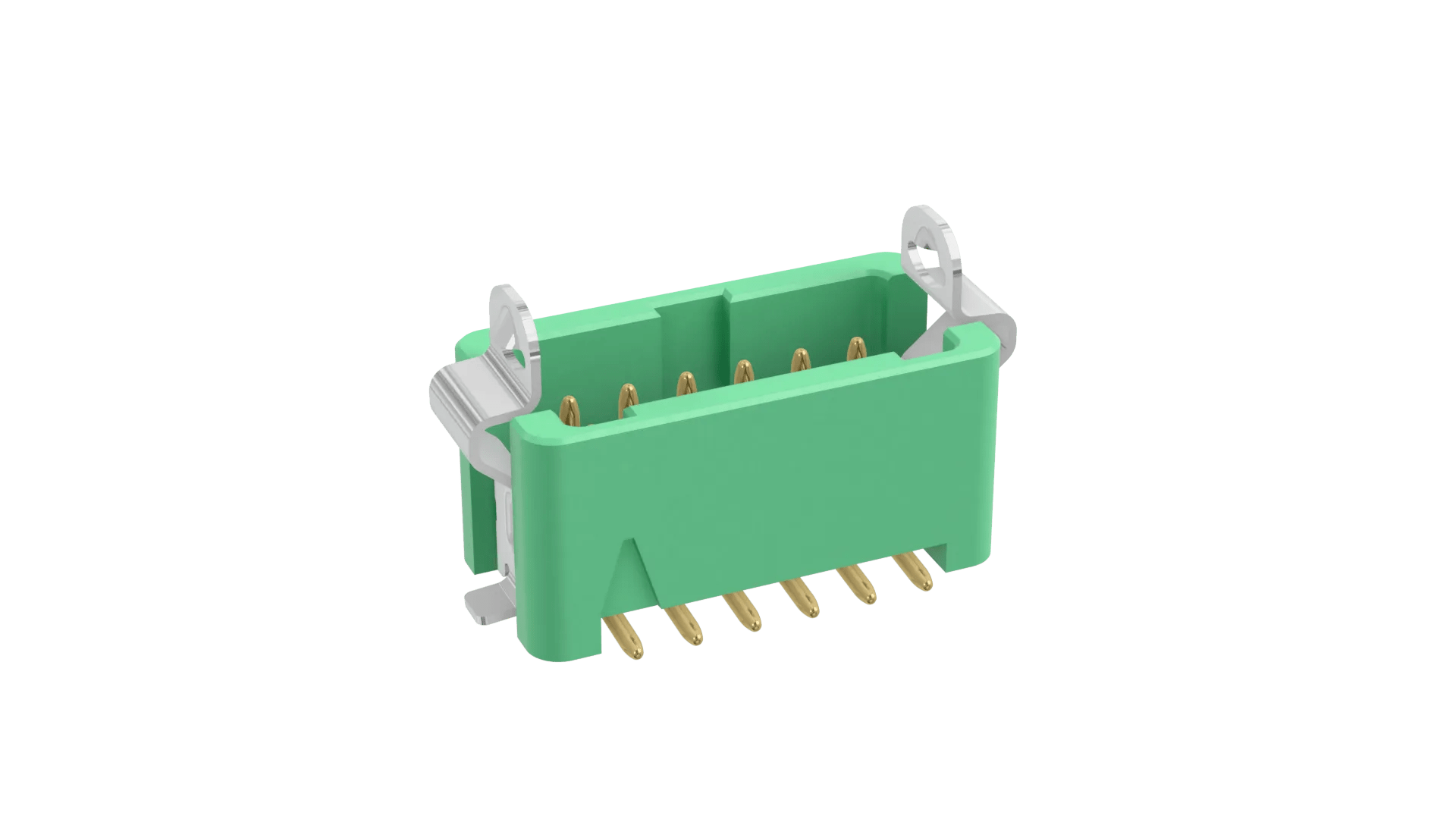

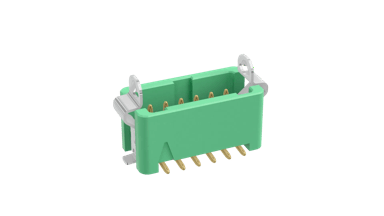

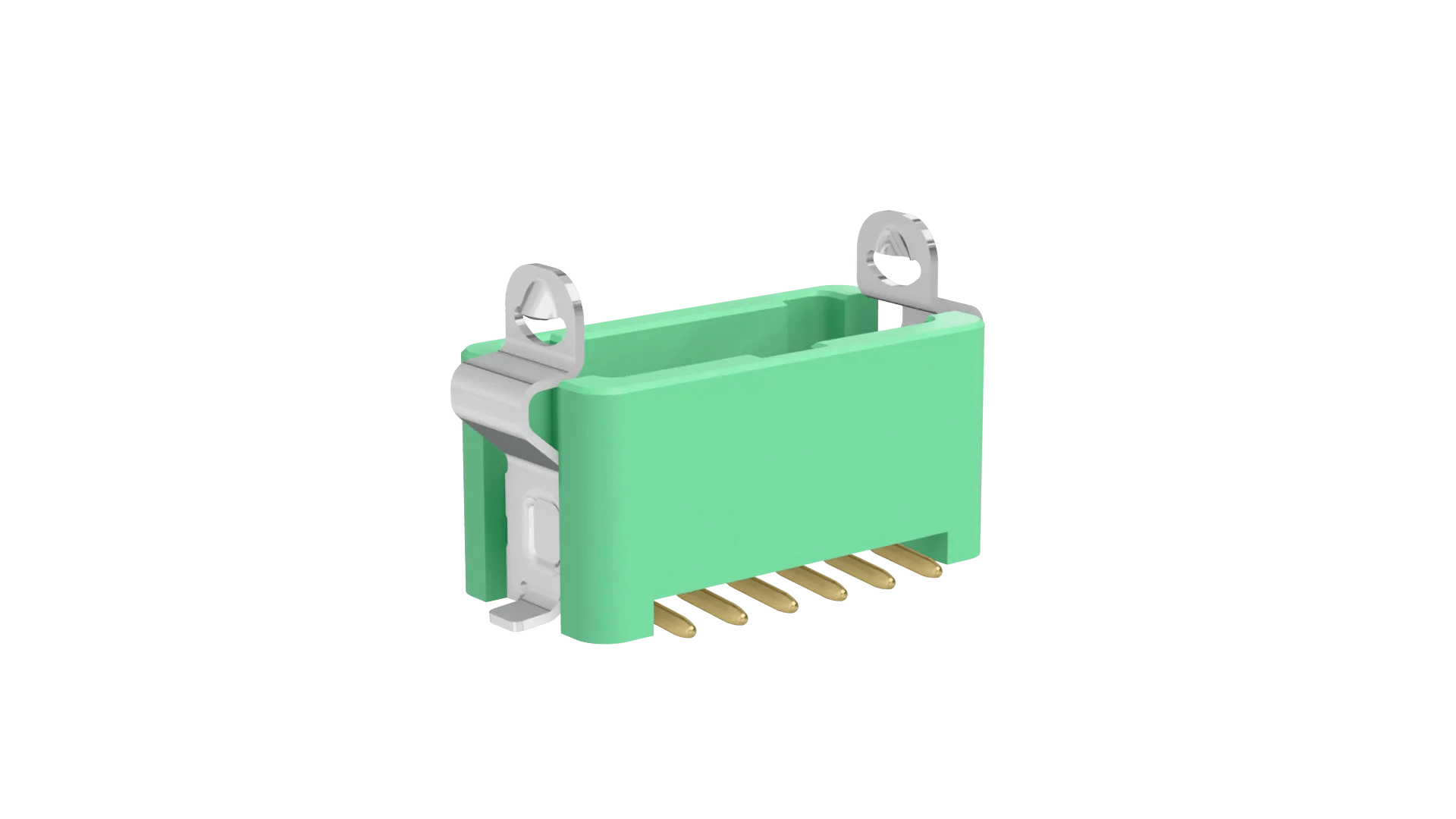

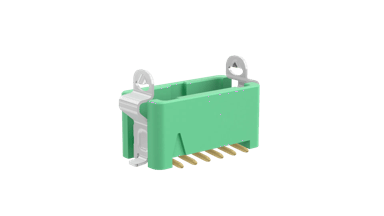

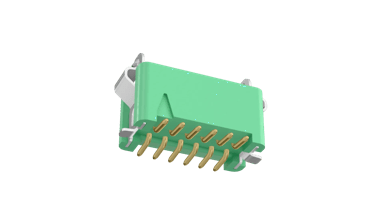

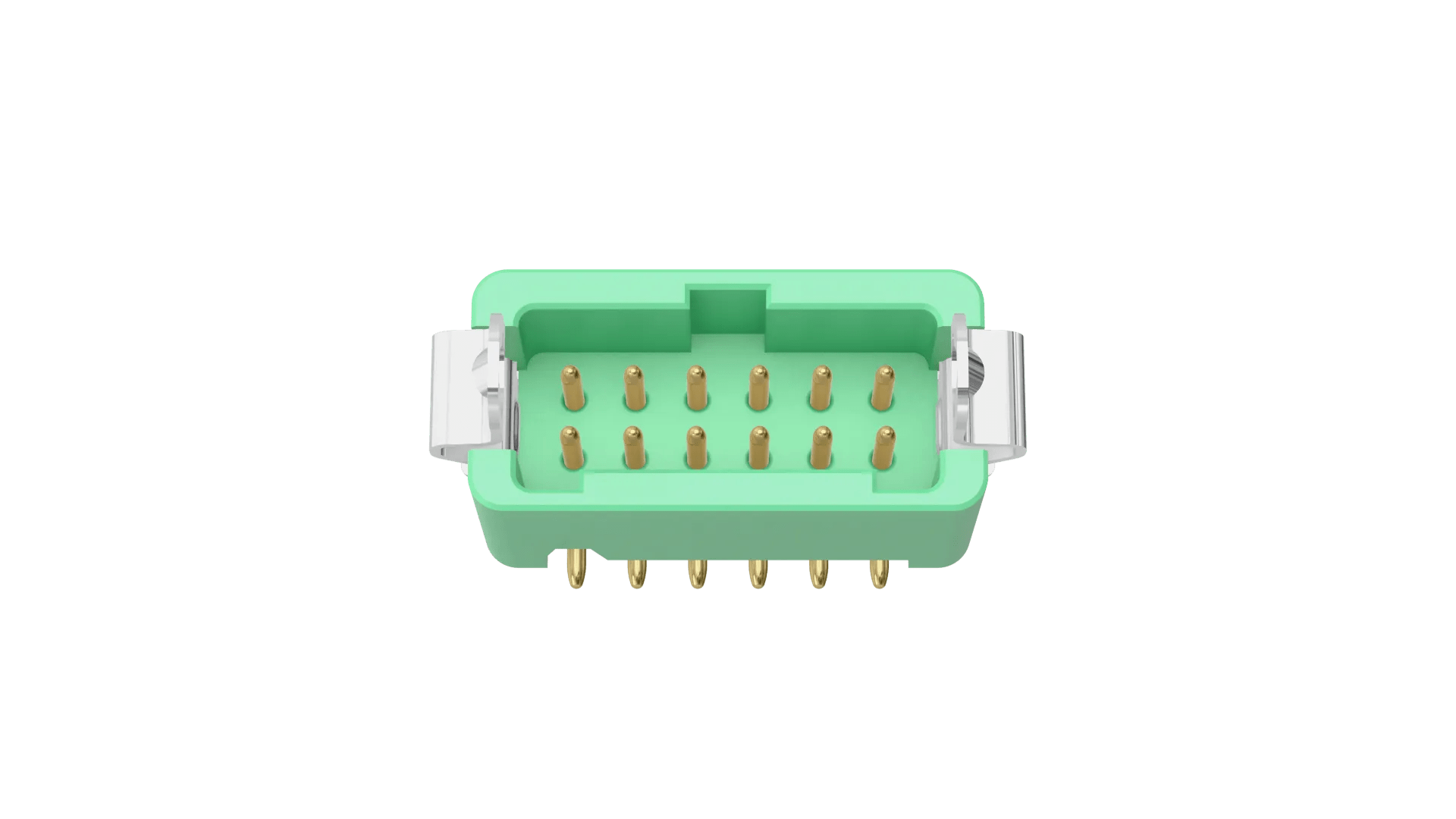

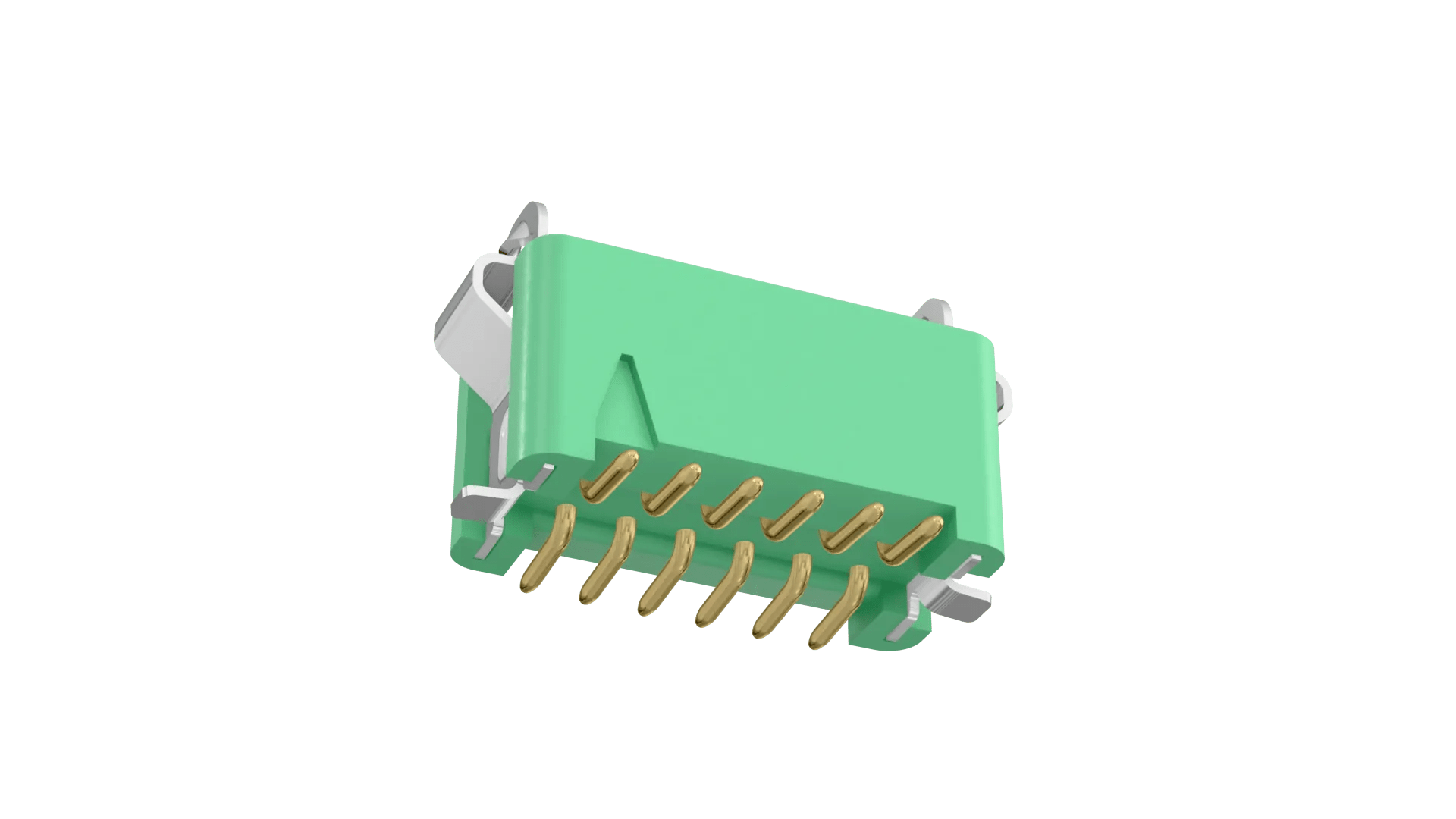

G125-MS11205L3P

6+6 Pos. Male DIL Vertical SMT Conn. Latches

1.25mm Pitch High-Reliability Connector - Gecko with Latches

  • Double Row male Surface Mount connector, Latches with Surface Mount hold-down – 12 contacts (6+6). Surface Mount hold-down areas give additional strain relief when soldered to the PCB.
  • Supplied in tape strips with pick and place cap. Gold finish on contact area and termination.
  • For complete pin numbering or pin out information, see Component Specification C125XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Latches:

Locking Latch

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

12

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel Strip

Dimensions

Individual Part Weight:

0.44g

Overall Dimensions (L x W x D) in mm:

11.45 x 5.80 x 6.88

Height of Connector above PCB:

6.88mm

Availability

4,048 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Anglia
Location Europe
Quantity (Updated Daily) 2551
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 954
Distributor Genalog
Location Europe
Quantity (Updated Daily) 129
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 117
Distributor Farnell
Location Europe
Quantity (Updated Daily) 90
Distributor Newark
Location USA
Quantity (Updated Daily) 90
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 60
Distributor Powell Electronics
Location Global
Quantity (Updated Daily) 57

Questions & Answers Ask a Question

Do you have a tool to help separate this connector when it is latched to the mating half?

The tool you need is the Z125-9261200 – this will help push in the two latch buttons when the connectors are engaged, so you can then separate the mated connectors. Consult the training video for more information on using this tool. It is also possible to push in the two buttons by hand as well, if you have good access.
