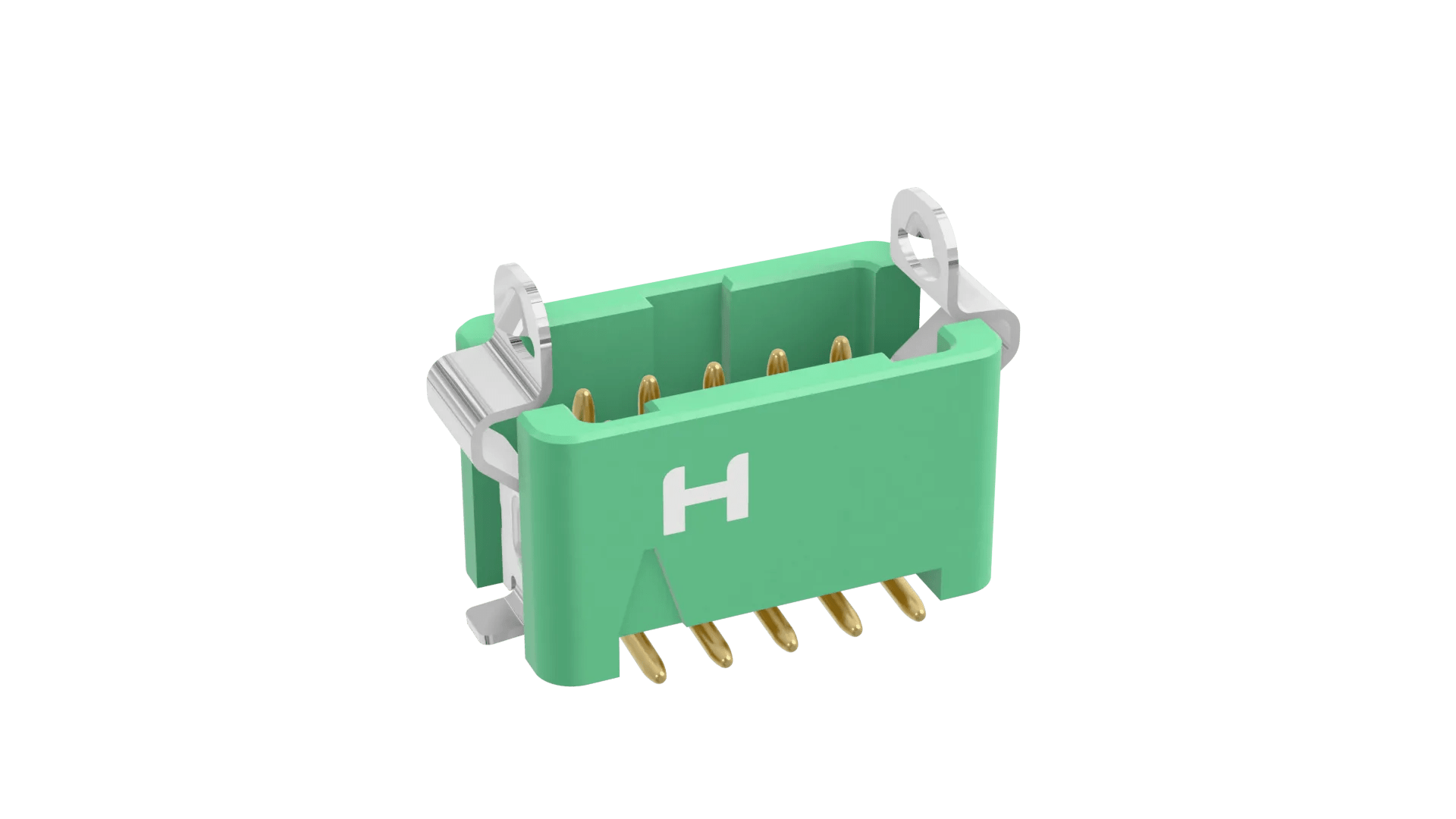

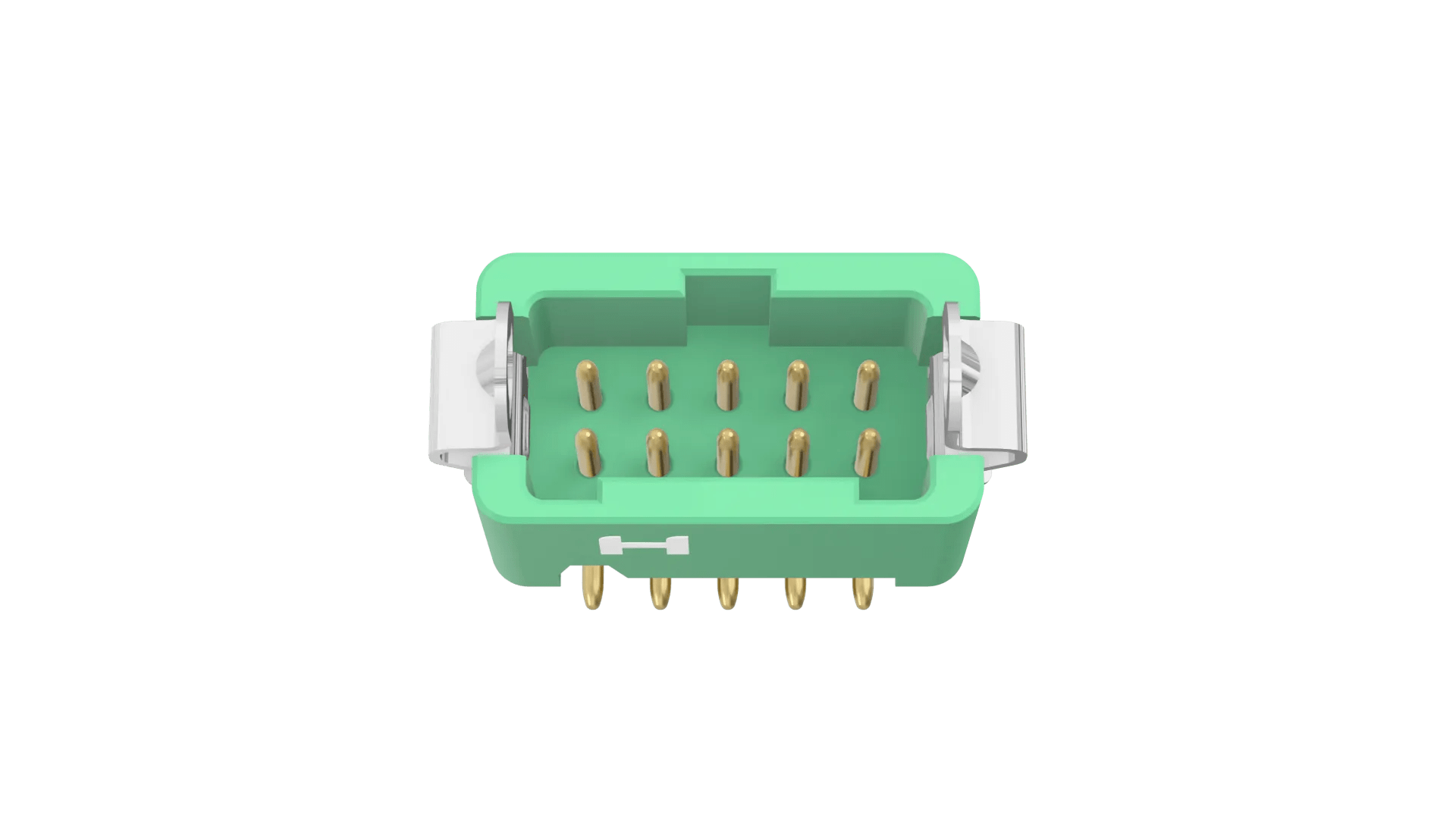

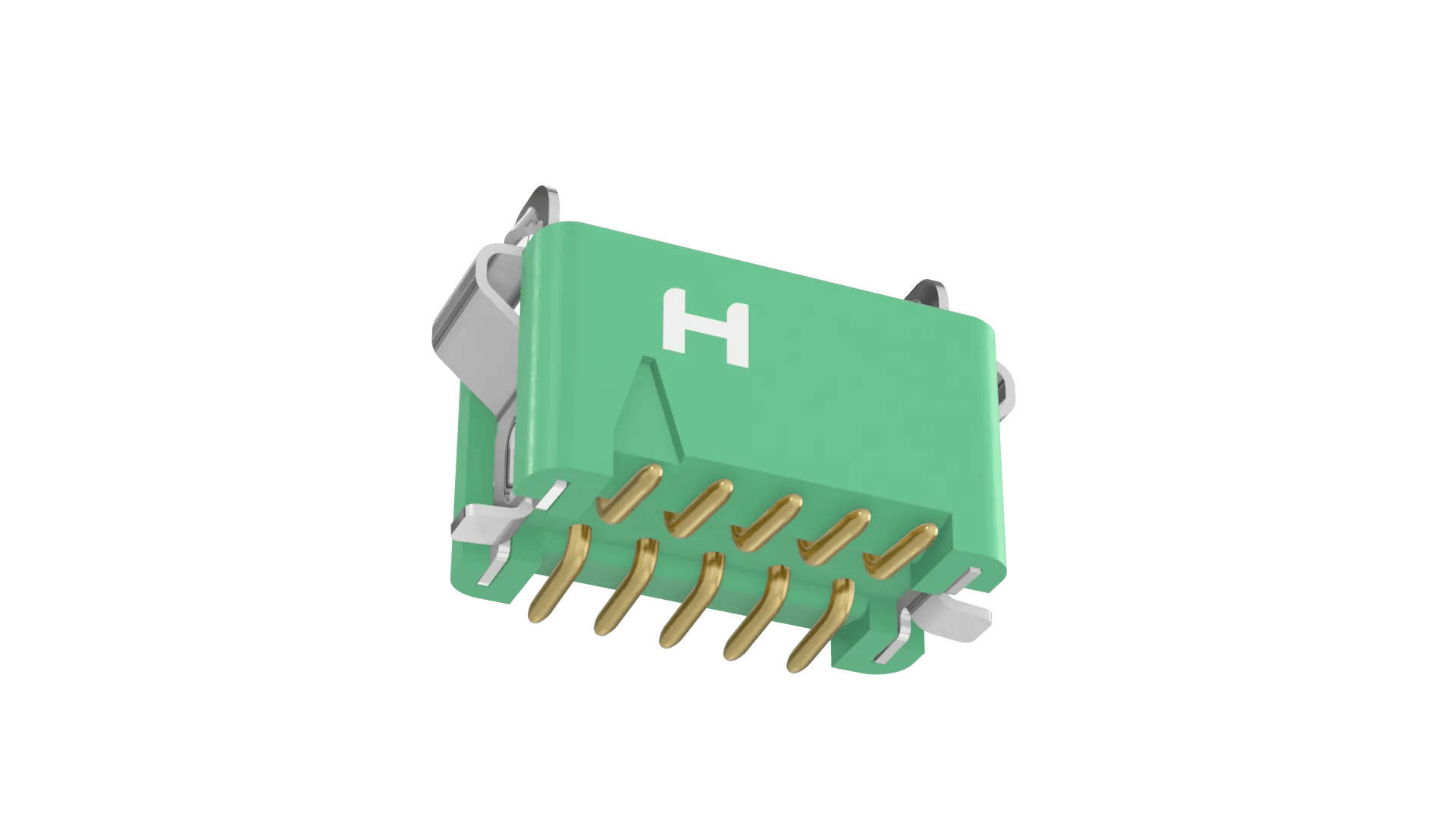

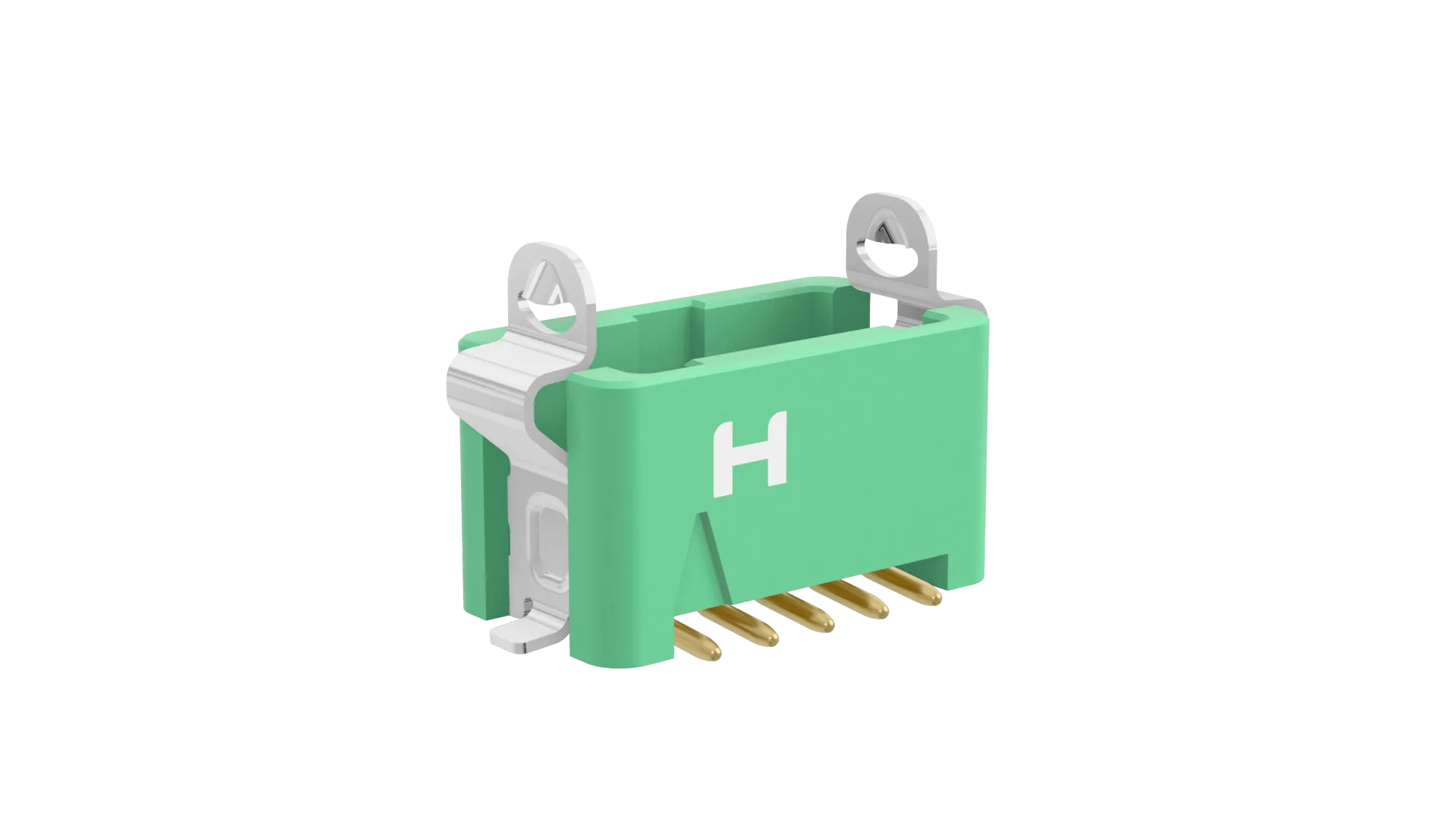

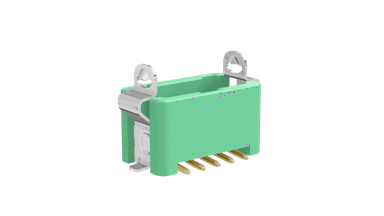

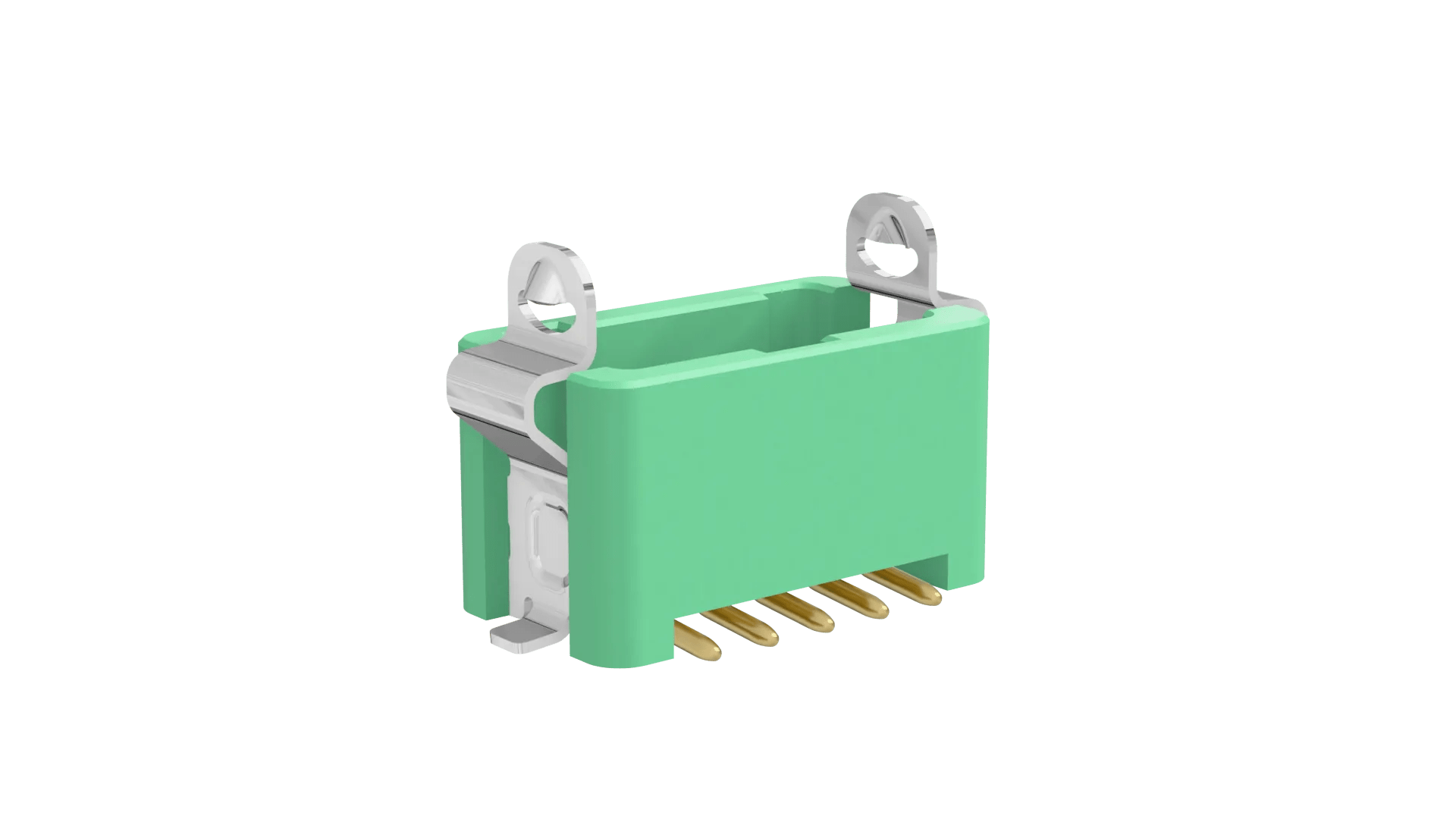

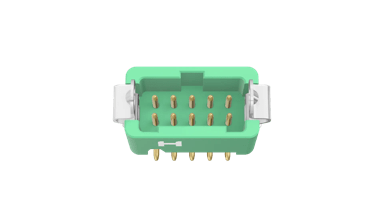

5+5 Pos. Male DIL Vertical SMT Conn. Latches (T+R)
1.25mm Pitch High-Reliability Connector - Gecko with Latches
- Double Row male Surface Mount connector, Latches with Surface Mount hold-down – 10 contacts (5+5). Surface Mount hold-down areas give additional strain relief when soldered to the PCB.
- Supplied on Tape and Reel with pick and place cap. Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C125XX.
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
2.8A max individual contact, 2A max simultaneous (25°C)
-65°C to +150°C
Max Solder Temperature: 260°C for 10 seconds
Style of Latches:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 4T
Housing Material UL Rating:
Tape and Reel
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
10.20 x 5.80 x 6.88
Height of Connector above PCB:
Frequently Asked Questions Ask a Question
Do you have a tool to help separate this connector when it is latched to the mating half?
The tool you need is the Z125-9261000 – this will help push in the two latch buttons when the connectors are engaged, so you can then separate the mated connectors. Consult the training video for more information on using this tool. It is also possible to push in the two buttons by hand as well, if you have good access.
Was this answer useful?
RoHS Compliant (2015/863/EU) with no Exemption requiredPDF Download
