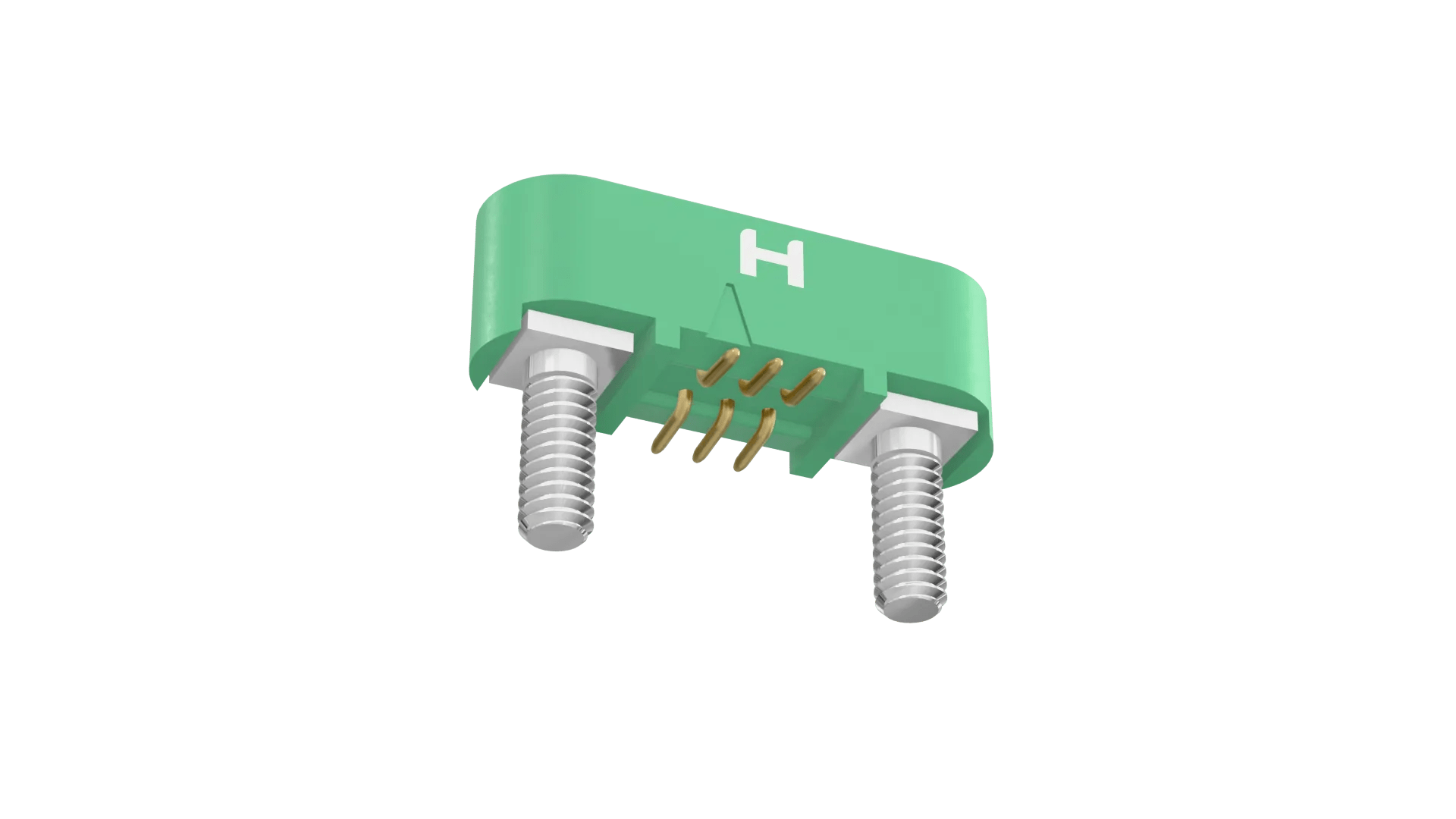

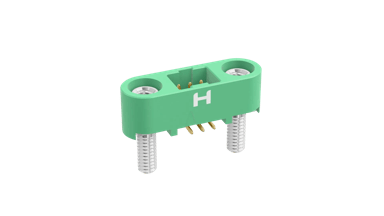

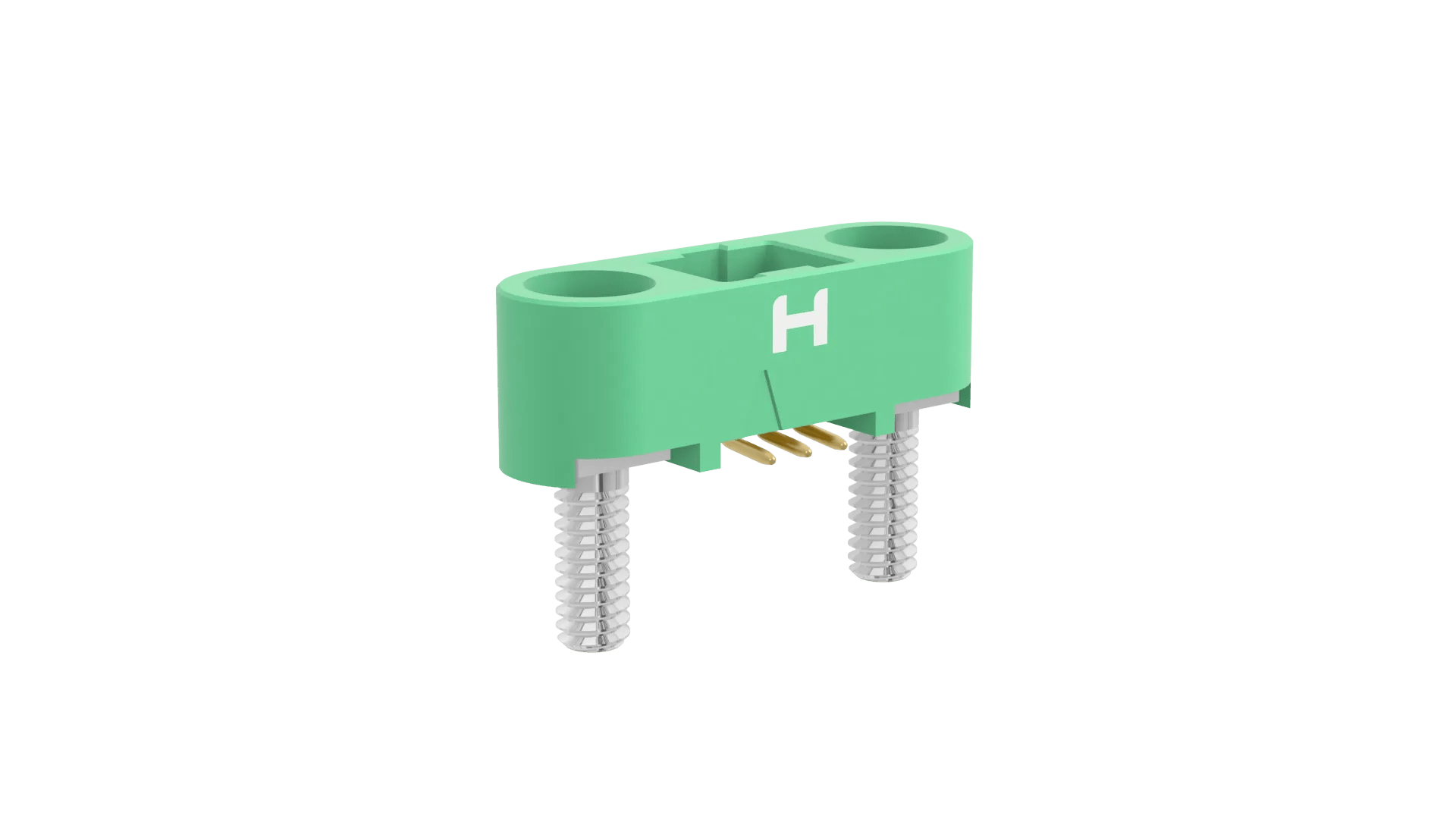

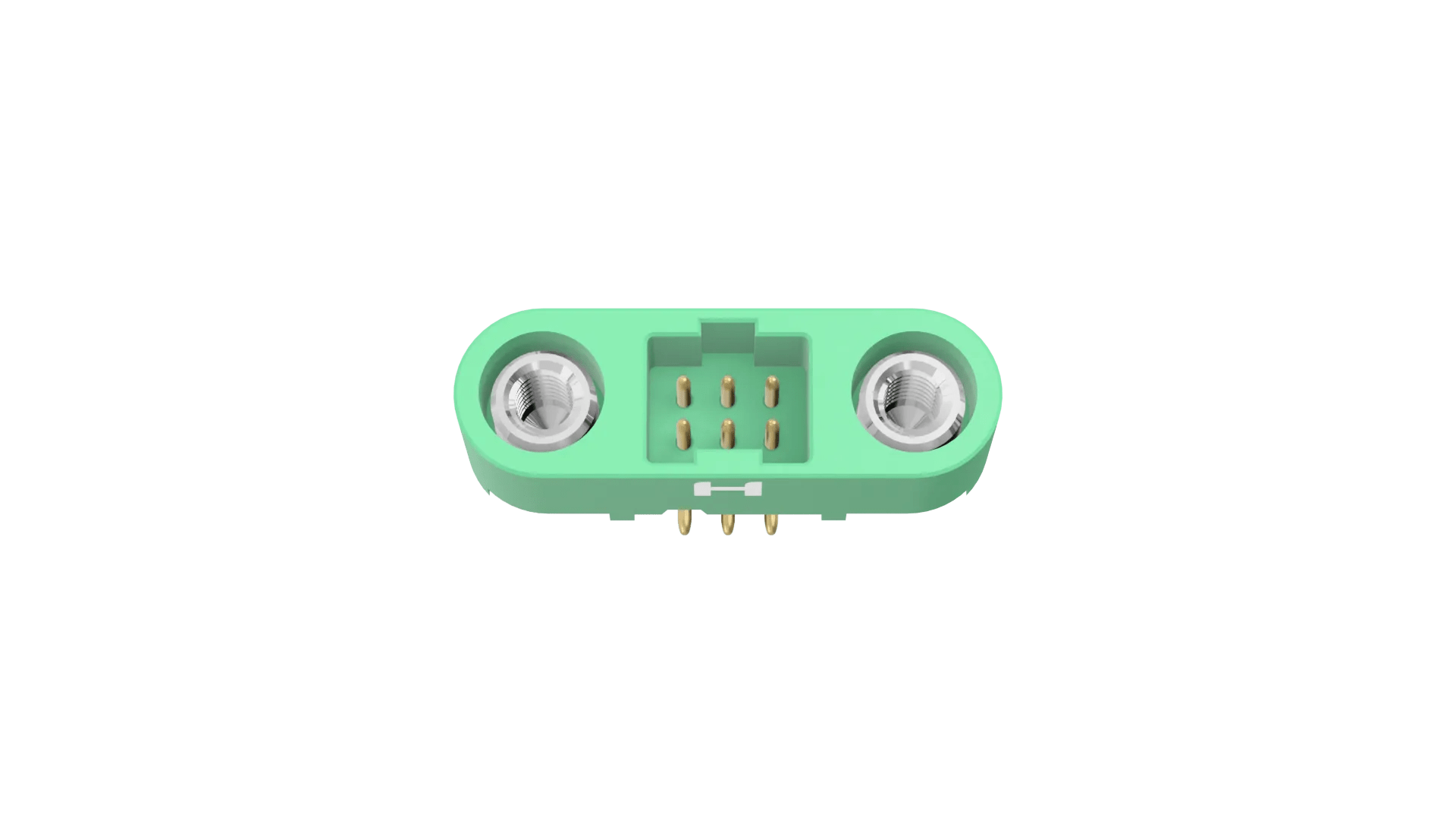

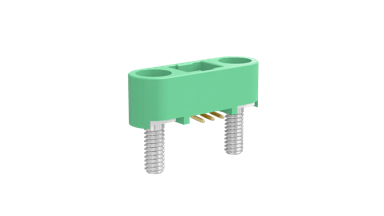

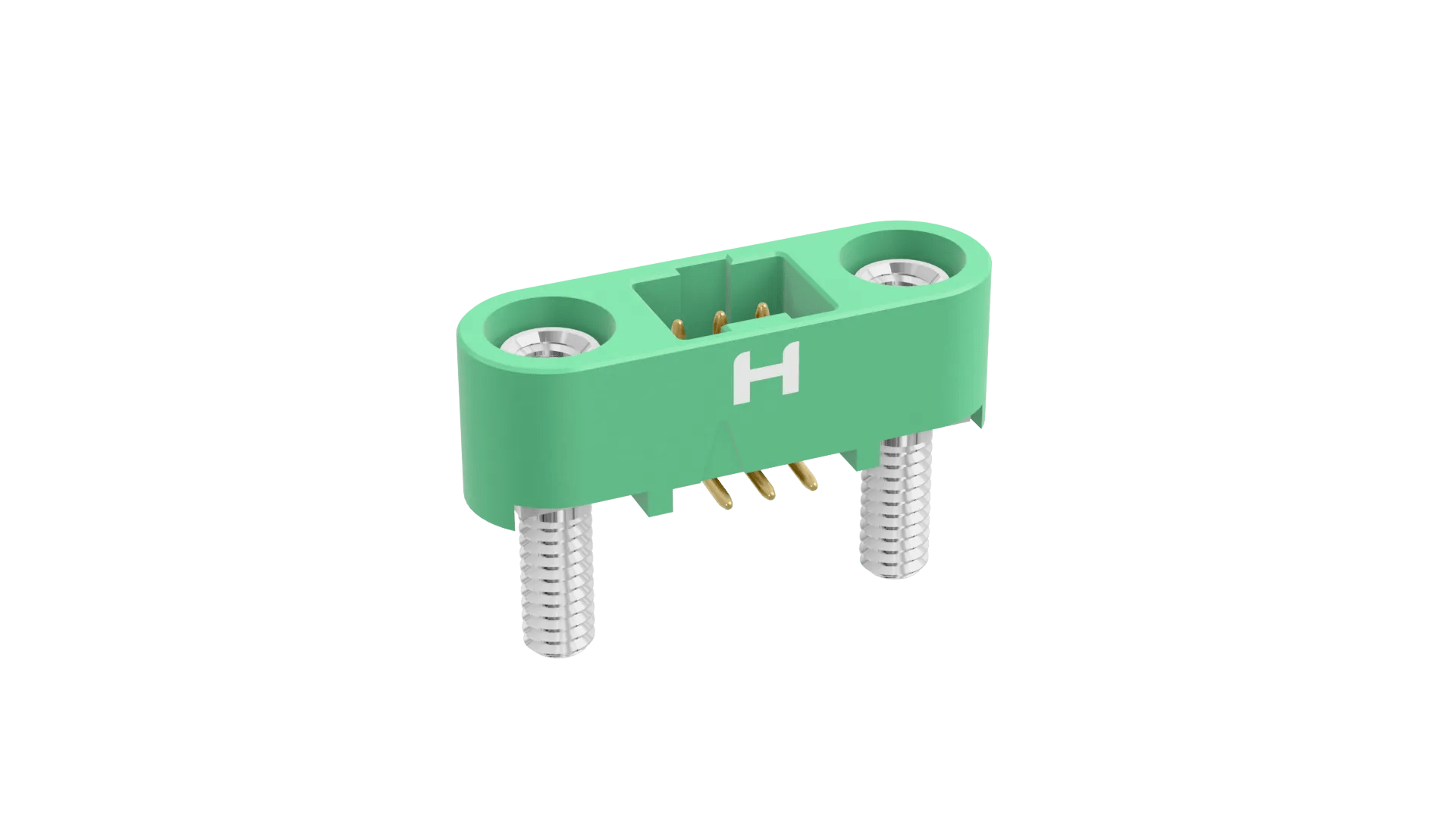

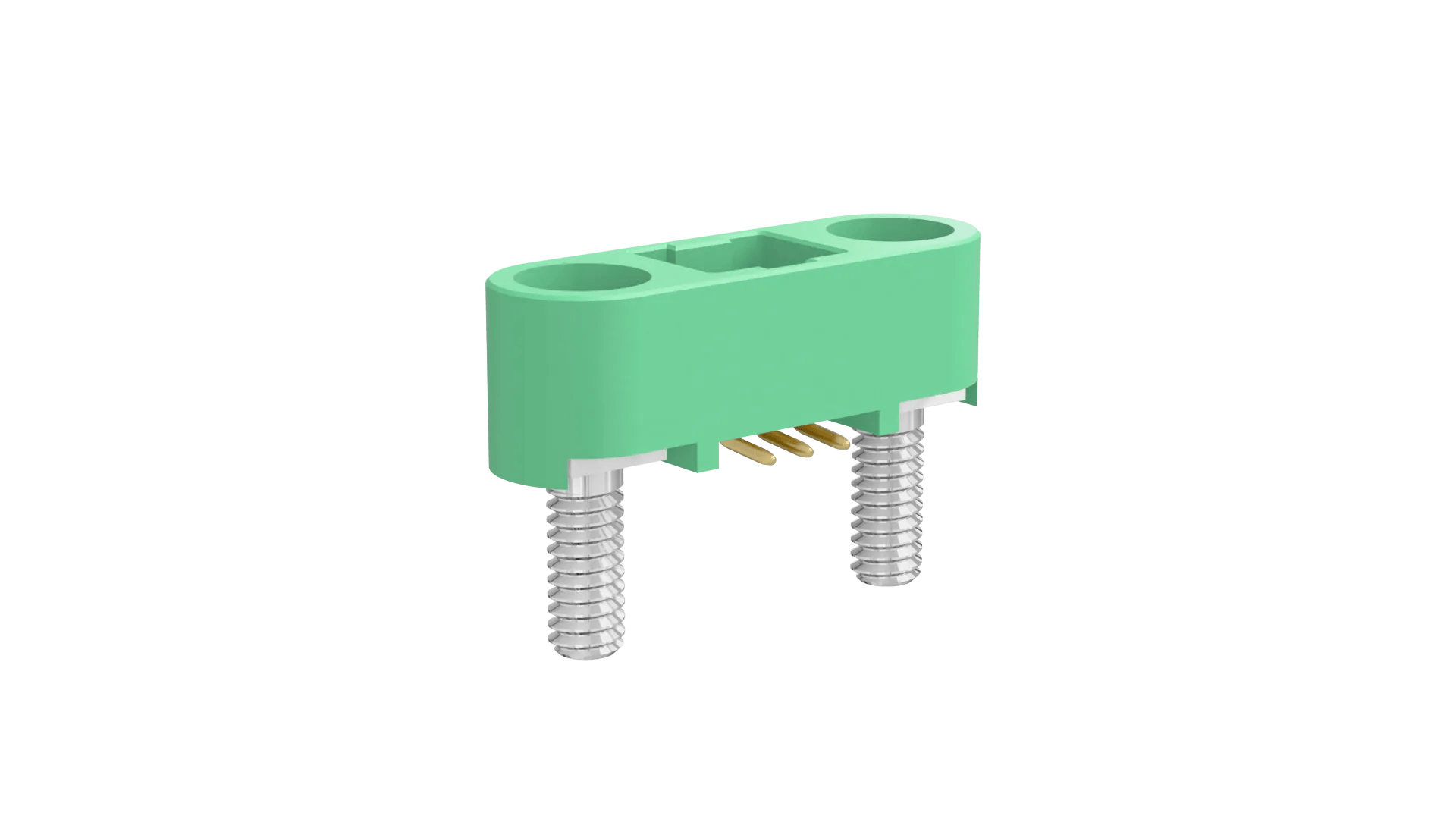

3+3 Pos. Male DIL Vertical SMT Conn. Screw-Lok Board Mount
1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok
- Male Double Row Surface Mount connector, Screw-Lok fixings with 5mm board mount studs – 6 contacts (3+3). Use hex nut G125-4500000B or slotted nut G125-4510000B for PCB strain relief.
- Supplied in tape strips with pick and place cap. Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C125XX.
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
2.8A max individual contact, 2A max simultaneous (25°C)
-65°C to +150°C
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Internal Thread Screw-Lok with Board Mount Stud (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 4T
Housing Material UL Rating:
Tape and Reel Strip
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
15.20 x 5.80 x 9.90
Male Stud Length:
Height of Connector above PCB:
Frequently Asked Questions Ask a Question
Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?
What torque value should be used for these screw-loks?
The torque value for board or panel mounting and for mating screw-loks is 16-18cmN. Both values are given in the Component Specification C125xx (page 3).
Was this answer useful?
RoHS Compliant (2015/863/EU) with no Exemption requiredPDF Download
