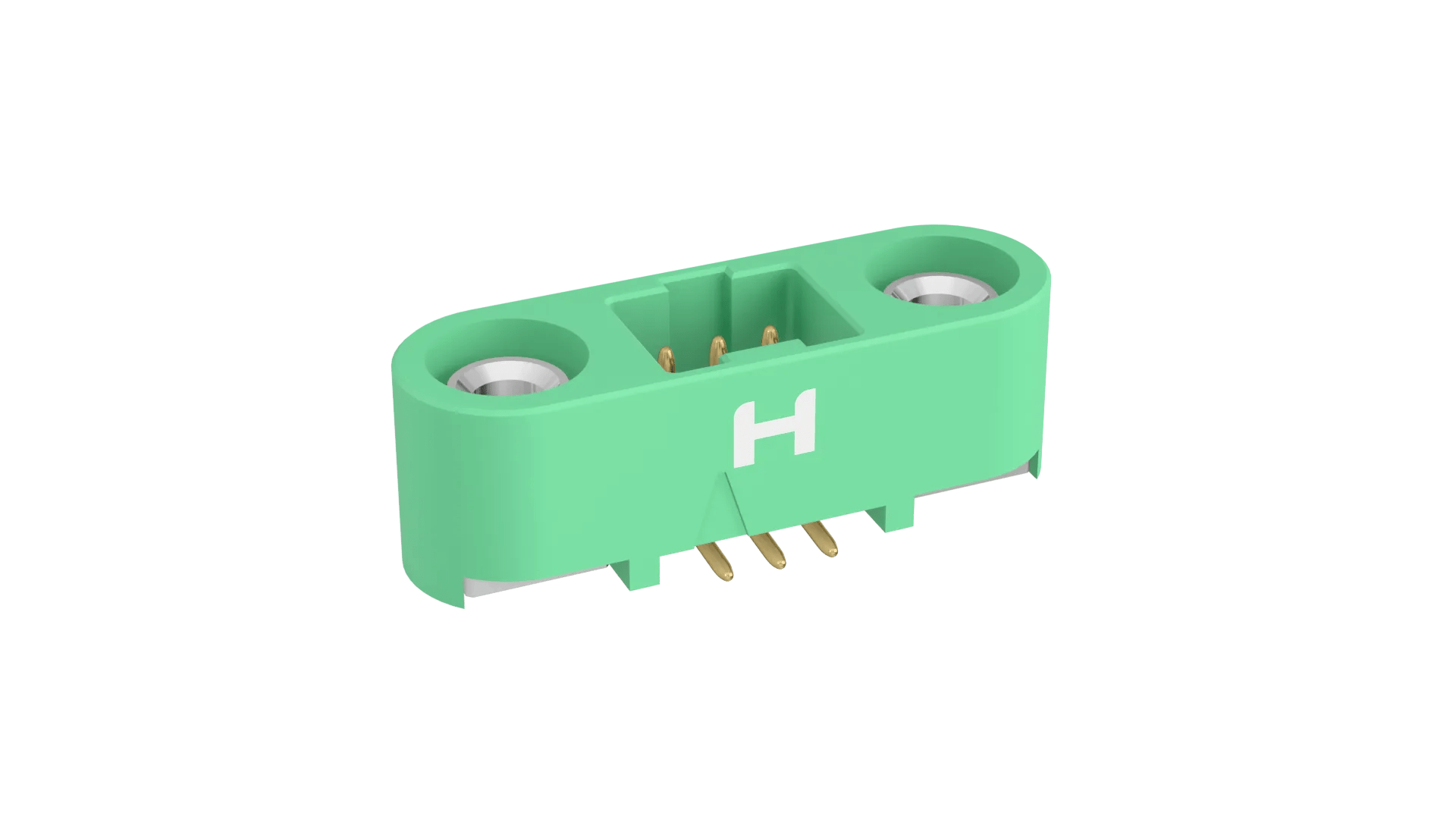

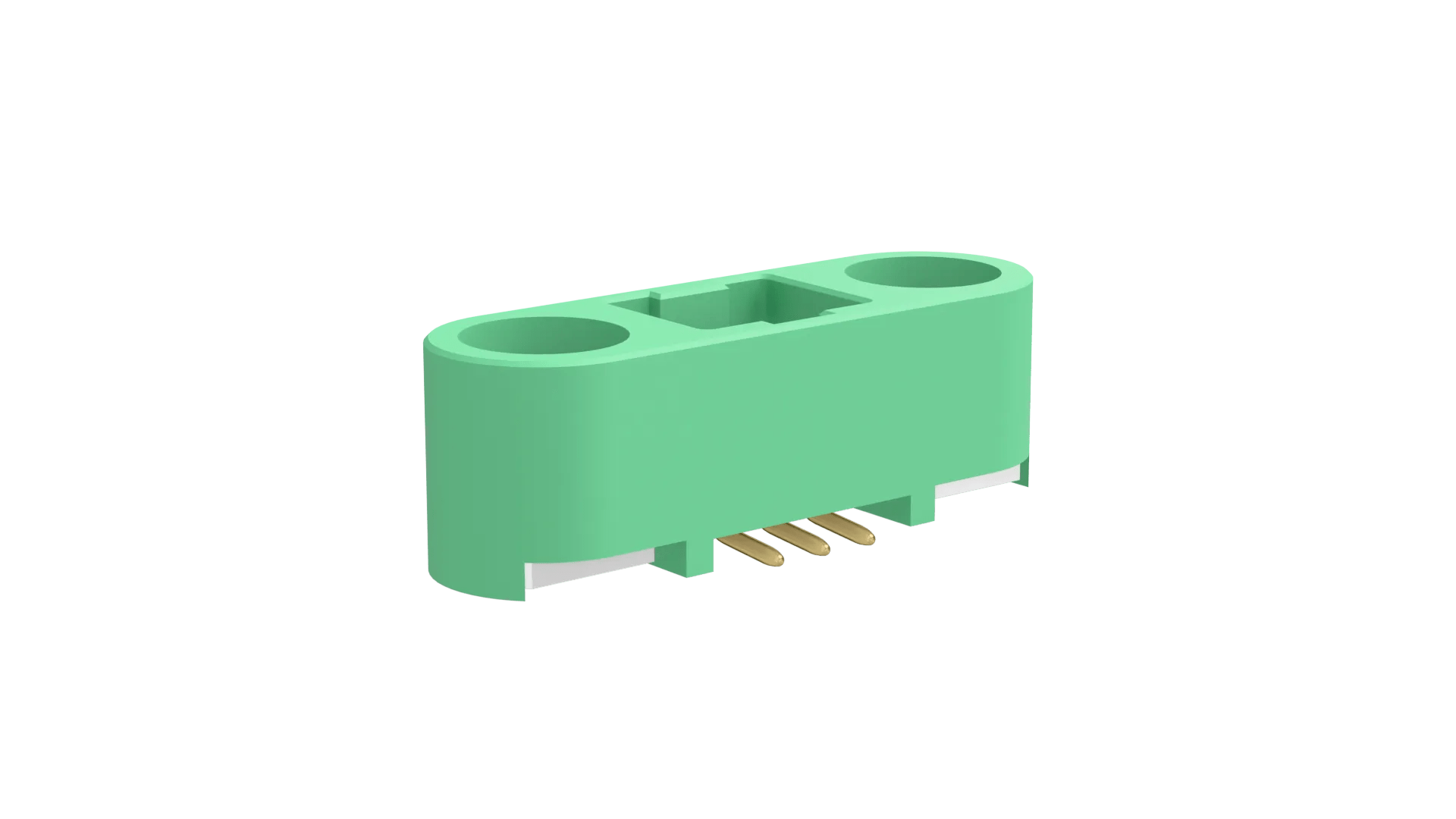

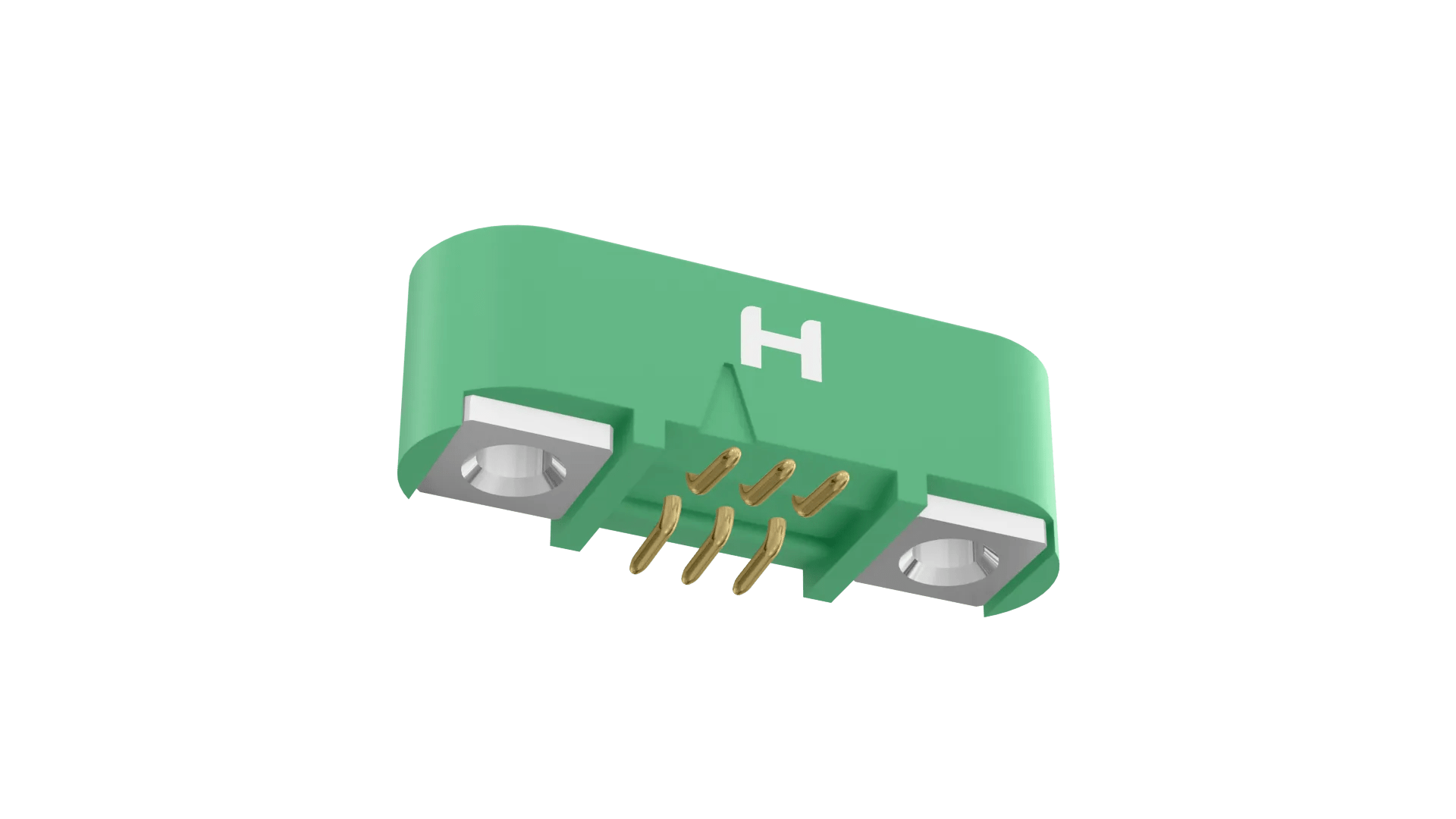

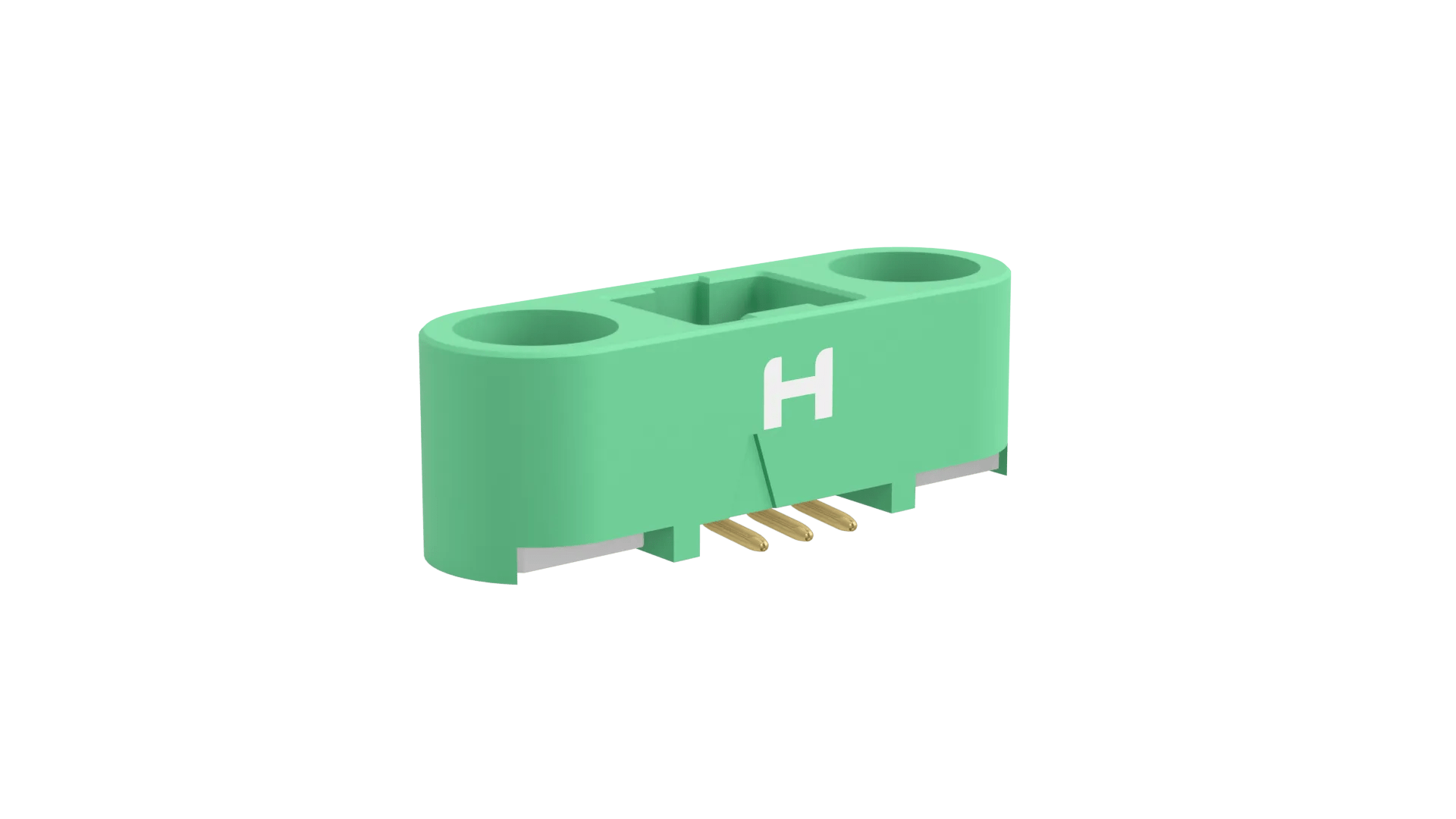

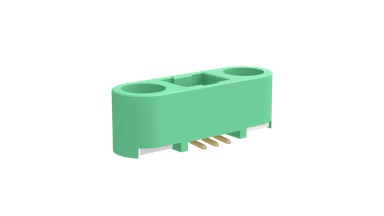

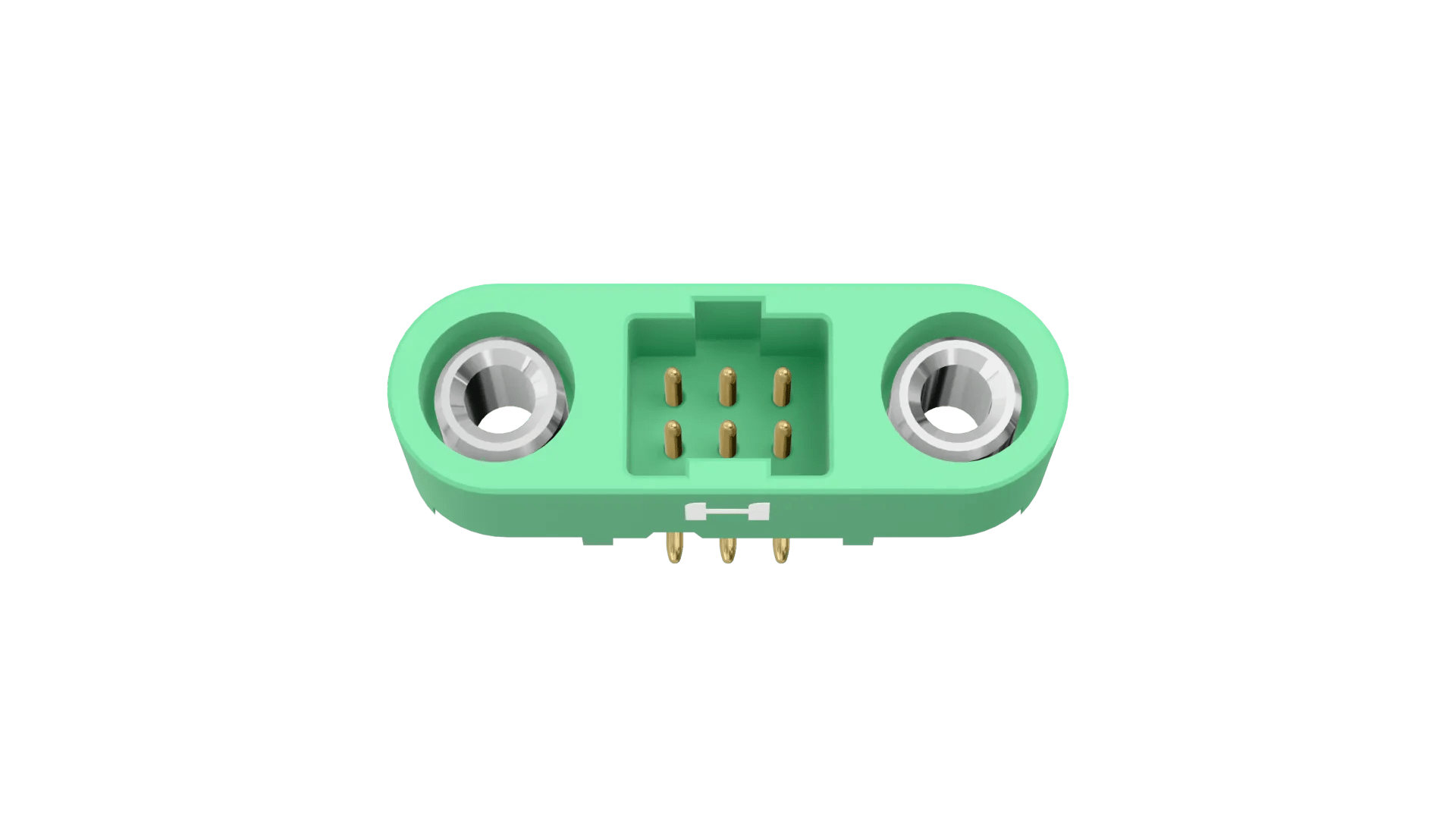

G125-MS10605M1P

3+3 Pos. Male DIL Vertical SMT Conn. Screw-Lok

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

  • Male Double Row Surface Mount connector, internally threaded Screw-Lok fixings – 6 contacts (3+3).
  • Supplied in tape strips with pick and place cap. Gold finish on contact area and termination.
  • For complete pin numbering or pin out information, see Component Specification C125XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Screw-Lok

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

6

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel Strip

Dimensions

Individual Part Weight:

0.743g

Overall Dimensions (L x W x D) in mm:

15.20 x 5.80 x 4.98

Thread Size:

M2

Height of Connector above PCB:

4.98mm

Availability

743 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 328
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 180
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 50
Distributor Farnell
Location Europe
Quantity (Updated Daily) 14

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 171
