G125-MP10450AAL9400

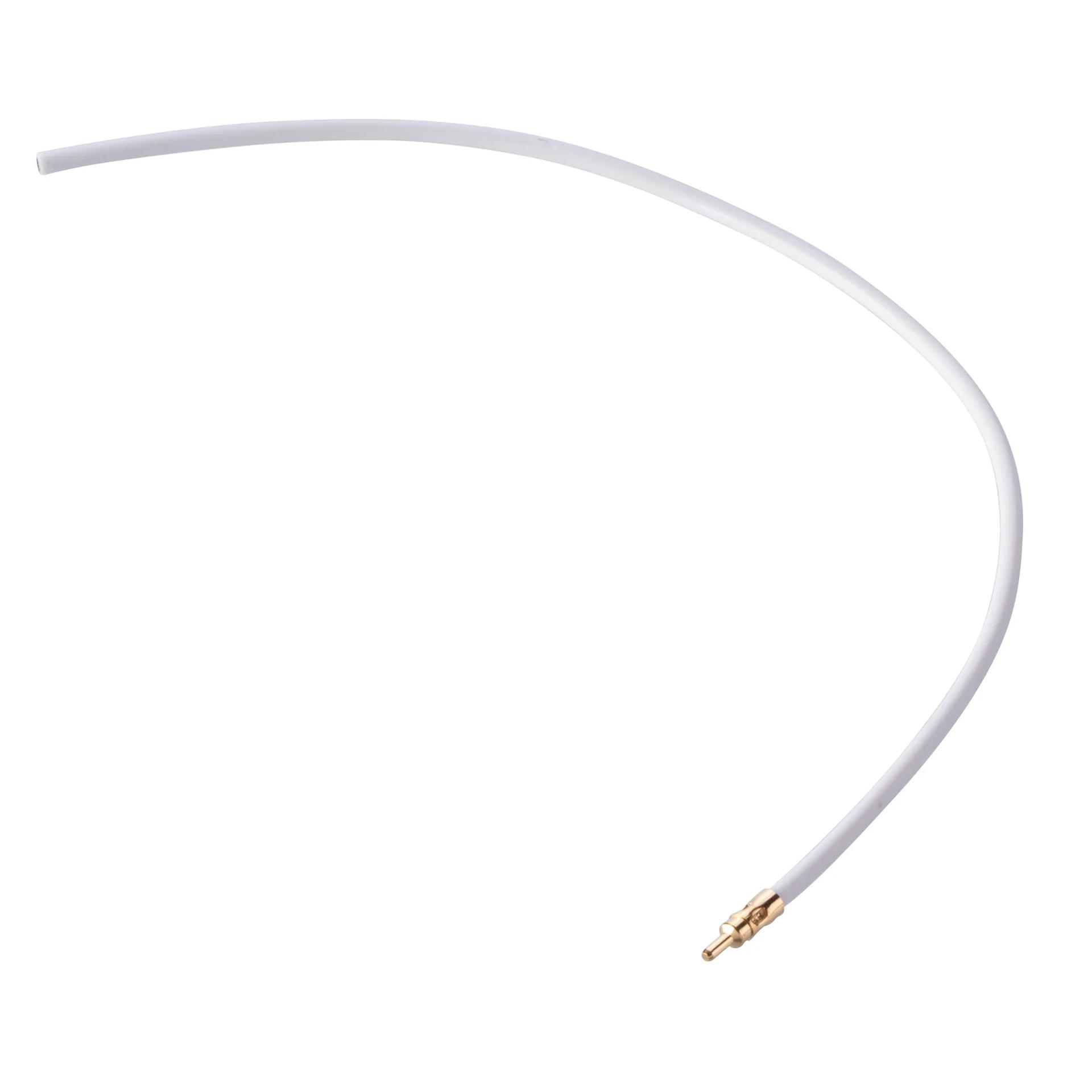

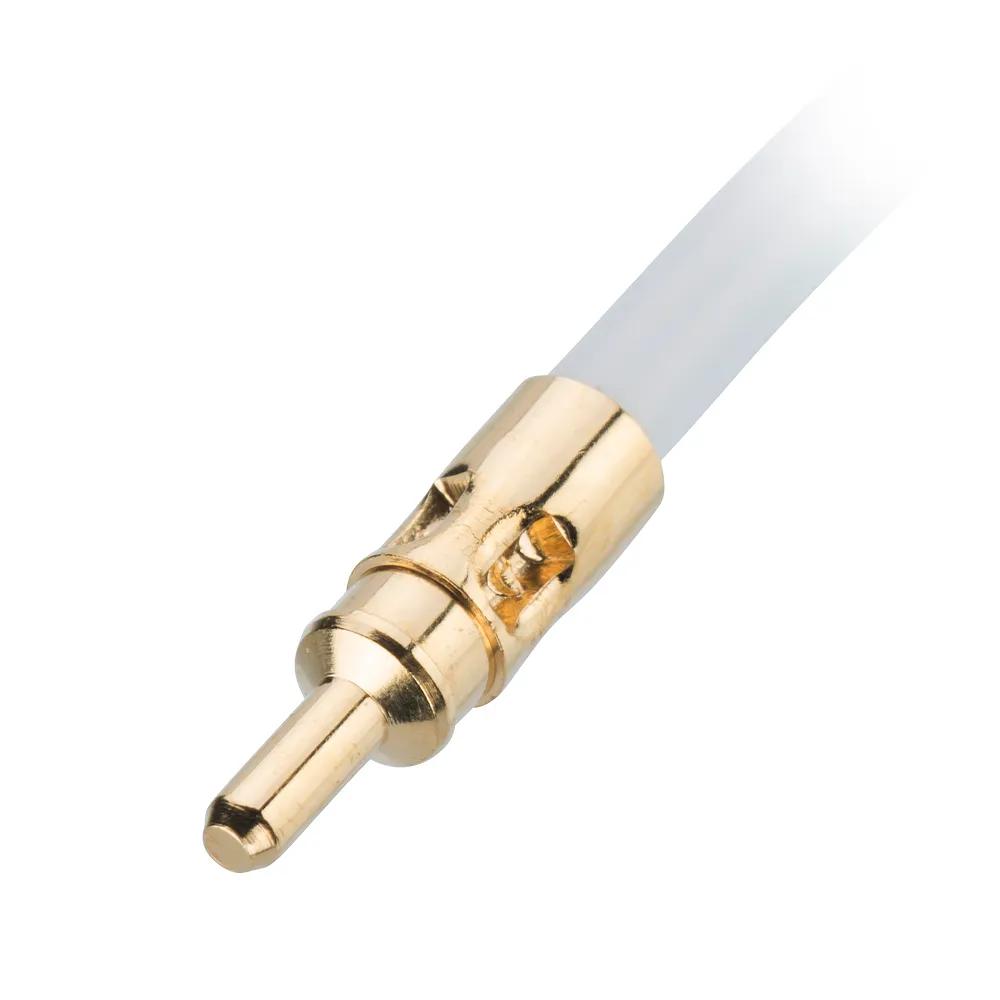

Male Power Contact with 18 AWG wire, 450mm, single-end

G125-MP10450AAL9400

Male Power Contact with 18 AWG wire, 450mm, single-end

1.25mm Pitch High-Reliability Connector - Gecko-MT

View Technical Details

In Stock

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Change Notifications

Technical Documentation

Product Information

Test Reports

Environmental Compliance

Technical Details

Product Characteristics

  • Mating Pin Size:

    Ø1mm

  • Connector Orientation:

    Straight

  • Country of Origin:

    GB

  • Number of Power/Coax Contacts:

    1

  • Operating Temperature:

    -65°C to +150°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Current Rating:

    10A max per contact (25°C)

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Beryllium Copper

  • Packaging Style:

    Bulk/Loose

  • Finish / Plating on Termination:

    Gold

Dimensions

  • Weight:

    5.51g

  • Dimensions:

    450.00 x Ø2.23

  • Wire Size:

    18 AWG

Downloads

Product Change Notifications

  • Obsolescence Notification 02-Sep-2024 - Gecko pre-cabled Power contacts (old numbering system)

Technical Documentation

  • Technical Drawing / Datasheet - G125-XP1XXXXAAXXXXX.pdf

  • C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

  • C049XX Component Specification - Cable Assembly Specifications for all HRi products

  • Plating thickness on Gecko contacts (signal and power)

Product Information

  • Product Training Module - Overview Guide to the Gecko-MT range + 1.25mm pitch High-Reliability with Power

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Product Training Module - Cable Products from Harwin

  • IS-38 - Z125-902 Assembly Tool Instruction Sheet

  • IS-47 - Z125-905 Assembly Tool Instruction Sheet

  • Product Datasheet - Gecko-MT range (HRi)

Test Reports

  • Test Report HT030 - Gecko (G125 Series) - Electrical + Mechanical and Environmental

  • Test Report HT067 - Gecko-SL (G125 Series) - Mechanical Screw-Lok test

  • Test Report HT072 - Gecko-MT General (Electrical + Mechanical and Environmental)

Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement

  • Material composition for G125-MP1XXXXAALYYZZ series

  • RoHS - G125-MP10450AAL9400
