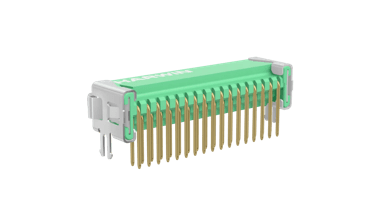

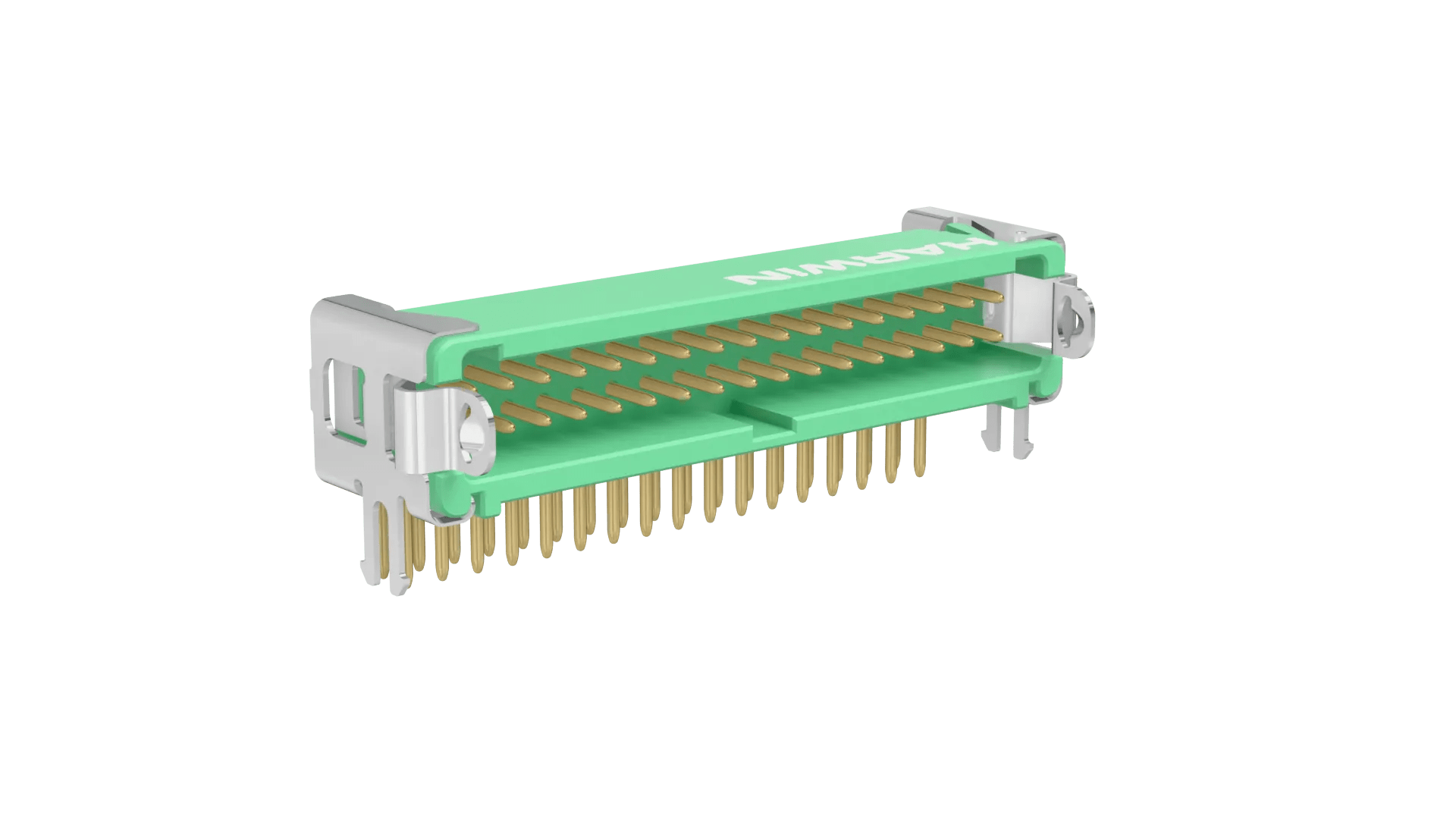

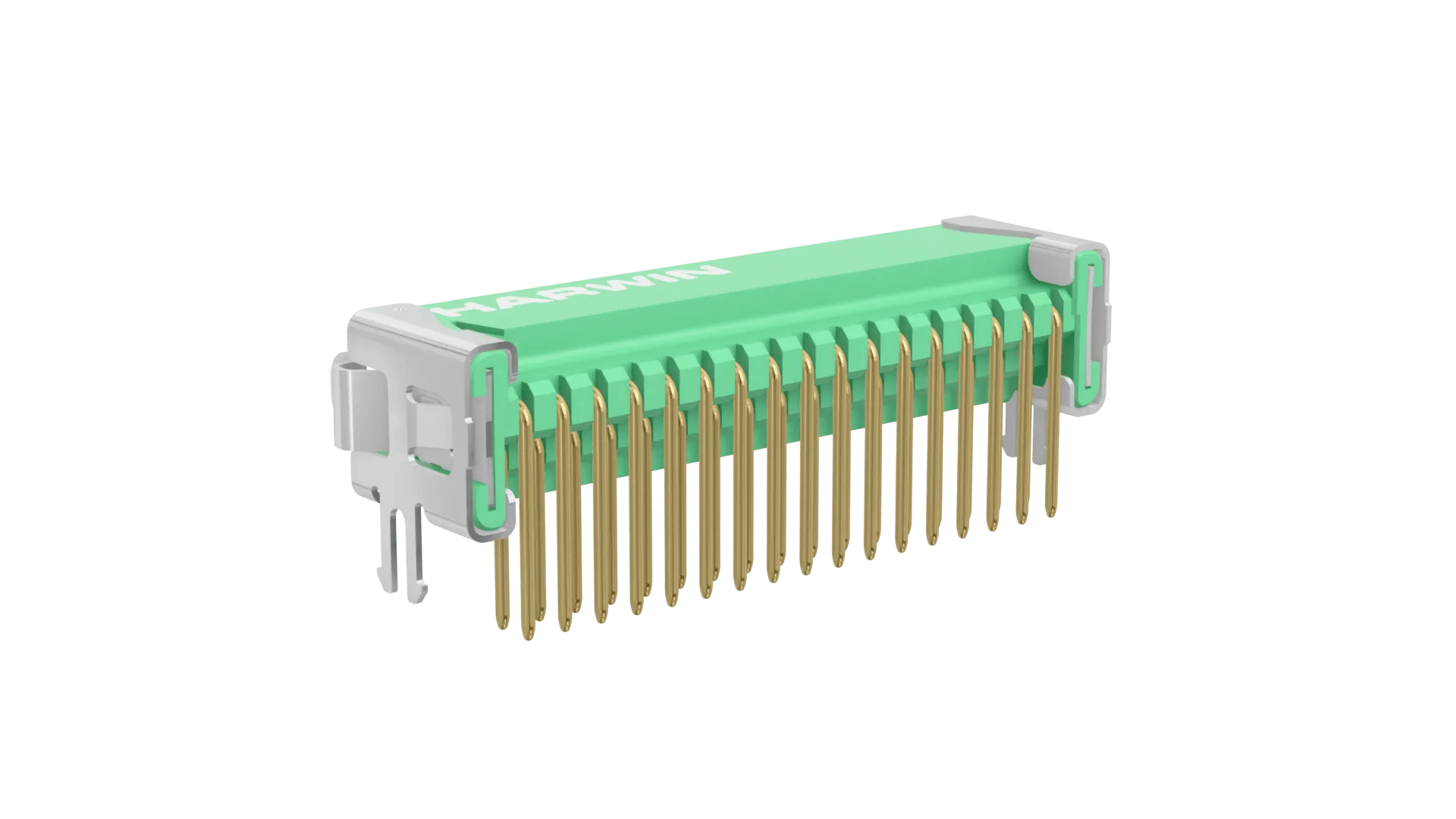

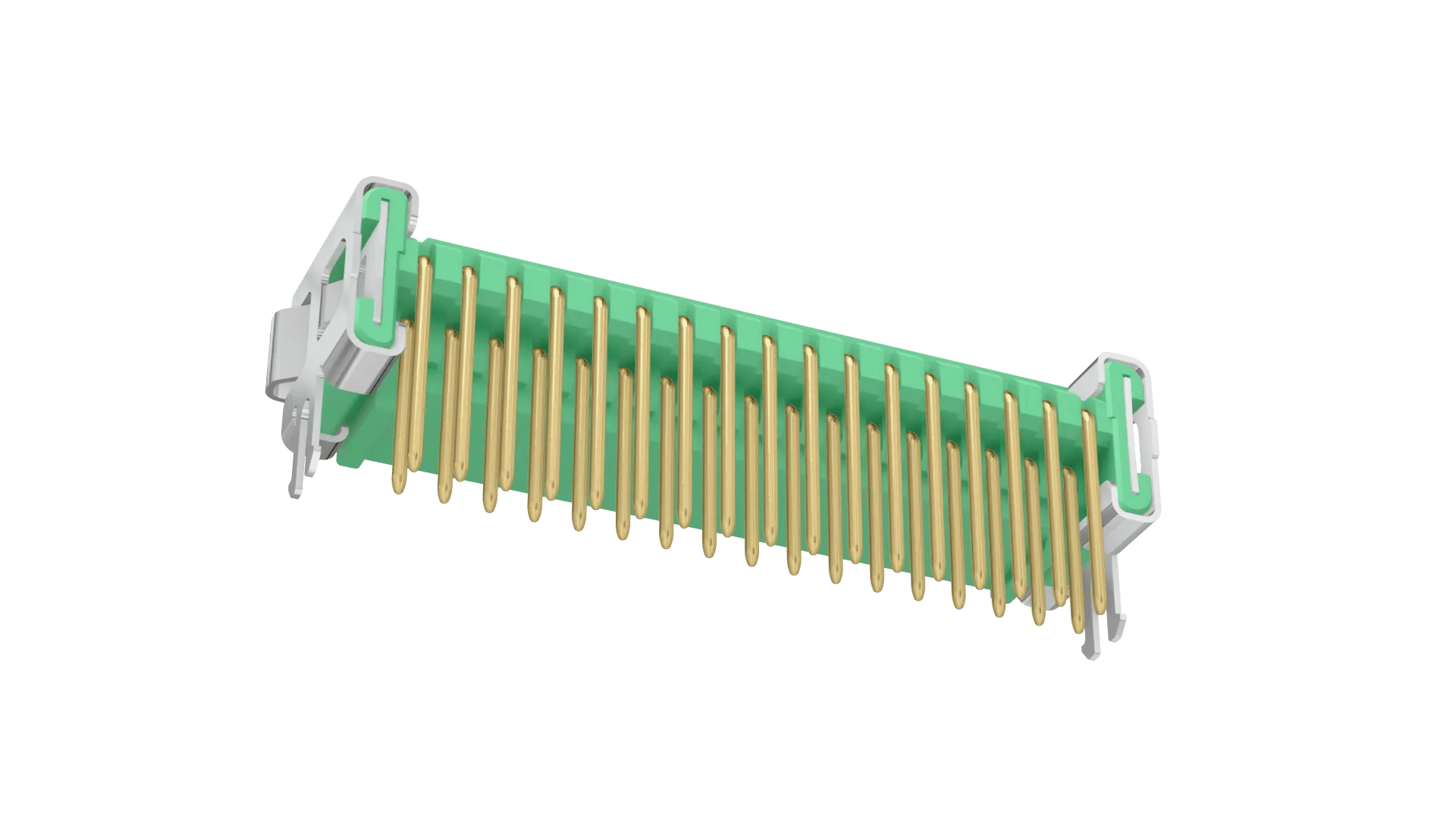

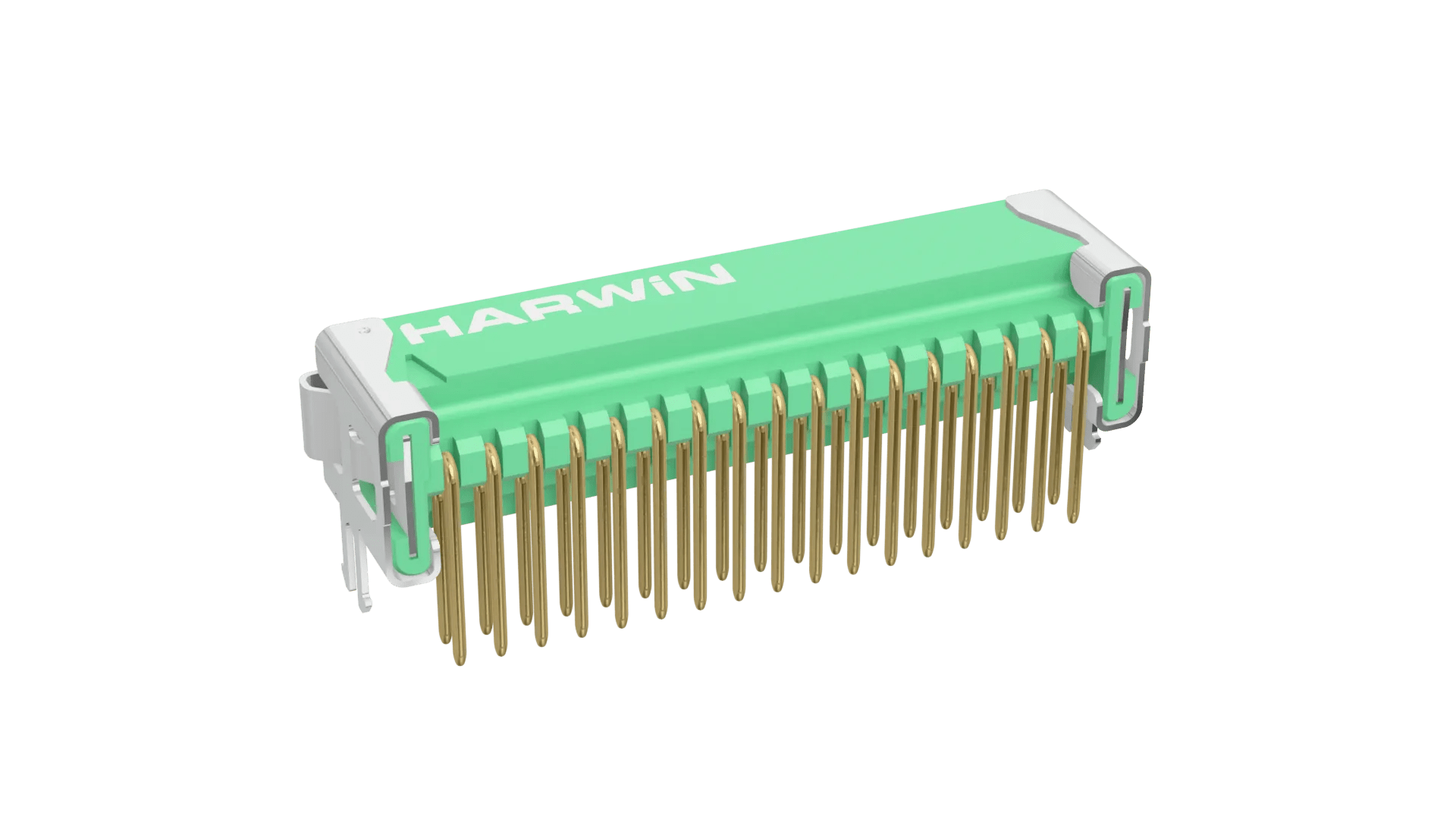

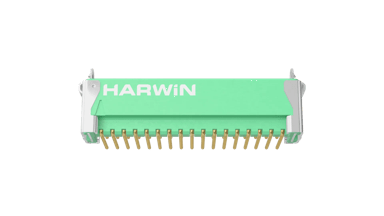

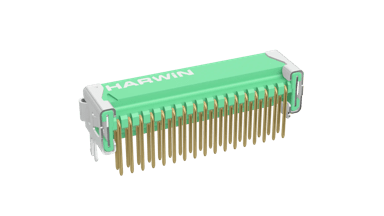

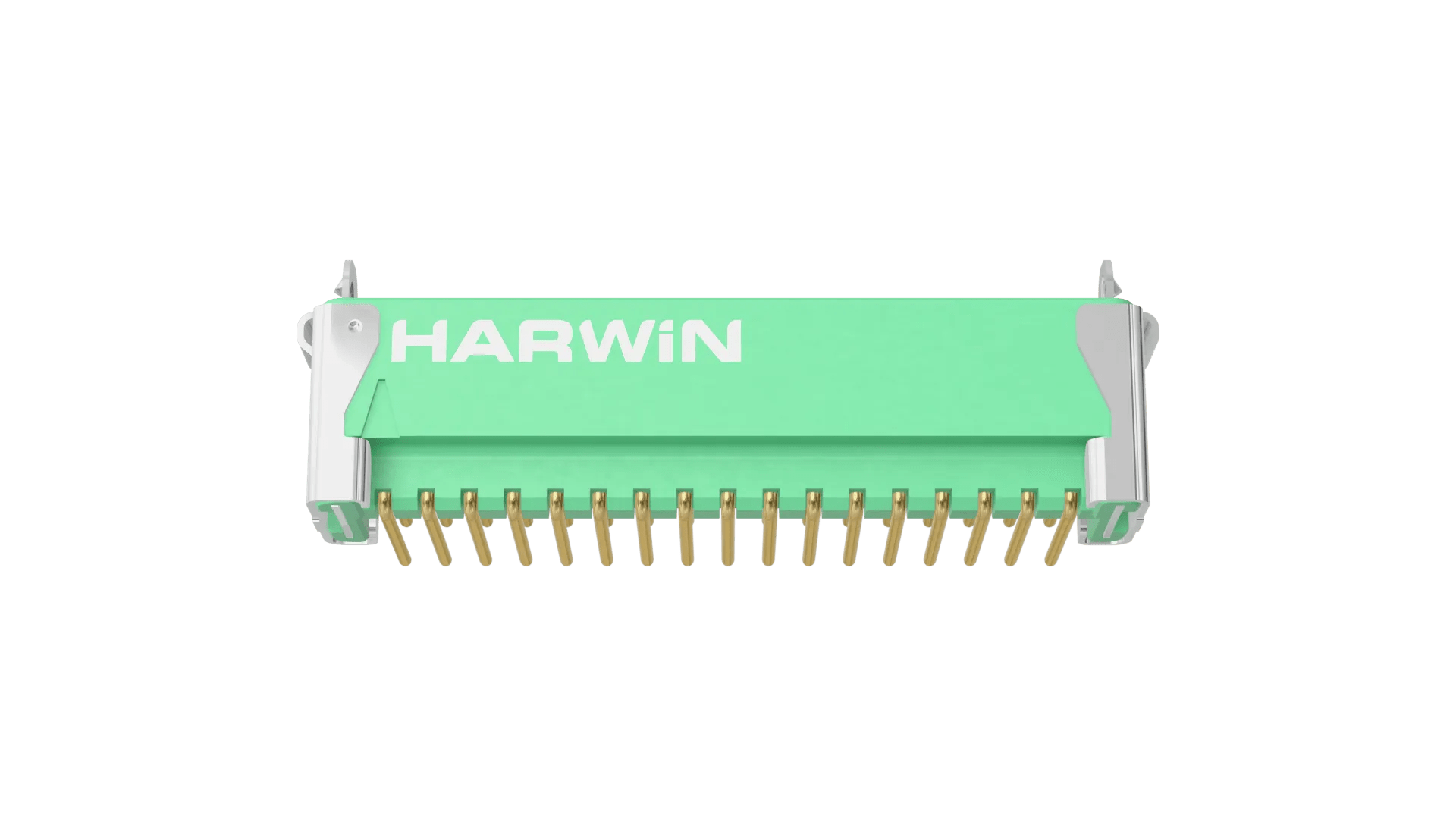

17+17 Pos. Male DIL Horizontal Throughboard Conn. Latches
1.25mm Pitch High-Reliability Connector - Gecko with Latches
- Double Row male 3.2mm PC Tail connector, Latches with through-hole barbs for 1.6mm PCB thickness – 34 contacts (17+17). Through-hole barbs can be used as location pegs, or soldered to PCB for additional strain relief.
- Supplied in tape strips. Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C125XX.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
2.8A max individual contact, 2A max simultaneous (25°C)
-65°C to +150°C
Max Solder Temperature: 260°C for 10 seconds
Style of Latches:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 4T
Housing Material UL Rating:
Tape and Reel Strip
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
25.20 x 8.00 x 8.70
Height of Connector above PCB:
Length of Throughboard Tail:
Frequently Asked Questions Ask a Question
Can this connector go through SMT oven reflow or it can only go through wave oven?
There should be no issues with using this connector in a reflow process. The construction uses the same materials as the SMT versions of the Gecko range.
Was this answer useful?
Do you have a tool to help separate this connector when it is latched to the mating half?
The tool you need is the Z125-9263400 – this will help push in the two latch buttons when the connectors are engaged, so you can then separate the mated connectors. Consult the training video for more information on using this tool. It is also possible to push in the two buttons by hand as well, if you have good access.
Was this answer useful?
RoHS Compliant (2015/863/EU) with no Exemption requiredPDF Download
