1.25mm Pitch High-Reliability Connector - Gecko-SL

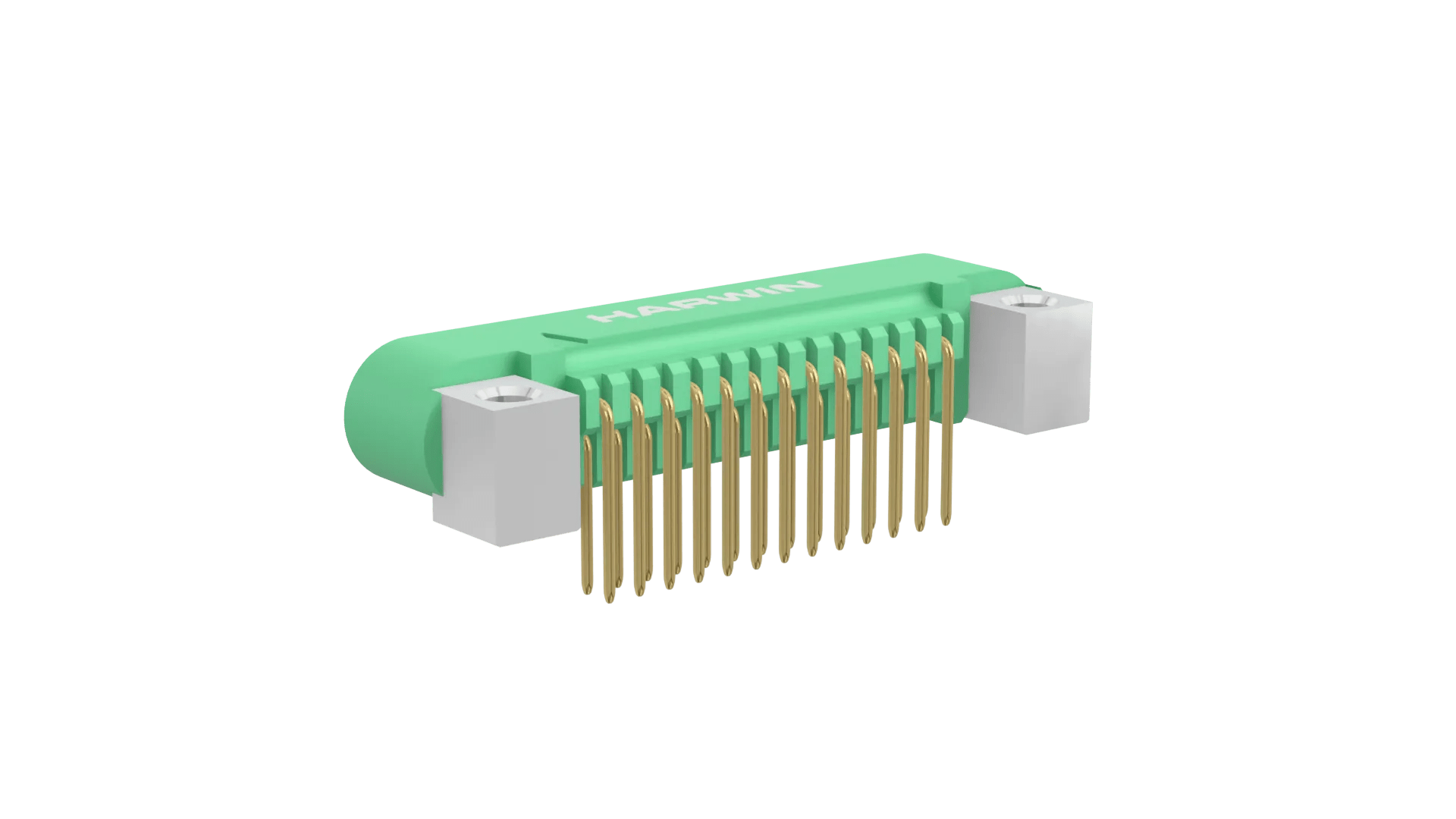

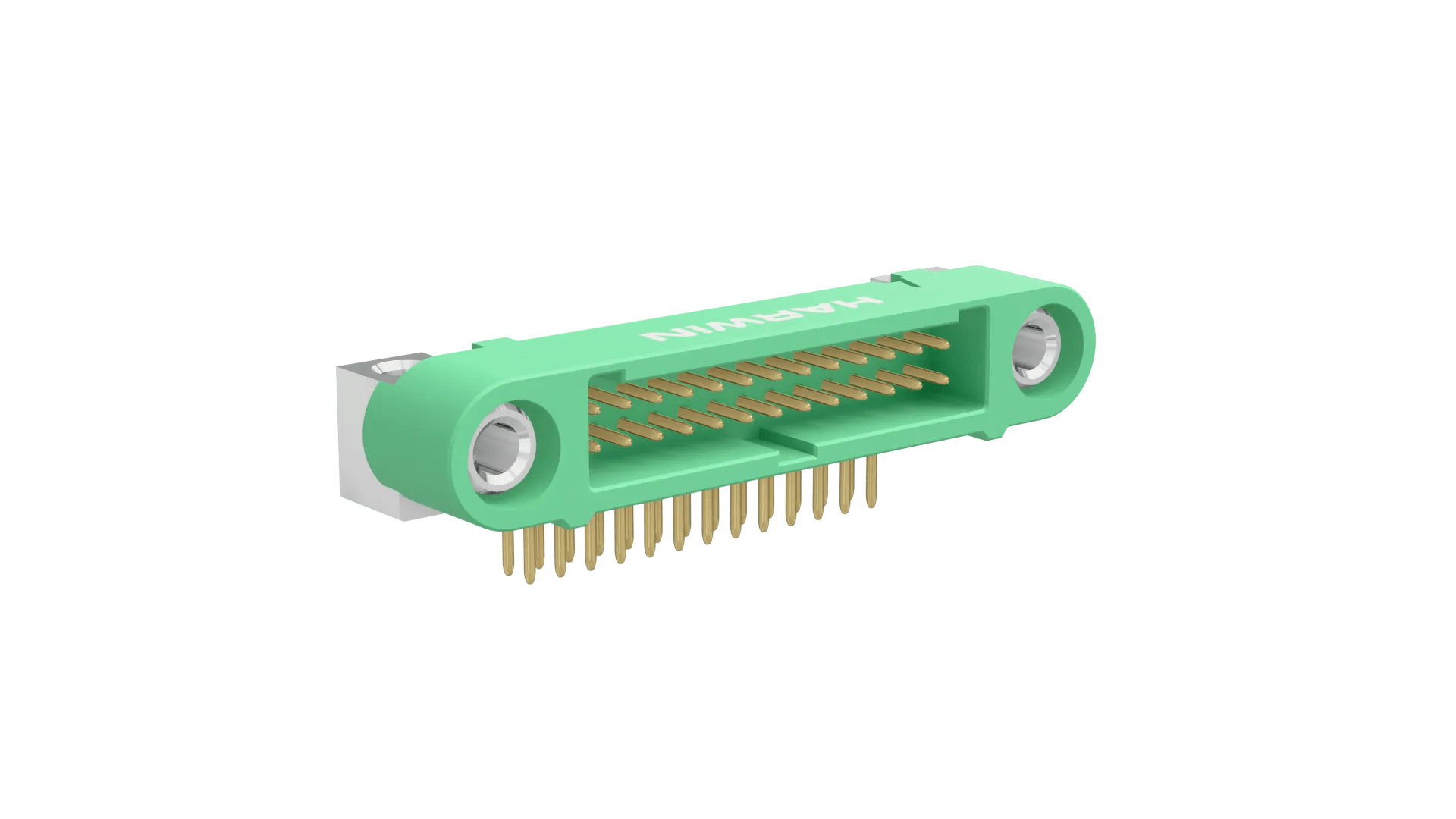

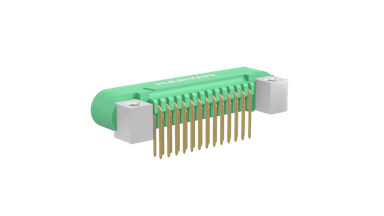

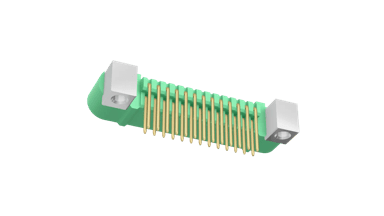

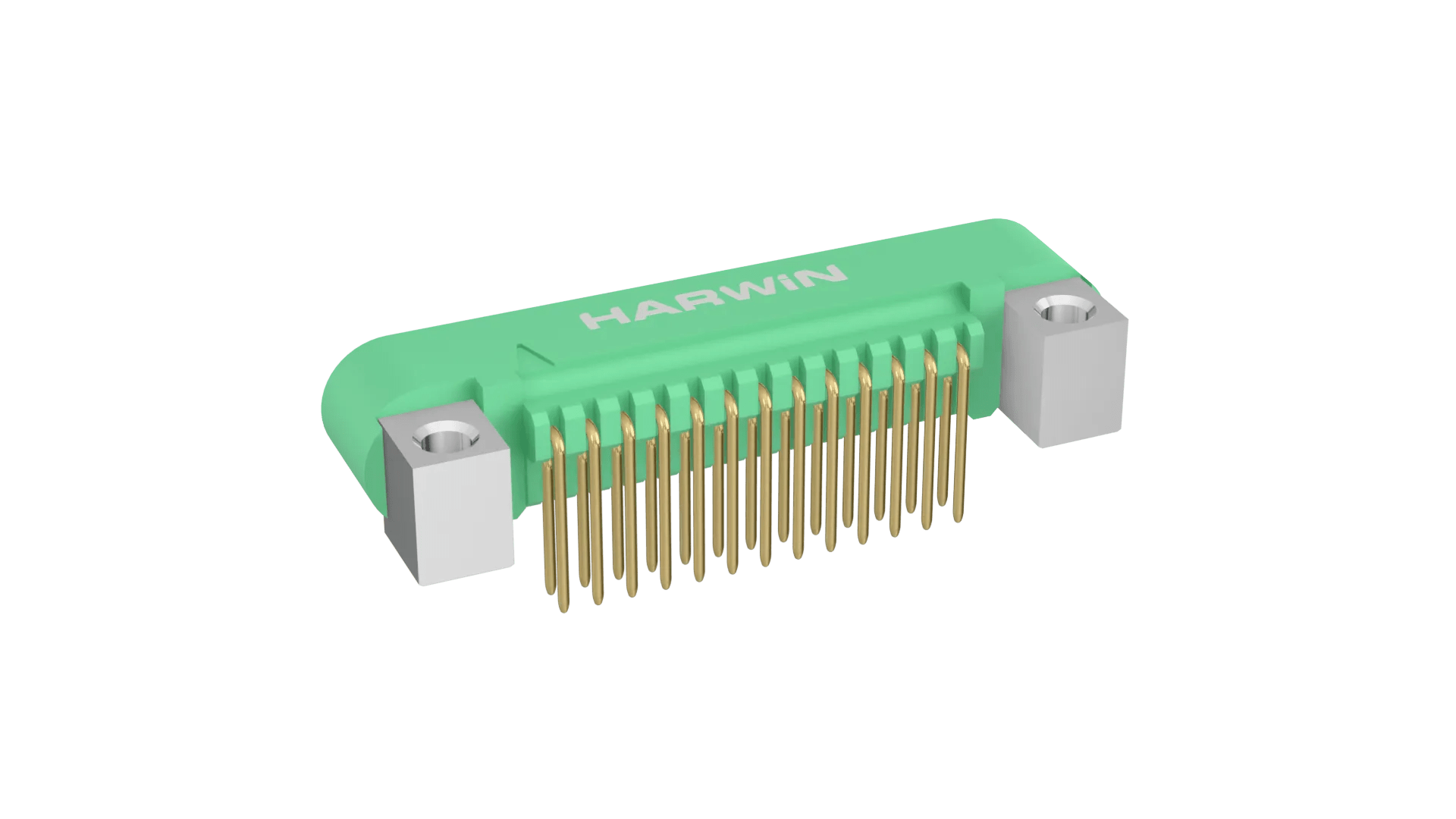

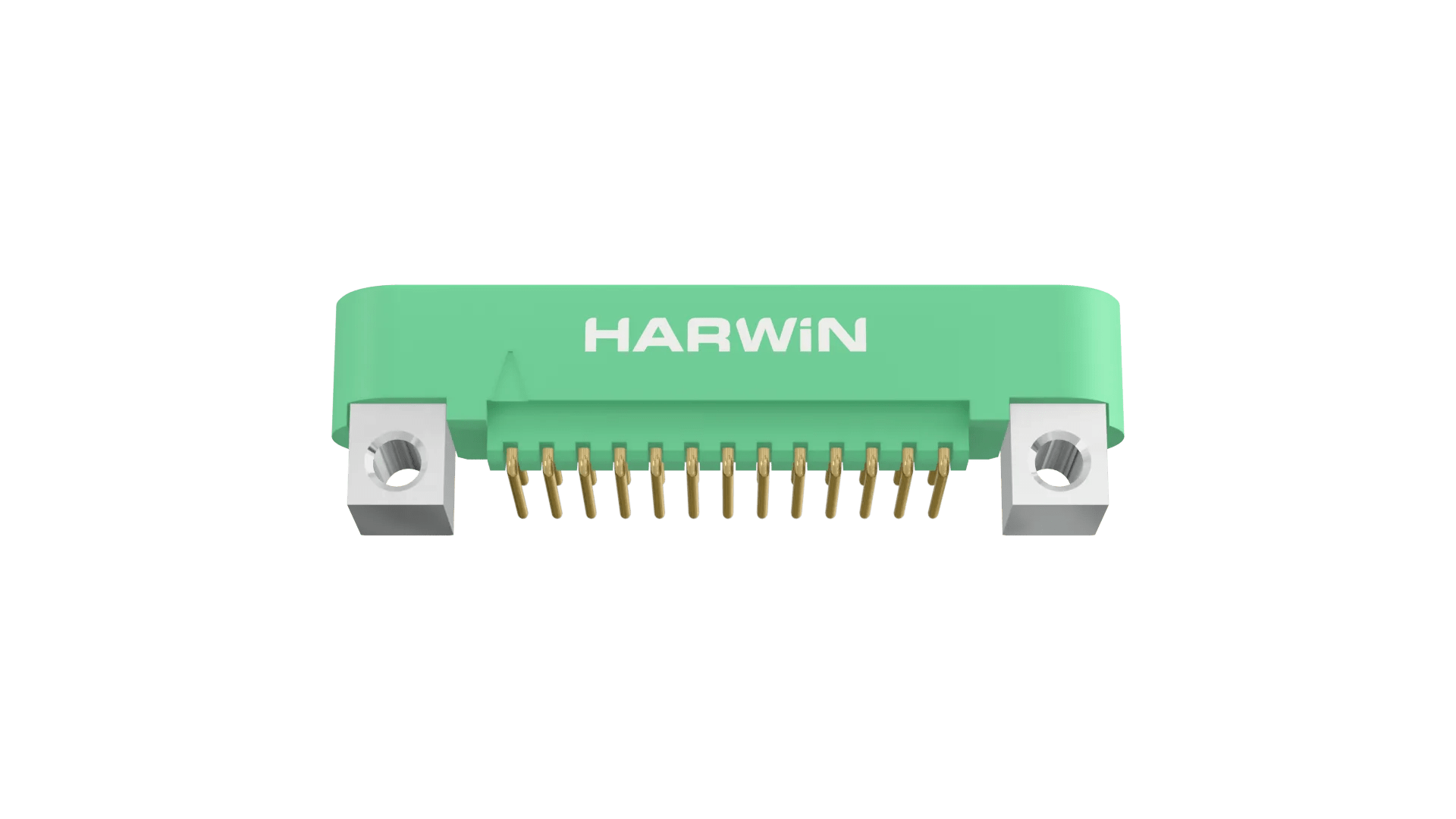

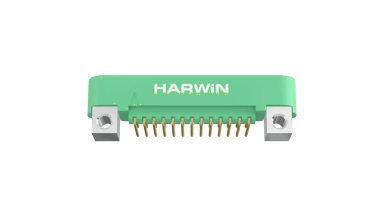

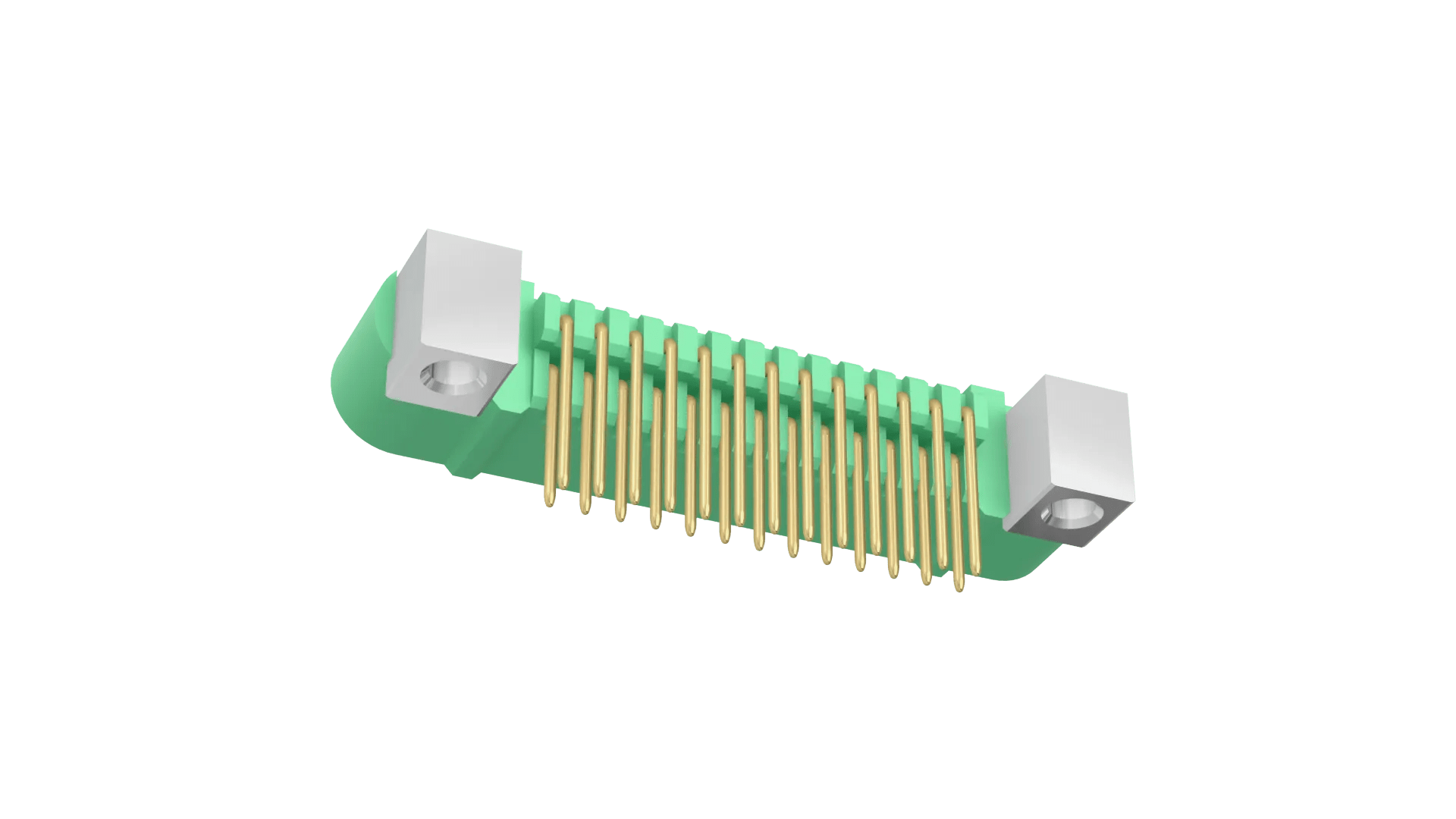

Male Double Row 3mm PC Tail connector, Screw-Lok fixings suitable for board mount - 26 contacts (13+13). Use with hex socket bolts G125-4520000B (5mm) for board mount retention.
Supplied on Tape and Reel. Gold finish on contact area and termination.
For complete pin numbering or pin out information, see Component Specification C125XX.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Internal Thread Fixing with Board/Front Panel Mount
Mating Pin Size:
Ø0.4mm
Number of Rows:
2
Connector Orientation:
Horizontal
Country of Origin:
GB
Side Stackable:
No
Number of Signal Contacts:
26
Operating Temperature:
-65°C to +150°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
2.8A max individual contact, 2A max simultaneous (25°C)
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
Polyamide (Nylon) 4T
Base Material of Contact:
Phosphor Bronze
Flammability Rating:
UL94V-0
Packaging Style:
Tape and Reel
Finish / Plating on Termination:
Gold
Housing Colour:
Green
Dimensions
Contact Pitch:
1.25mm (0.049")
Weight:
1.733g
Dimensions:
27.70 x 7.70 x 8.50
Thread Size:
M2
PC Tail Length:
3.30mm
Height of Connector above PCB:
5.30mm
Downloads
Technical Drawing / Datasheet - G125-MH1XX05M4R.pdf
C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)
Outgassing data for Harwin products (plastics)
Plating thickness on Gecko contacts (signal and power)
Catalog page - Gecko-SL Mating Profiles
Product Training Module - Overview Guide to the Gecko Screw-Lok range + 1.25mm pitch High-Reliability
Product Datasheet - Gecko range: signal connectors (HRi)
Test Report HT030 - Gecko (G125 Series) - Electrical + Mechanical and Environmental
Test Report HT067 - Gecko-SL (G125 Series) - Mechanical Screw-Lok test
Test Report HT073 - Gecko-SL Horizontal General (Electrical + Mechanical and Environmental)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
Material composition for G125-MH1XX05MXX series
RoHS - G125-MH12605M4R
