Image may be representative. Refer to the product title for more information.

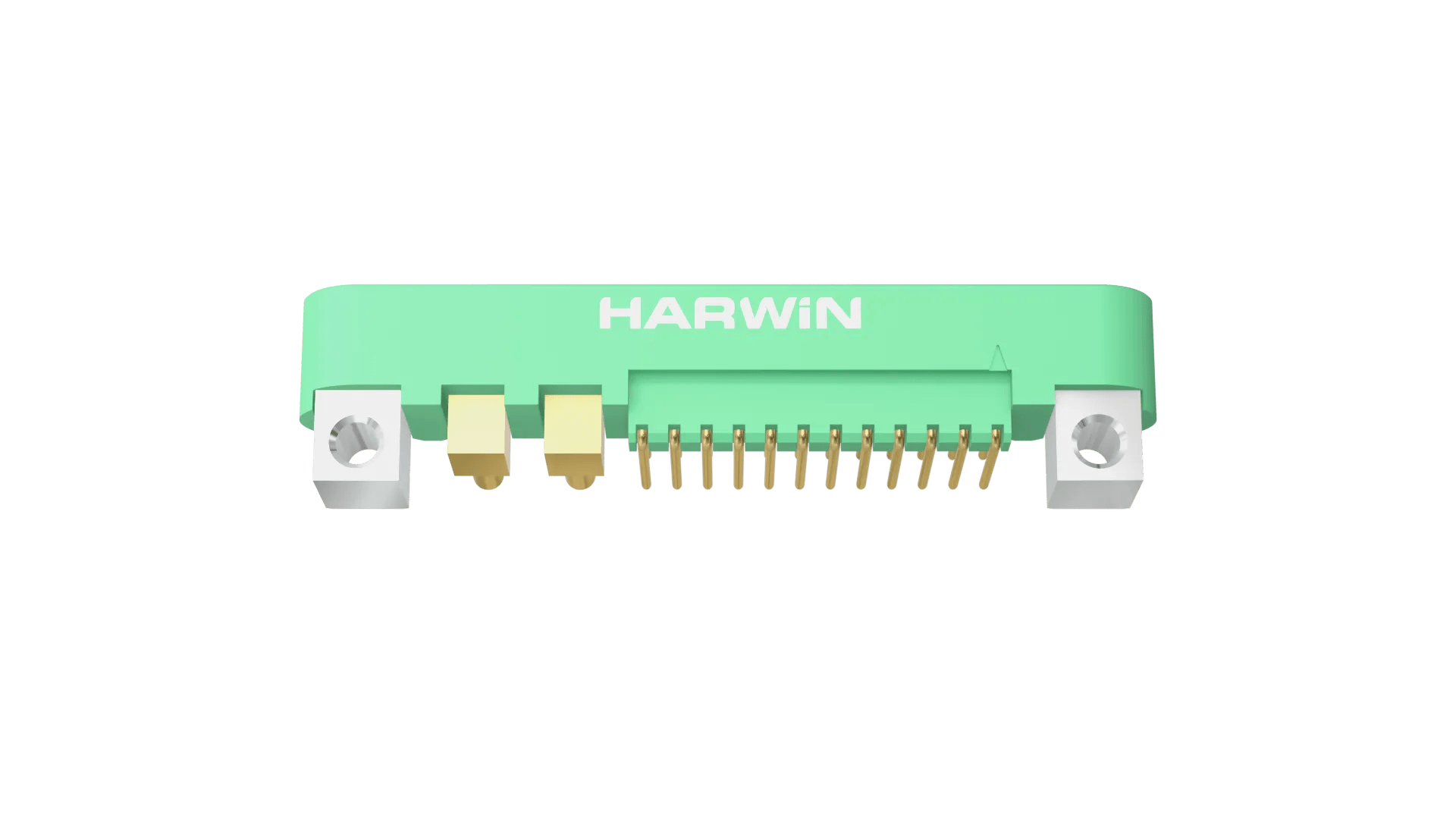

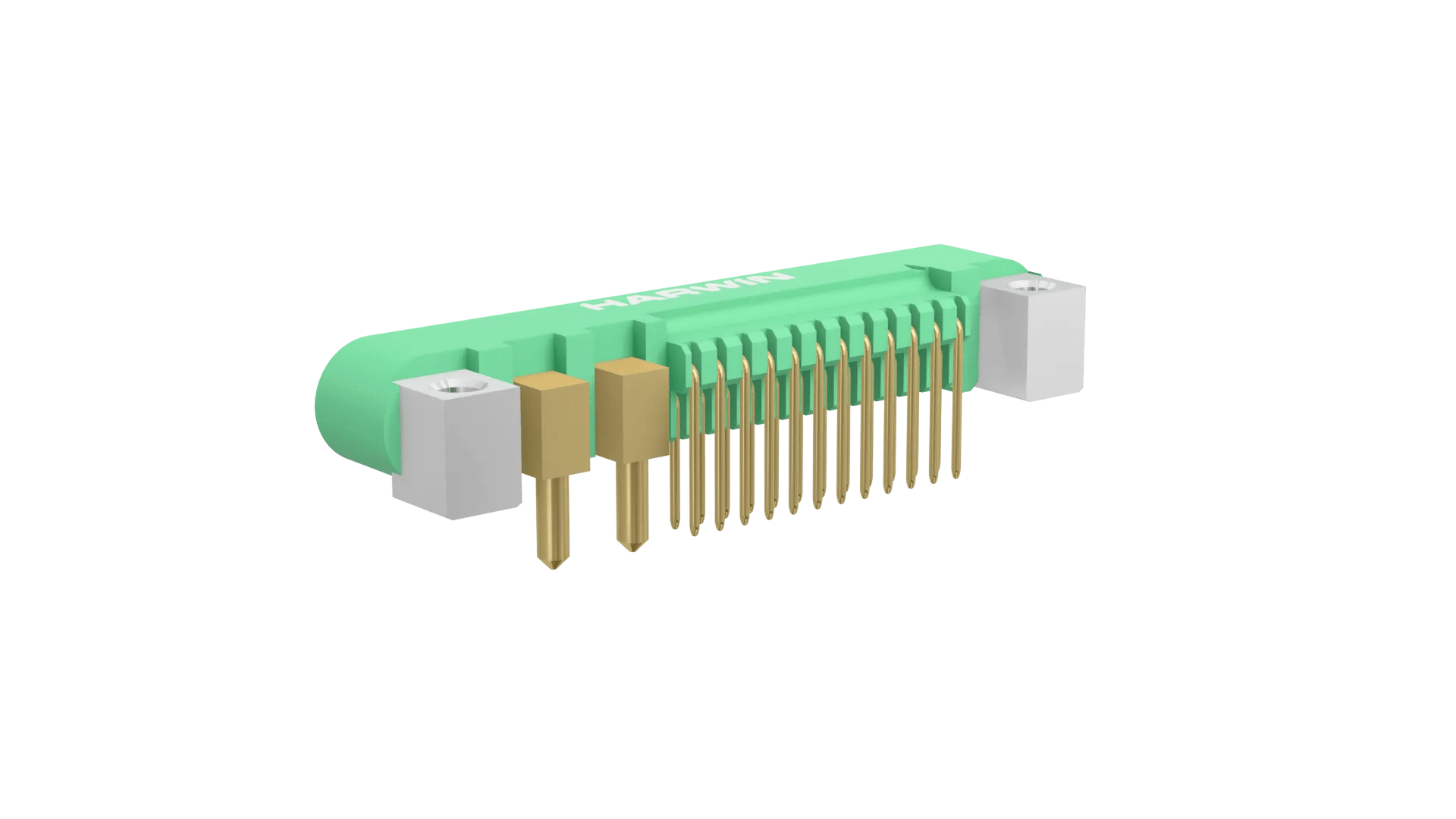

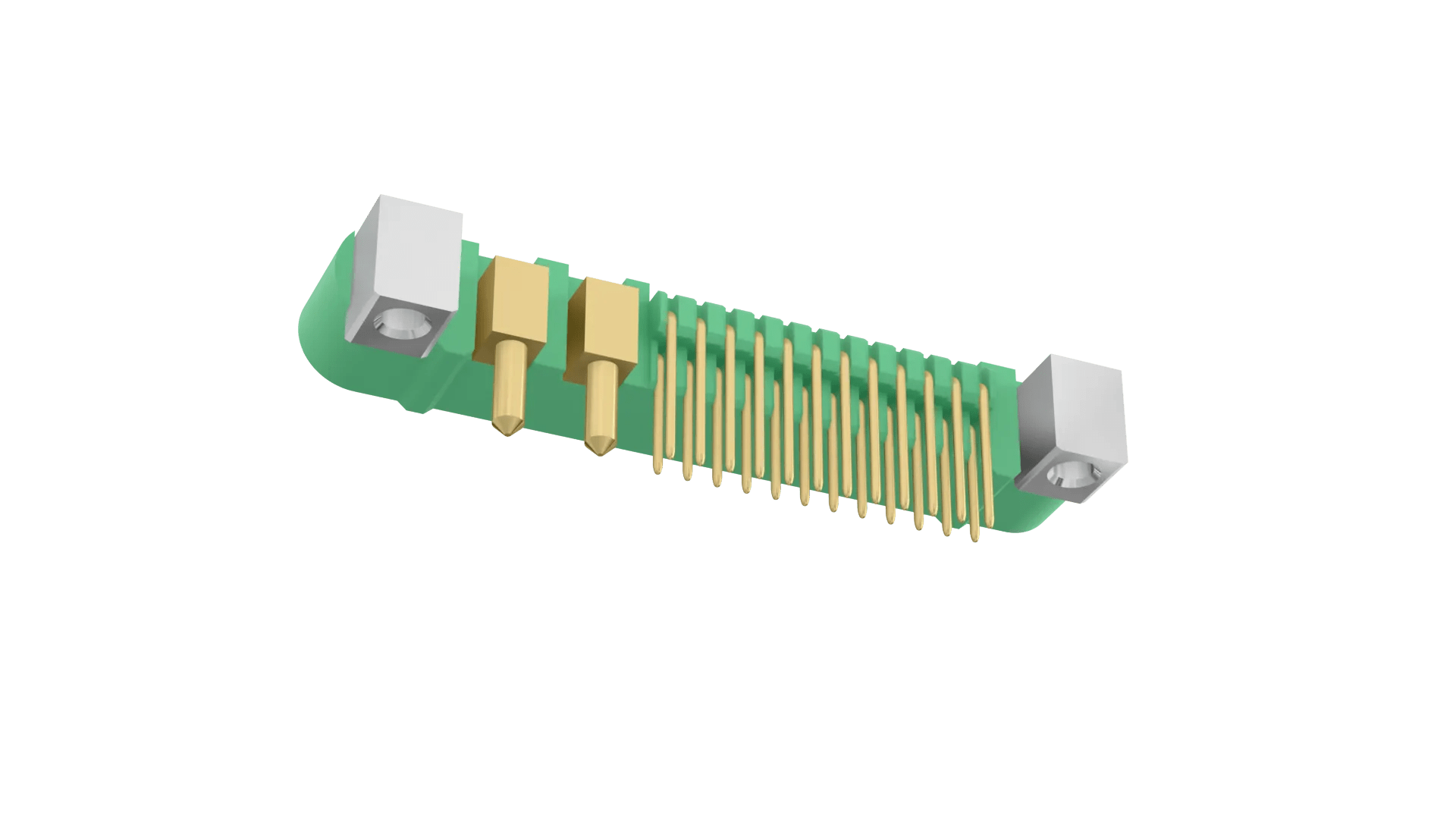

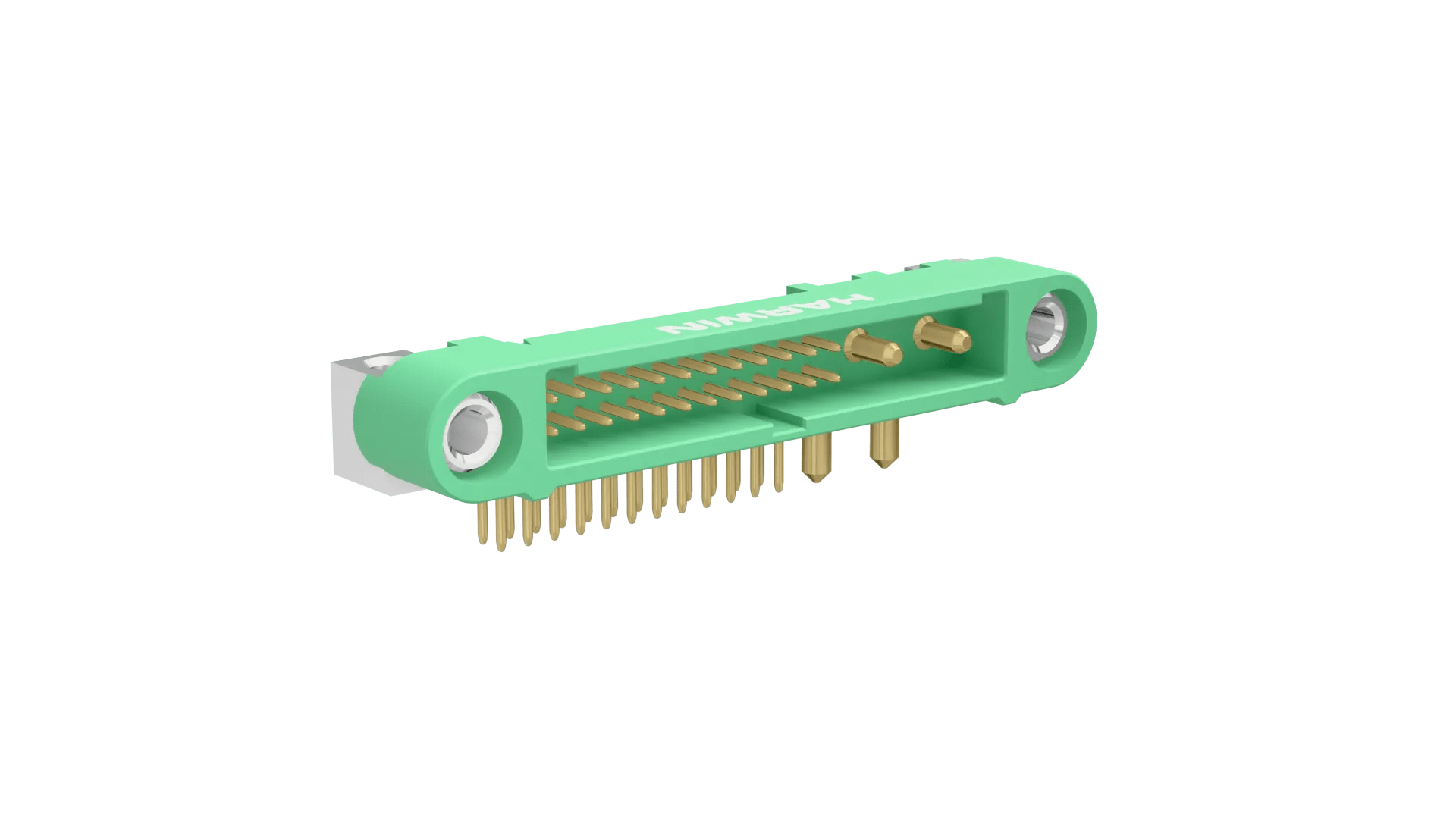

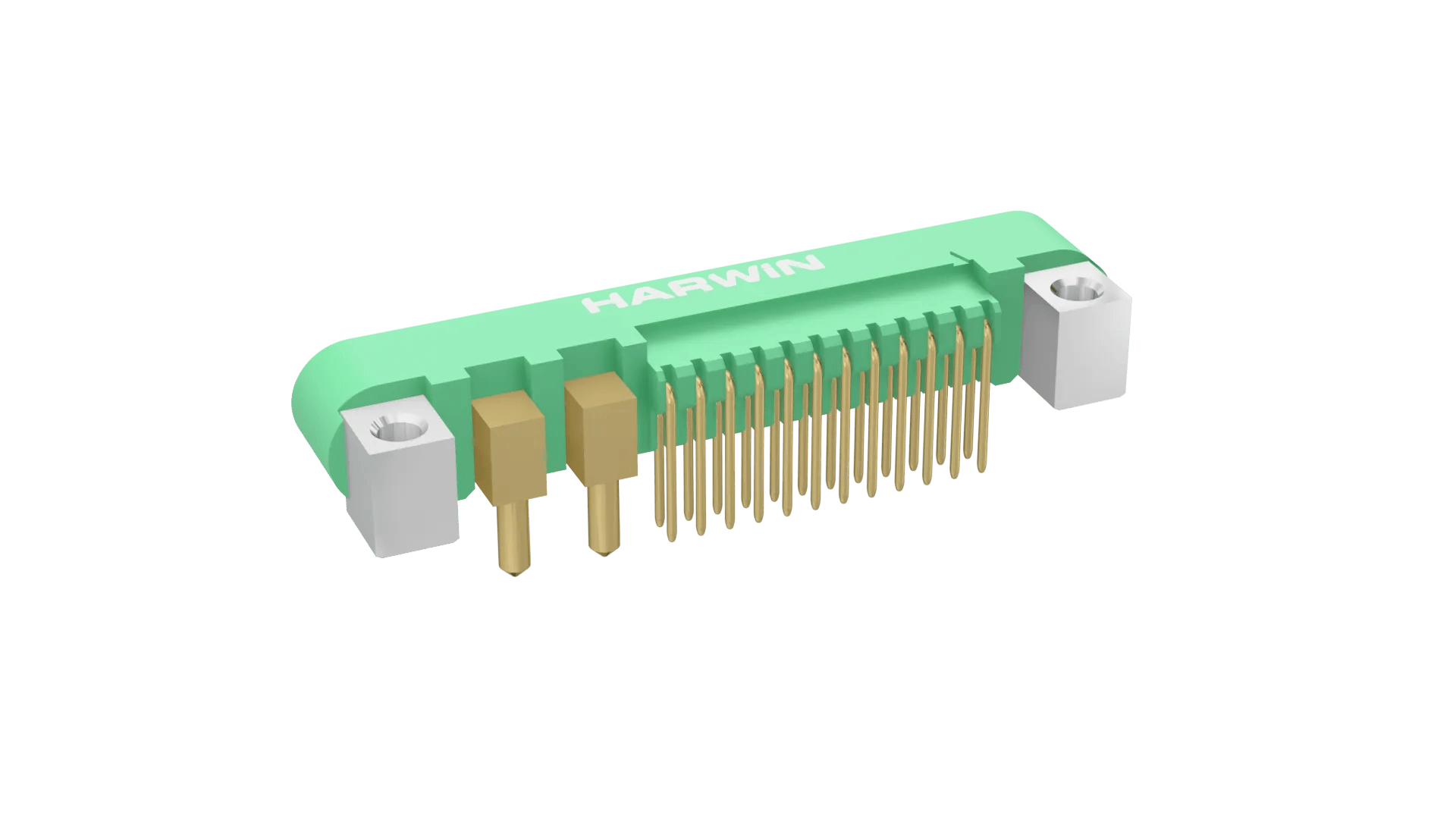

Male Horizontal Throughboard connector - 2 power, 24 signal contact arrangement. Power contacts are 3.5mm termination length, signal are 3.3mm. Fitted with threaded Screw-Lok fixings. Use with hex socket bolts G125-4520000B (5mm) for board mount retention.
Supplied in tape strips. Gold finish on contact area and termination.
For complete pin numbering or pin out information, see Component Specification C125XX.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Style of Jackscrews
Internal Thread Fixing with Board/Front Panel Mount
Mating Pin Size
Ø0.4mm, Ø1mm
Number of Rows
Mixed
Connector Orientation
Horizontal
Country of Origin
GB
Side Stackable
No
Number of Power/Coax Contacts
2
Number of Signal Contacts
24
Operating Temperature
-65°C to +150°C
RoHS Status
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating
Signal = 2.8A max individual contact, 2A max simultaneous; Power = 10A max simultaneous (25°C)
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Polarised
Yes
Cuttable
No
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
Polyamide (Nylon) 4T
Base Material of Contact
Phosphor Bronze (signal), Beryllium Copper (power)
Flammability Rating
UL94V-0
Packaging Style
Tape and Reel Strip
Finish / Plating on Termination
Gold
Housing Colour
Green
Dimensions
Contact Pitch
1.25mm (0.049")
Weight
2.247g
Dimensions
33.55 x 7.70 x 8.75
Thread Size
M2
PC Tail Length
3.30mm and 3.50mm
Height of Connector above PCB
5.25mm
