Home > G125-MH12005M4P
Active Product

G125-MH12005M4P

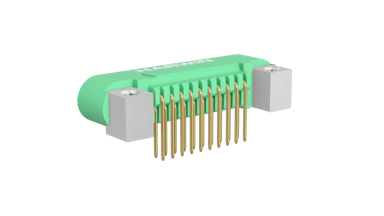

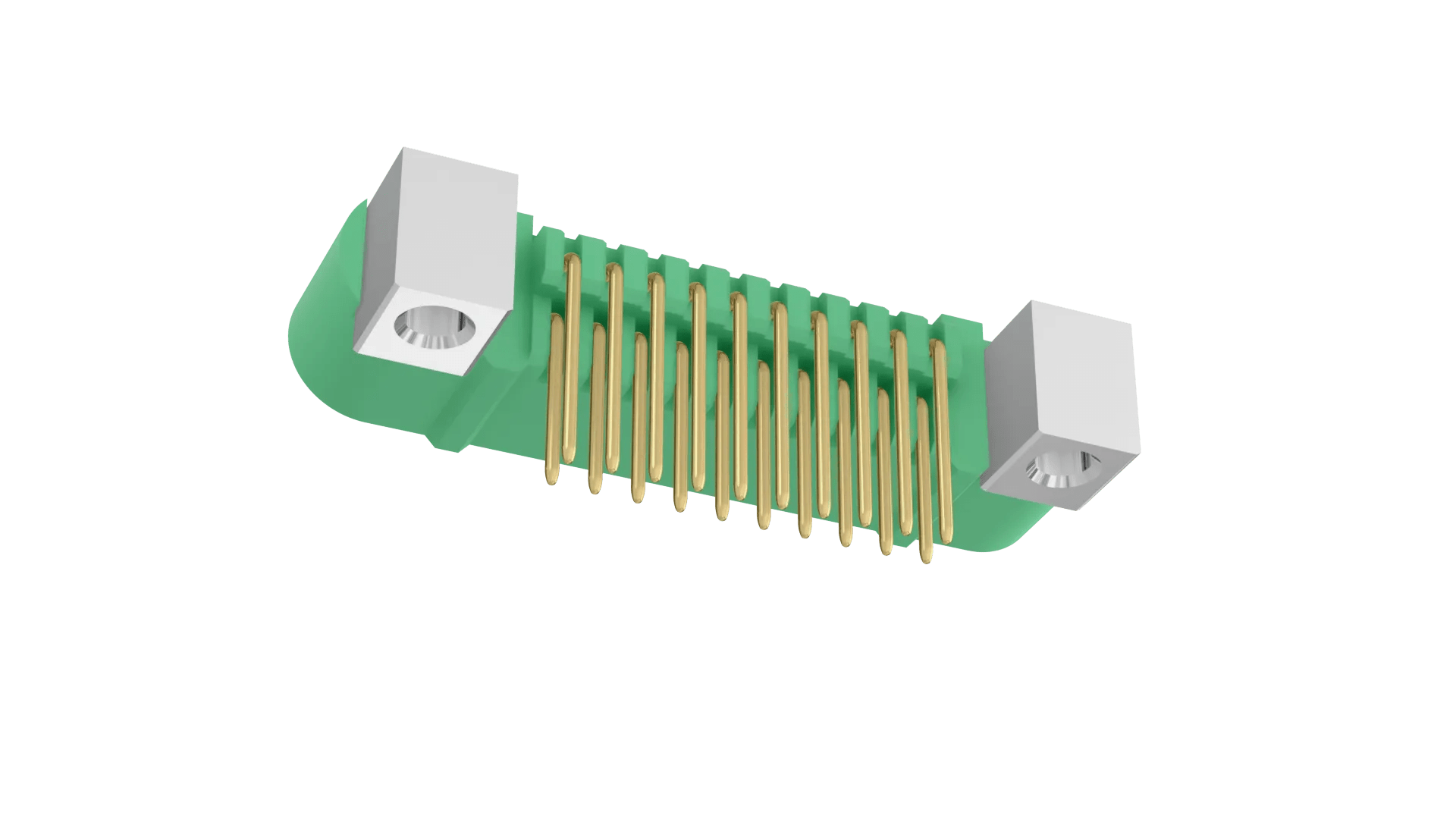

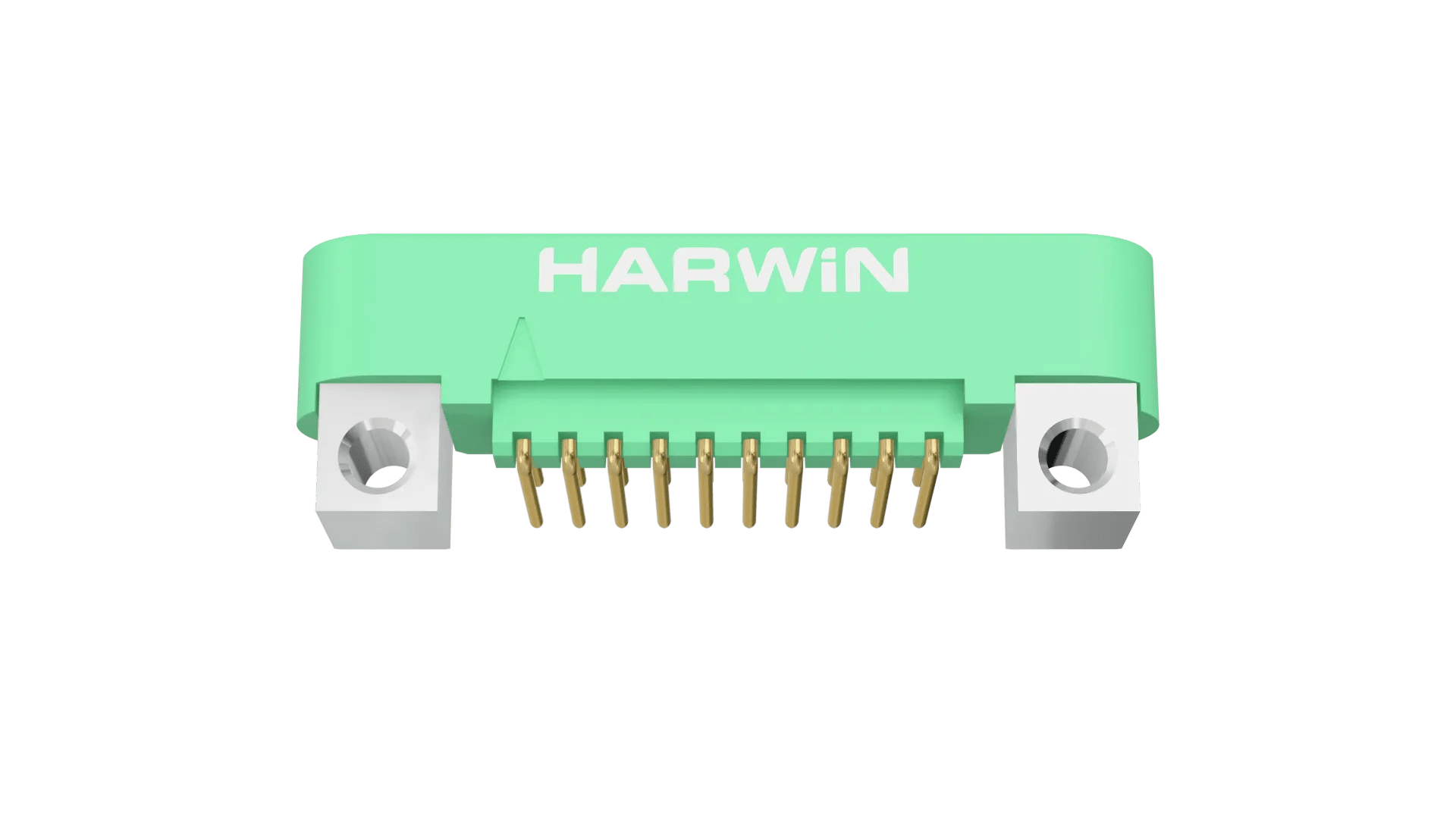

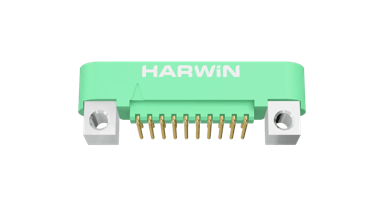

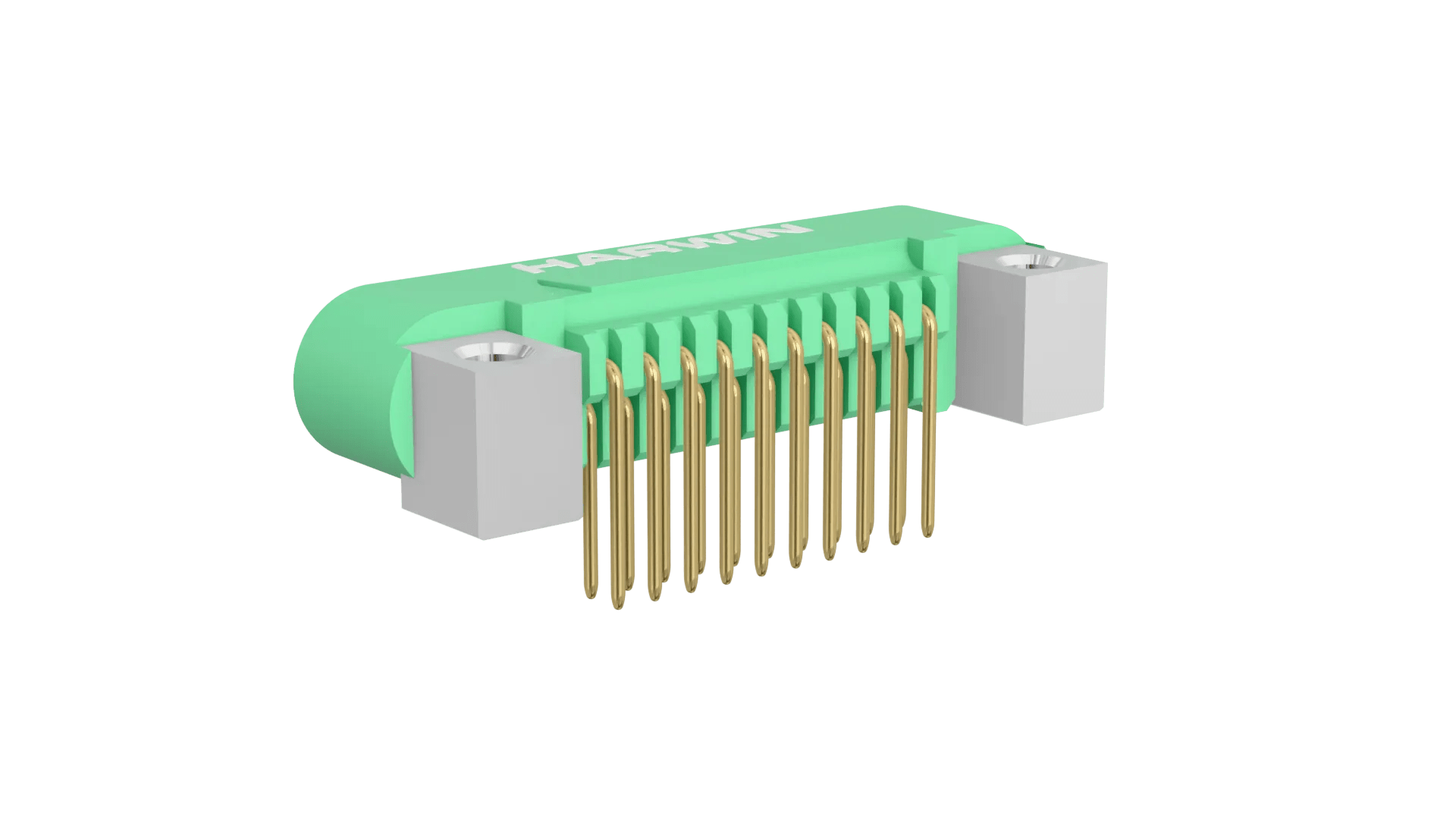

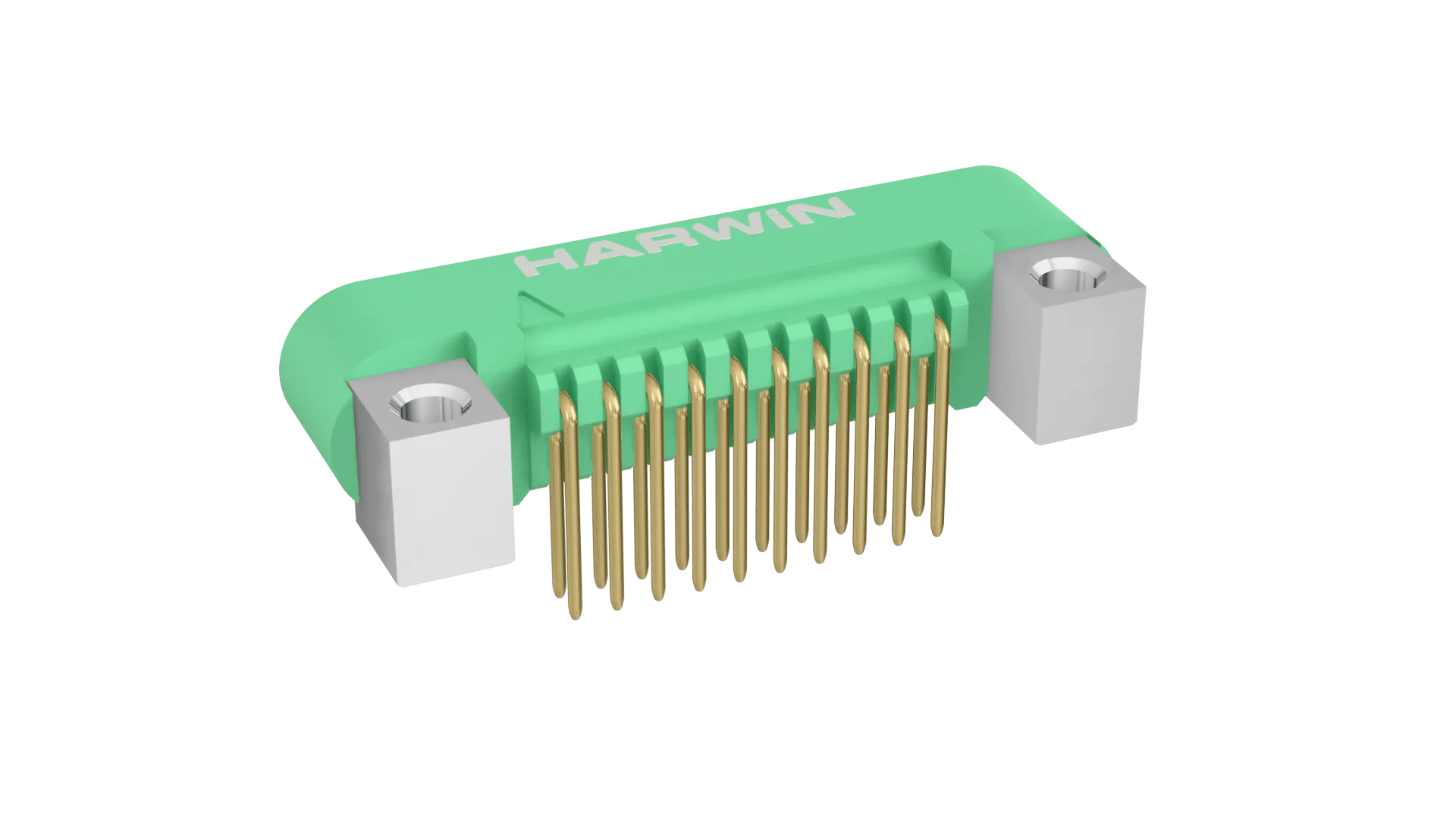

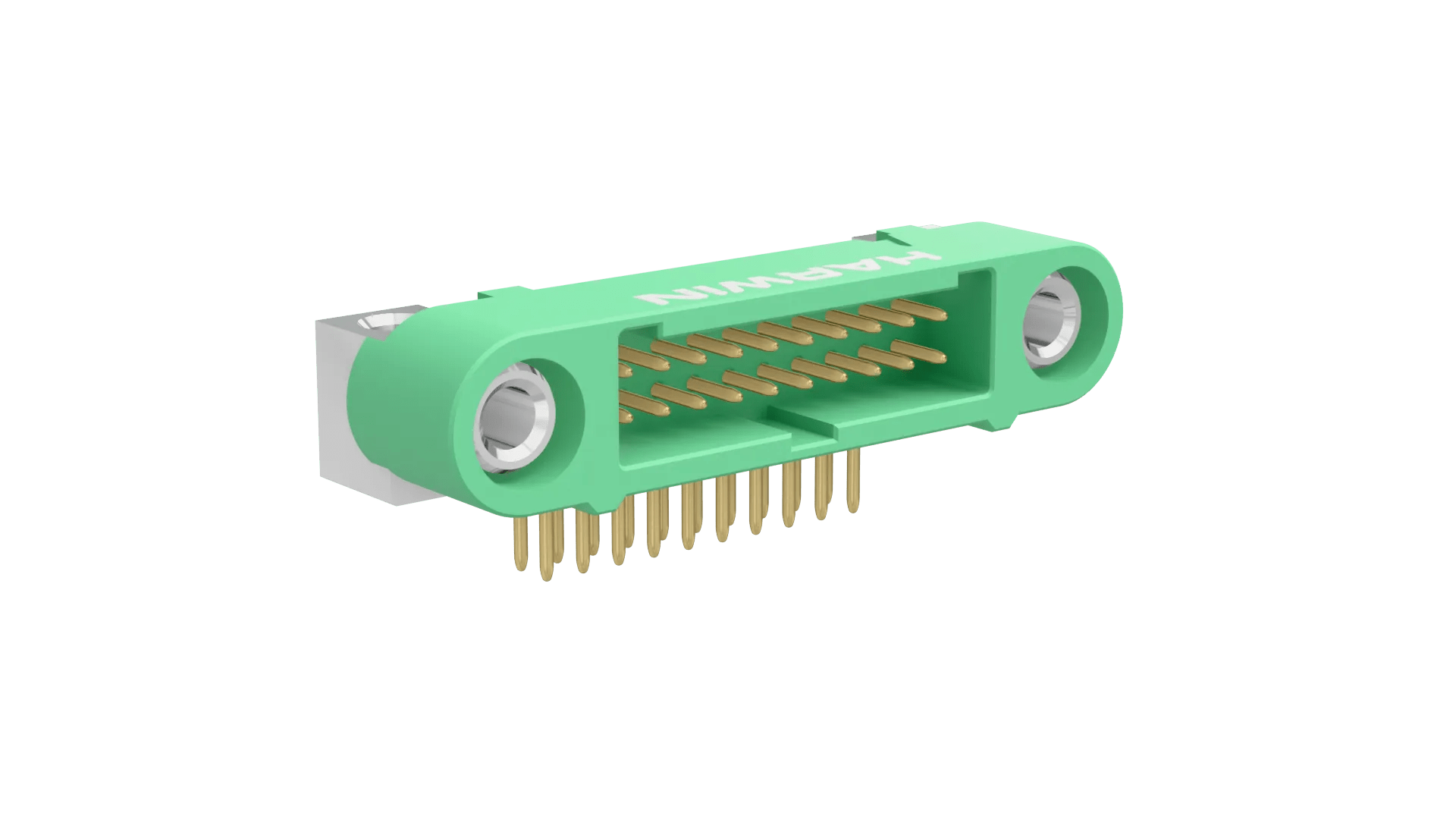

10+10 Pos. Male DIL Horizontal Throughboard Conn. Screw-Lok Board Mount

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

Add to Favorites

1,028 in stock   Check availability

5 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Male Double Row 3mm PC Tail connector, Screw-Lok fixings suitable for board mount – 20 contacts (10+10). Use with hex socket bolts G125-4520000B (5mm) for board mount retention.
  • Supplied in tape strips. Gold finish on contact area and termination.
  • For complete pin numbering or pin out information, see Component Specification C125XX.

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Internal Thread Screw-Lok with Board Mount (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

20

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel Strip

Dimensions

Individual Part Weight:

1.587g

Overall Dimensions (L x W x D) in mm:

23.95 x 7.70 x 8.50

Thread Size:

M2

Height of Connector above PCB:

5.30mm

Length of Throughboard Tail:

3.30mm

Frequently Asked Questions Ask a Question

Are the board/panel mount bolts supplied with this connector, or do I have to order them separately?

No, these connectors are not supplied with the board/panel mount bolts – you will need to order them separately. The part number is G125-4520000B for a 5mm hex socket bolt.

Was this answer useful?

What torque value should be used for these screw-loks?

The torque value for board or panel mounting and for mating screw-loks is 16-18cmN. Both values are given in the Component Specification C125xx (page 3).

Was this answer useful?

Is there any restriction on PCB location for this connector, such as near the edge or central mounting?

If you plan to mate this connector with a female cable connector, you will need to locate the connector near the edge of the PCB – typically the mating face would be level with the edge (or slightly over). Female cable connectors have additional bumps for retaining backshells, and these bumps will foul with the PCB if the mating face is located above the PCB. You can check the Technical Drawing (under Downloads) for the recommended distance to the footprint from the PCB edge.

If you are mating this connector with a female PCB connector, there are no additional bumps on these connectors and the mating can occur over PCB. You just need to ensure that your two PCBs do not foul with each other.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required
