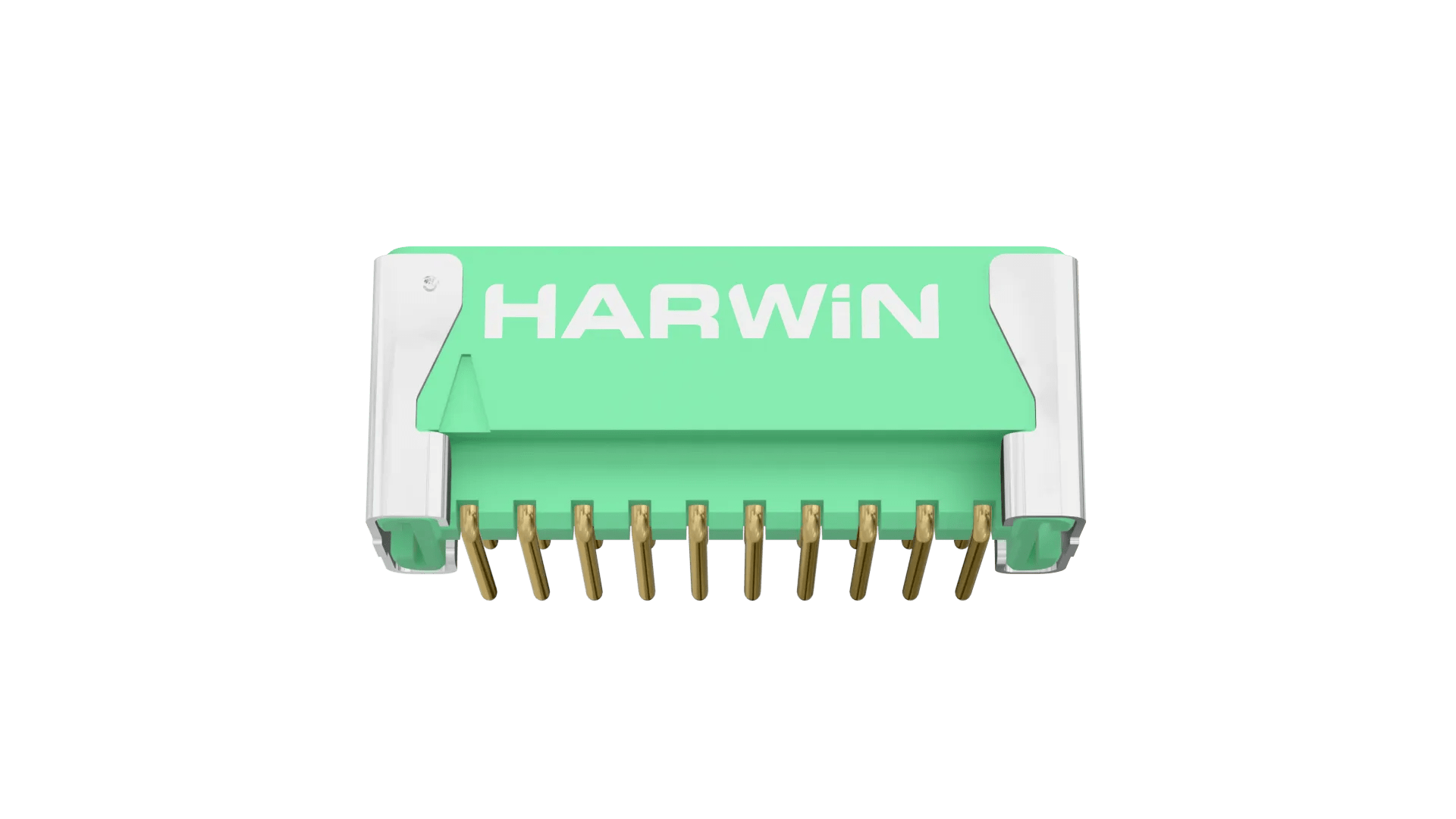

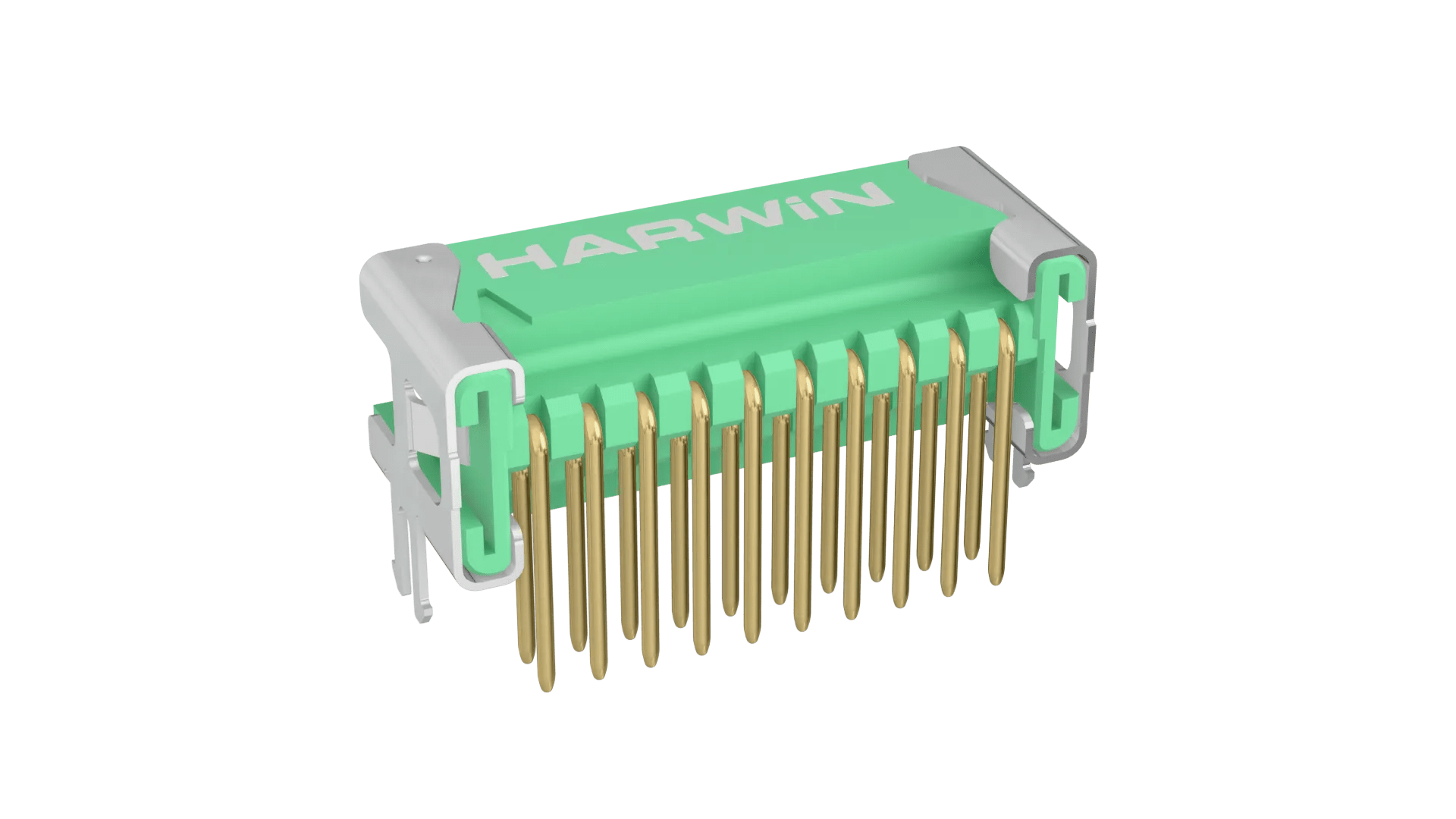

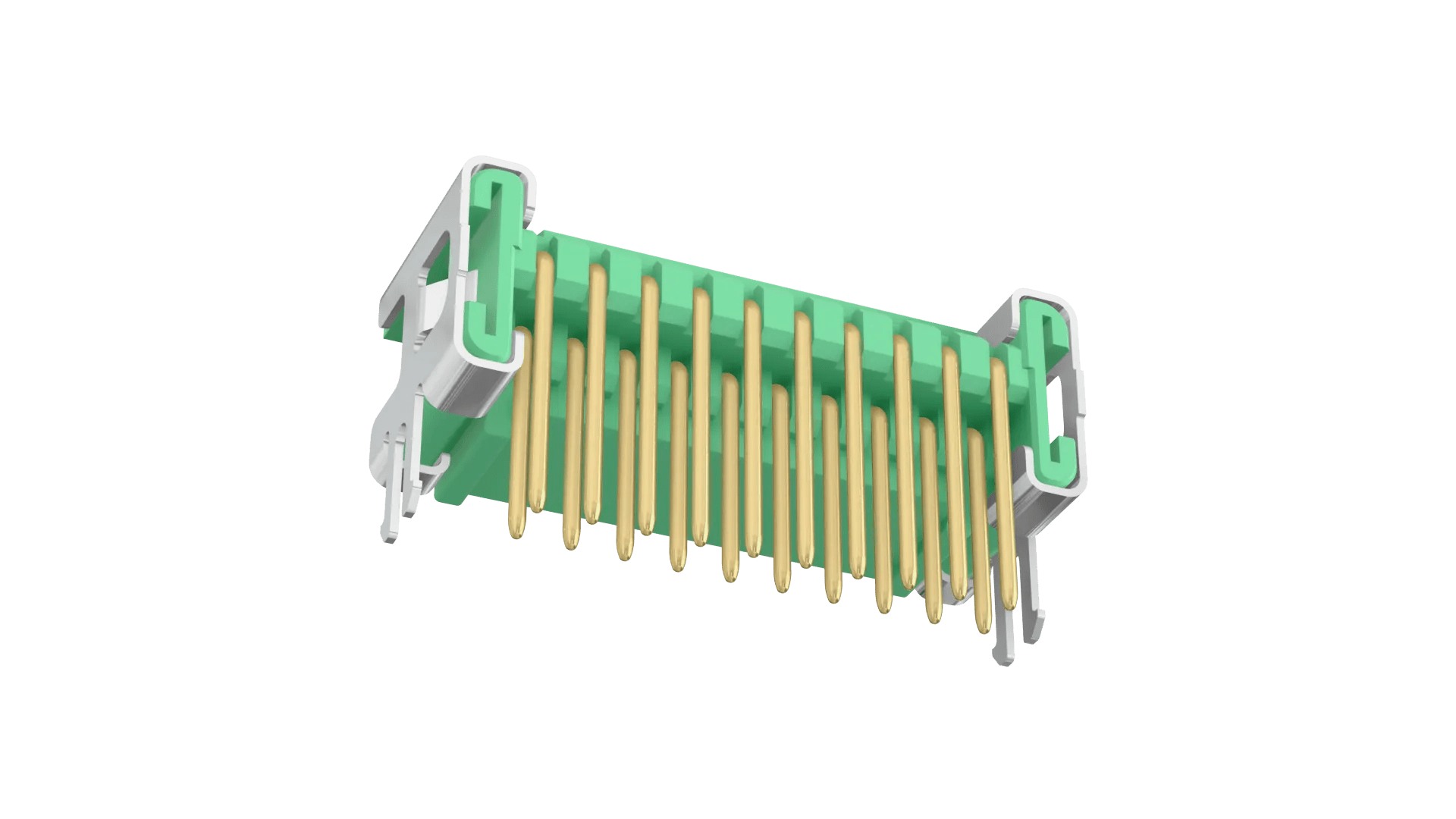

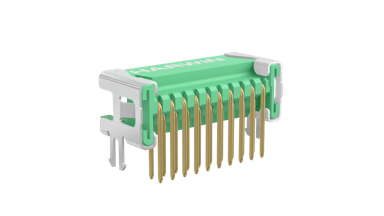

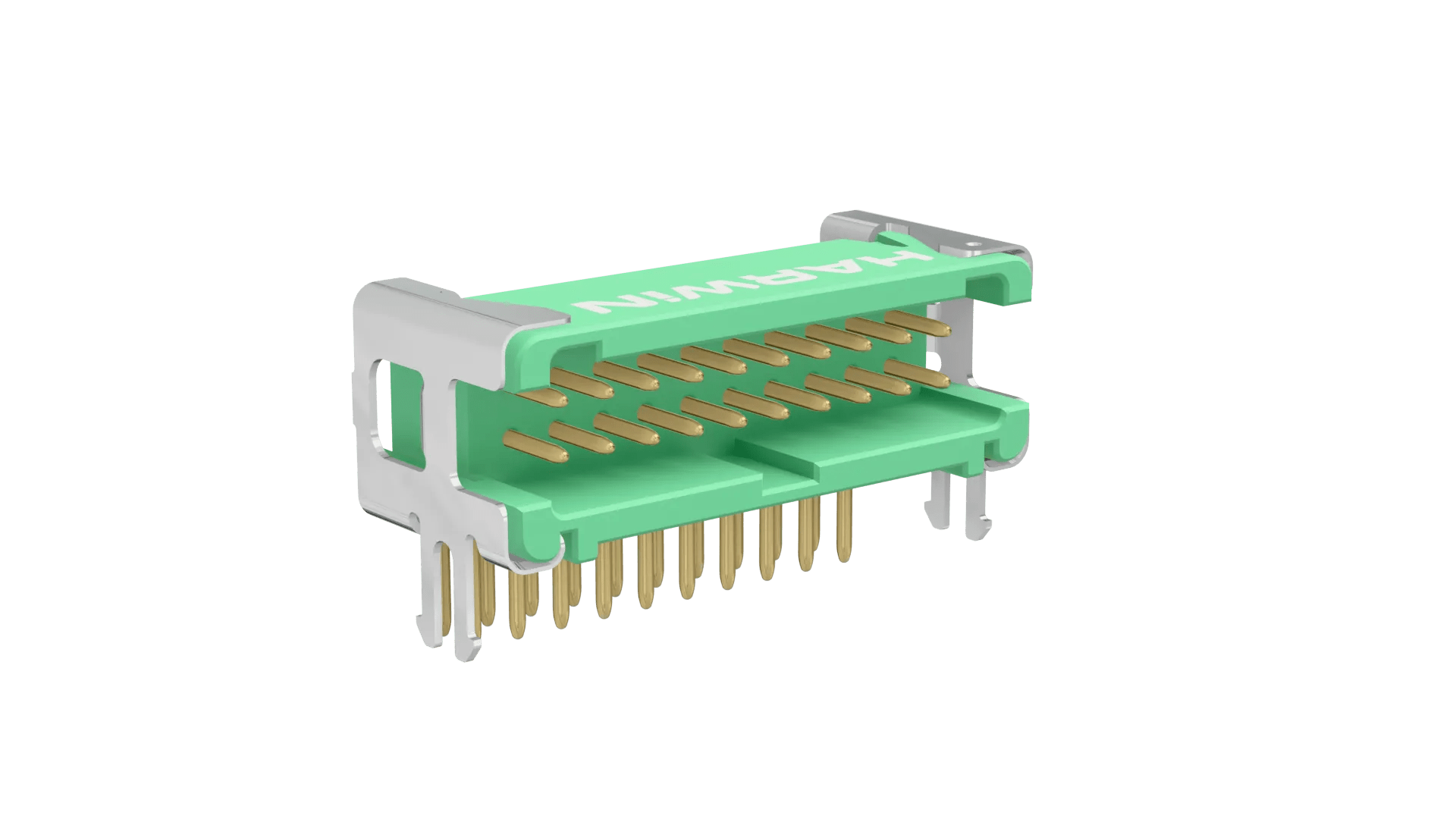

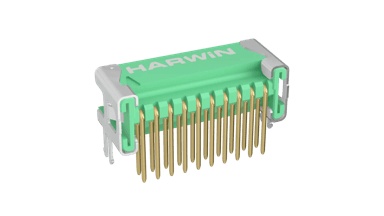

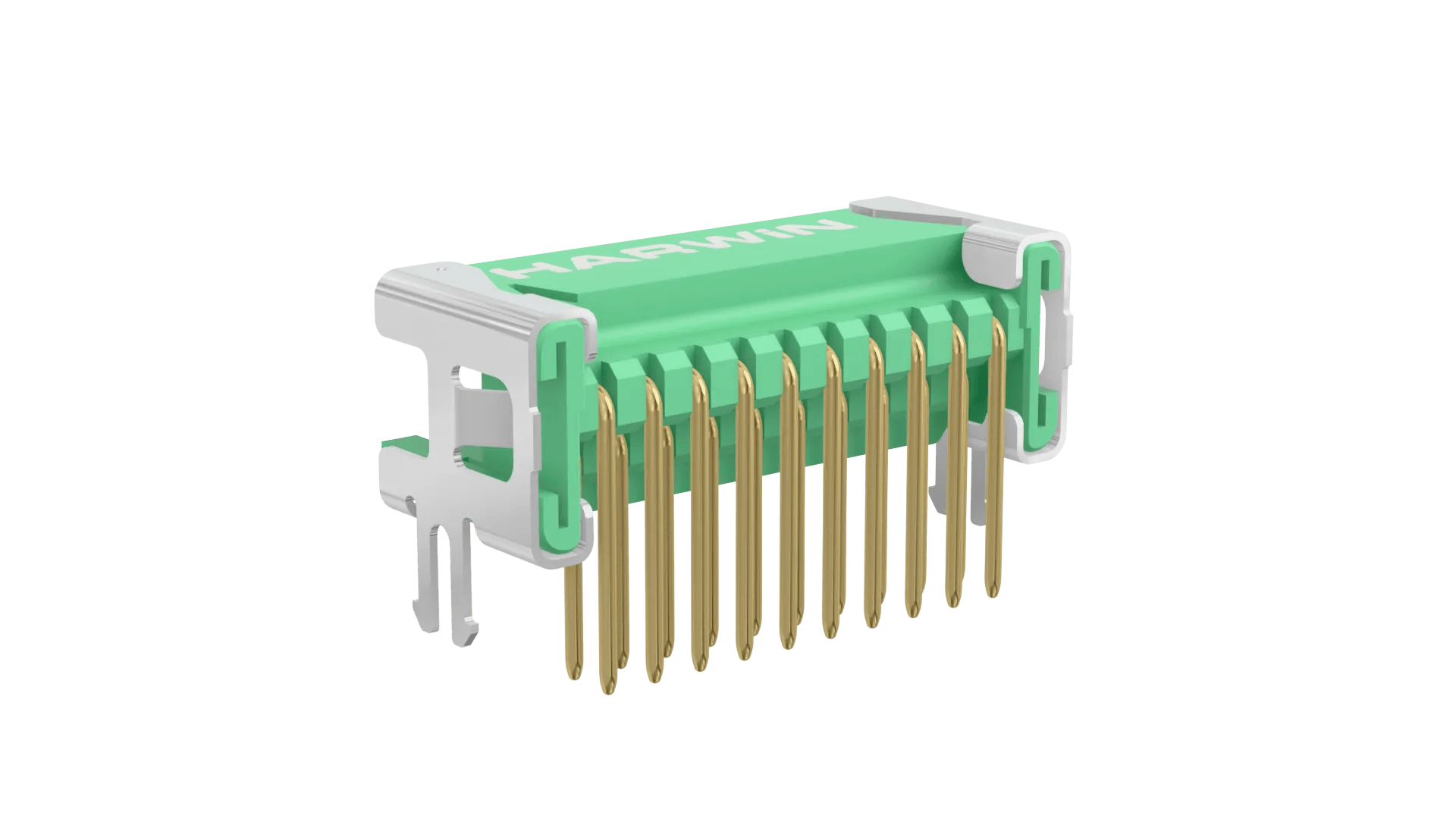

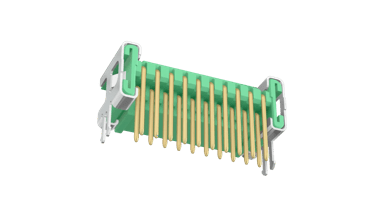

10+10 Pos. Male DIL Horizontal Throughboard Conn. no Latches
1.25mm Pitch High-Reliability Connector - Gecko with Latches
- Double Row male 3.2mm PC Tail connector, through-hole barbs for 1.6mm PCB thickness – 20 contacts (10+10). Through-hole barbs can be used as location pegs, or soldered to PCB for additional strain relief.
- Supplied in tape strips. No latches. Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C125XX.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
2.8A max individual contact, 2A max simultaneous (25°C)
-65°C to +150°C
Max Solder Temperature: 260°C for 10 seconds
Style of Latches:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 4T
Housing Material UL Rating:
Tape and Reel Strip
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
15.55 x 6.20 x 8.70
Height of Connector above PCB:
Length of Throughboard Tail:
Frequently Asked Questions Ask a Question
Can this connector go through SMT oven reflow or it can only go through wave oven?
There should be no issues with using this connector in a reflow process. The construction uses the same materials as the SMT versions of the Gecko range.
Was this answer useful?
RoHS Compliant (2015/863/EU) with no Exemption requiredPDF Download
