Image may be representative. Refer to the product title for more information.

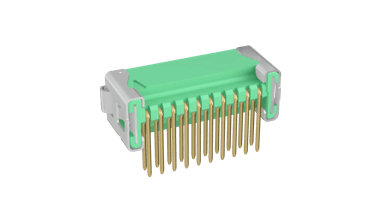

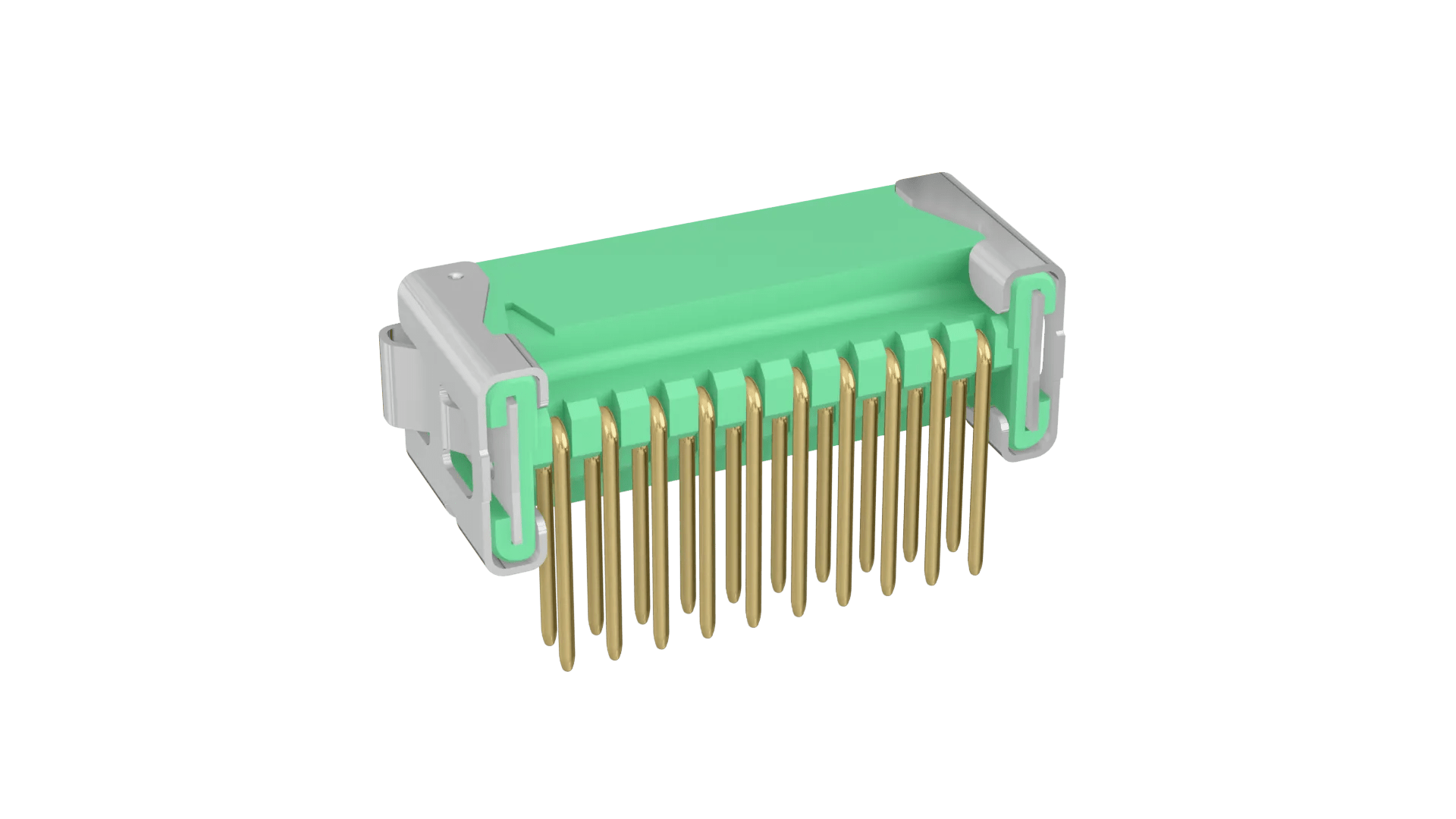

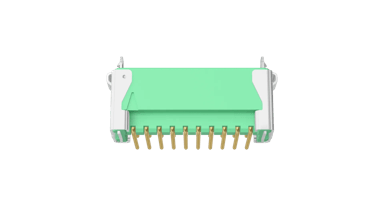

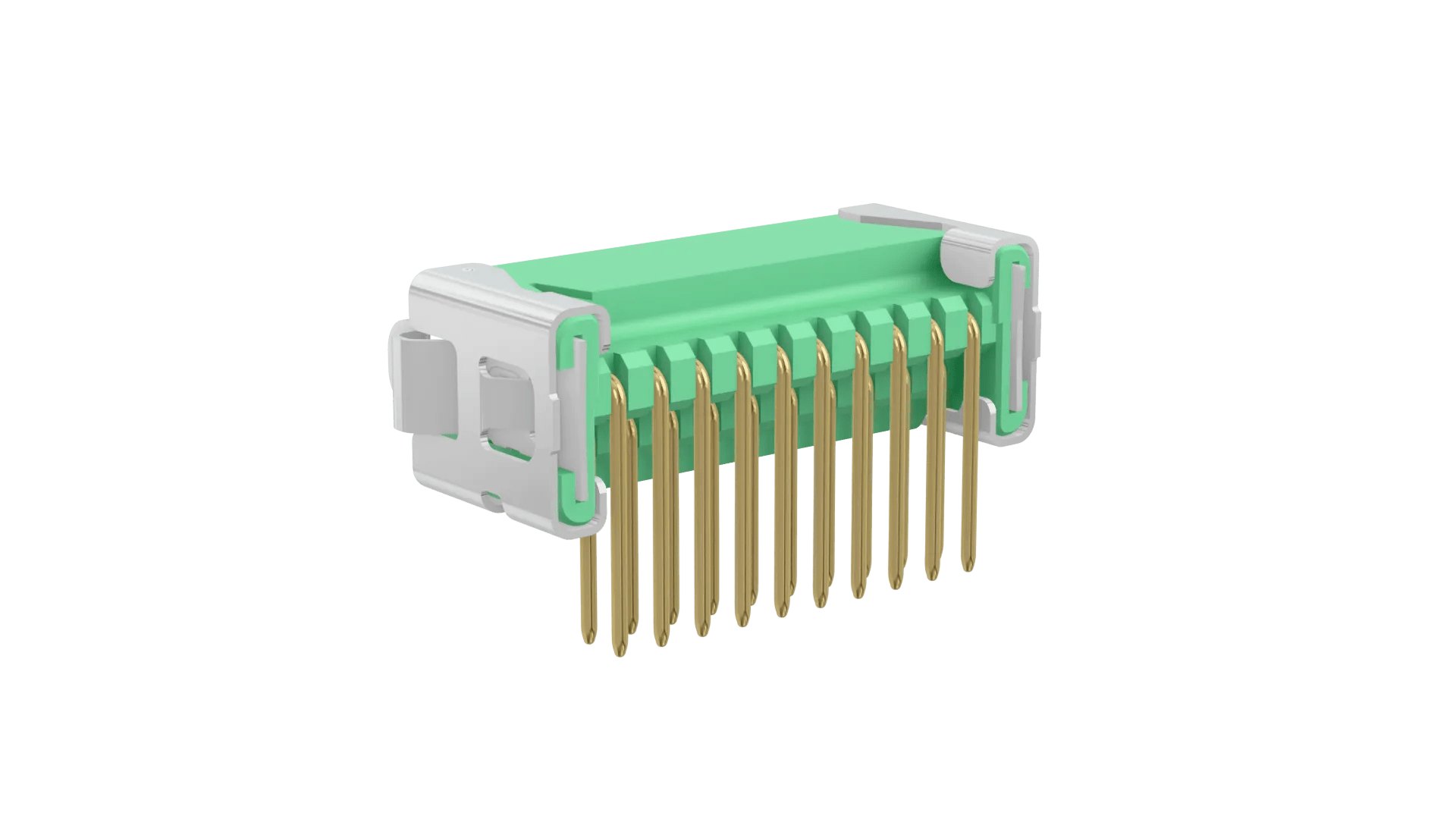

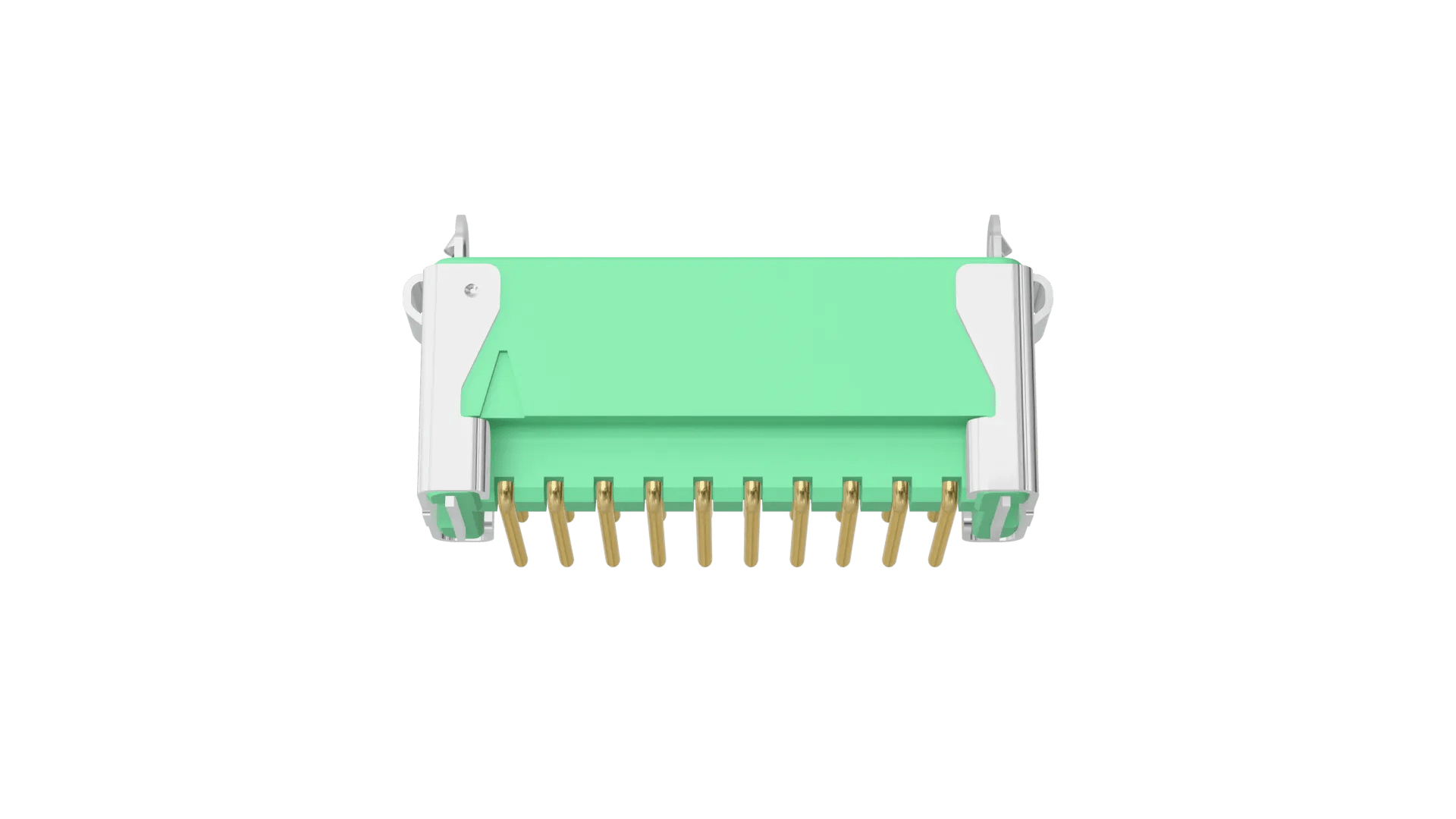

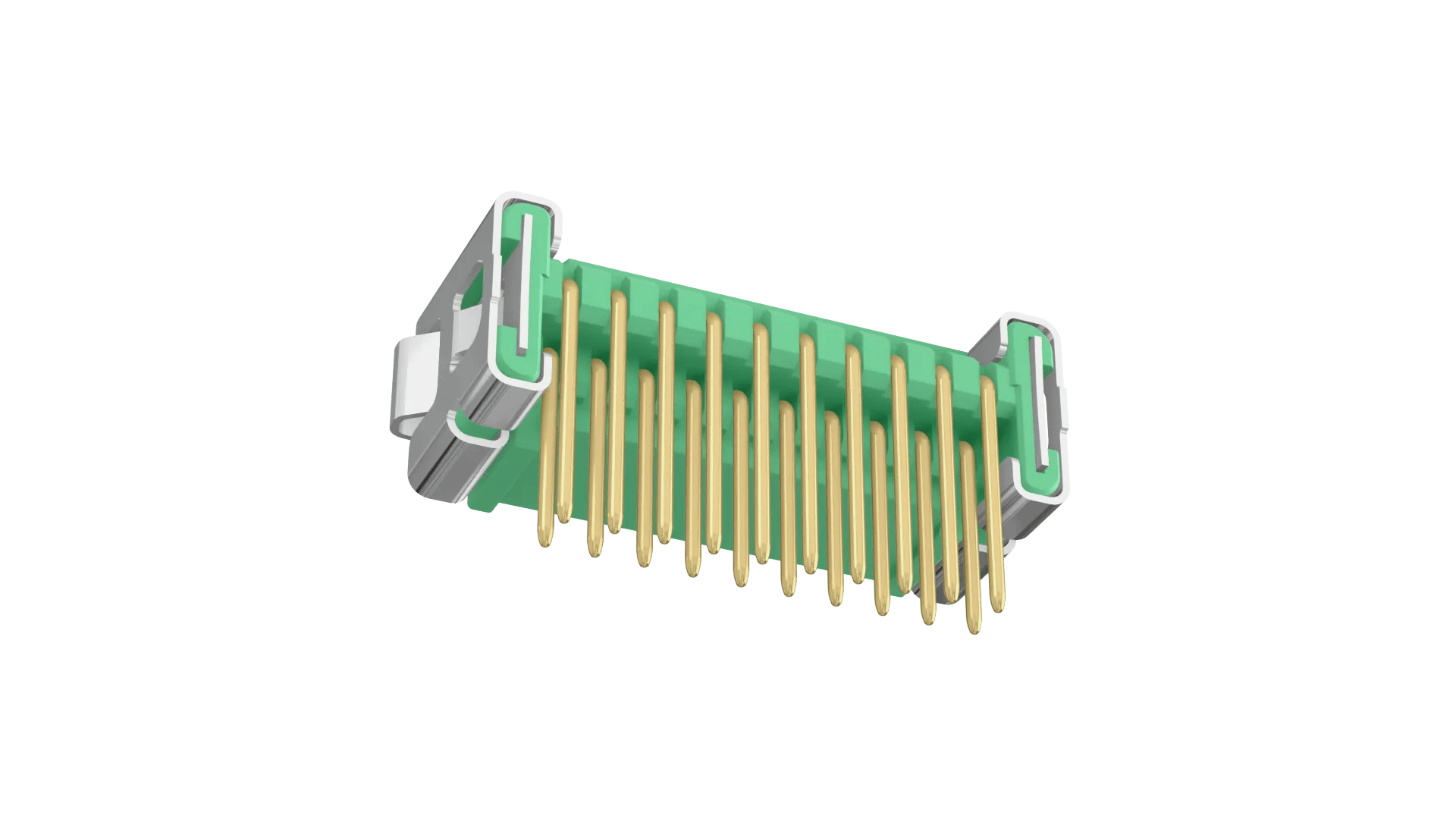

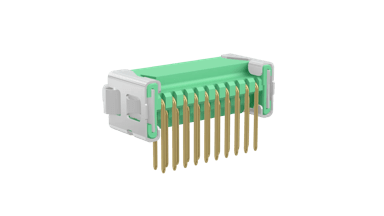

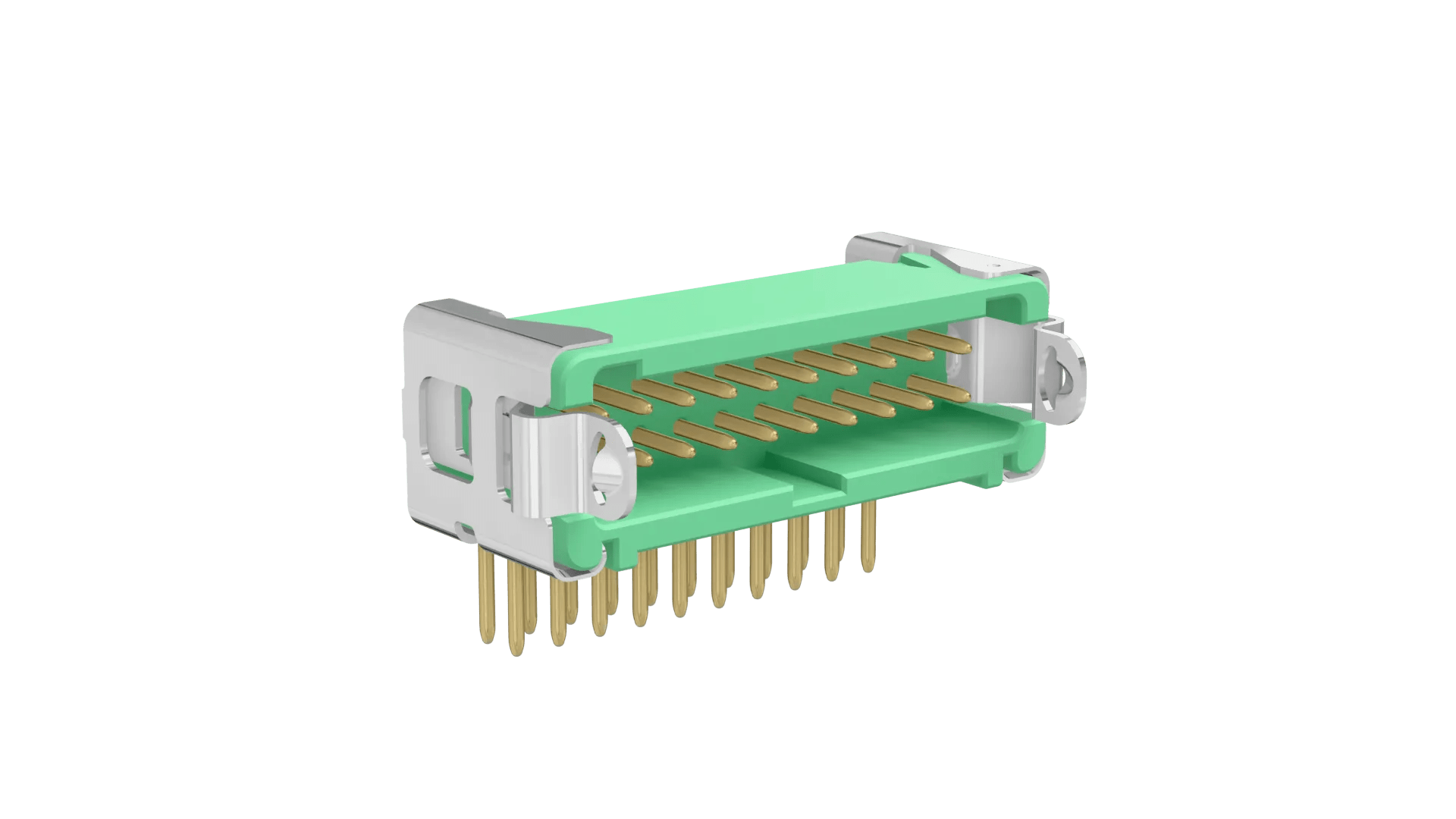

Male plug Double Row right-angle (horizontal) connector, throughboard 3.2mm PCB terminations - 20 contacts (10+10). Latches with Surface Mount hold-down areas give additional strain relief when soldered to the PCB.
Packaged in Tape and Reel (pick and place using the connector housing). Latch style can also be used when no board fixing is required. Gold finish on contact areas and terminations.
For complete pin numbering or pin out information, see Component Specification C125XX.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Product Change Notifications
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Latching Style
Locking Latch
Mating Pin Size
Ø0.4mm
Number of Rows
2
Connector Orientation
Right-Angle
Country of Origin
GB
Side Stackable
No
Number of Signal Contacts
20
Operating Temperature
-65°C to +150°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating
2.8A max individual contact, 2A max simultaneous (25°C)
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Polarised
Yes
Cuttable
No
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
Polyamide (Nylon) 4T
Base Material of Contact
Phosphor Bronze
Flammability Rating
UL94V-0
Packaging Style
Tape and Reel
Finish / Plating on Termination
Gold
Housing Colour
Green
Dimensions
Contact Pitch
1.25mm (0.049")
Weight
0.795g
Dimensions
16.45 x 8.00 x 8.70
PC Tail Length
3.20mm
Height of Connector above PCB
5.50mm
Downloads
Product Change Notifications
Product Change Notification 21-Jun-2021 - Gecko Latch Horizontal tail dimensions
Technical Documentation
Technical Drawing / Datasheet - G125-MHXXX05L3R.pdf
C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)
Outgassing data for Harwin products (plastics)
Plating thickness on Gecko contacts (signal and power)
Product Information
Catalog page - Gecko with Latches Mating Profiles
Product Training Module - Introduction to the Gecko connectors + 1.25mm pitch High-Reliability
Product Datasheet - Gecko range: signal connectors (HRi)
Environmental Compliance
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for Gecko G125-MH1XX05LXX series
Harwin REACH Statement - G125-MH12005L3R
RoHS Declaration - G125-MH12005L3R
