G125-MH116M4-04AD000P

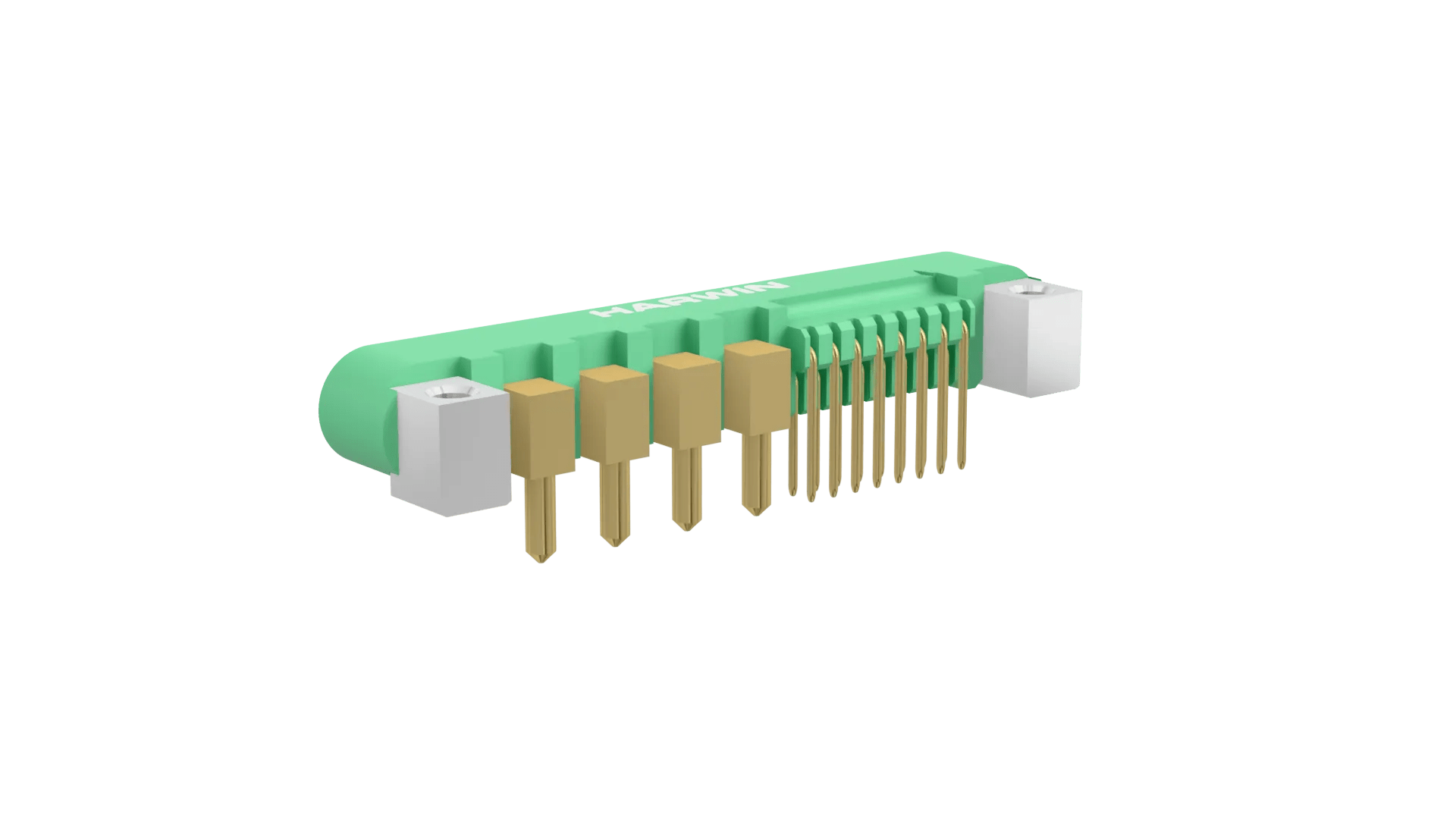

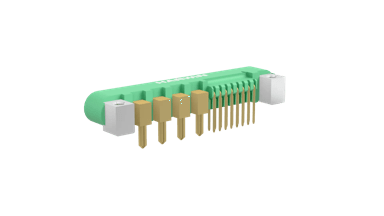

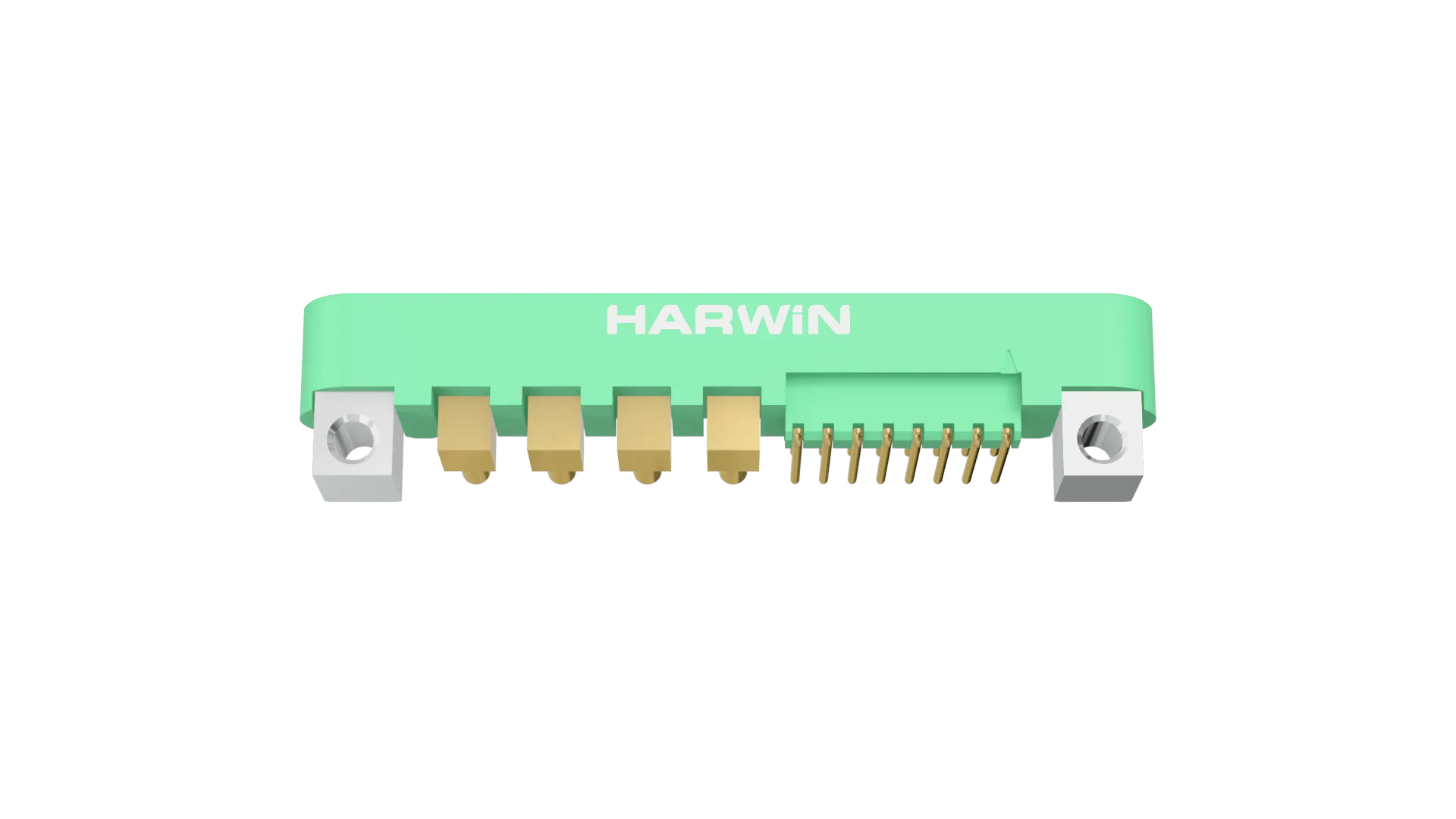

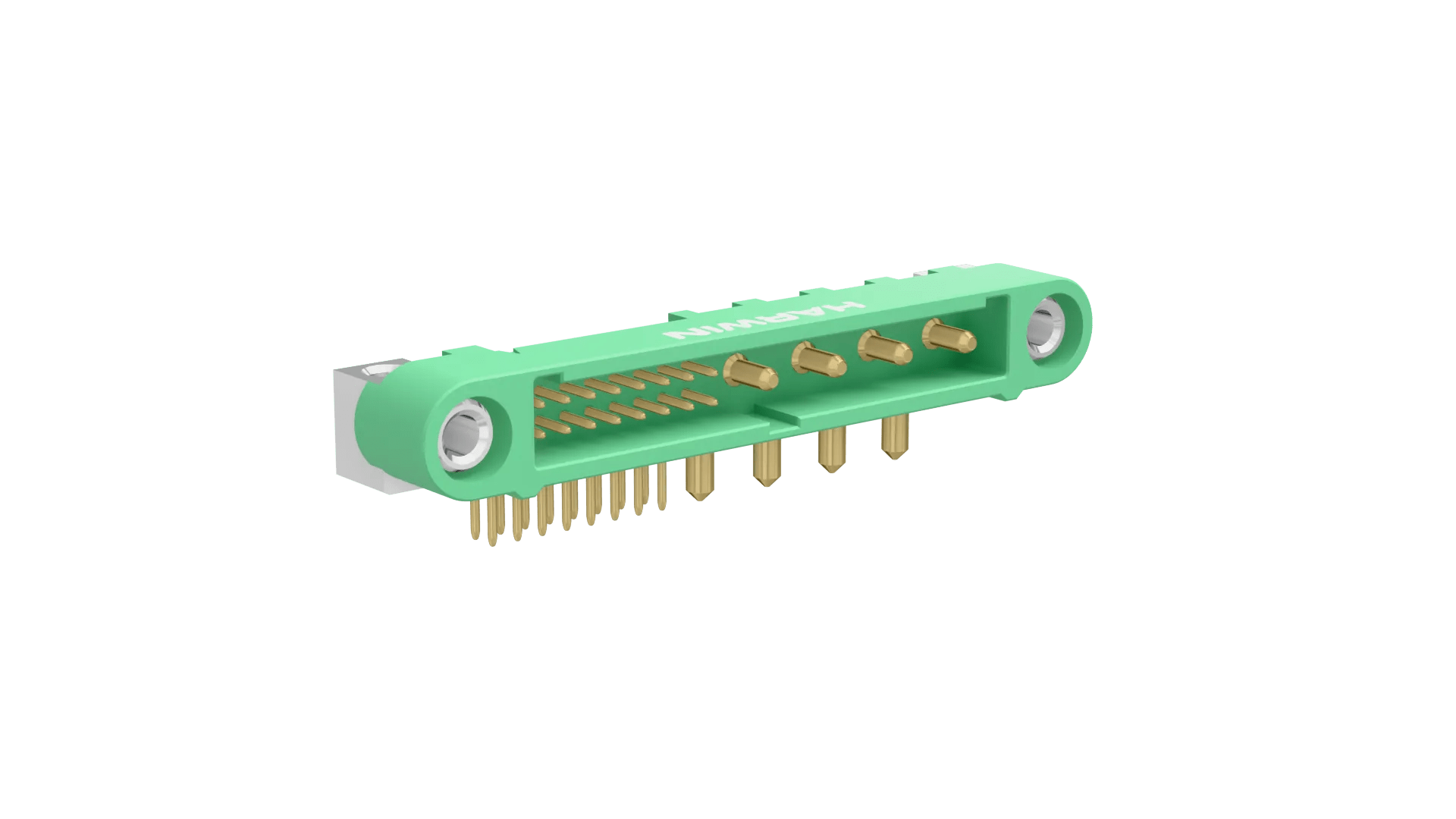

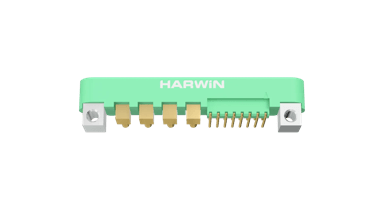

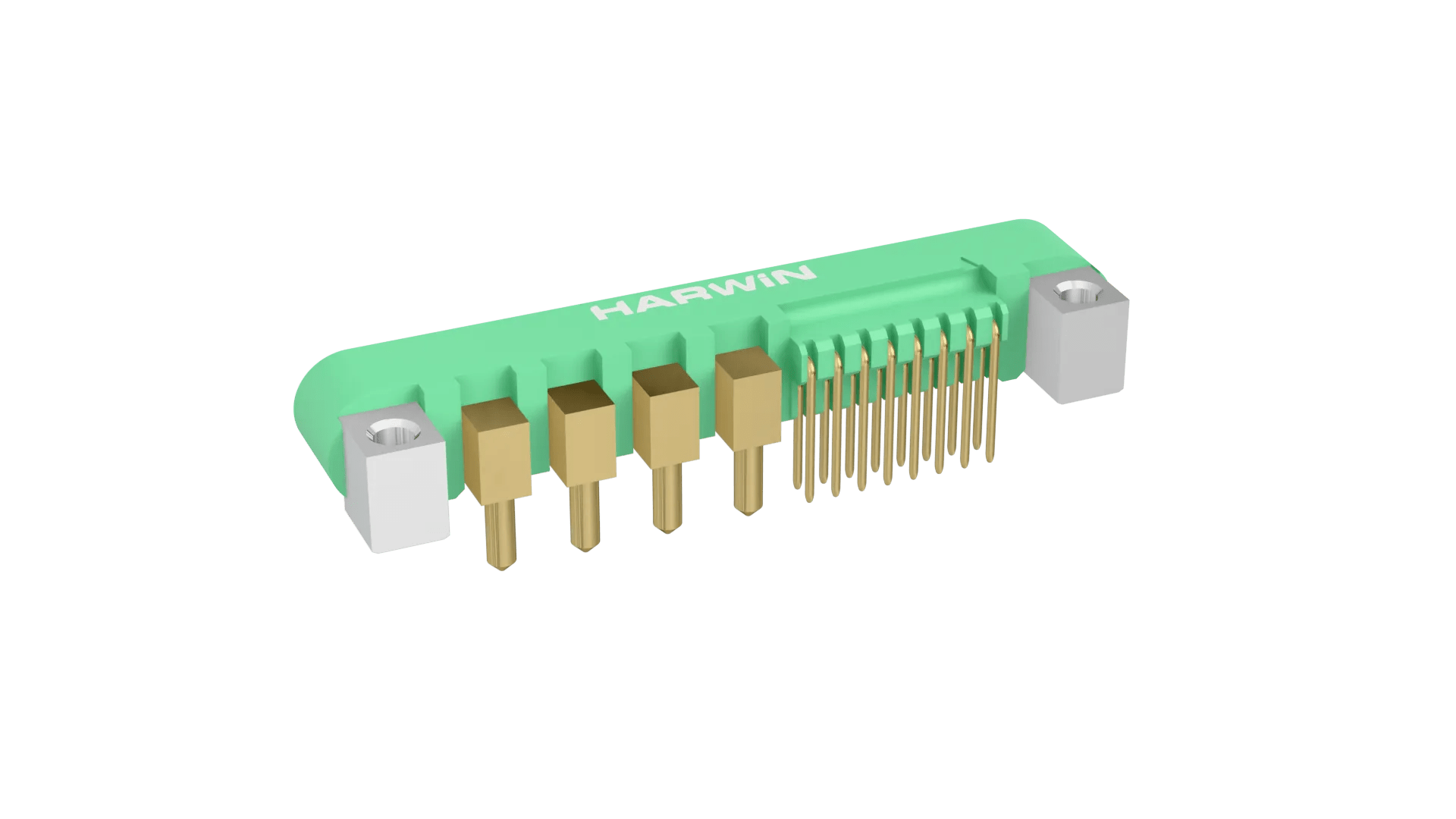

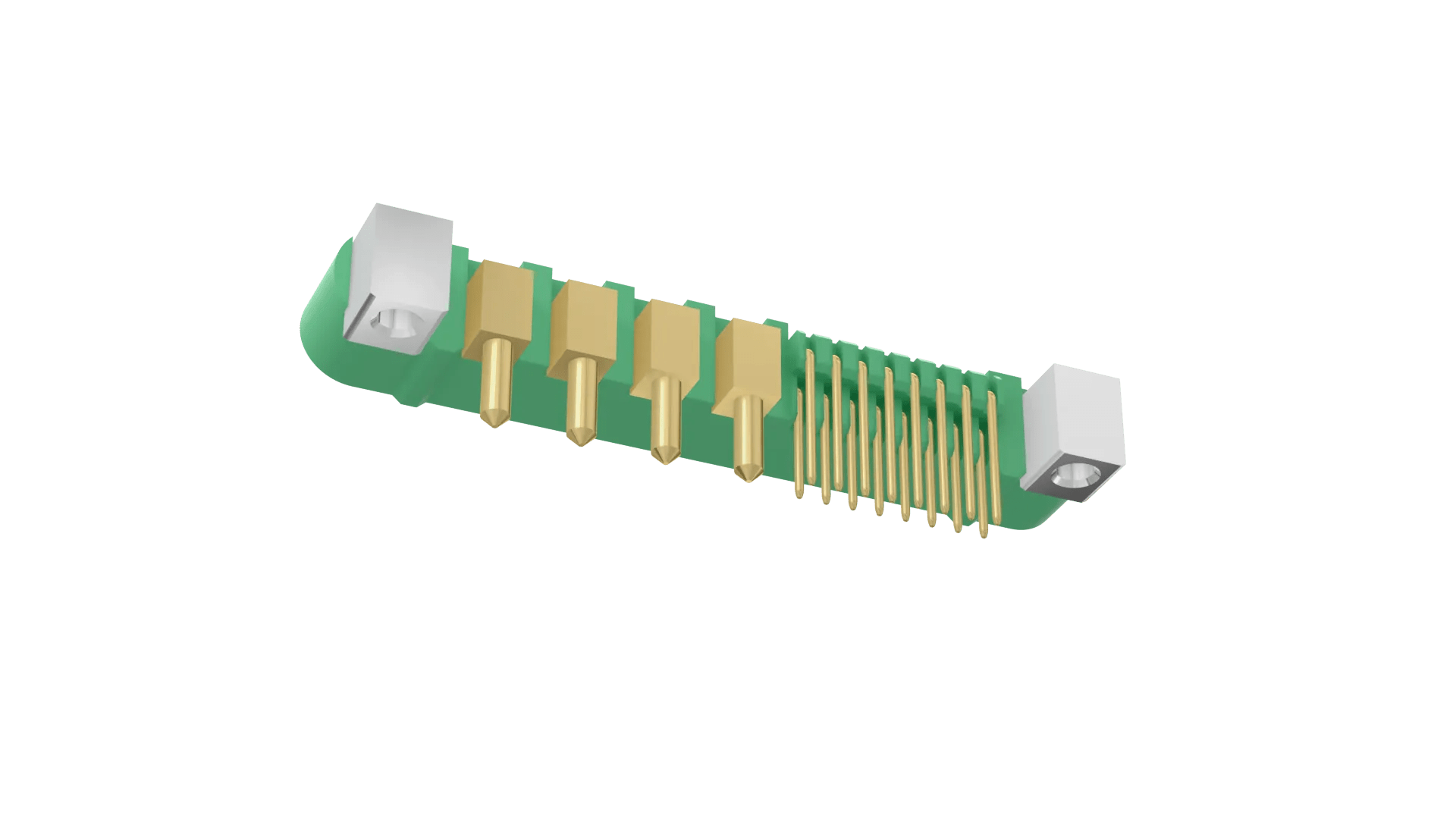

16+4 Pos. Male Horizontal Throughboard Conn. Screw-Lok Board Mount

1.25mm Pitch High-Reliability Connector - Gecko-MT

  • Male Horizontal Throughboard connector - 4 power, 16 signal contact arrangement. Power contacts are 3.5mm termination length, signal are 3.3mm. Fitted with threaded Screw-Lok fixings. Use with hex socket bolts G125-4520000B (5mm) for board mount retention.

  • Supplied in tape strips. Gold finish on contact area and termination.

  • For complete pin numbering or pin out information, see Component Specification C125XX.

View Technical Details & Downloads

Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Information

Technical Documentation

Environmental Compliance

Test Reports

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Style of Jackscrews:

    Internal Thread Screw-Lok with Board Mount (Standard Gender)

  • Mating Pin Size:

    Ø0.4mm, Ø1mm

  • Number of Rows:

    Mixed

  • Connector Orientation:

    Horizontal

  • Country of Origin:

    GB

  • Side Stackable:

    No

  • Number of Special (Power or Coax) Contacts:

    4

  • Number of Signal Contacts:

    16

  • Operating Temperature:

    -65°C to +150°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Current Rating:

    Signal = 2.8A max individual contact, 2A max simultaneous; Power = 10A max simultaneous (25°C)

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Polarised:

    Yes

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    Polyamide (Nylon) 4T

  • Base Material of Contact:

    Phosphor Bronze (signal), Beryllium Copper (power)

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tape and Reel Strip

  • Finish / Plating on Termination:

    Gold

  • Housing Colour:

    Green

Dimensions

  • Contact Pitch:

    1.25mm (0.049")

  • Weight:

    2.642g

  • Dimensions:

    36.05 x 7.70 x 8.75

  • Thread Size:

    M2

  • PC Tail Length:

    3.30mm and 3.50mm

  • Height of Connector above PCB:

    5.25mm

Downloads

    Product Information

  • Catalog page - Gecko-MT Pin Numbering + Mating Profiles

  • Product Datasheet - Gecko-MT range (HRi)

  • Product Training Module - Overview Guide to the Gecko-MT range + 1.25mm pitch High-Reliability with Power

    • Technical Documentation

  • Technical Drawing / Datasheet - G125-MH1XXM4-XXAD000P.pdf

  • C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

  • Plating thickness on Gecko contacts (signal and power)

  • Outgassing data for Harwin products (plastics)

    • Environmental Compliance

  • RoHS - G125-MH116M4-04AD000P

  • Material composition for G125-MH1XXM4-YYAB000P series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

    • Test Reports

  • Test Report HT087 - Gecko-MT Phase 2 additions + General (Electrical + Mechanical and Environmental)

  • Test Report HT067 - Gecko-SL (G125 Series) - Mechanical Screw-Lok test

  • Test Report HT030 - Gecko (G125 Series) - Electrical + Mechanical and Environmental
