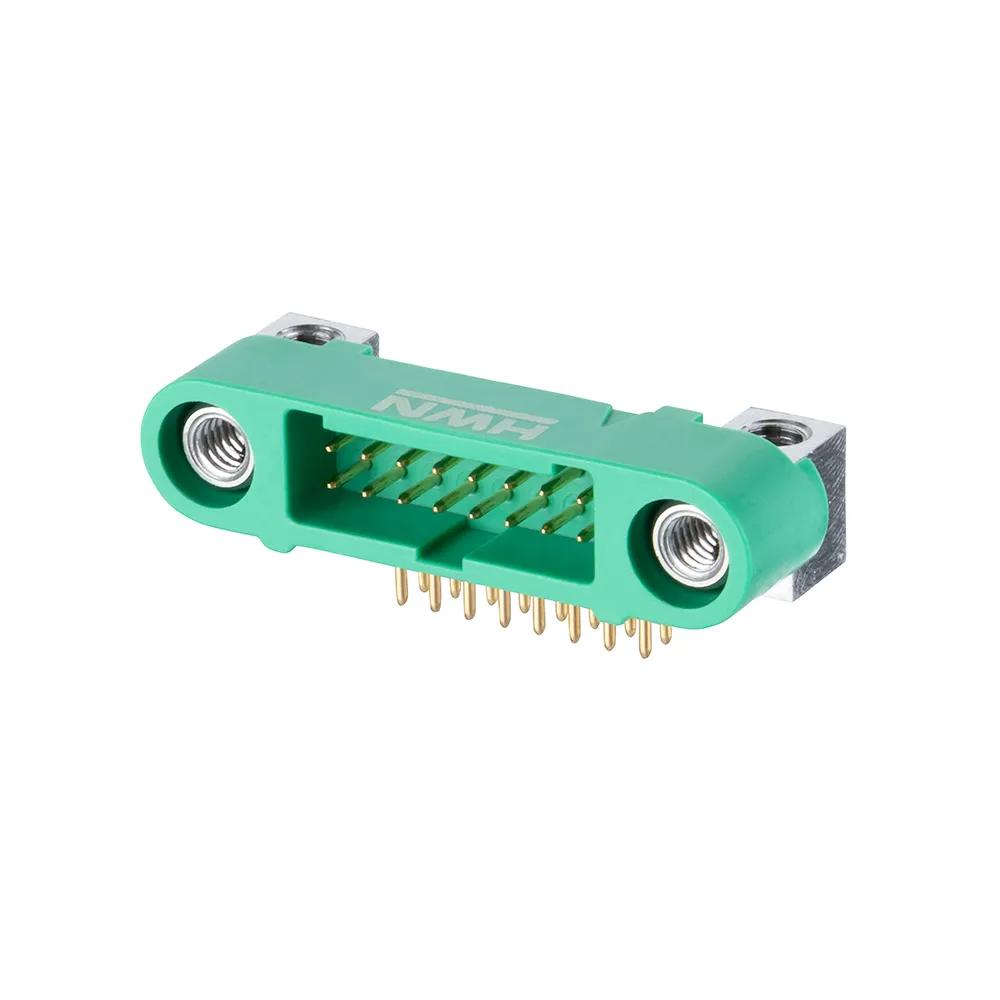

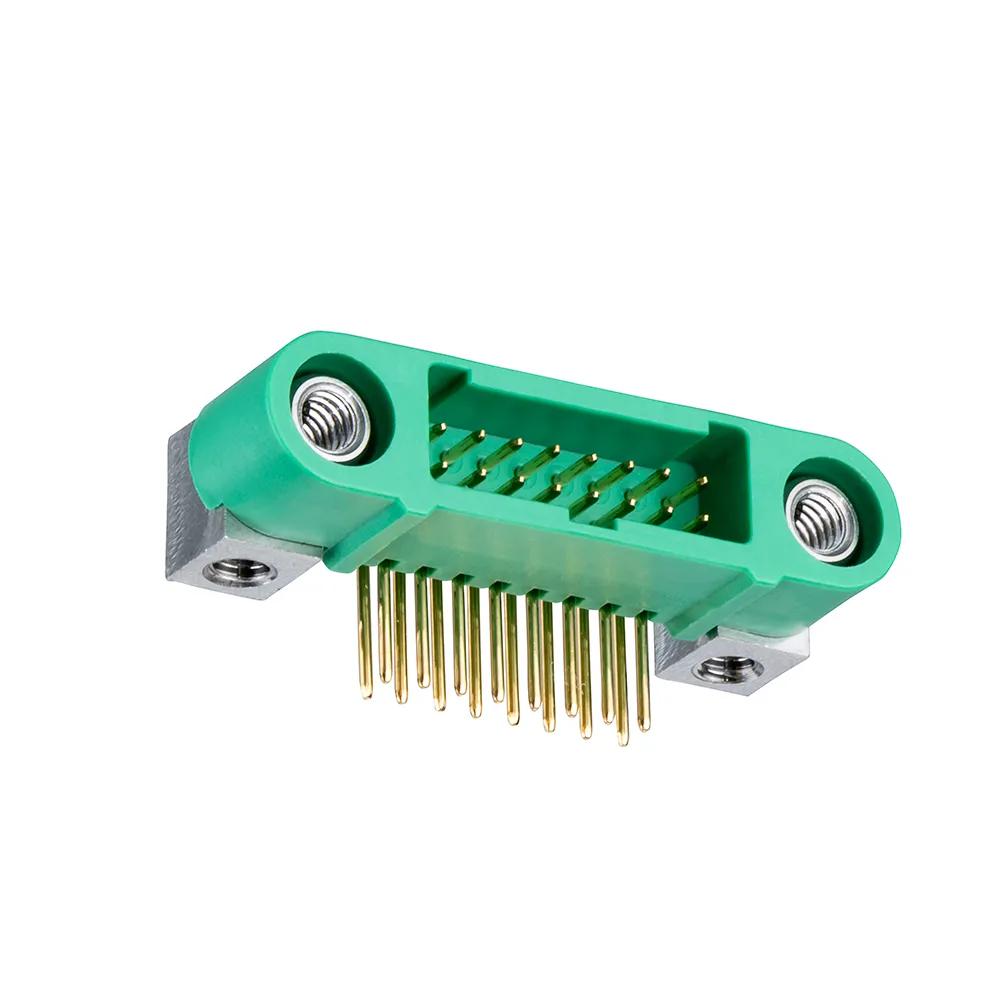

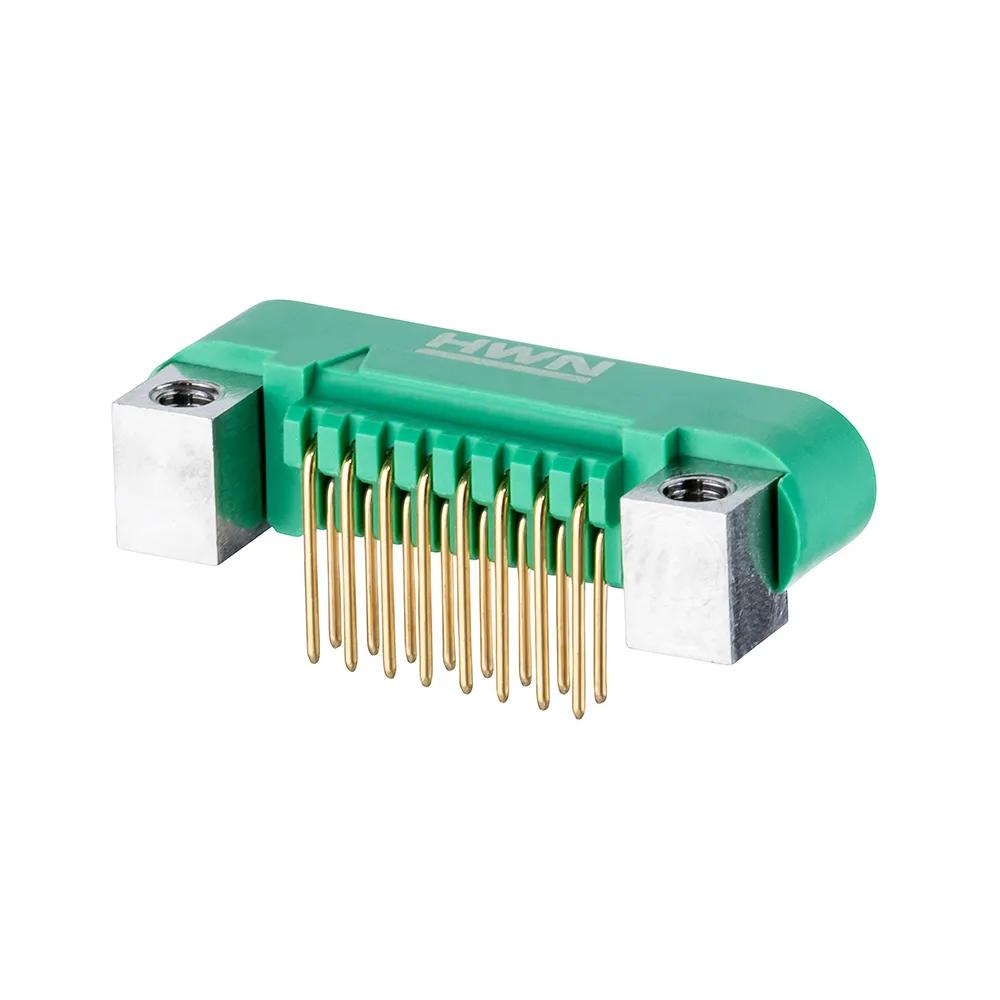

8+8 Pos. Male DIL Horizontal Throughboard Conn. Screw-Lok Board Mount (T+R)
1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok
- Male Double Row 3mm PC Tail connector, Screw-Lok fixings suitable for board mount – 16 contacts (8+8).
- Use with hex socket bolts G125-4520000B (5mm) for board mount retention.
- Supplied on Tape and Reel.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
-65°C to +150°C
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Screw-Lok with Board Mount
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 4T
Housing Material UL Rating:
Tape and Reel
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
21.45 x 7.70 x 8.50
Height of Connector above PCB:
Length of Throughboard Tail:
AvailabilityLimited availability or made-to-order
*Stock available: contact distributor to purchase
