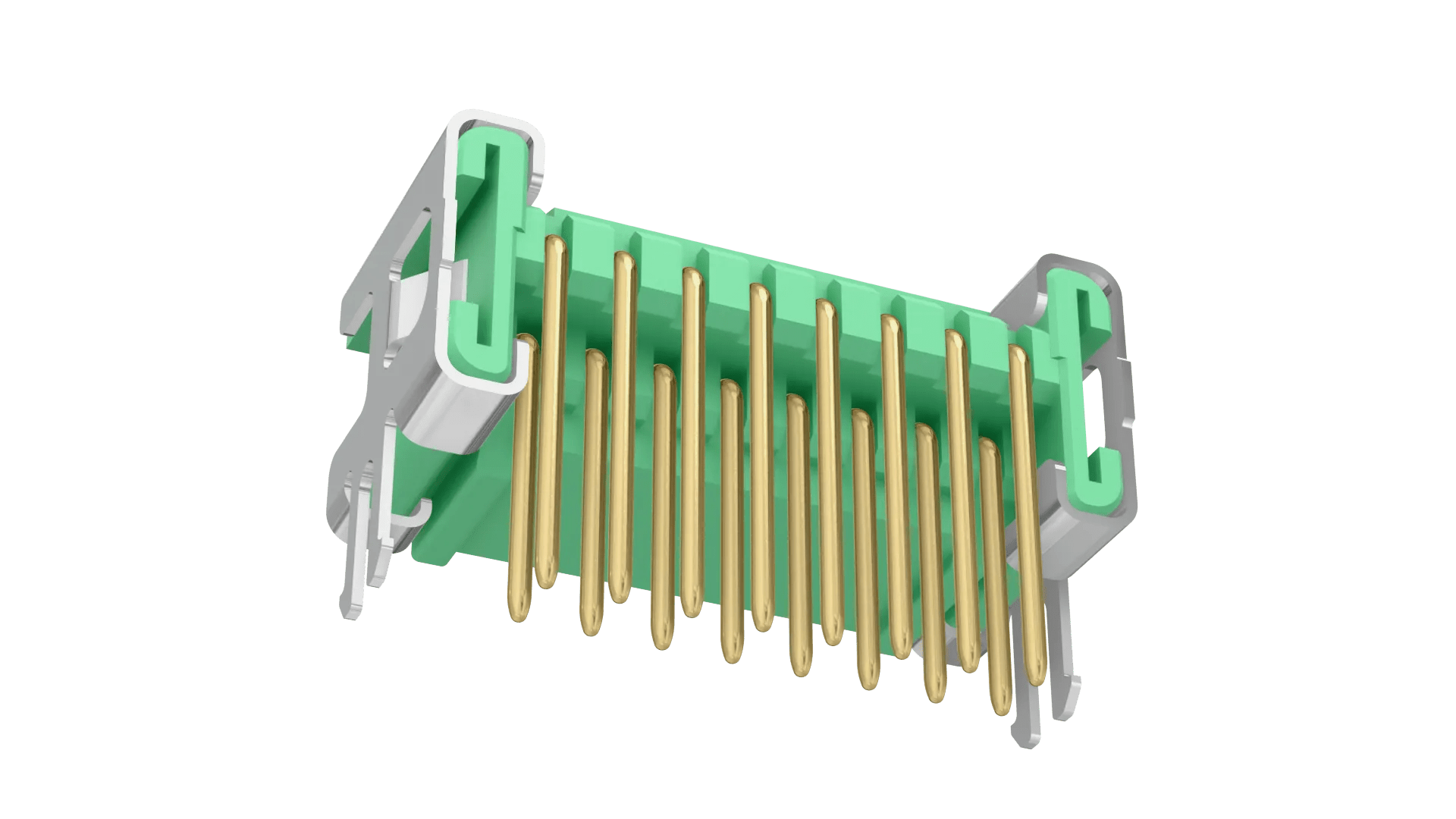

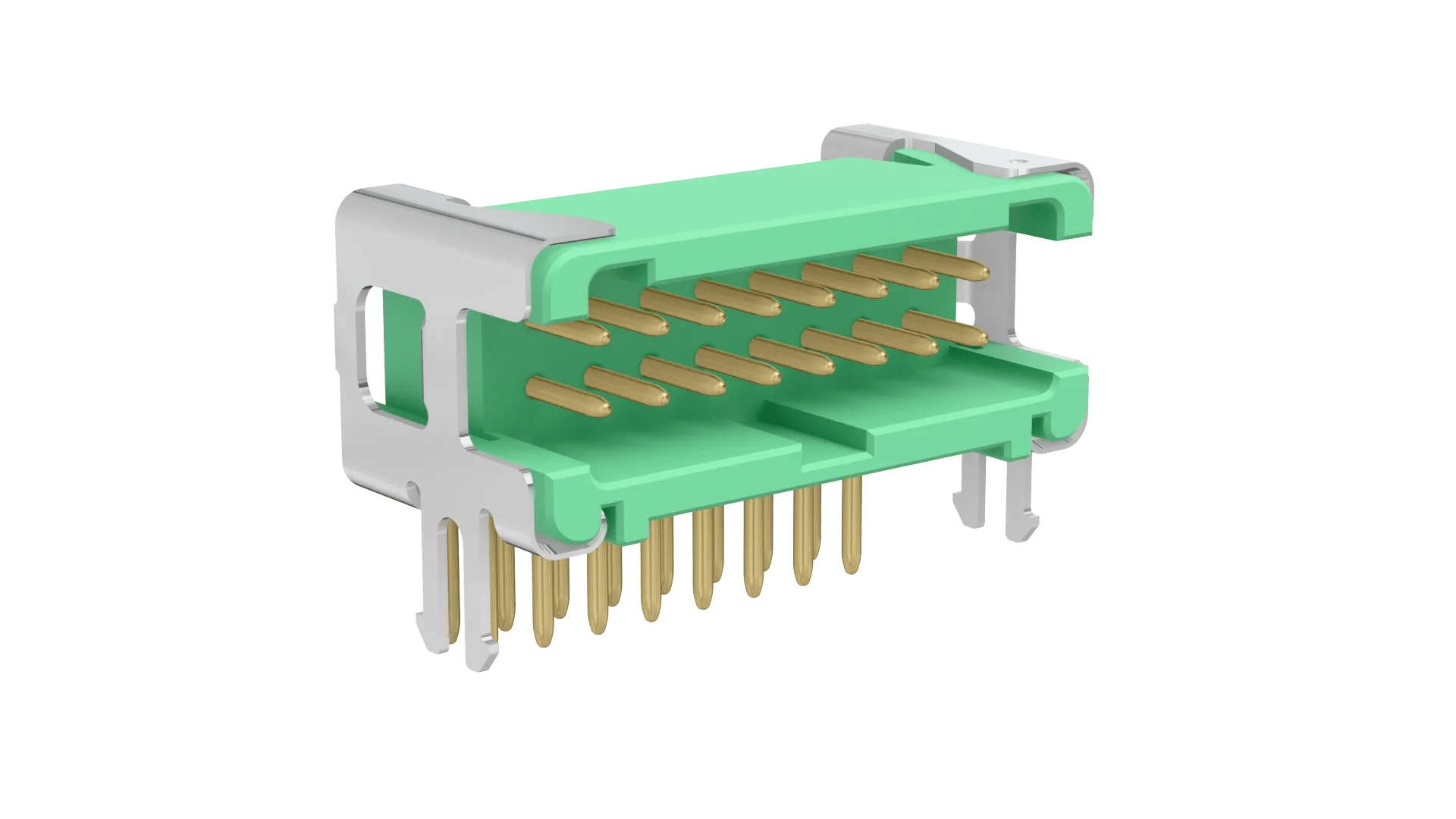

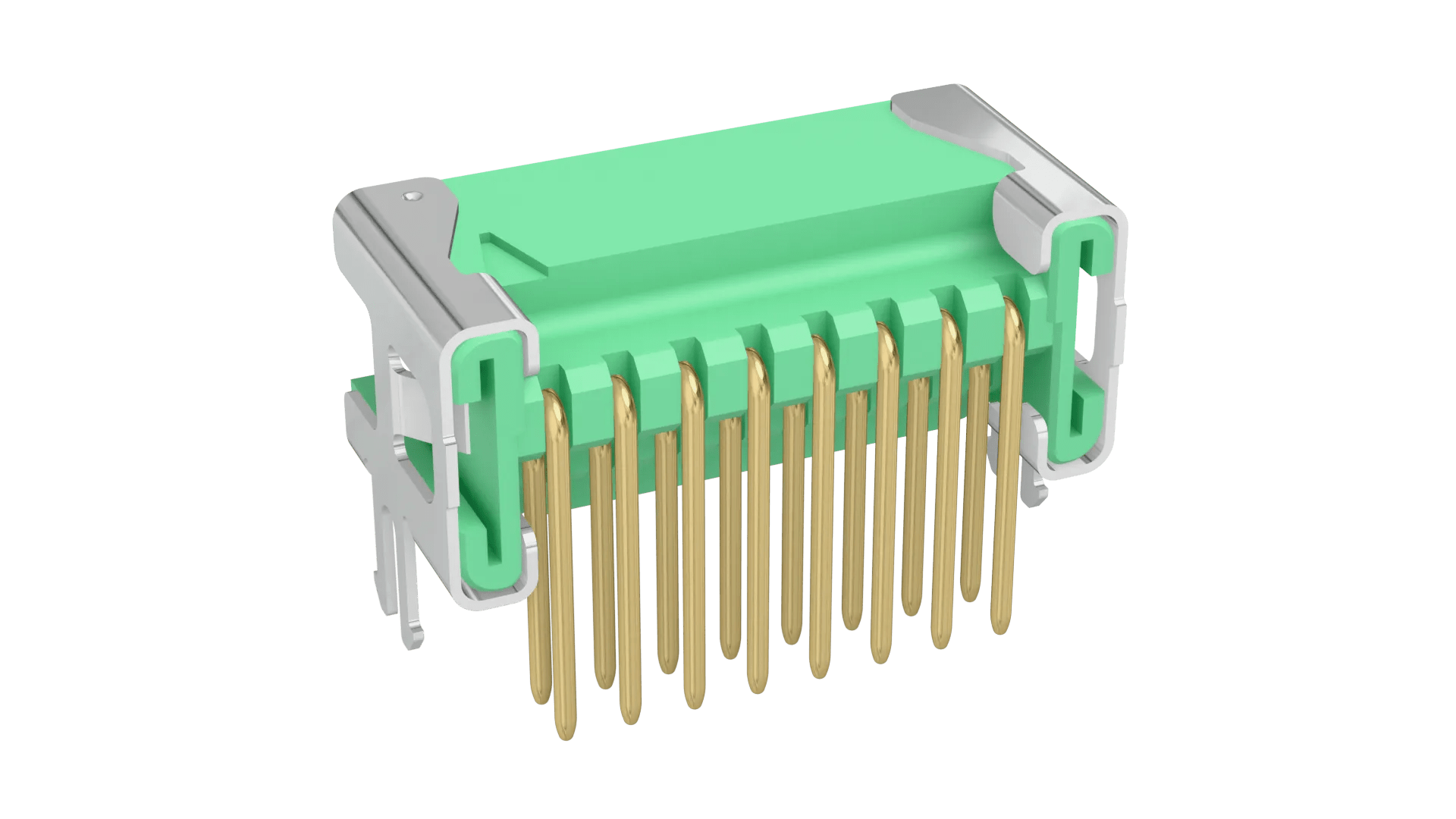

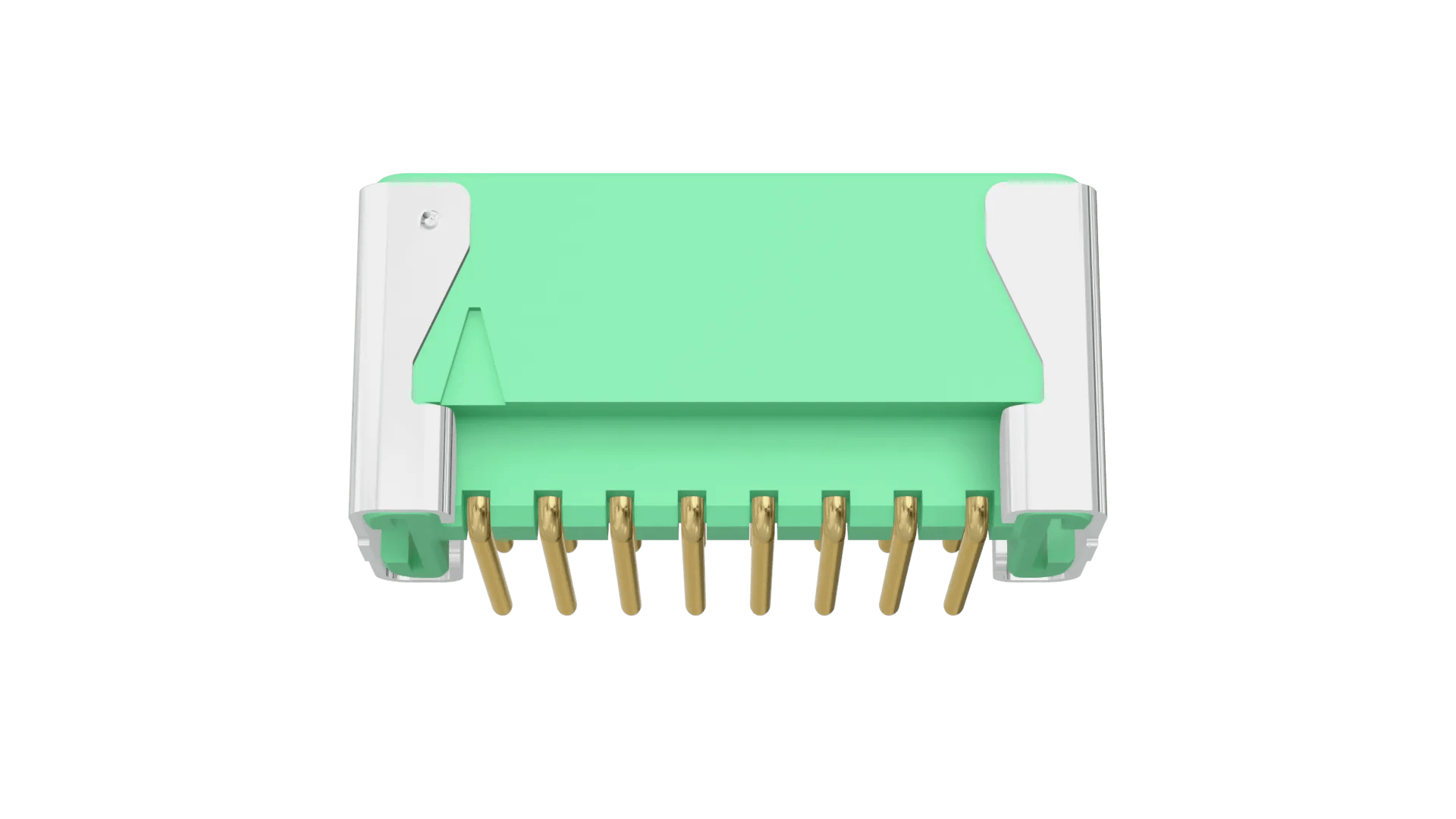

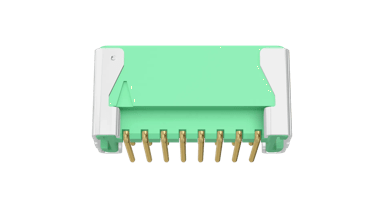

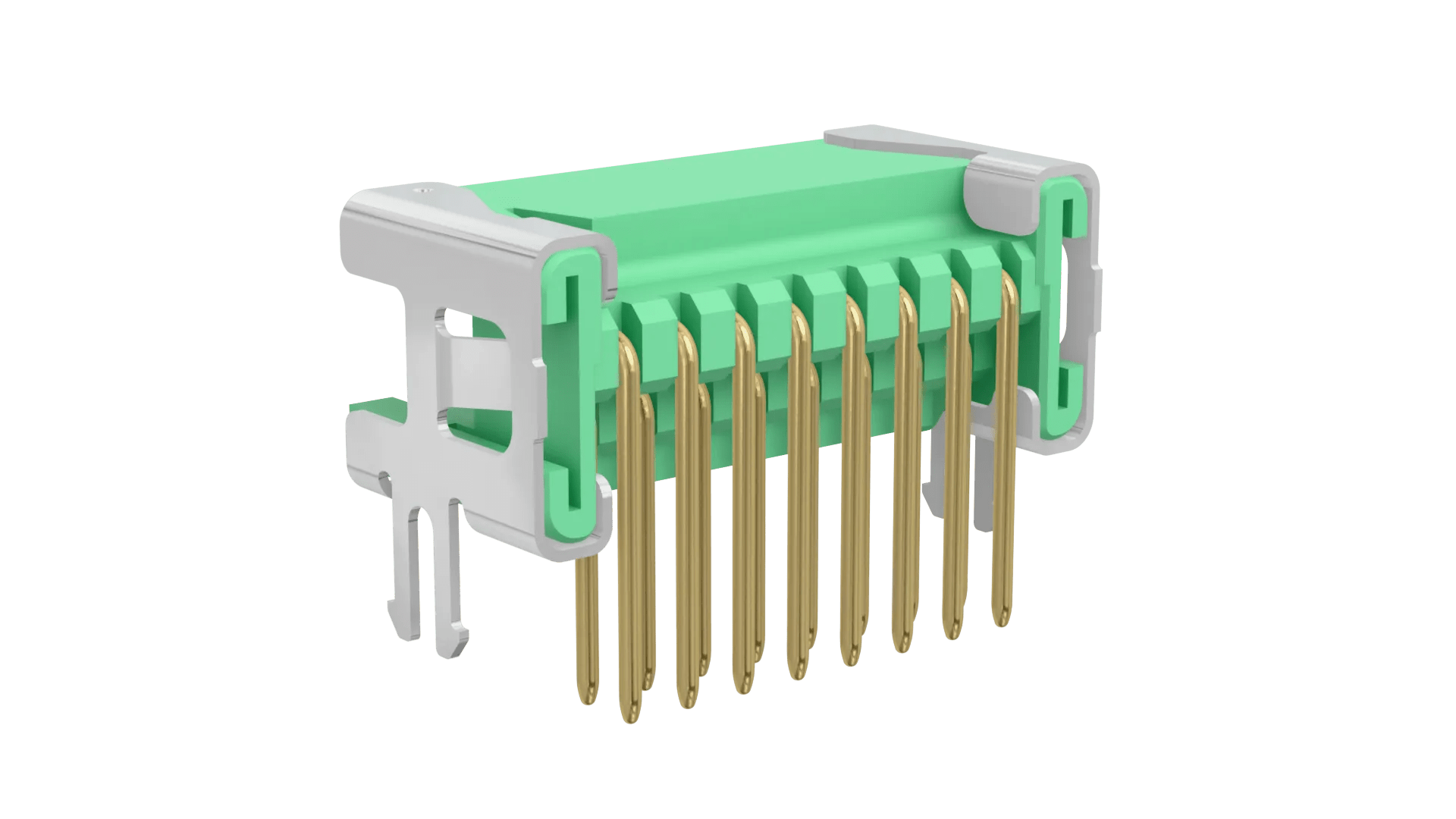

G125-MH11605L5P
8+8 Pos. Male DIL Horizontal Throughboard Conn. no Latches
1.25mm Pitch High-Reliability Connector - Gecko with Latches
202 in stock Check availability
9 similiar products View products
Samacsys account required
No login is required
Product Description
- Double Row male 3.2mm PC Tail connector, through-hole barbs for 1.6mm PCB thickness – 16 contacts (8+8). Through-hole barbs can be used as location pegs, or soldered to PCB for additional strain relief.
- Supplied in tape strips. No latches. Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C125XX.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.25mm (0.049")
Contact Gender:
Male/Plug
Connector Orientation:
Horizontal
Connection Type:
PC Tail / Throughboard
Mating Pin Size:
Ø0.4mm
Current Rating:
2.8A max individual contact, 2A max simultaneous (25°C)
Operating Temperature:
-65°C to +150°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Style of Latches:
Locking Latch
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
16
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze
Housing Material:
Polyamide (Nylon) 4T
Housing Colour:
Green
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tape and Reel Strip
Dimensions
Individual Part Weight:
0.615g
Overall Dimensions (L x W x D) in mm:
13.05 x 6.20 x 8.70
Height of Connector above PCB:
5.50mm
Length of Throughboard Tail:
3.20mm
Mating Profiles:
Frequently Asked Questions Ask a Question
Can this connector go through SMT oven reflow or it can only go through wave oven?
There should be no issues with using this connector in a reflow process. The construction uses the same materials as the SMT versions of the Gecko range.
