G125-MH11205M4P

G125-MH11205M4P

6+6 Pos. Male DIL Horizontal Throughboard Conn. Screw-Lok Board Mount

HRi
HRi
HRi

Traceparts account required

G125-MH11205M4P

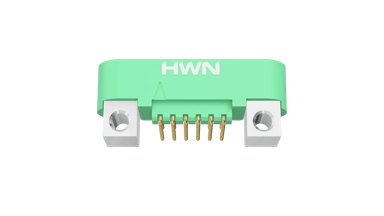

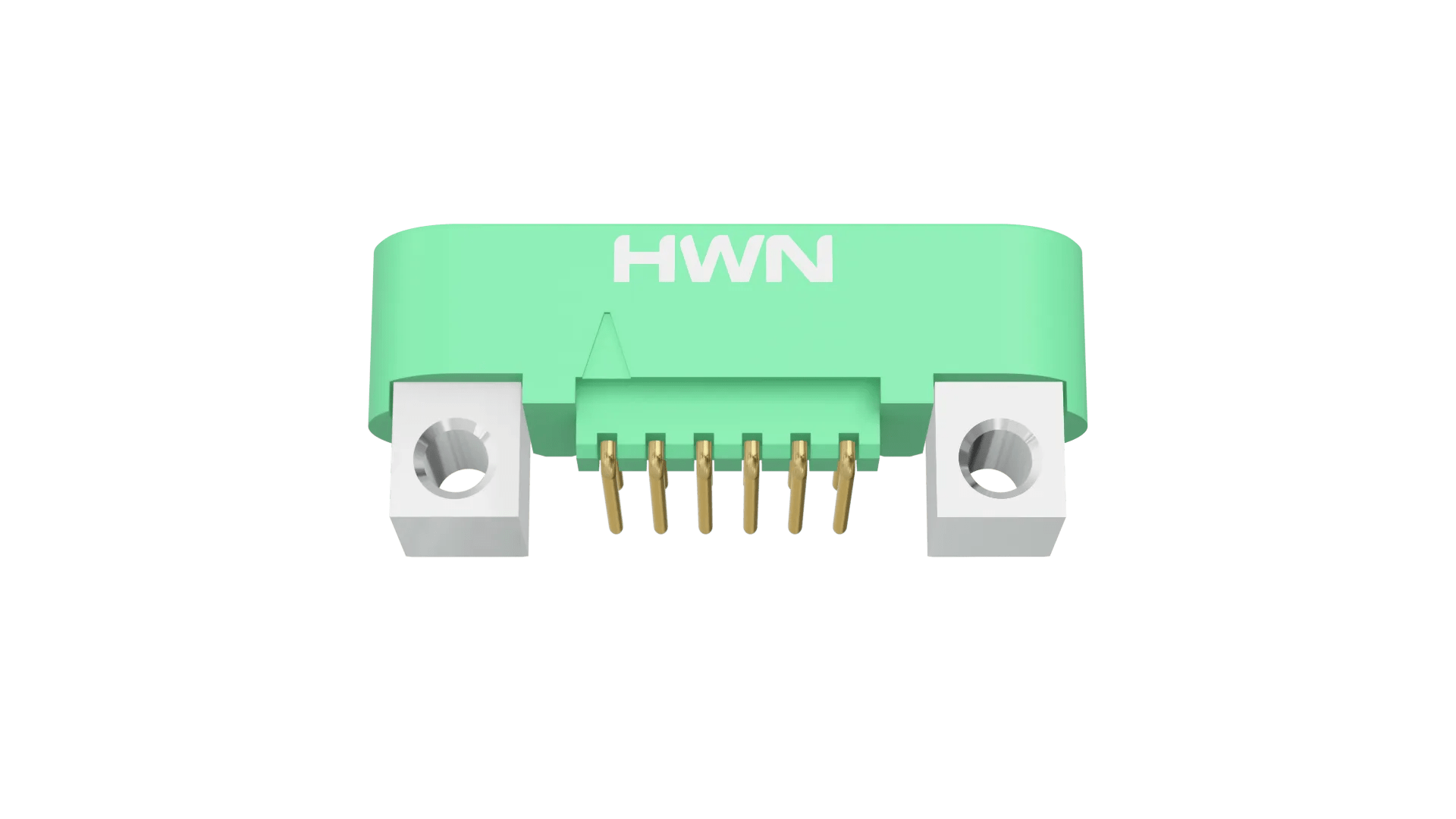

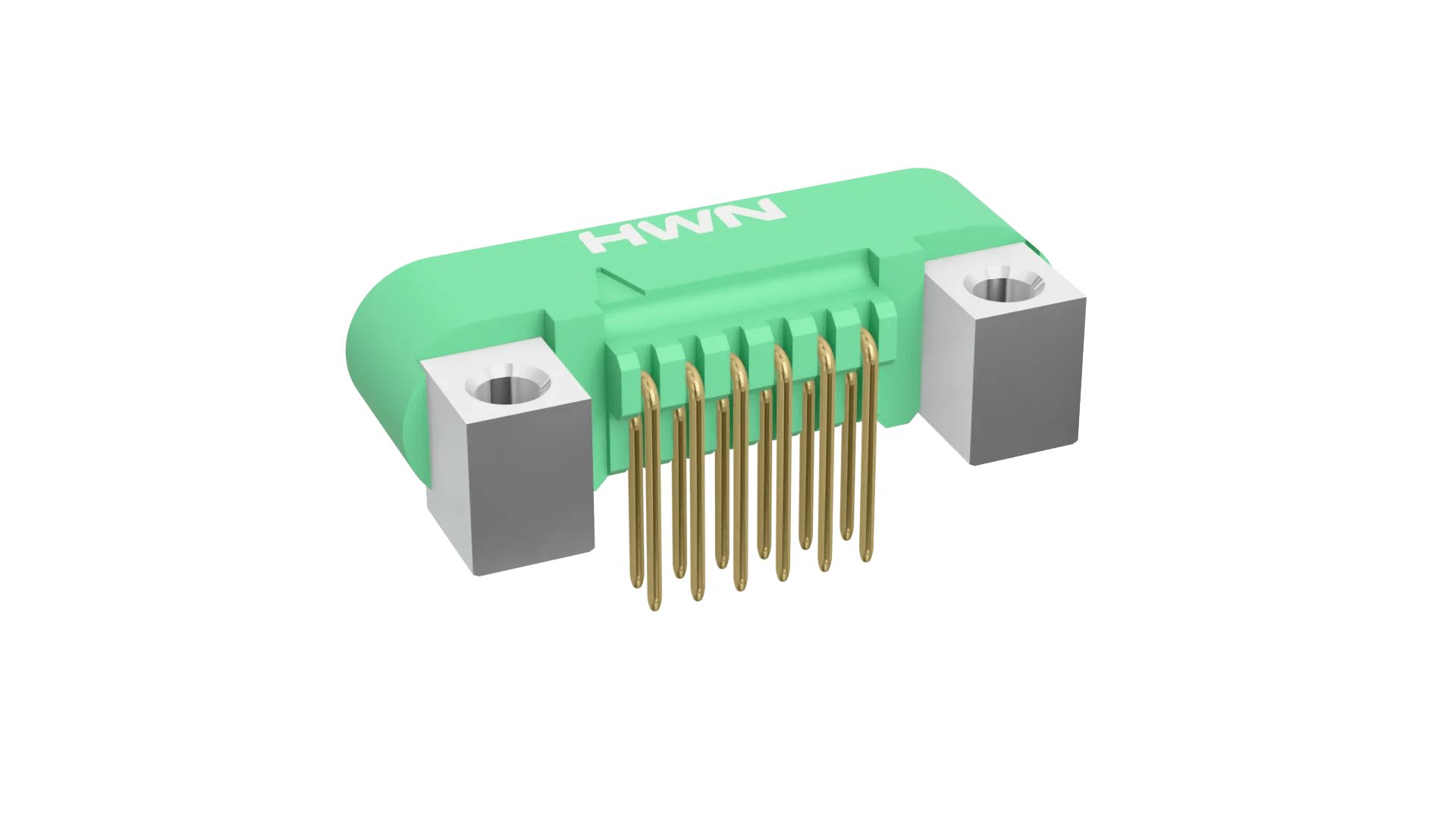

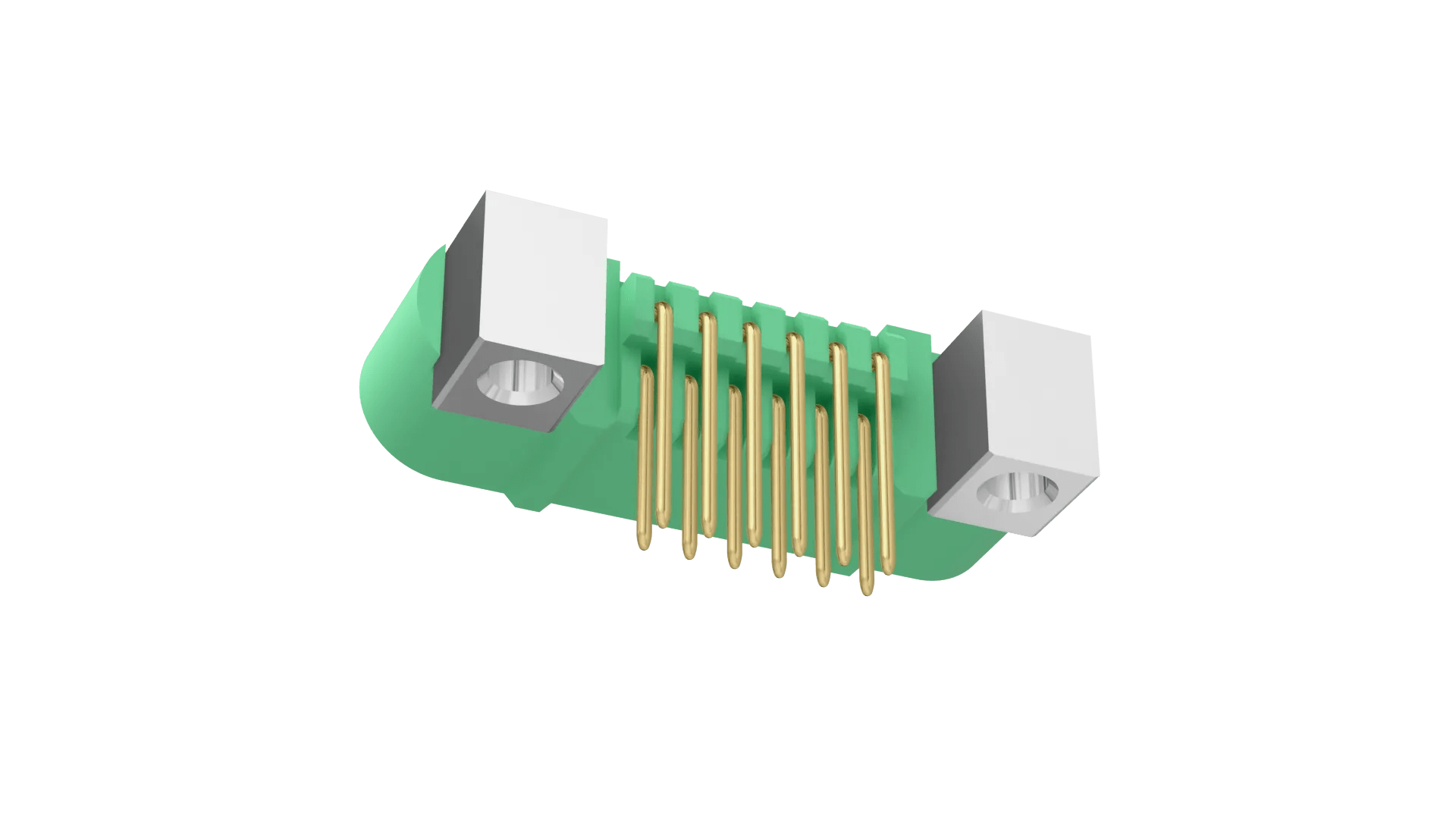

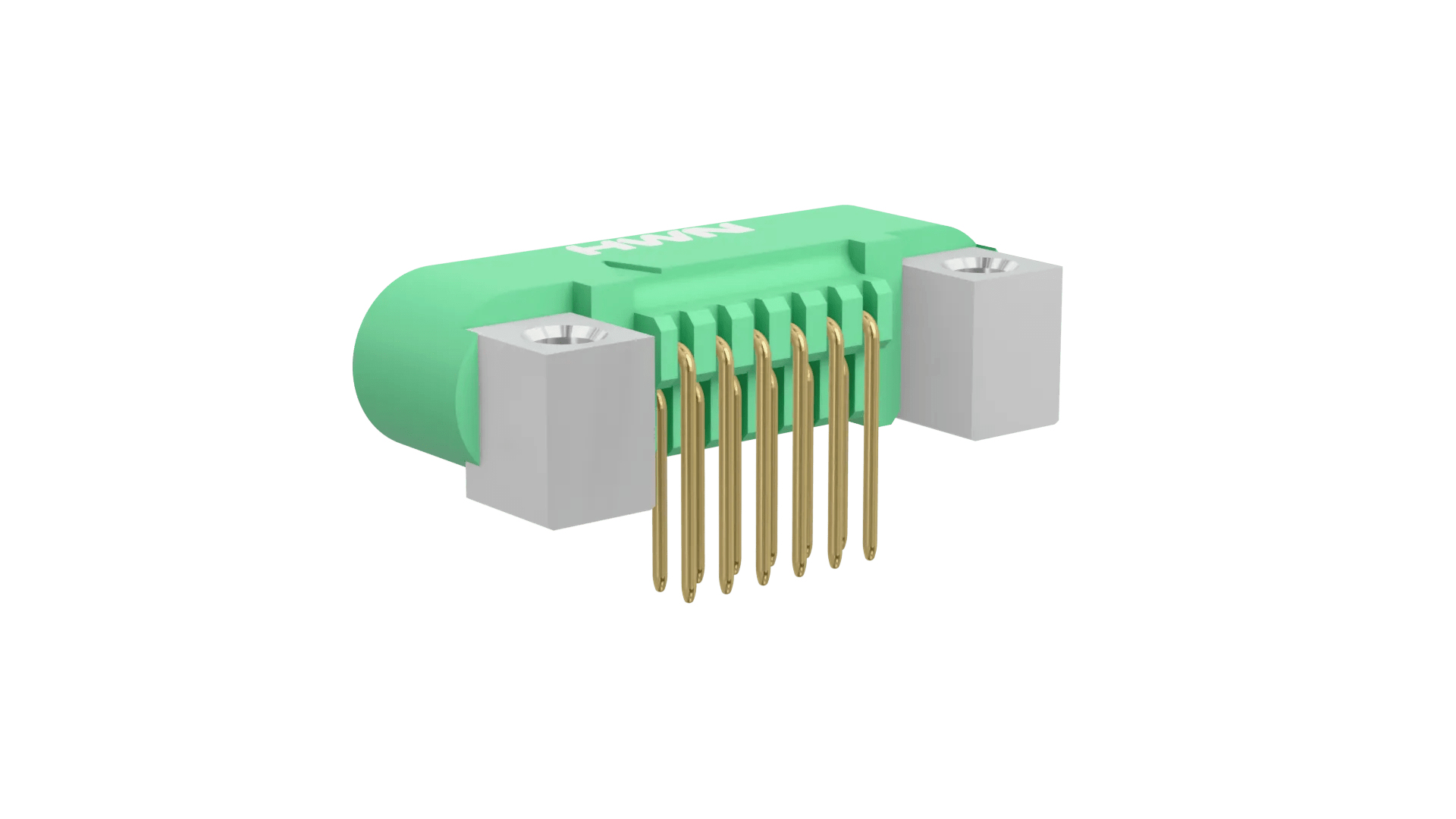

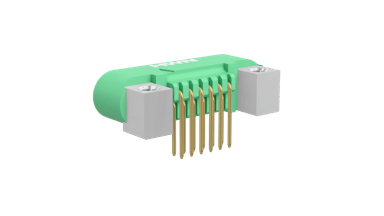

6+6 Pos. Male DIL Horizontal Throughboard Conn. Screw-Lok Board Mount


1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

  • Male Double Row 3mm PC Tail connector, Screw-Lok fixings suitable for board mount - 12 contacts (6+6). Use with hex socket bolts G125-4520000B (5mm) for board mount retention.

  • Supplied in tape strips. Gold finish on contact area and termination.

  • For complete pin numbering or pin out information, see Component Specification C125XX.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Test Reports

Technical Documentation

Product Information

Technical Details

Specifications

  • Contact Pitch:

    1.25mm (0.049")

  • Contact Gender:

    Male/Plug

  • Connector Orientation:

    Horizontal

  • PCB Mounting:

    PC Tail / Throughboard

  • Mating Pin Size:

    Ø0.4mm

  • Style of Jackscrews:

    Internal Thread Screw-Lok with Board Mount (Standard Gender)

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    2

  • Number of Signal Contacts:

    12

  • Finish / Plating on Termination:

    Gold

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Phosphor Bronze

  • Housing Material:

    Polyamide (Nylon) 4T

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tape and Reel Strip

  • Height of Connector above PCB:

    5.30mm

  • PC Tail Length:

    3.30mm

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Connection Type:

    PC Tail / Throughboard

  • Current Rating:

    2.8A max individual contact, 2A max simultaneous (25°C)

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Weight:

    1.392g

  • Dimensions:

    18.95 x 7.70 x 8.50

  • Operating Temperature:

    -65°C to +150°C

  • Country of Origin:

    GB

  • Polarised:

    Yes

  • Cuttable:

    No

  • Housing Colour:

    Green

  • Thread Size:

    M2

Downloads

    Environmental Compliance

  • RoHS - G125-MH11205M4P

  • Material composition for G125-MH1XX05MXX series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Test Reports

  • Test Report HT073 - Gecko-SL Horizontal General (Electrical + Mechanical and Environmental)

  • Test Report HT067 - Gecko-SL (G125 Series) - Mechanical Screw-Lok test

  • Test Report HT030 - Gecko (G125 Series) - Electrical + Mechanical and Environmental

  • Technical Documentation

  • Technical Drawing / Datasheet - G125-MH1XX05M4P.pdf

  • C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

  • Plating thickness on Gecko contacts (signal and power)

  • Outgassing data for Harwin products (plastics)

  • Product Information

  • Catalog page - Gecko-SL Mating Profiles

  • Product Training Module - Overview Guide to the Gecko Screw-Lok range + 1.25mm pitch High-Reliability

  • Product Datasheet - Gecko range: signal connectors (HRi)
