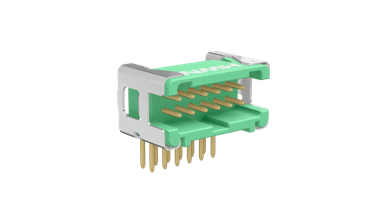

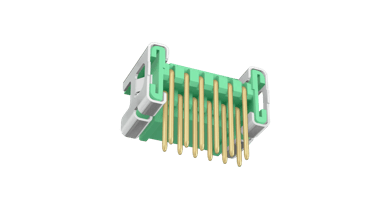

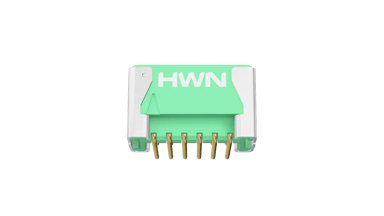

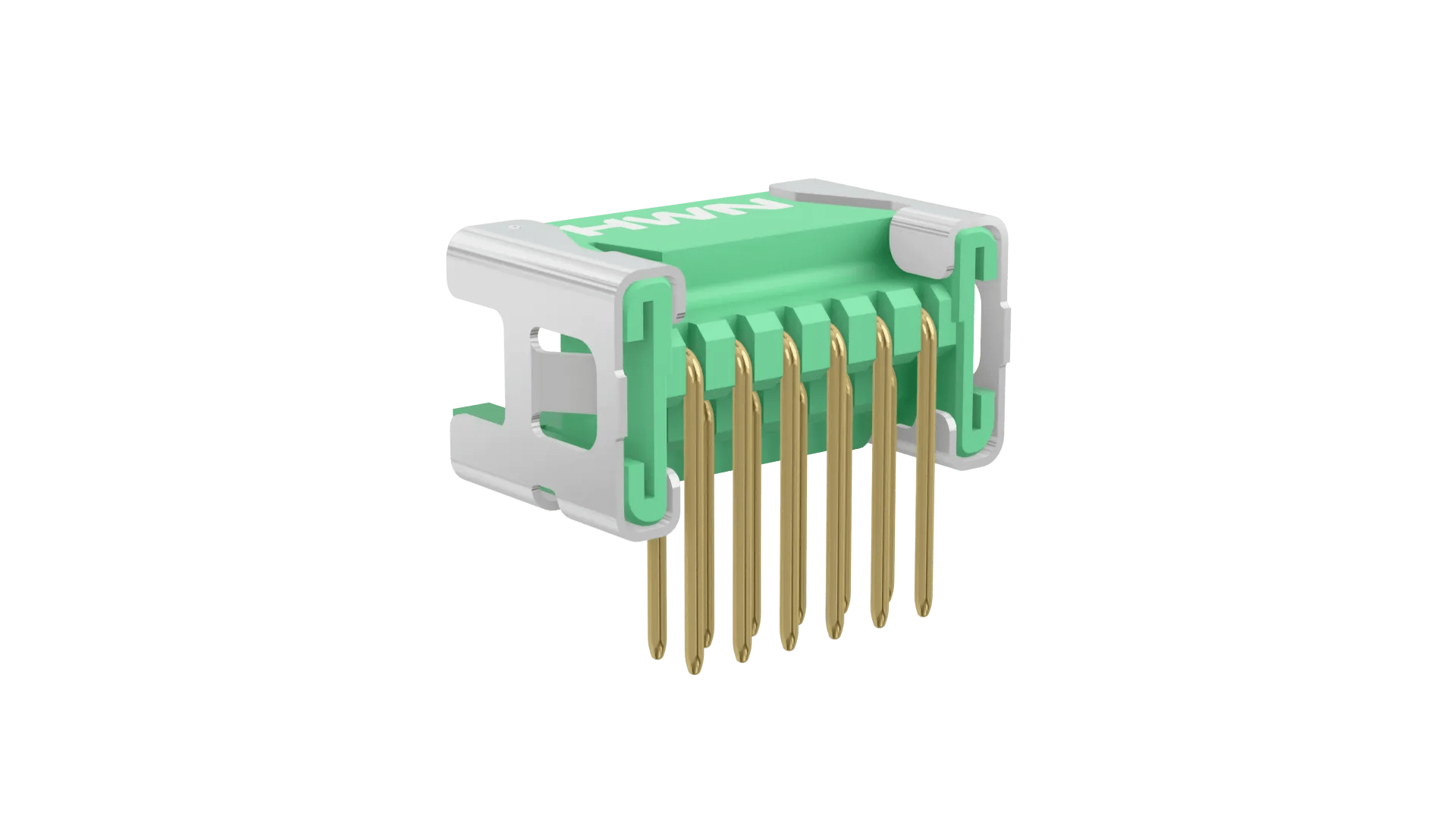

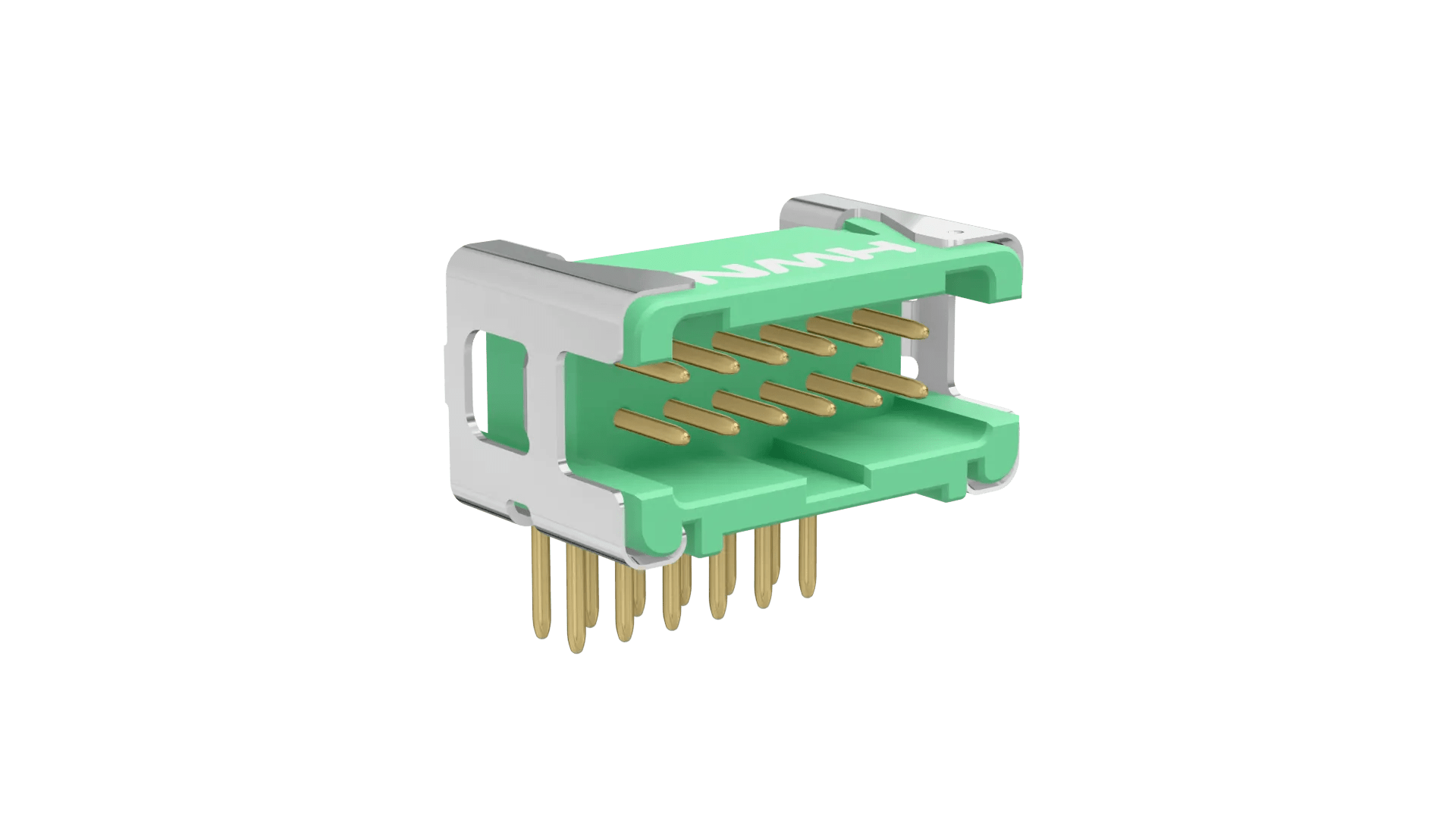

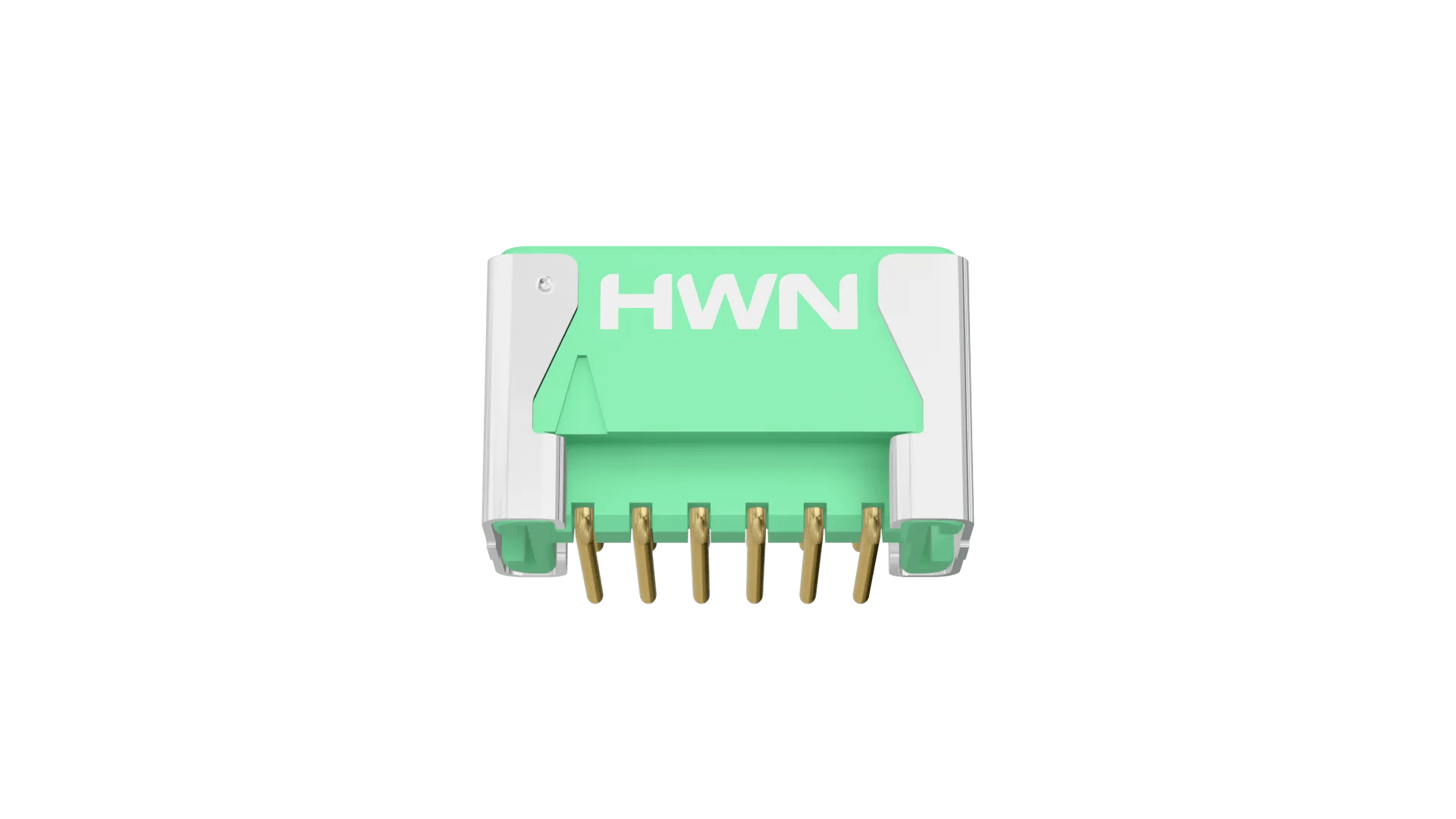

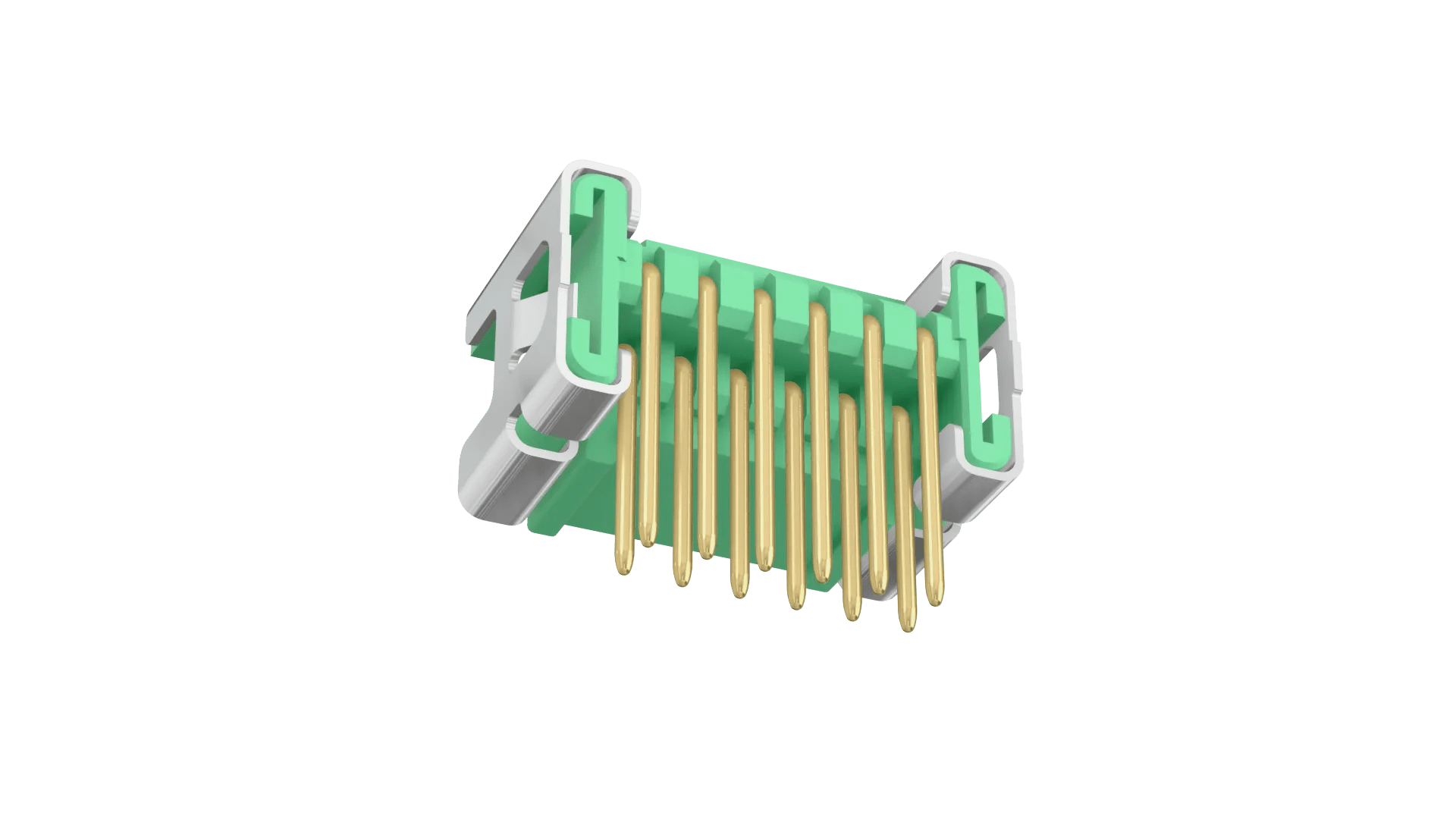

Double Row male 3.2mm PC Tail connector, Surface Mount fixings (no latches) - 12 contacts (6+6). Surface Mount hold-down areas give additional strain relief when soldered to the PCB.
Supplied in tape strips. Fixing can also be used when no board fixing is required. Gold finish on contact area and termination.
For complete pin numbering or pin out information, see Component Specification C125XX.
View Technical Details
In Stock
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Change Notifications
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Latching Style:
Locking Latch
Mating Pin Size:
Ø0.4mm
Number of Rows:
2
Connector Orientation:
Horizontal
Country of Origin:
GB
Side Stackable:
No
Number of Signal Contacts:
12
Operating Temperature:
-65°C to +150°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
2.8A max individual contact, 2A max simultaneous (25°C)
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
Polyamide (Nylon) 4T
Base Material of Contact:
Phosphor Bronze
Flammability Rating:
UL94V-0
Packaging Style:
Tape and Reel Strip
Finish / Plating on Termination:
Gold
Housing Colour:
Green
Dimensions
Contact Pitch:
1.25mm (0.049")
Weight:
0.516g
Dimensions:
10.55 x 6.20 x 8.70
PC Tail Length:
3.20mm
Height of Connector above PCB:
5.50mm
Downloads
Product Change Notifications
Product Change Notification 21-Jun-2021 - Gecko Latch Horizontal tail dimensions
Technical Documentation
Technical Drawing / Datasheet - G125-MHXXX05L7P.pdf
C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)
Outgassing data for Harwin products (plastics)
Plating thickness on Gecko contacts (signal and power)
Product Information
Catalog page - Gecko with Latches Mating Profiles
Product Training Module - Introduction to the Gecko connectors + 1.25mm pitch High-Reliability
Product Datasheet - Gecko range: signal connectors (HRi)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for Gecko G125-MH1XX05LXX series
RoHS - G125-MH11205L7P
