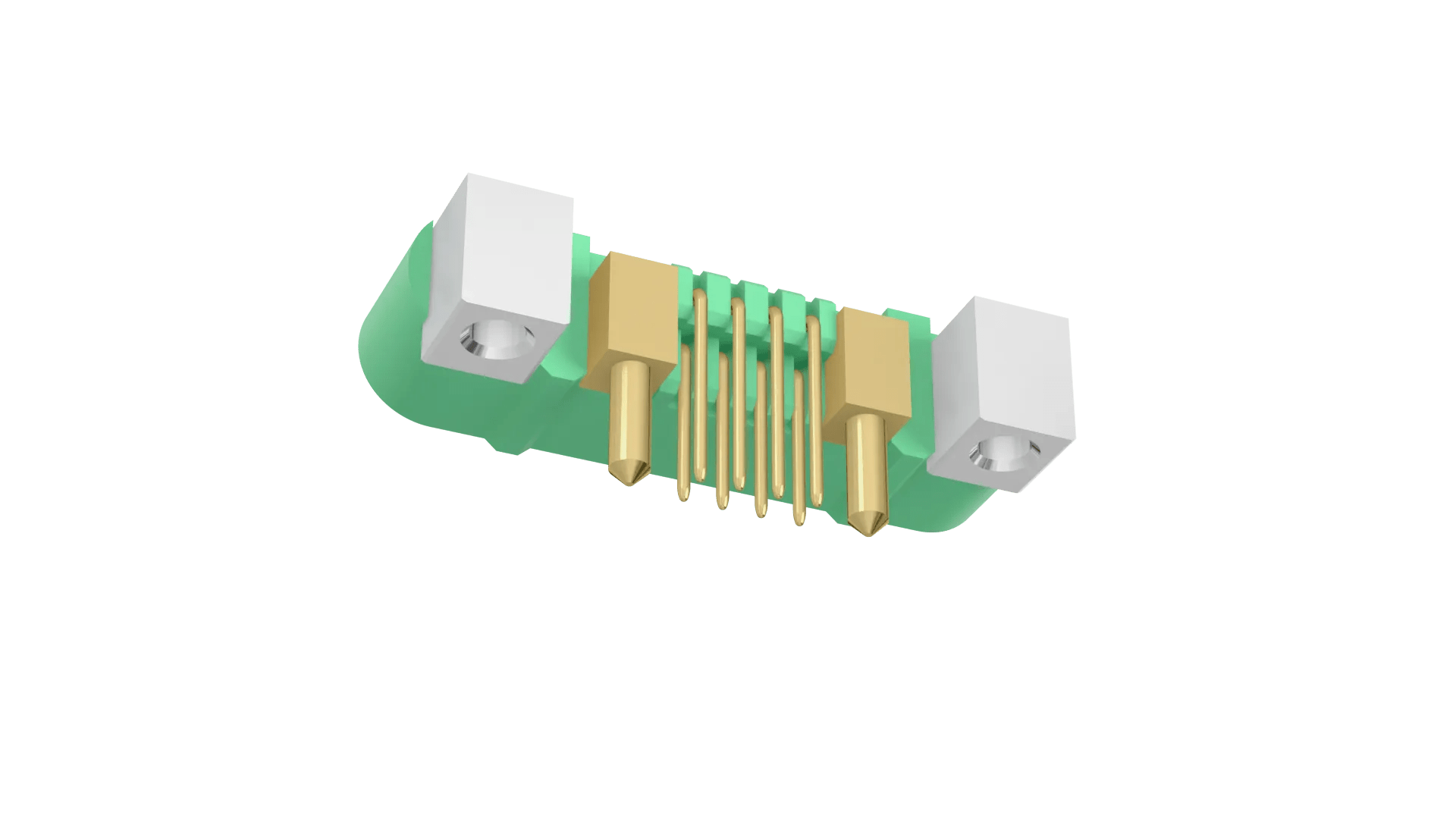

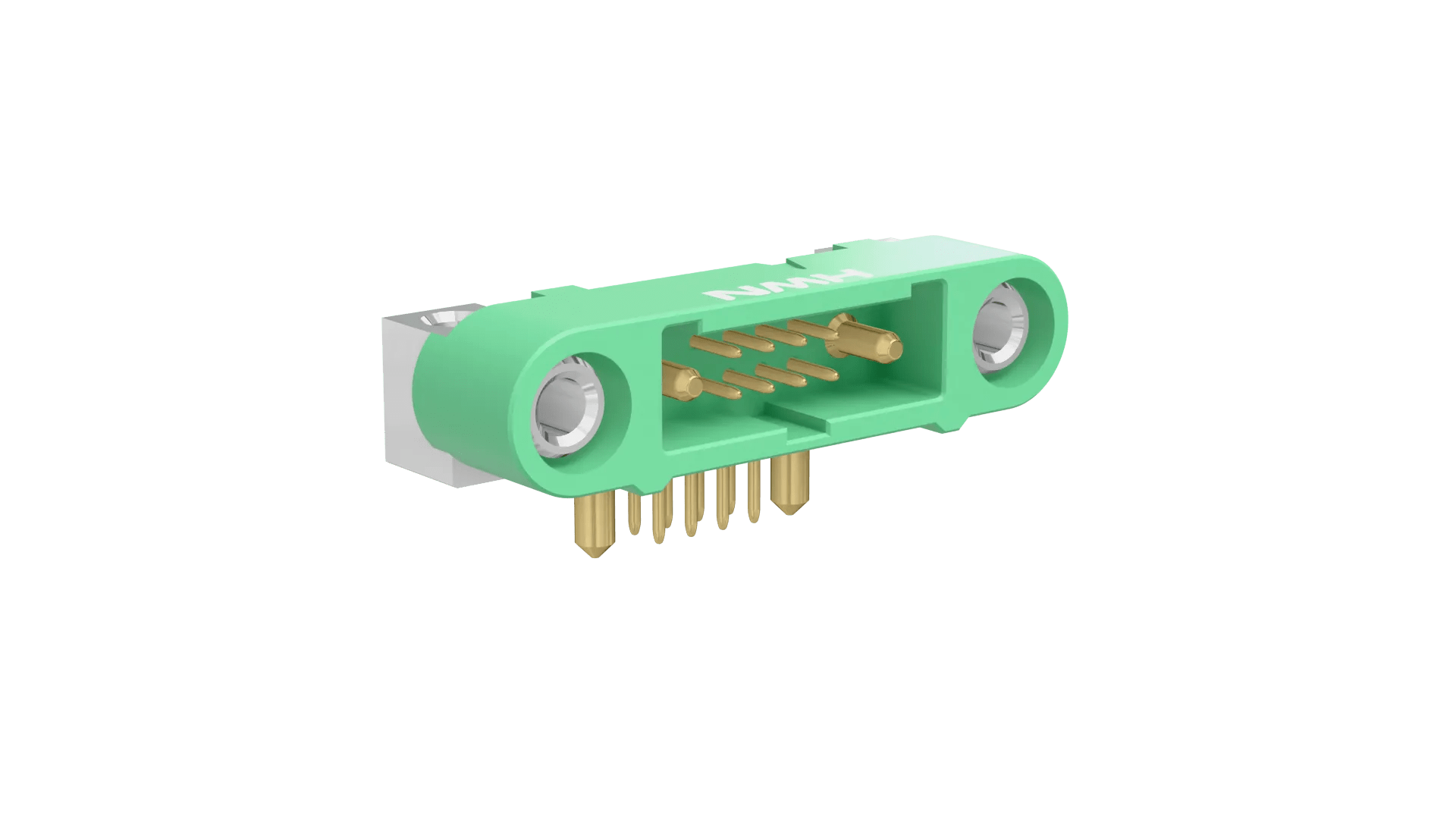

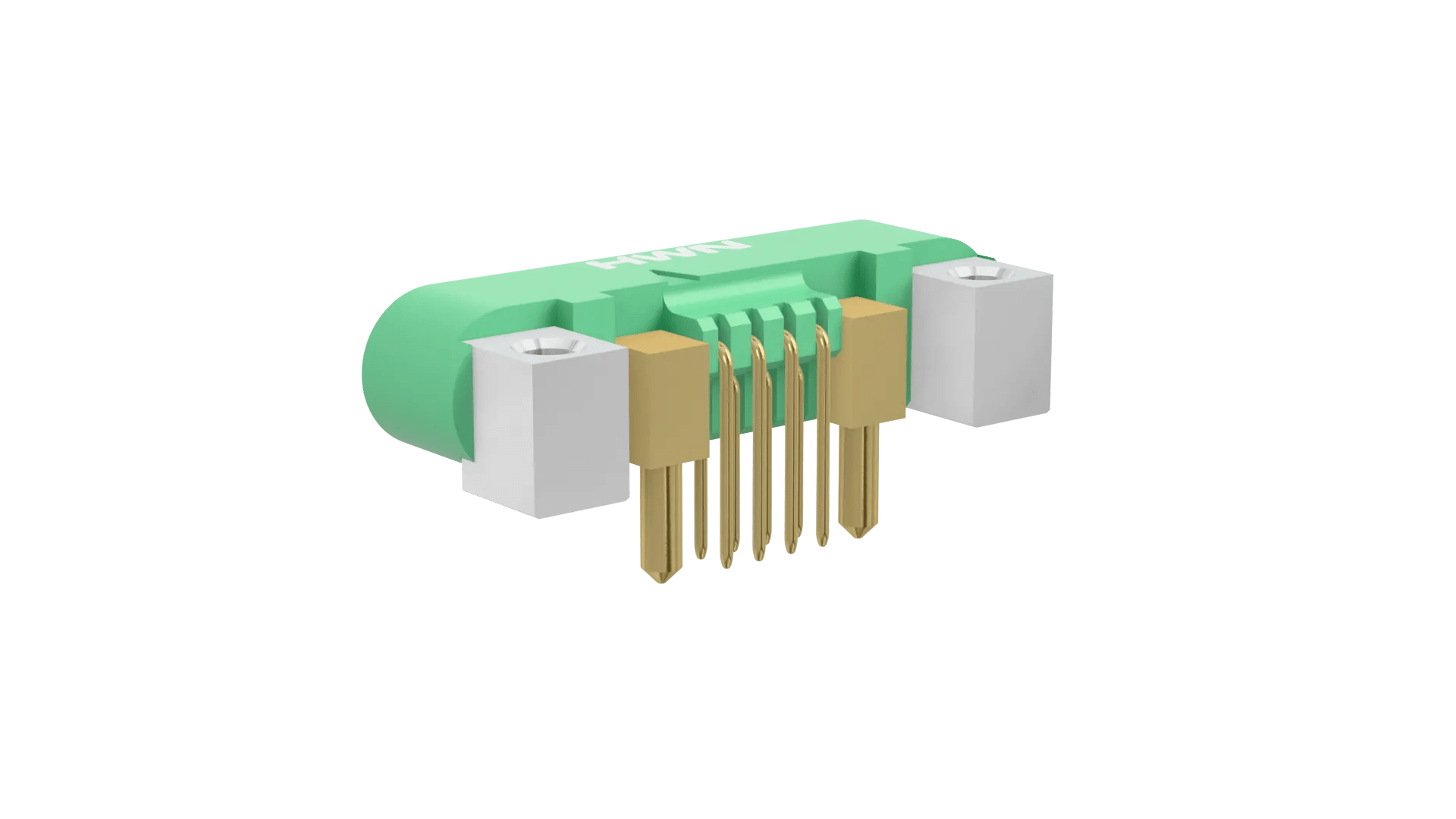

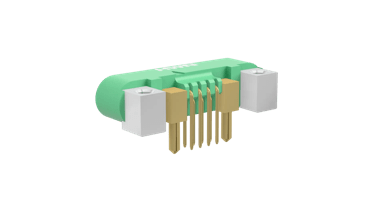

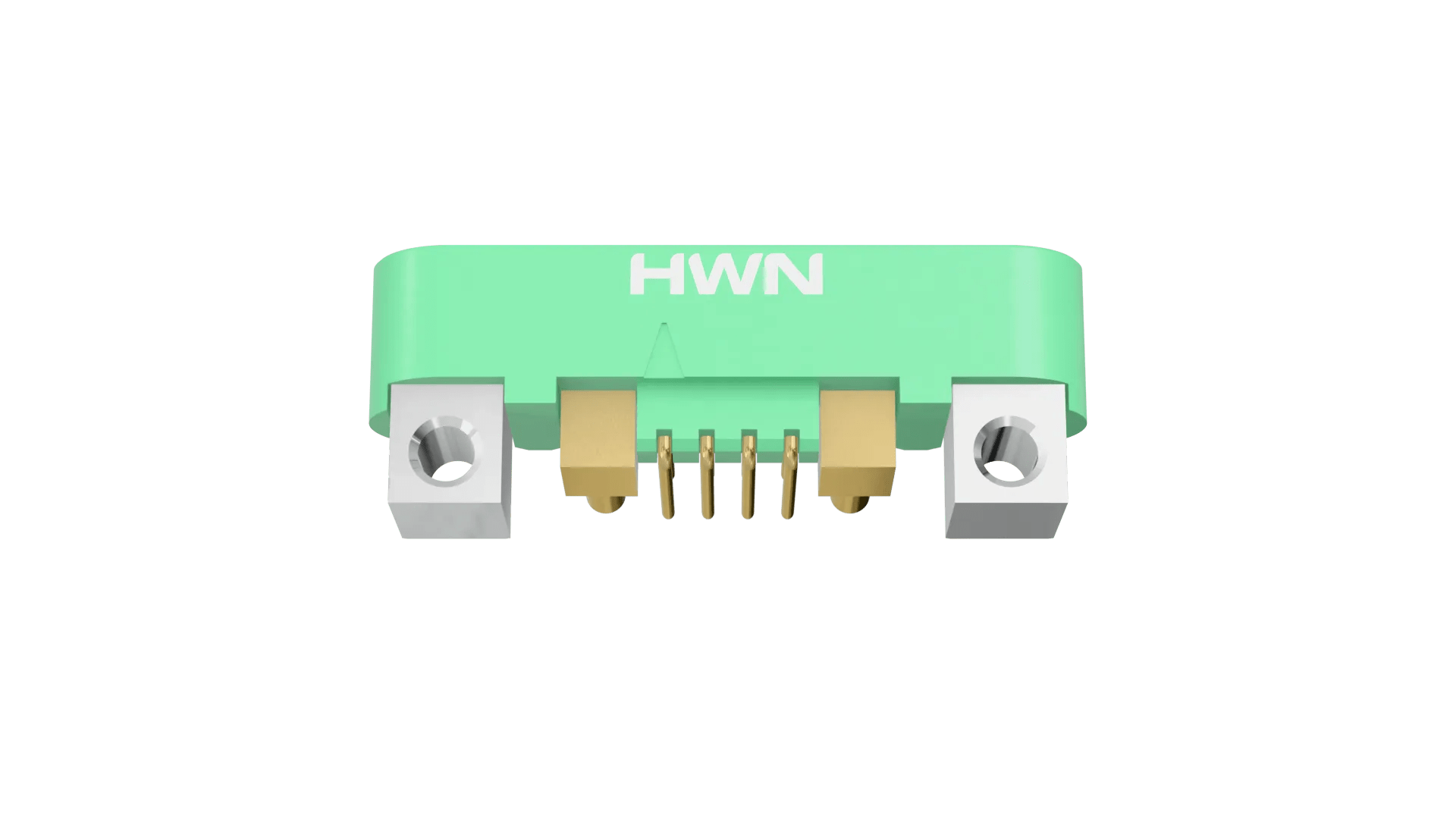

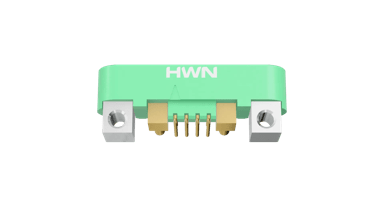

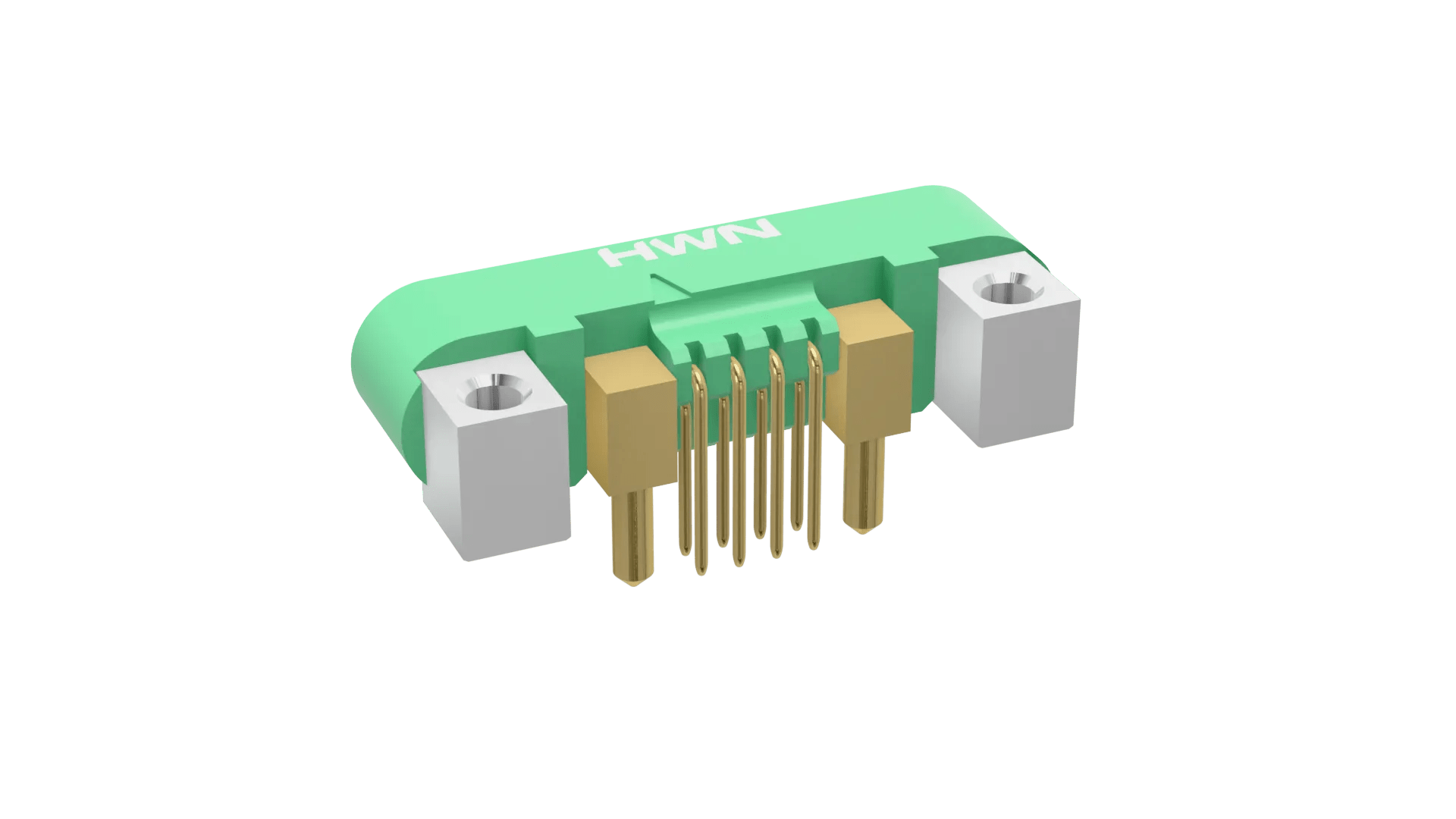

G125-MH10805M4-1AD1ADP
8+2 Pos. Male Horizontal Throughboard Conn. Screw-Lok Board Mount
1.25mm Pitch High-Reliability Connector - Gecko-MT
- Male Horizontal 3.3mm Tail Throughboard connector – 1 power, 8 signal, 1 power contact arrangement.
- Use with hex socket bolts G125-4520000B (5mm) for board mount retention.
- Supplied in tape strips.
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.25mm (0.049")
Contact Gender:
Male/Plug
Connector Orientation:
Horizontal
Connection Type:
PC Tail / Throughboard
Mating Pin Size:
Ø0.4mm, Ø1mm
Current Rating:
2A (signal), 10A (power)
Operating Temperature:
-65°C to +150°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Jackscrew with Board Mount
Polarising Features:
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
Mixed
Number of Signal Contacts:
8
Number of Special (Power or Coax) Contacts:
2
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze (signal), Beryllium Copper (power)
Housing Material:
Polyamide (Nylon) 4T
Housing Colour:
Green
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tape and Reel Strip
Dimensions
Individual Part Weight:
1.83g
Overall Dimensions (L x W x D) in mm:
21.50 x 7.70 x 8.75
Thread Size:
M2
Height of Connector above PCB:
5.25mm
Length of Throughboard Tail:
3.30mm, 3.50mm
Mating Profiles:
Availability
Popular product*Stock available: contact distributor to purchase
Questions & Answers Ask a Question
Is there any restrictions on PCB location for this connector, such as near the edge or central mounting?
If you plan to mate this connector with a female cable connector, you will need to locate the connector near the edge of the PCB – typically the mating face would be level with the edge (or slightly over). Female cable connectors have additional bumps for retaining backshells, and these bumps will foul with the PCB if the mating face is located above the PCB. You can check the Technical Drawing (under Downloads) for the recommended distance to the footprint from the PCB edge.
If you are mating this connector with a female PCB connector, there are no additional bumps on these connectors and the mating can occur over PCB. You just need to ensure that your two PCBs do not foul with each other.
