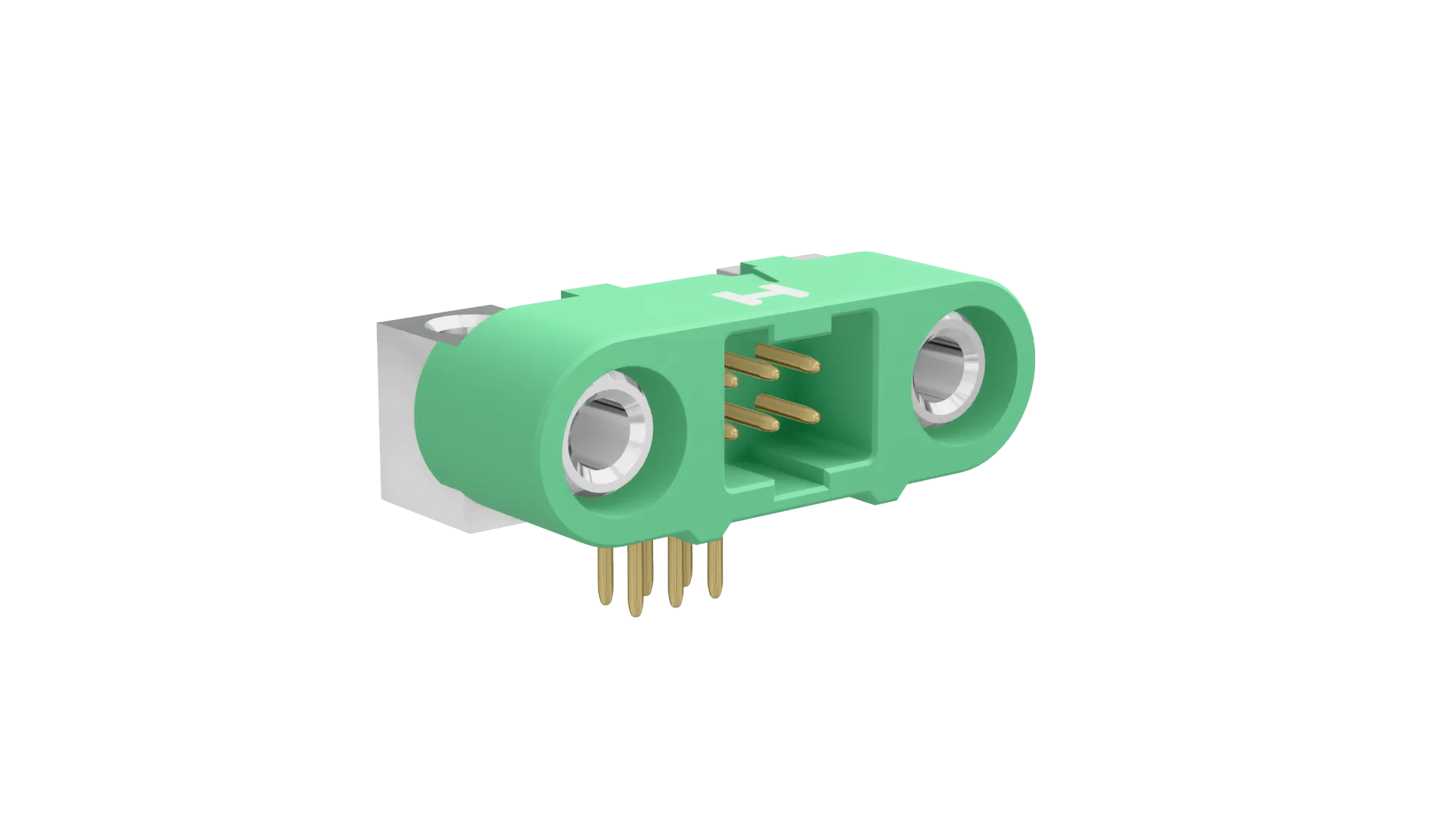

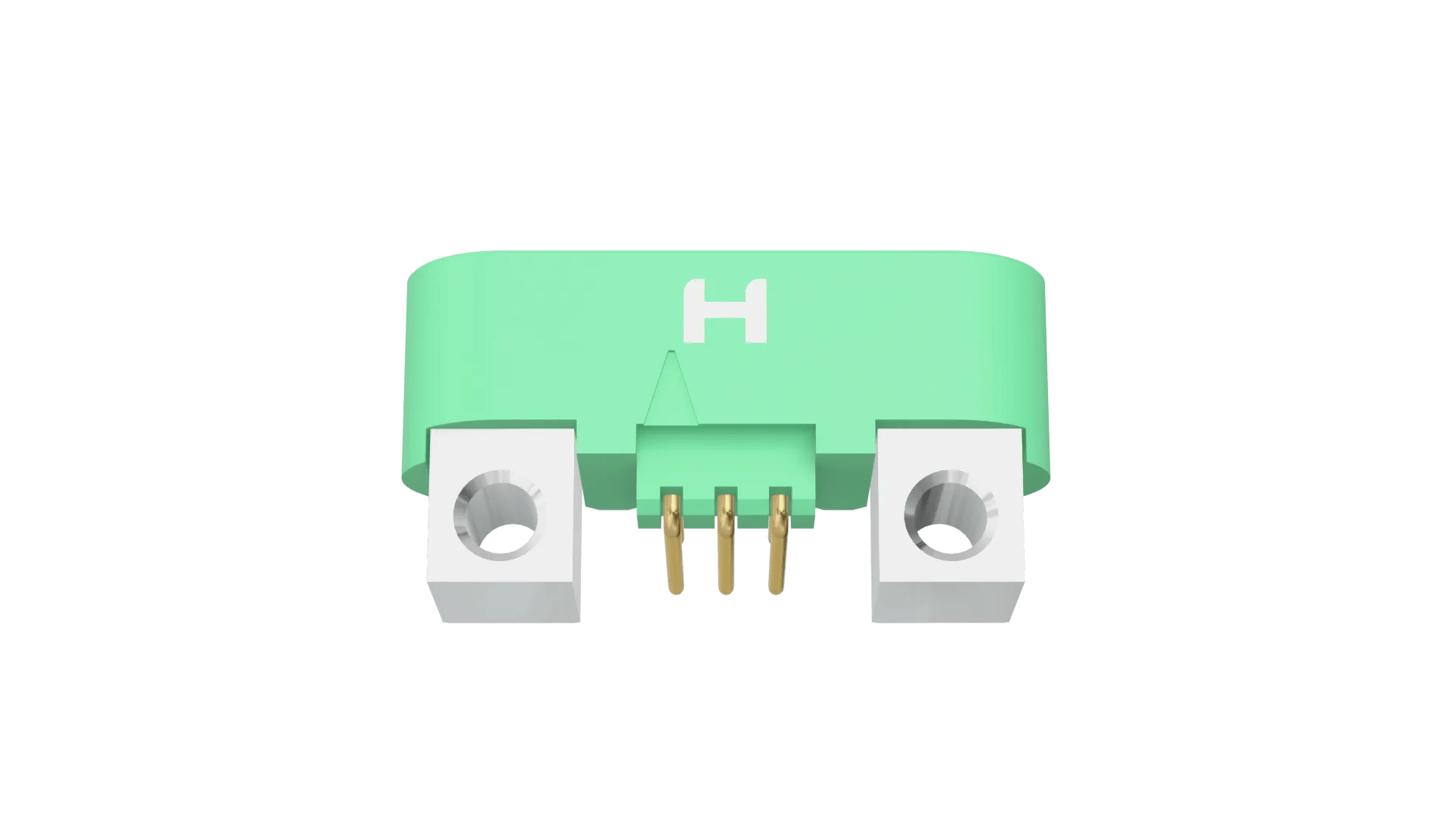

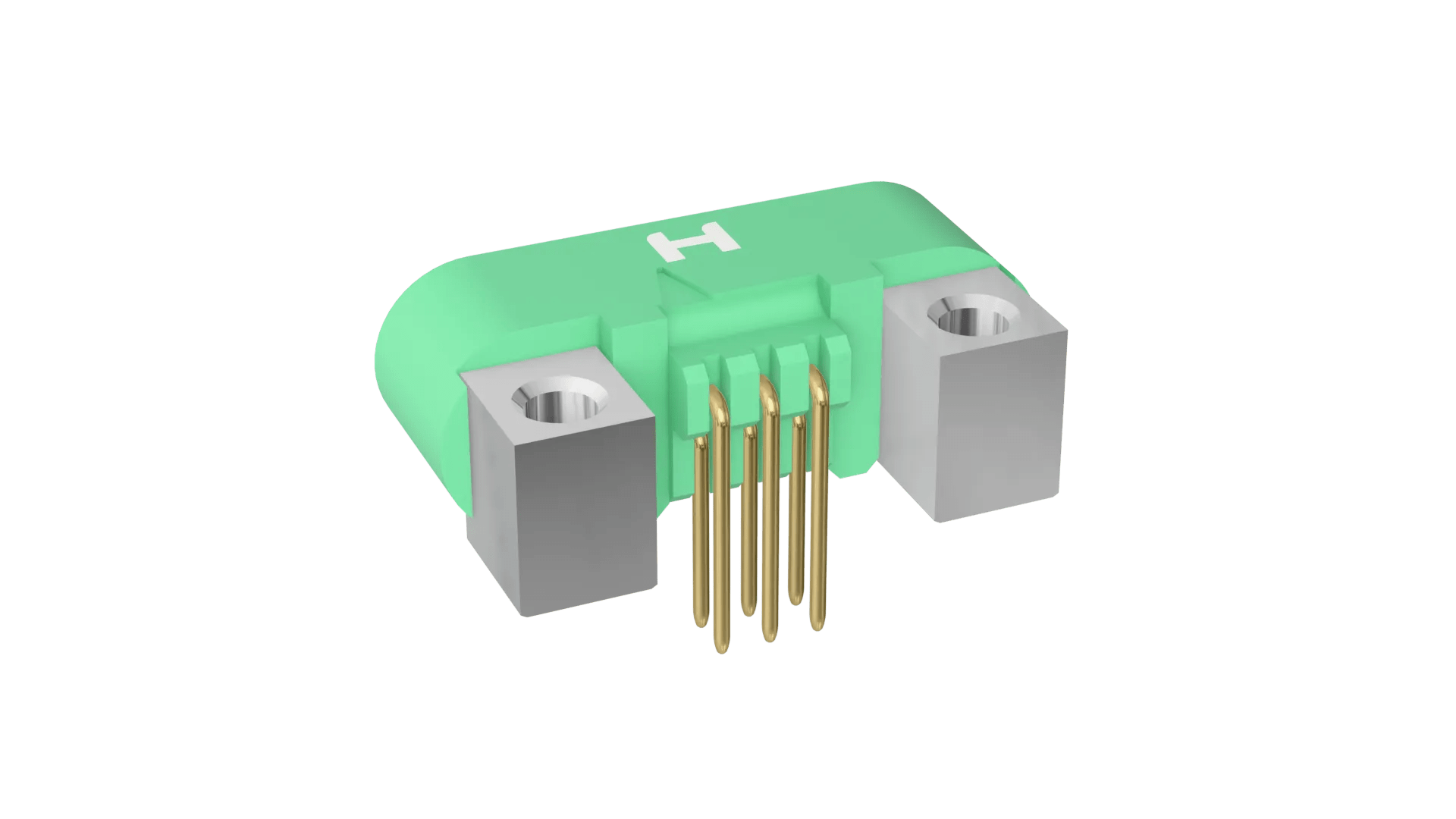

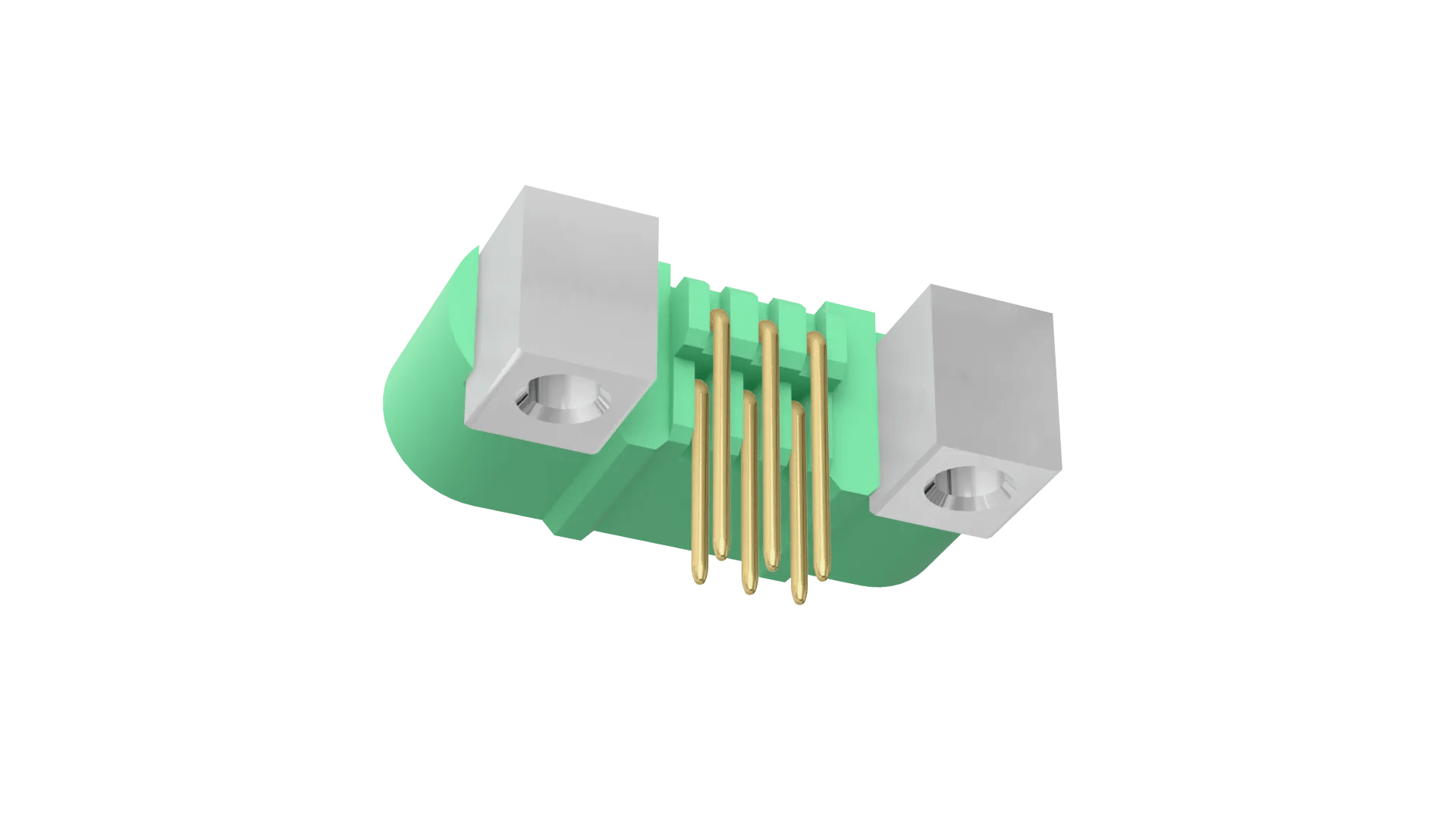

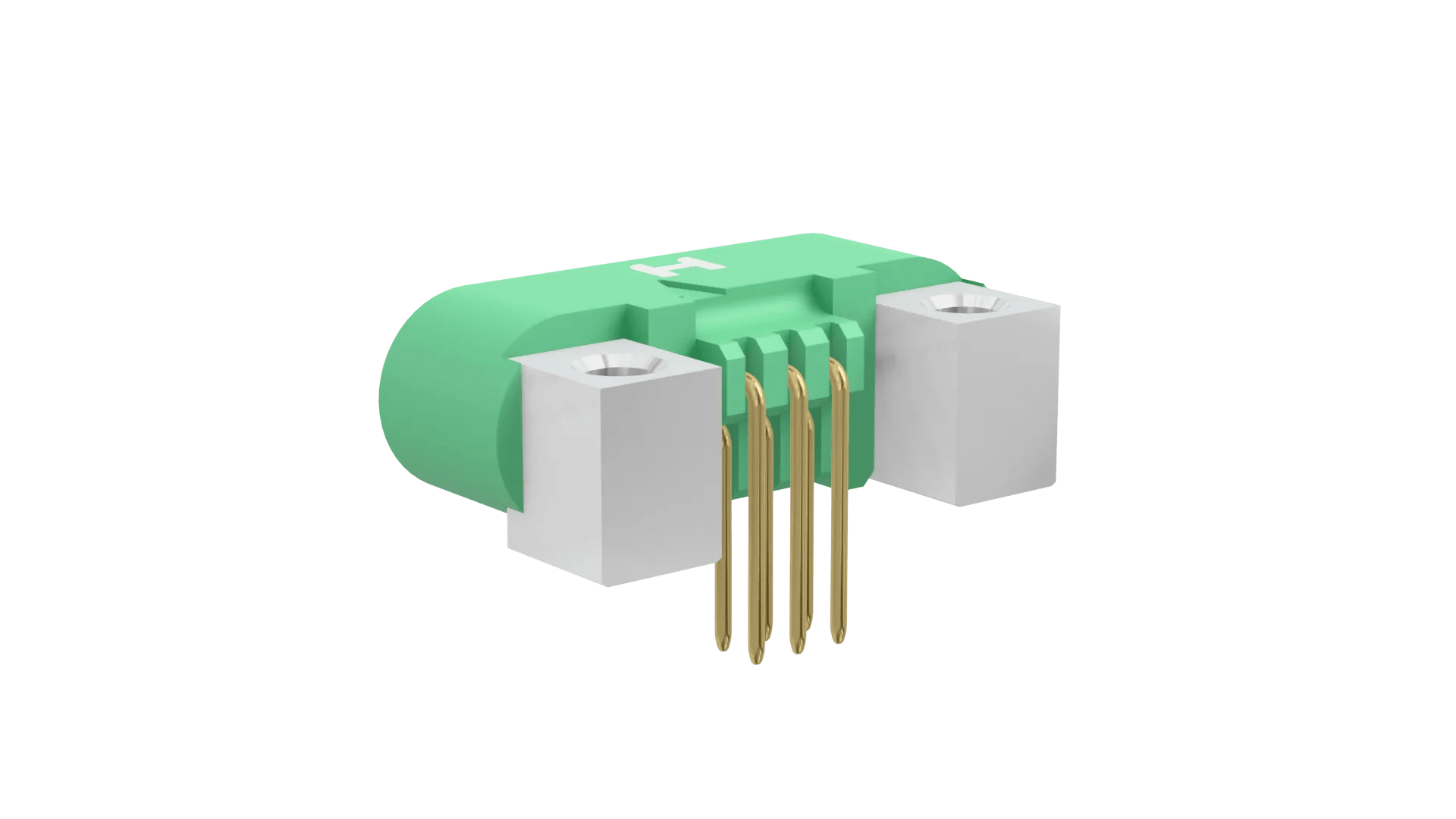

3+3 Pos. Male DIL Horizontal Throughboard Conn. Screw-Lok Board Mount (T+R)
1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok
- Male Double Row 3mm PC Tail connector, Screw-Lok fixings suitable for board mount – 6 contacts (3+3).
- Use with hex socket bolts G125-4520000B (5mm) for board mount retention.
- Supplied on Tape and Reel.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
-65°C to +150°C
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Screw-Lok with Board Mount
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 4T
Housing Material UL Rating:
Tape and Reel
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
15.20 x 7.70 x 8.50
Height of Connector above PCB:
Length of Throughboard Tail:
AvailabilityLimited availability or made-to-order
*Stock available: contact distributor to purchase
Questions & Answers Ask a Question
Is there any restrictions on PCB location for this connector, such as near the edge or central mounting?
If you plan to mate this connector with a female cable connector, you will need to locate the connector near the edge of the PCB – typically the mating face would be level with the edge (or slightly over). Female cable connectors have additional bumps for retaining backshells, and these bumps will foul with the PCB if the mating face is located above the PCB. You can check the Technical Drawing (under Downloads) for the recommended distance to the footprint from the PCB edge.
If you are mating this connector with a female PCB connector, there are no additional bumps on these connectors and the mating can occur over PCB. You just need to ensure that your two PCBs do not foul with each other.
