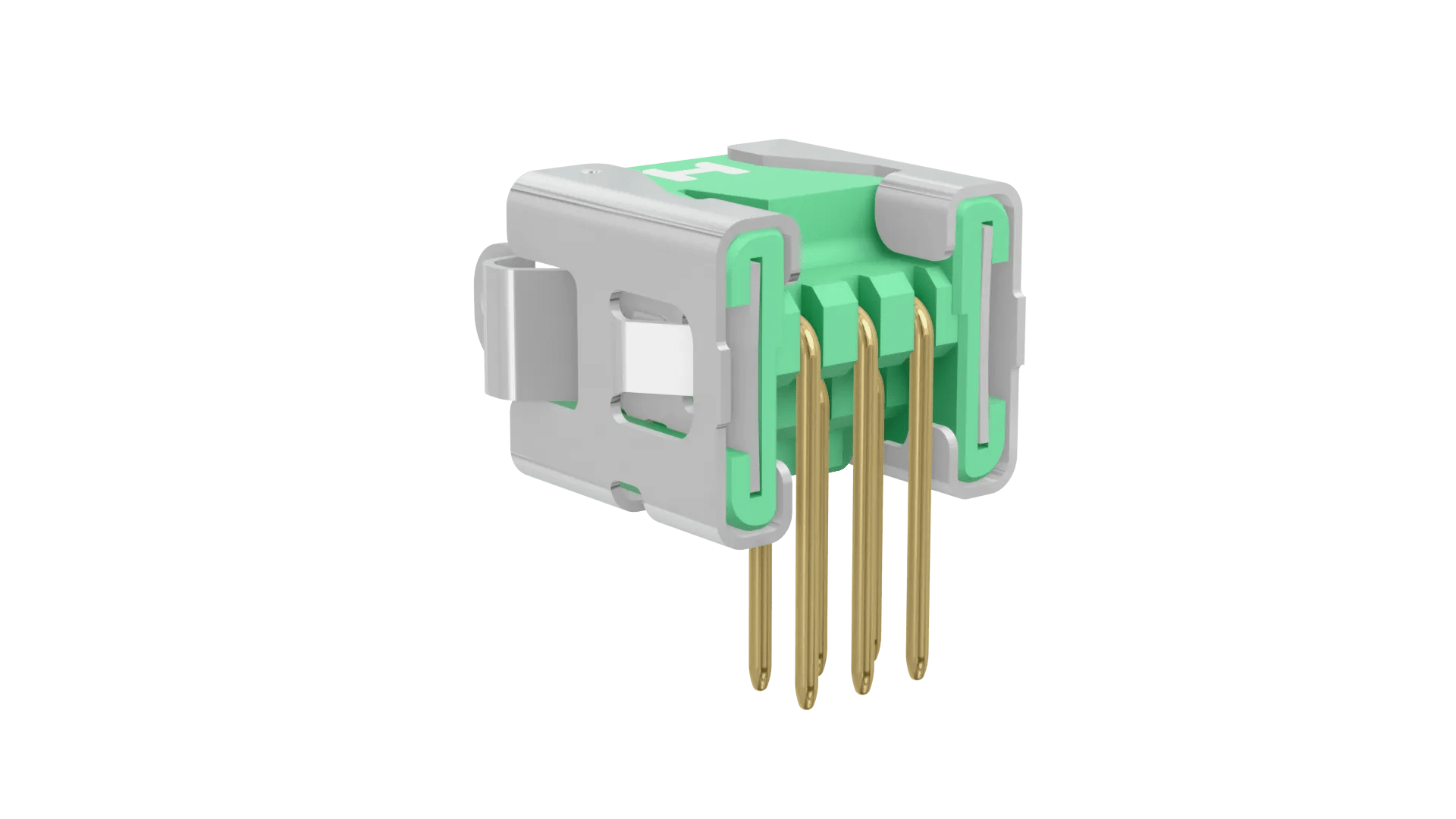

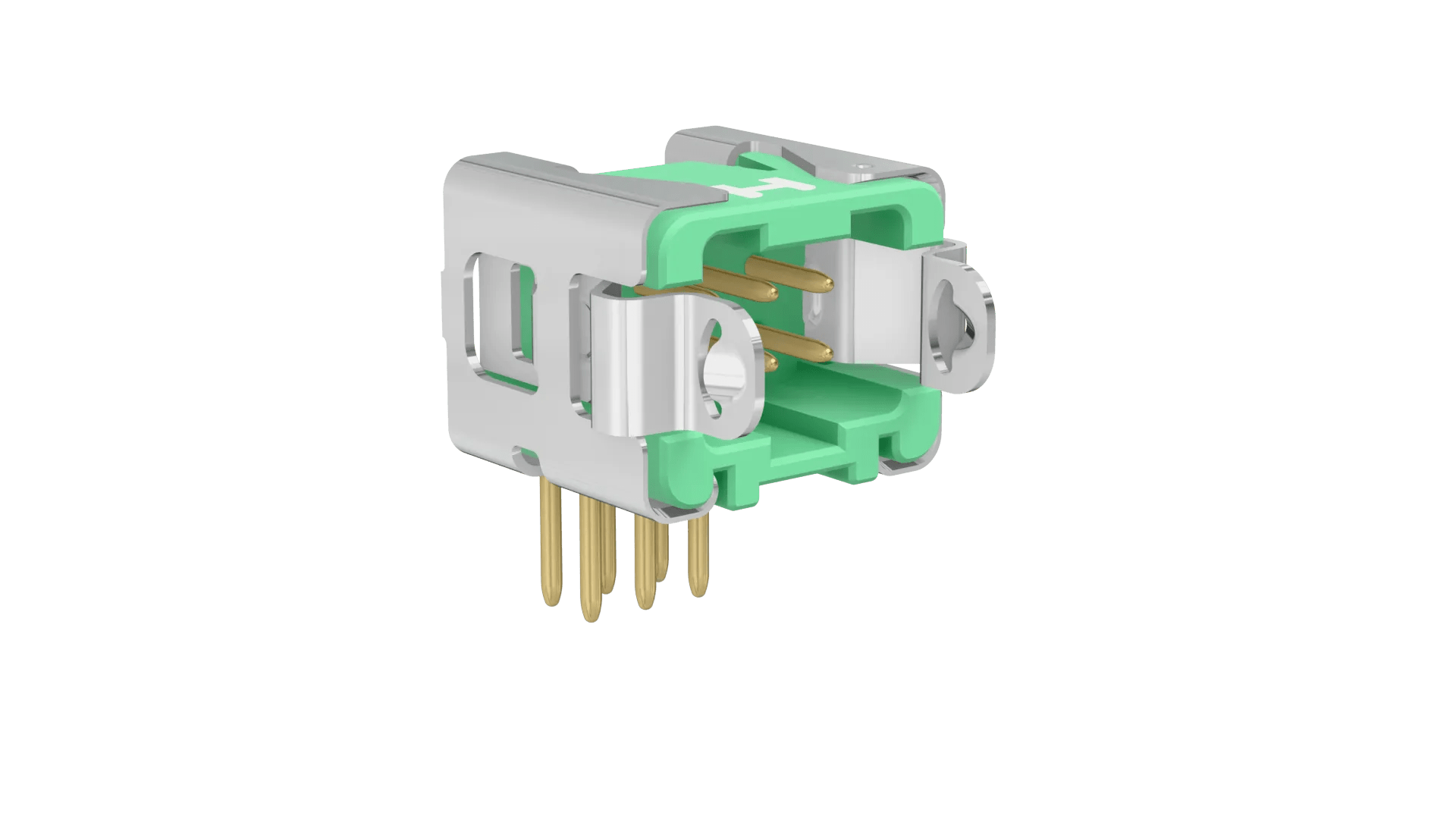

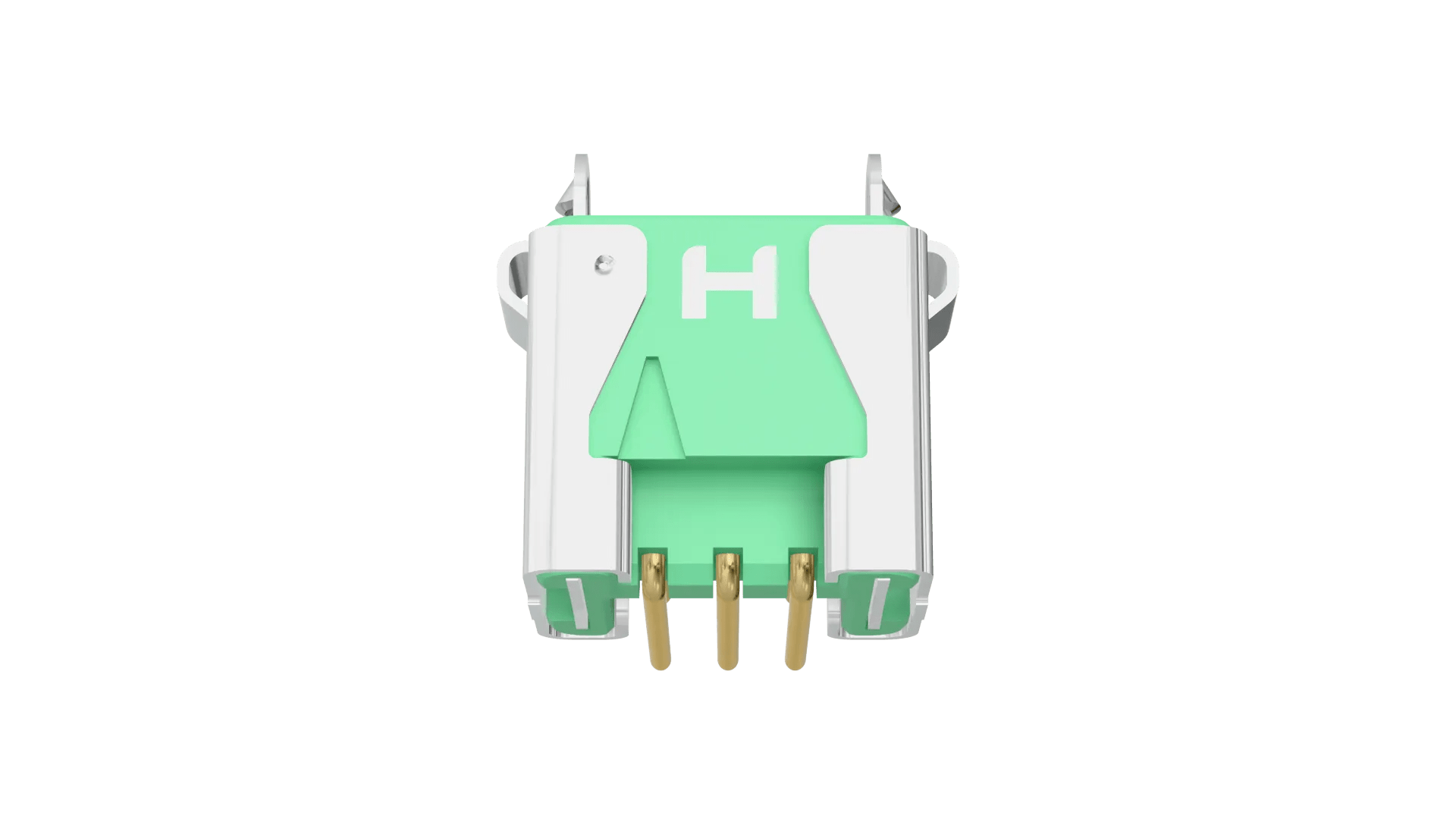

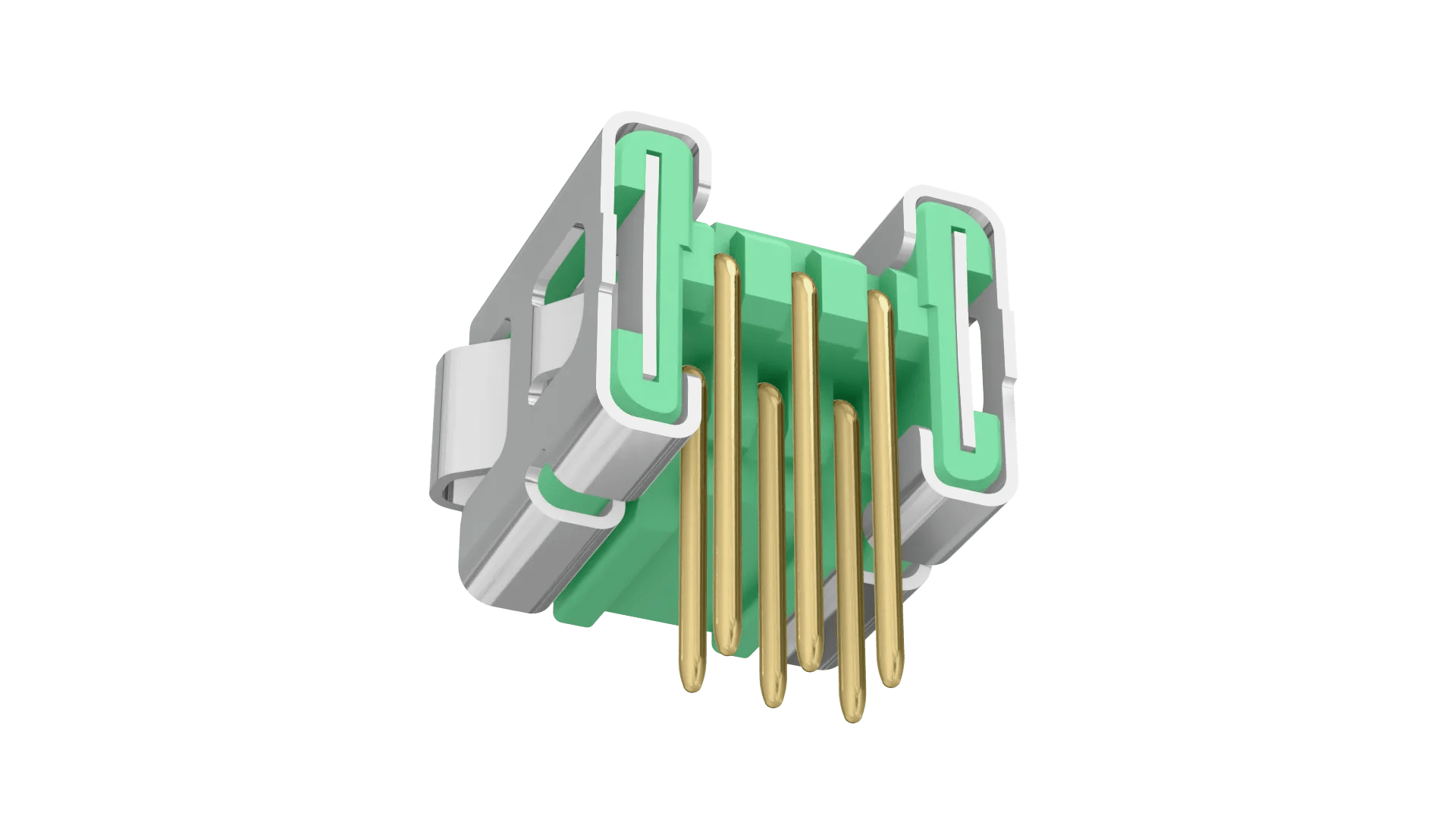

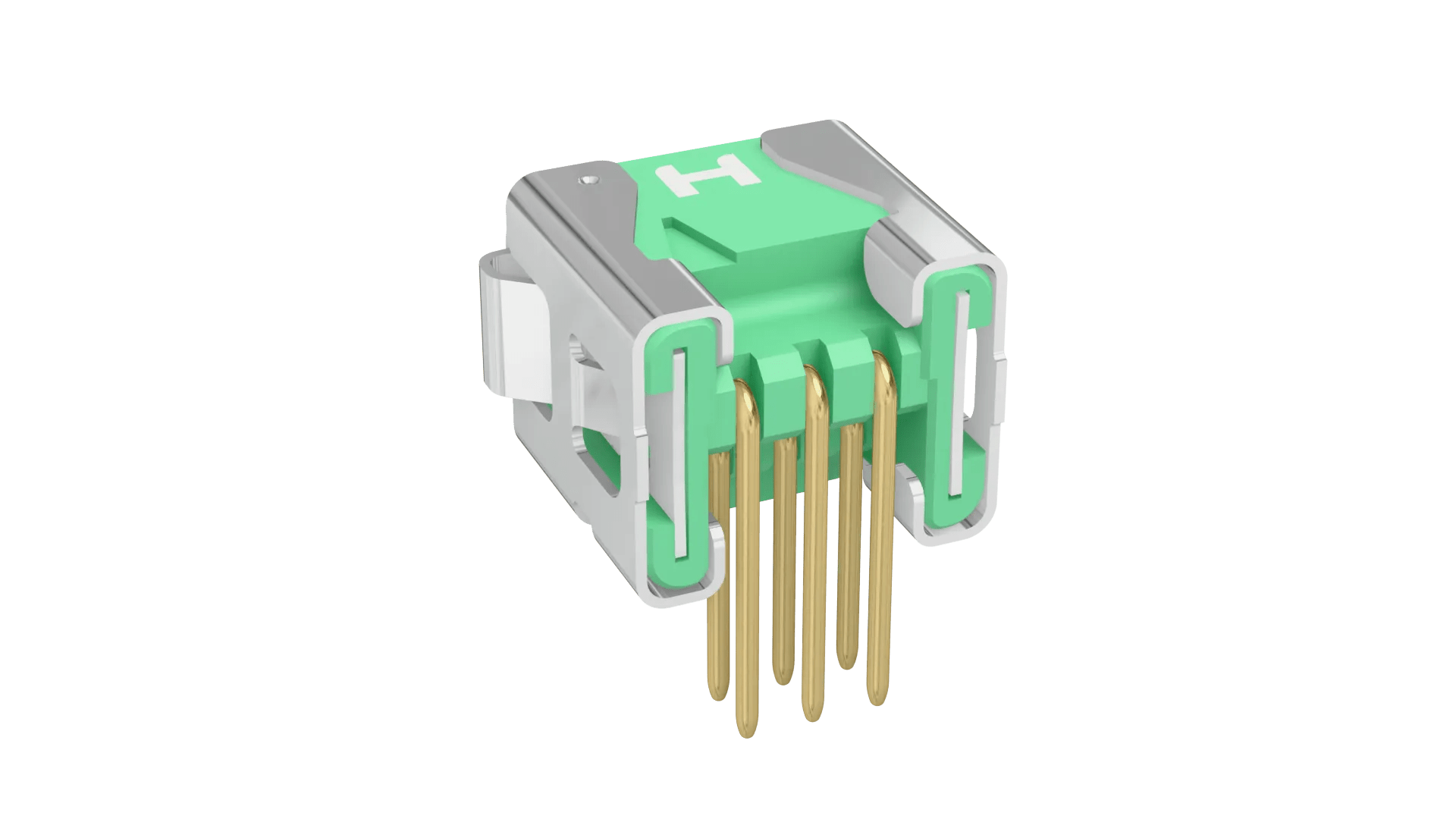

3+3 Pos. Male DIL Horizontal Throughboard Conn. Latches (T+R)
1.25mm Pitch High-Reliability Connector - Gecko with Latches
- Double Row male 3.2mm PC Tail connector, Latches with Surface Mount area – 6 contacts (3+3). Surface Mount hold-down areas give additional strain relief when soldered to the PCB.
- Supplied on Tape and Reel. Latch style can also be used when no board fixing is required. Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C125XX.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
2.8A max individual contact, 2A max simultaneous (25°C)
-65°C to +150°C
Max Solder Temperature: 260°C for 10 seconds
Style of Latches:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 4T
Housing Material UL Rating:
Tape and Reel
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
7.70 x 8.00 x 8.70
Height of Connector above PCB:
Length of Throughboard Tail:
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
* Please request minimum quantities, lead times and pricing from an authorized distributor.
Questions & Answers Ask a Question
Can this connector go through SMT oven reflow or it can only go through wave oven?
There should be no issues with using this connector in a reflow process. The construction uses the same materials as the SMT versions of the Gecko range.
Does this product need a pick and place cap for SMT placement?
A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.
Do you have a tool to help separate this connector when it is latched to the mating half?
The tool you need is the Z125-9260600 – this will help push in the two latch buttons when the connectors are engaged, so you can then separate the mated connectors. Consult the training video for more information on using this tool. It is also possible to push in the two buttons by hand as well, if you have good access.
Want to talk to someone?
Contact one of our technical experts via “Ask an Expert”, or book a 30 minute technical consultation.
ECAD Download Options
Download 3D CAD product models directly from Harwin – STP and IGES.Download
No login is required.
