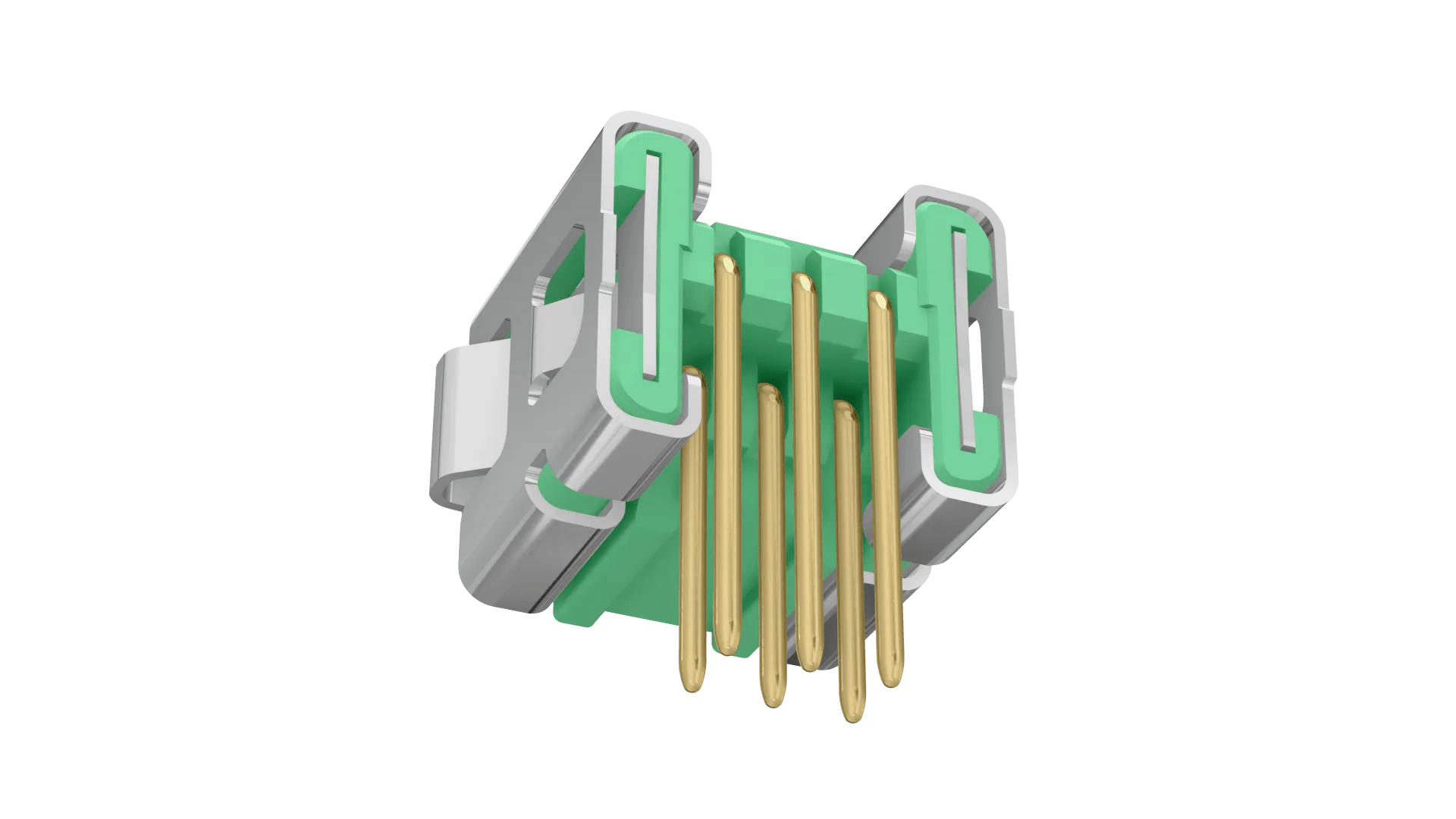

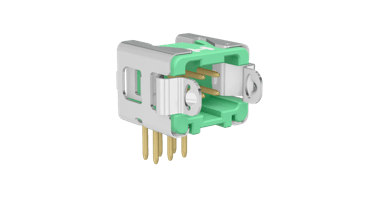

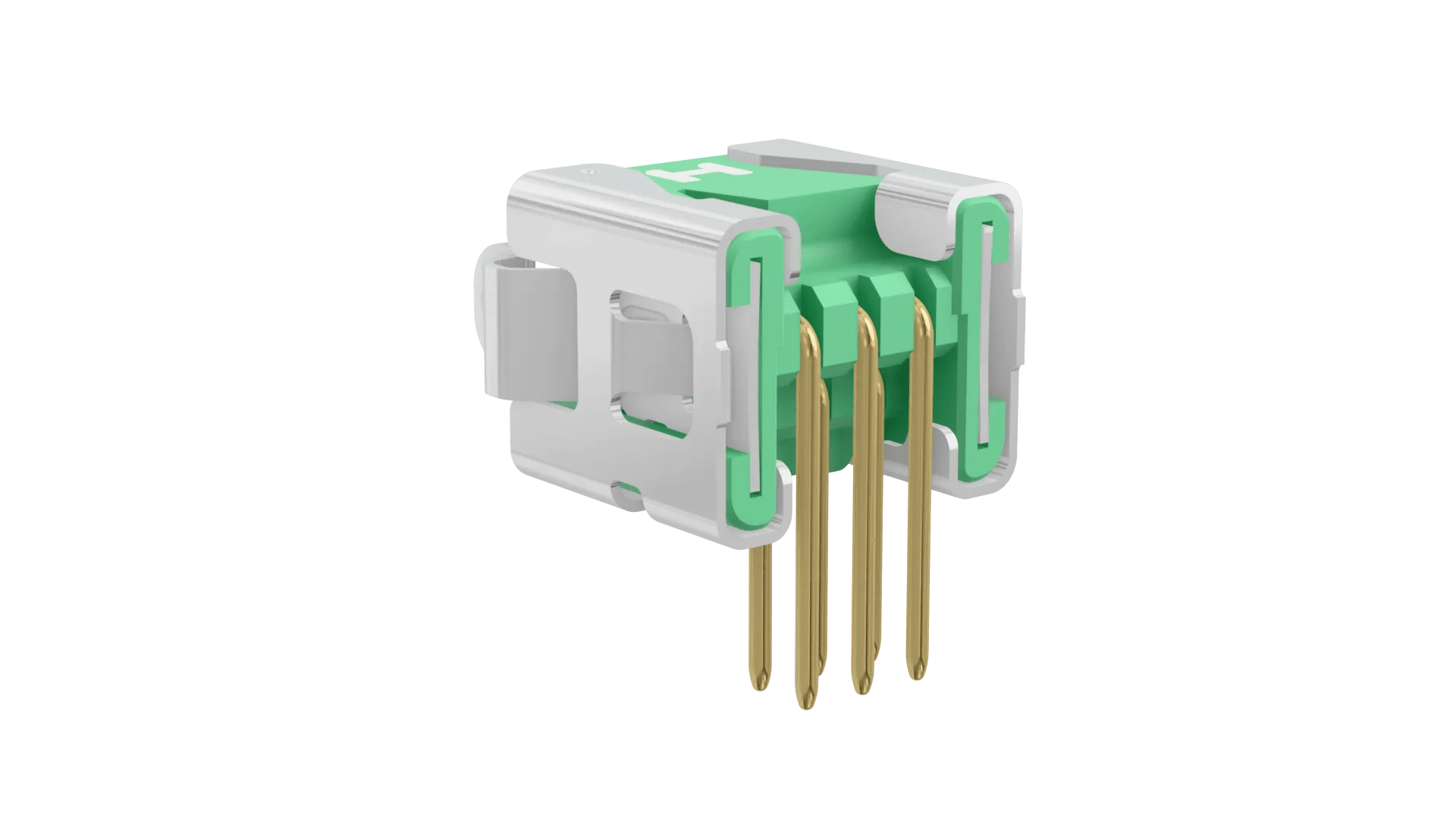

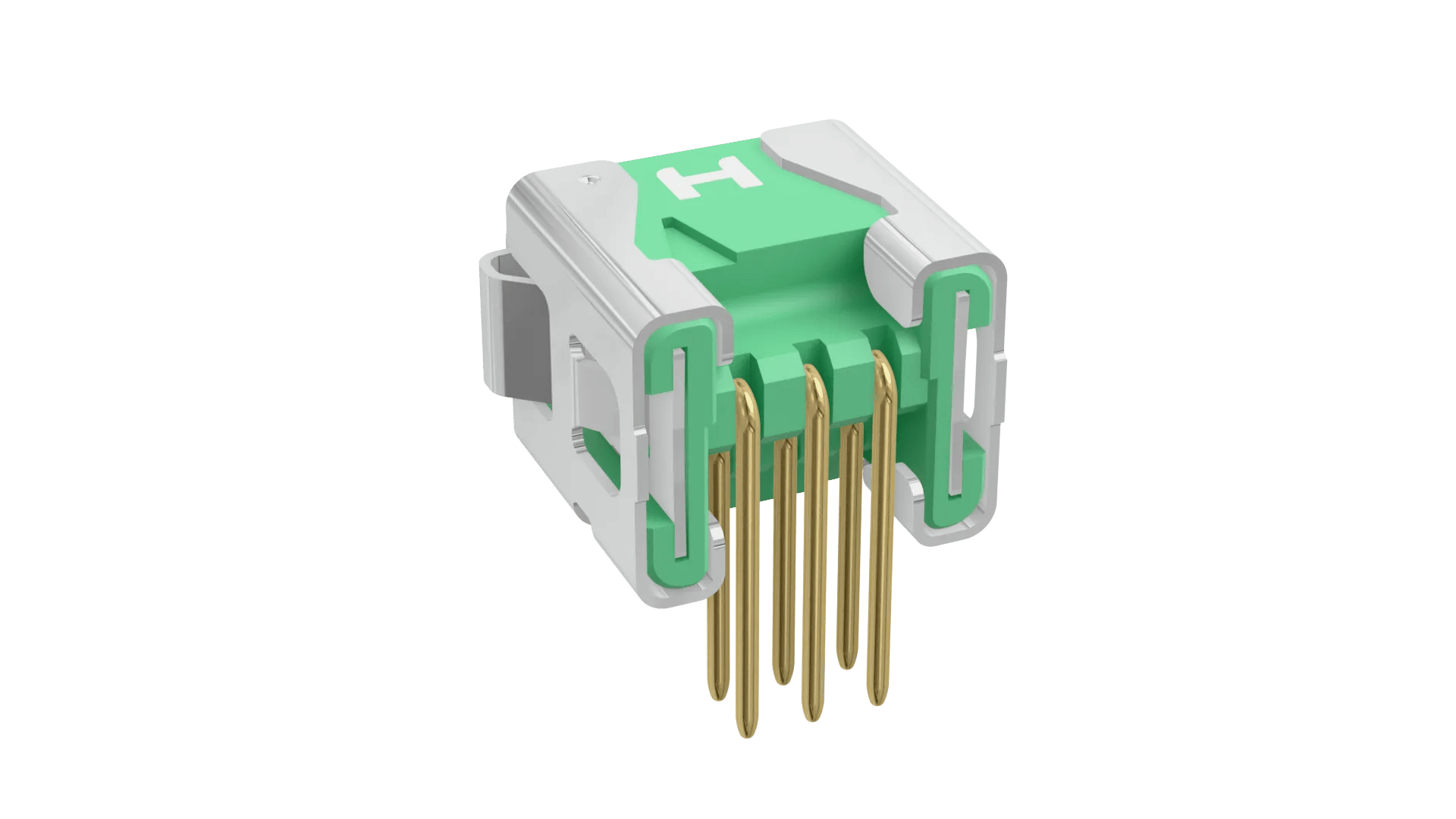

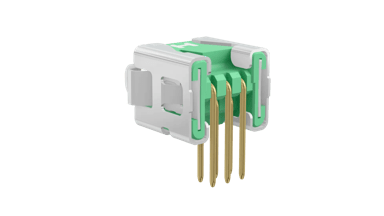

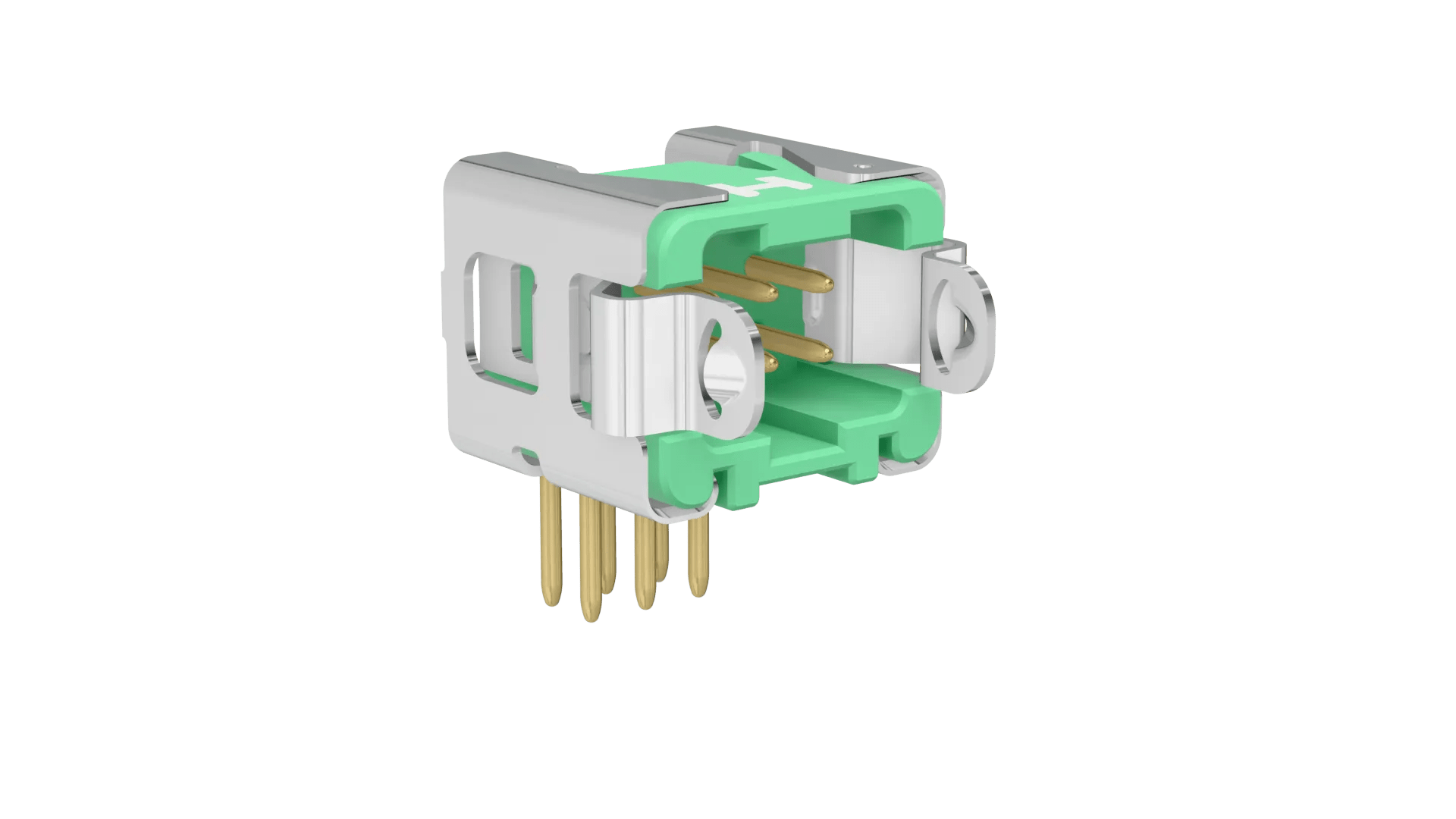

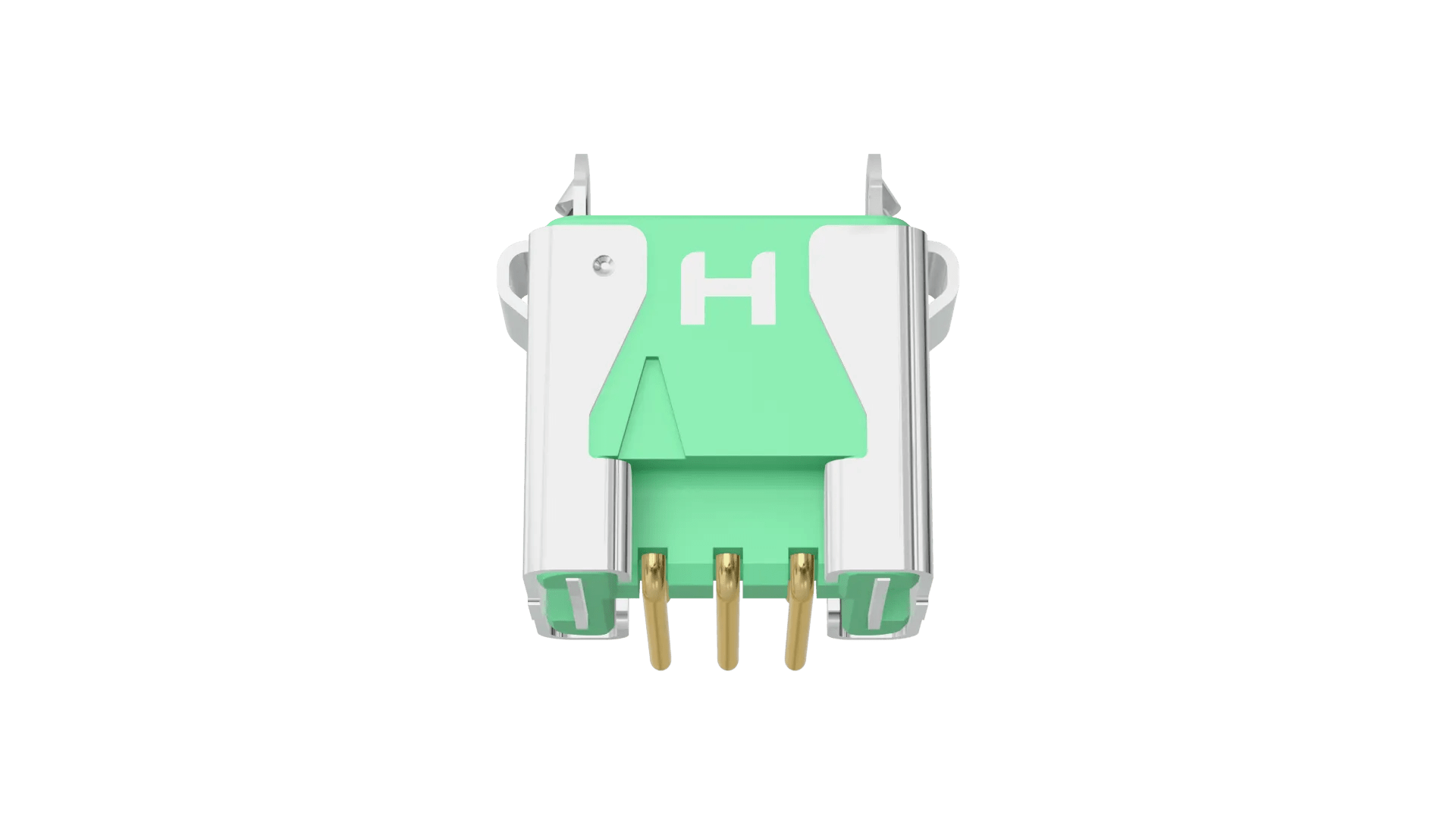

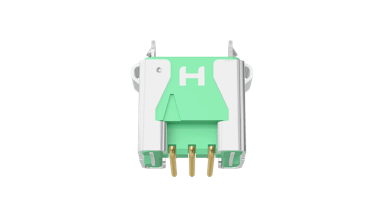

G125-MH10605L3P

3+3 Pos. Male DIL Horizontal Throughboard Conn. Latches

1.25mm Pitch High-Reliability Connector - Gecko with Latches

  • Double Row male 3.2mm PC Tail connector, Latches with Surface Mount area – 6 contacts (3+3). Surface Mount hold-down areas give additional strain relief when soldered to the PCB.
  • Supplied in tape strips. Latch style can also be used when no board fixing is required. Gold finish on contact area and termination.
  • For complete pin numbering or pin out information, see Component Specification C125XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Latches:

Locking Latch

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

6

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel Strip

Dimensions

Individual Part Weight:

0.445g

Overall Dimensions (L x W x D) in mm:

7.70 x 8.00 x 8.70

Height of Connector above PCB:

5.50mm

Length of Throughboard Tail:

3.20mm

Availability

71 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Anglia
Location Europe
Quantity (Updated Daily) 70
Distributor Farnell
Location Europe
Quantity (Updated Daily) 1

Questions & Answers Ask a Question

Can this connector go through SMT oven reflow or it can only go through wave oven?

There should be no issues with using this connector in a reflow process. The construction uses the same materials as the SMT versions of the Gecko range.

Do you have a tool to help separate this connector when it is latched to the mating half?

The tool you need is the Z125-9260600 – this will help push in the two latch buttons when the connectors are engaged, so you can then separate the mated connectors. Consult the training video for more information on using this tool. It is also possible to push in the two buttons by hand as well, if you have good access.
