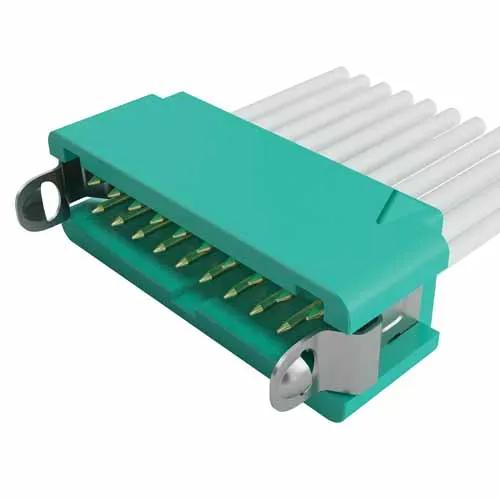

Male Single-Ended with multicolor 30 AWG cable, 310mm long - 6 contacts (3+3). Connector housing is fitted with copper alloy latches.
Manufactured with G125-1020005 crimp contacts, G125-3040696L4 Double Row cable housing. Gold finish on contact area.
For complete pin numbering or pin out information, see Component Specification C125XX.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Latching Style
Locking Latch
Mating Pin Size
Ø0.4mm
Number of Rows
2
Connector Orientation
Straight
Country of Origin
US
Side Stackable
No
Number of Signal Contacts
6
Operating Temperature
-65°C to +150°C
RoHS Status
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating
2.8A max individual contact, 2A max simultaneous (25°C)
Polarised
Yes
Cuttable
No
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
Polyamide (Nylon) 4T
Base Material of Contact
Brass
Flammability Rating
UL94V-0
Packaging Style
Bulk/Loose
Finish / Plating on Termination
Gold
Housing Colour
Green
Dimensions
Contact Pitch
1.25mm (0.049")
Weight
2.586g
Dimensions
310.00 x 6.30 x 4.90
Wire Size
30 AWG
Downloads
Technical Documentation
Technical Drawing / Datasheet - G125-XXXXXXXLX-XXXXLXX.pdf
C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Outgassing data for Harwin products (plastics)
Plating thickness on Gecko contacts (signal and power)
Product Information
Catalog page - Gecko with Latches Mating Profiles
Product Training Module - Introduction to the Gecko connectors + 1.25mm pitch High-Reliability
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
Product Training Module - Panel Mount with Gecko-SL
Product Datasheet - Gecko range: signal connectors (HRi)
Test Reports
Test Report HT030 - Gecko (G125 Series) - Electrical + Mechanical and Environmental
Test Report HT069 - Gecko Cable Assemblies - Backpotting Temperature
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
RoHS Declaration - G125-MC30668L4-0310L
