Home > G125-MC15005M1-0300F1
Active Product

G125-MC15005M1-0300F1

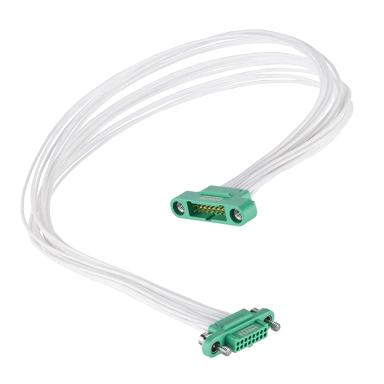

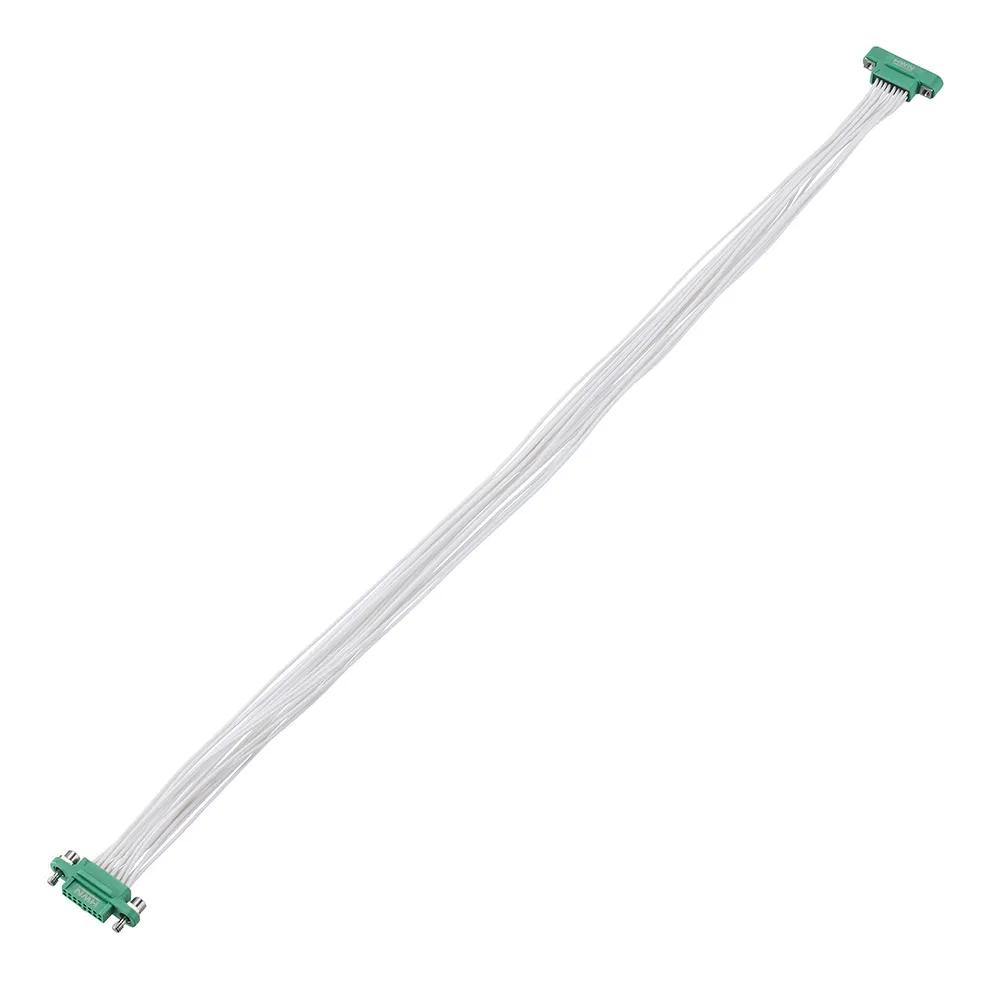

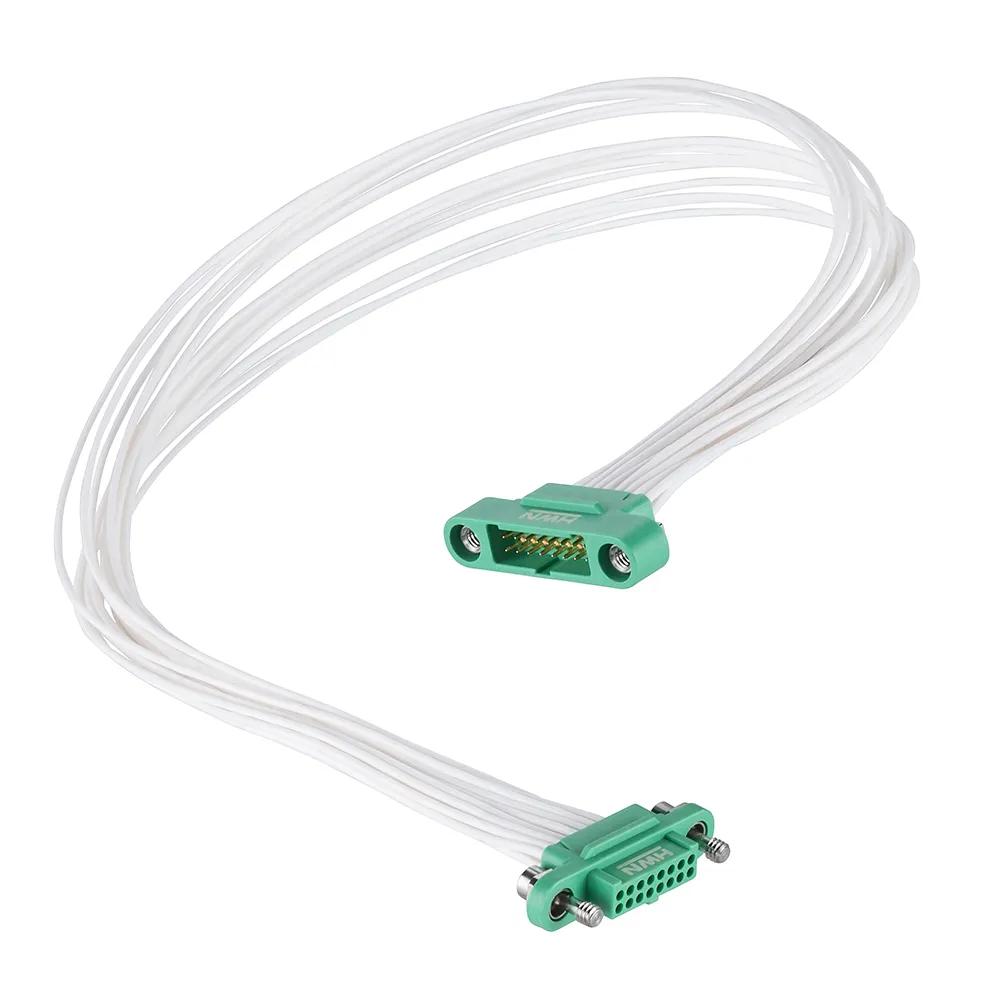

25+25 Pos. Male-Female DIL 26 AWG Cable Assembly, 300mm, Screw-Lok

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

Add to Favorites

Loading…   Check availability

6 similar products View products

Traceparts account required

Product Description

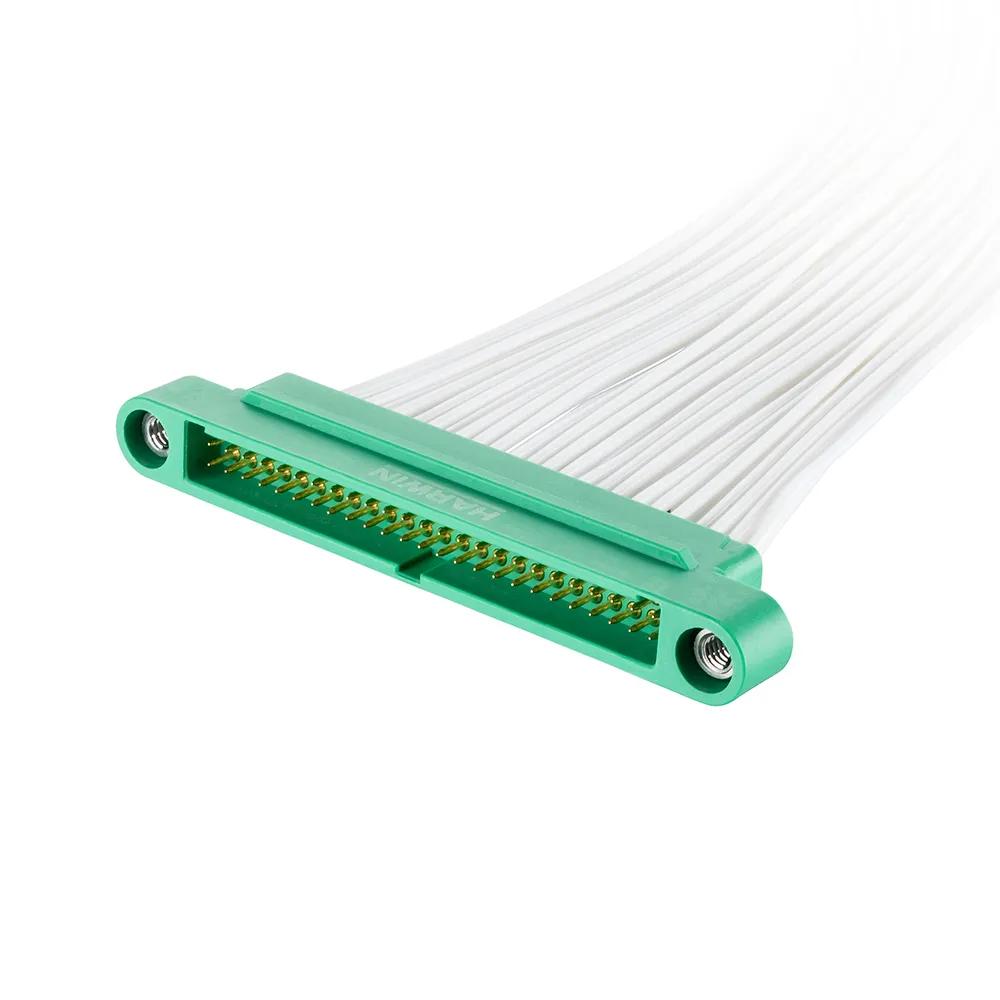

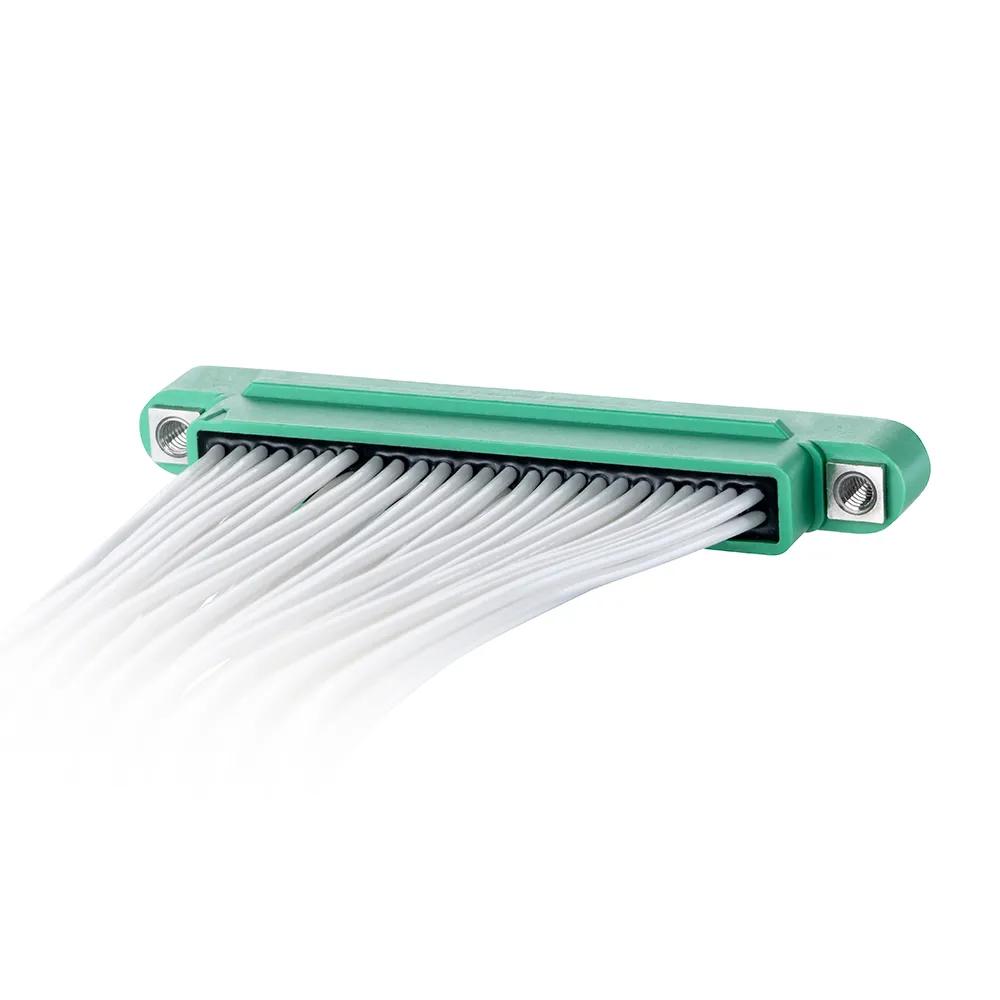

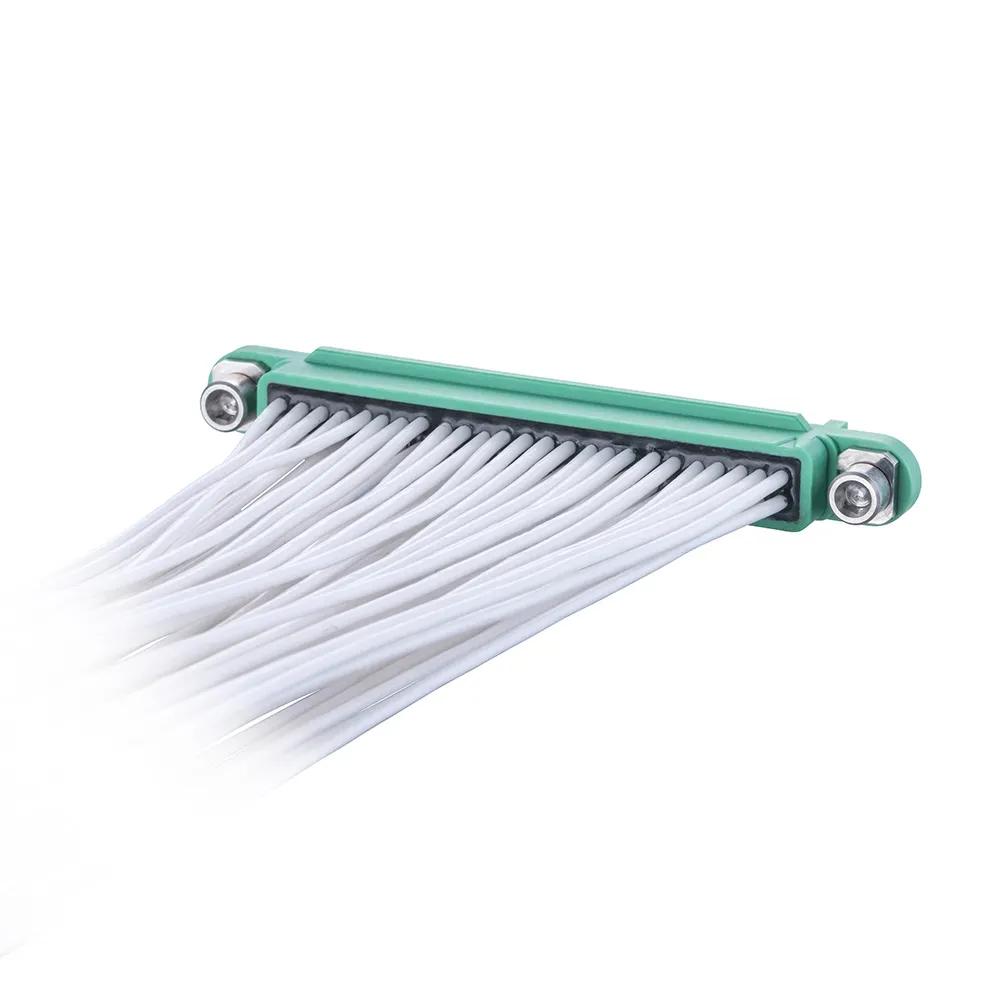

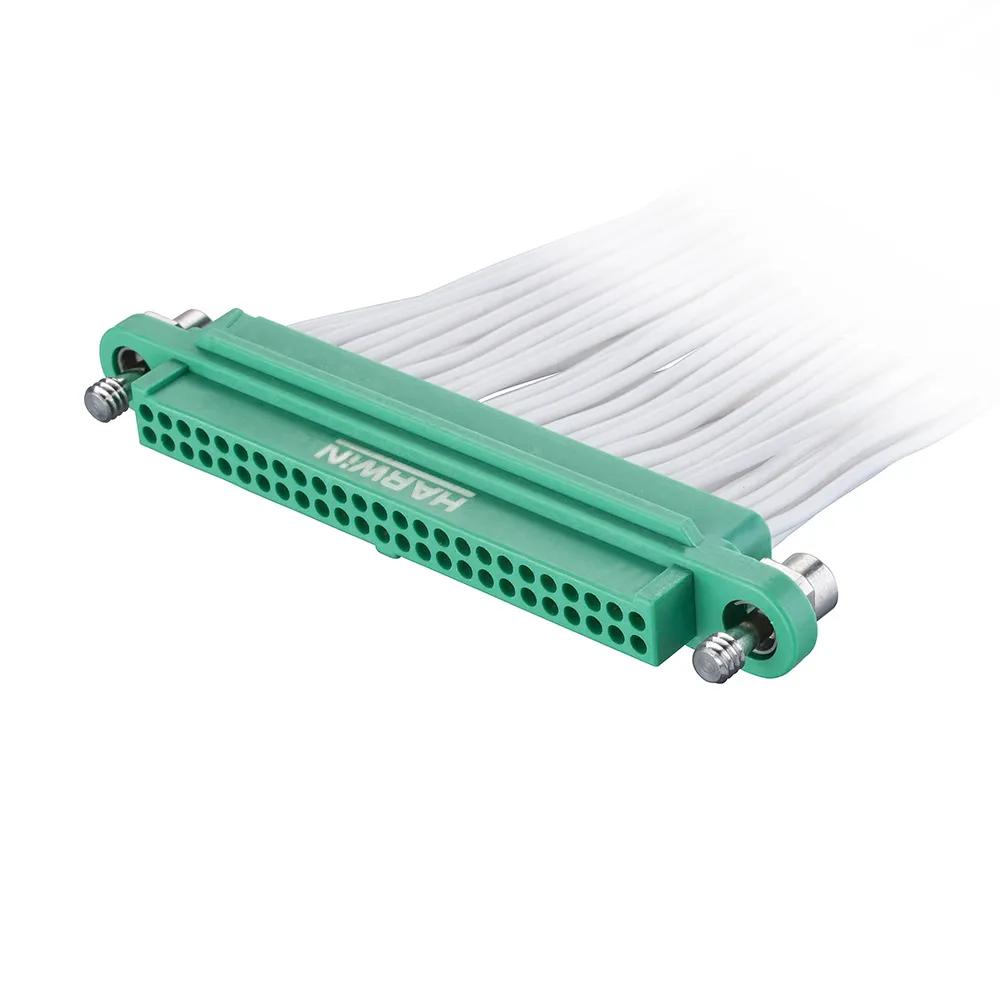

  • Male-to-Female (Female-to-Male) with white 26 AWG cable, 300mm (12″) long – 50 contacts (25+25). Male connector housing is fitted with internally threaded Screw-Lok fixings. Female connector housing is floating Screw-Lok fixings, Hexagonal socket head, Mate-before-Lock.
  • Manufactured with G125-1010005 male crimp contacts, G125-3245096M1 male Double Row crimp housing, G125-0010005 female crimp contacts and G125-2245096F1 female Double Row crimp housing. Gold finish on contact area.
  • For complete pin numbering or pin out information, see Component Specification C125XX.

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male & Female

Connector Orientation:

Straight

Connection Type:

Cable Assembly

Cable Conductor Size:

26 AWG

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Style of Jackscrews:

Internal Thread Screw-Lok (Standard Gender Male) and Floating Screw-Lok with Hex Socket Head (Standard Gender Female)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

50

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass (Male), Beryllium Copper (Female)

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

33.564g

Overall Dimensions (L x W x D) in mm:

300.00 x 42.70 x 6.50

Thread Size:

M2

Frequently Asked Questions Ask a Question

What torque value should be used for these screw-loks?

The torque value for mating screw-loks is 16-18cmN. This value is given in the Component Specification C125xx (page 3).

Was this answer useful?

What is the process or technician training certification ensured for pre-crimped and wired connectors?

Our operators assembling all our cable assemblies are trained to IPC-A-620 requirements, as well as our own specific tooling instructions for the products involved.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with Exemption 6c
