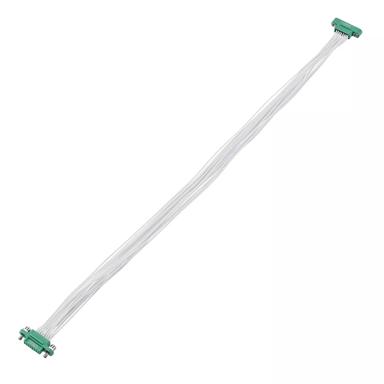

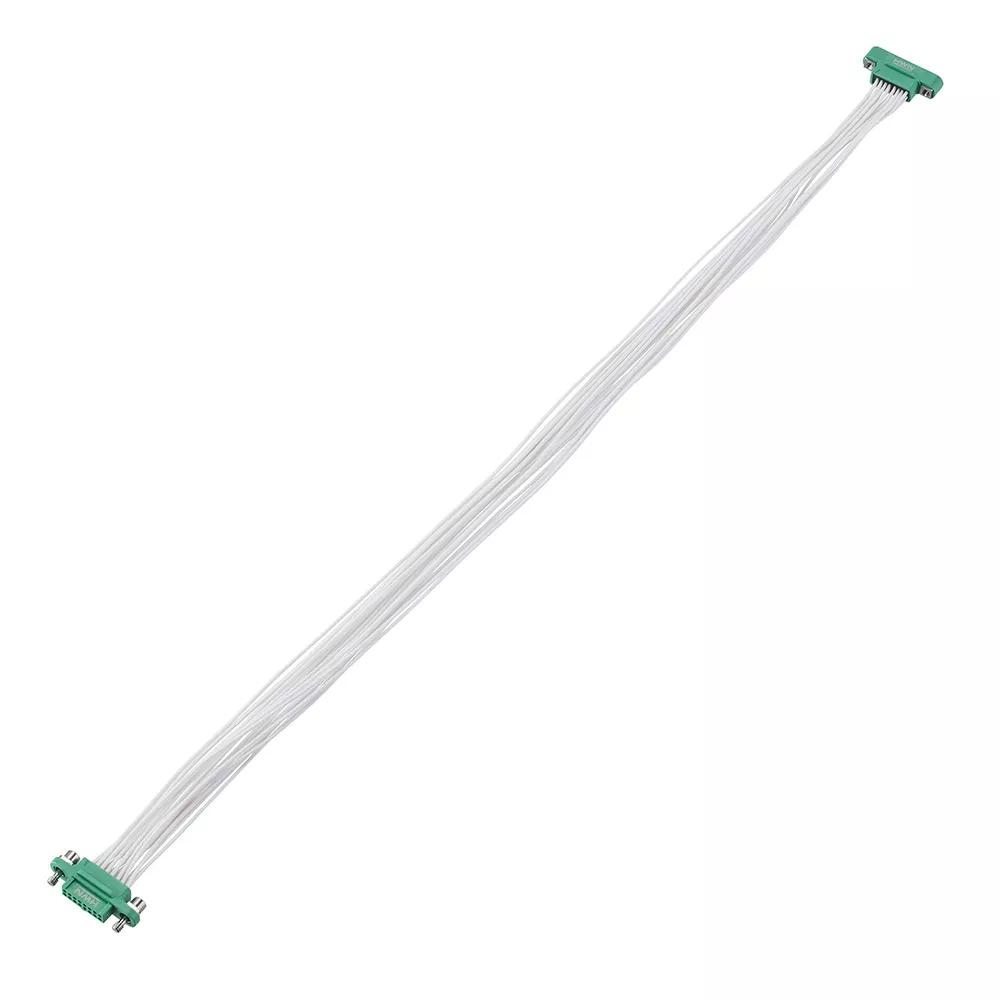

17+17 Pos. Male DIL 26AWG Cable Assembly, 150mm, Female 2nd end, Screw-Lok
1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

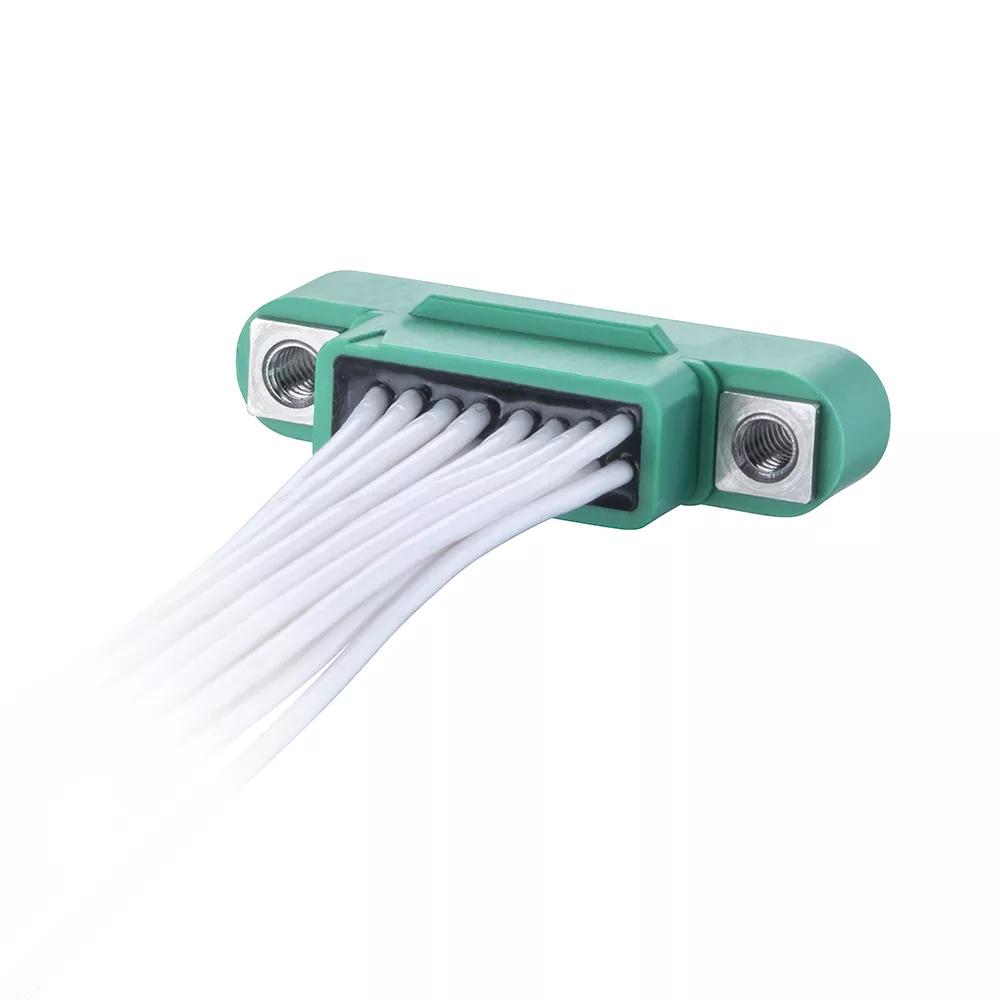

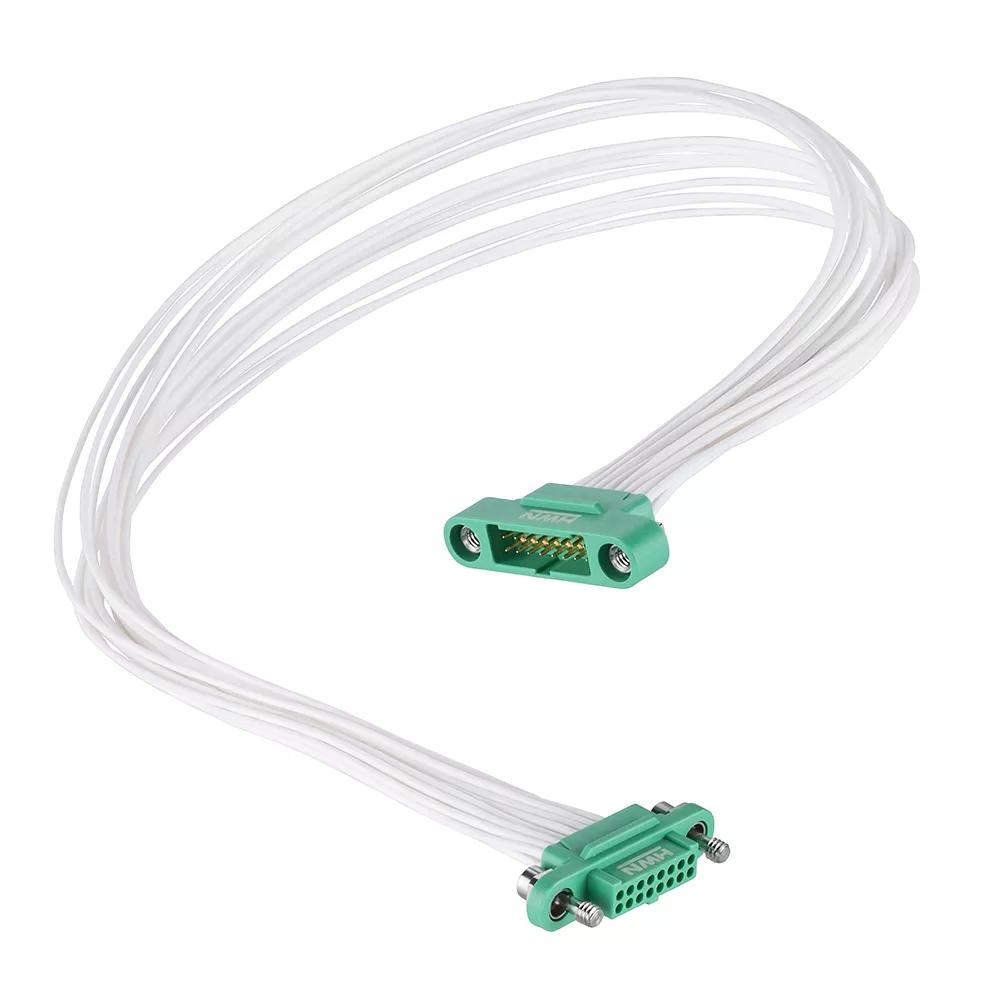

- Male-to-Female (Female-to-Male) with white 26 AWG cable, 150mm long – 34 contacts (17+17). Male connector housing is fitted with internally threaded Screw-Lok fixings. Female connector housing is floating Screw-Lok fixings, Hexagonal socket head, Mate-before-Lock.
- Manufactured with G125-1010005 male crimp contacts, G125-3243496M1 male Double Row crimp housing, G125-0010005 female crimp contacts and G125-2243496F1 female Double Row crimp housing. Gold finish on contact area.
- For complete pin numbering or pin out information, see Component Specification C125XX.
EU RoHS Status:
Male & Female
Cable Conductor Size:
Mating Pin Size:
2.8A max individual contact, 2A max simultaneous (25°C)
-65°C to +150°C
Style of Jackscrews:
Internal Thread Screw-Lok (Standard Gender Male) and Floating Screw-Lok with Hex Socket Head (Standard Gender Female)
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Brass (Male), Beryllium Copper (Female)
Polyamide (Nylon) 4T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
150.00 x 32.70 x 6.50
20 in stock
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
Questions & Answers Ask a Question
What torque value should be used for these screw-loks?
The torque value for mating screw-loks is 16-18cmN. This value is given in the Component Specification C125xx (page 3).
What is the process or technician training certification ensured for pre-crimped and wired connectors?
Our operators assembling all our cable assemblies are trained and certified to IPC-A-620 requirements, as well as our own specific tooling instructions for the products involved.
Want to talk to someone?
Contact one of our technical experts via “Ask an Expert”, or book a 30 minute technical consultation.
ECAD Download Options
Download 3D CAD product models directly from Harwin – STP and IGES.Download
No login is required.
