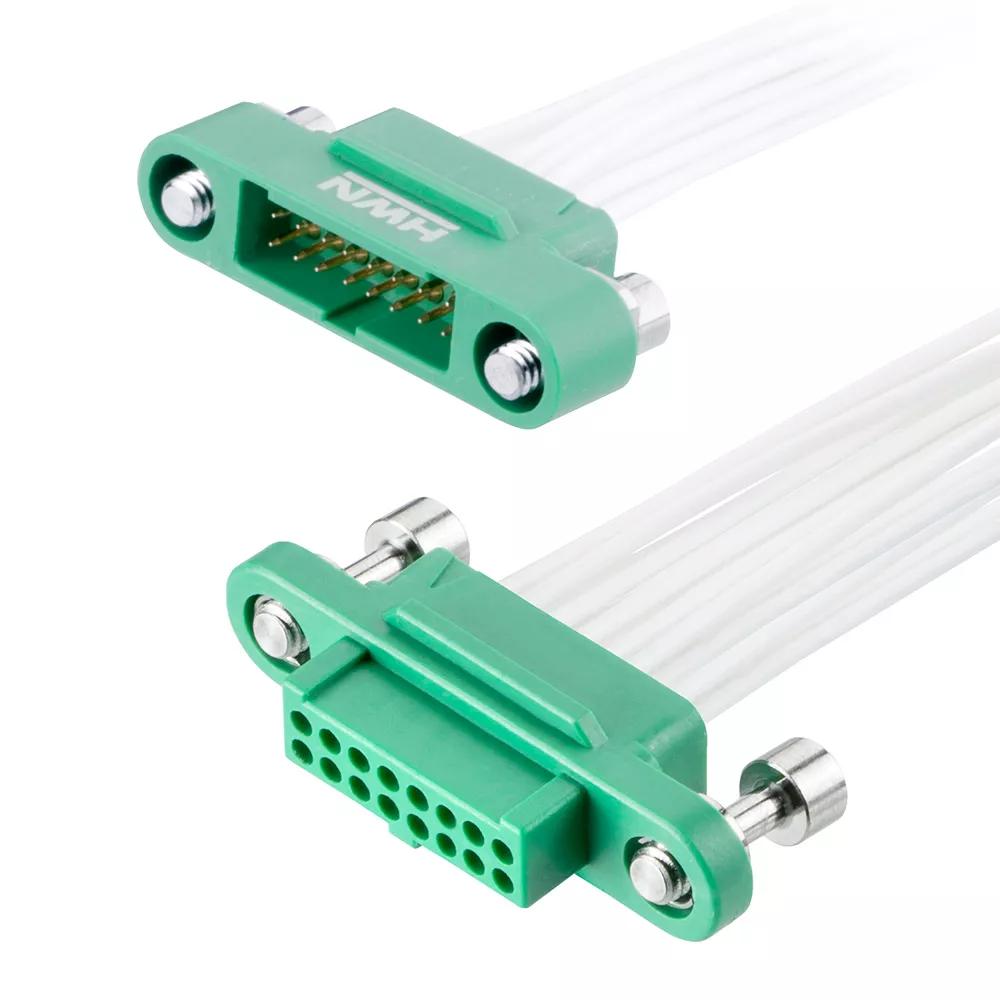

Male-to-Female (Female-to-Male) with white 26 AWG cable, 80mm long - 20 contacts (10+10). Connector housings are fitted with with floating Screw-Lok fixings, Hexagonal socket head, Mate-before Lock - female is standard gender, male is reverse fixing.
Manufactured with G125-1010005 male crimp contacts, G125-3242096M3 male Double Row crimp housing, G125-0010005 female crimp contacts and G125-2242096F1 female Double Row crimp housing. Gold finish on contact area.
For complete pin numbering or pin out information, see Component Specification C125XX.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Screw Fixing (floating) with Hex Socket Head
Mating Pin Size:
Ø0.4mm
Number of Rows:
2
Connector Orientation:
Straight
Country of Origin:
US
Side Stackable:
No
Number of Signal Contacts:
20
Operating Temperature:
-65°C to +150°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
2.8A max individual contact, 2A max simultaneous (25°C)
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
Polyamide (Nylon) 4T
Base Material of Contact:
Brass (Male), Beryllium Copper (Female)
Flammability Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Finish / Plating on Termination:
Gold
Housing Colour:
Green
Dimensions
Contact Pitch:
1.25mm (0.049")
Weight:
5.532g
Dimensions:
80.00 x 23.95 x 6.50
Thread Size:
M2
Wire Size:
26 AWG
