10+10 Pos. Male DIL 26AWG Cable Assembly, 300mm, Female 2nd end, Screw-Lok
1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

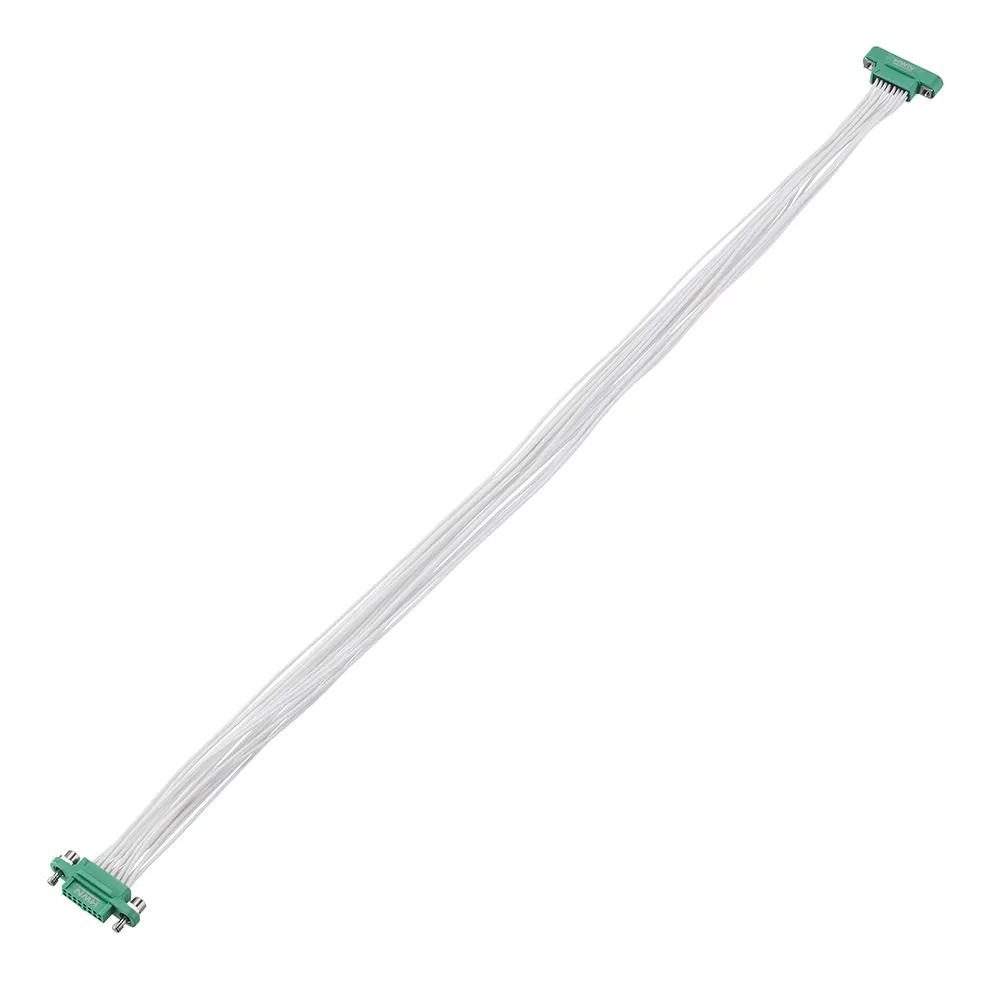

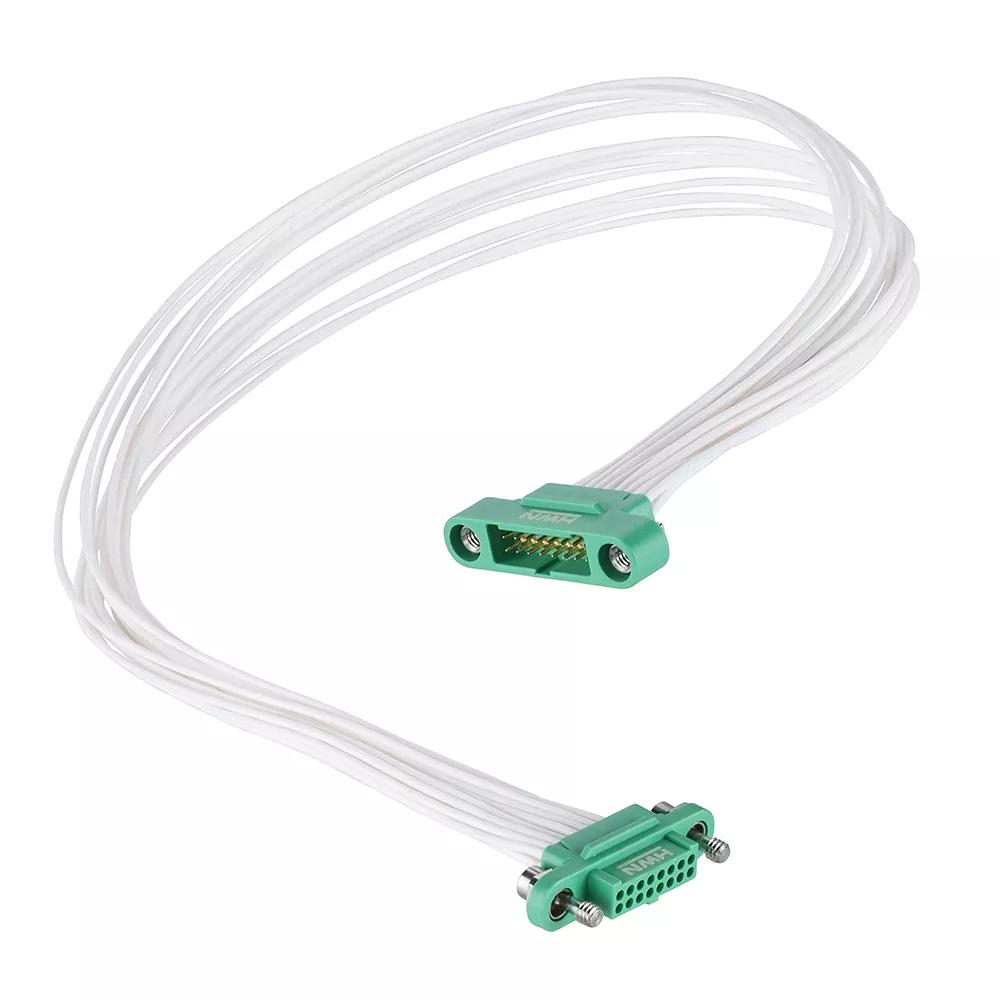

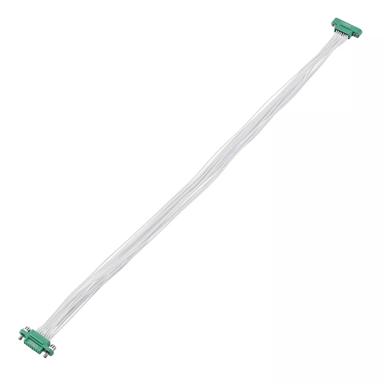

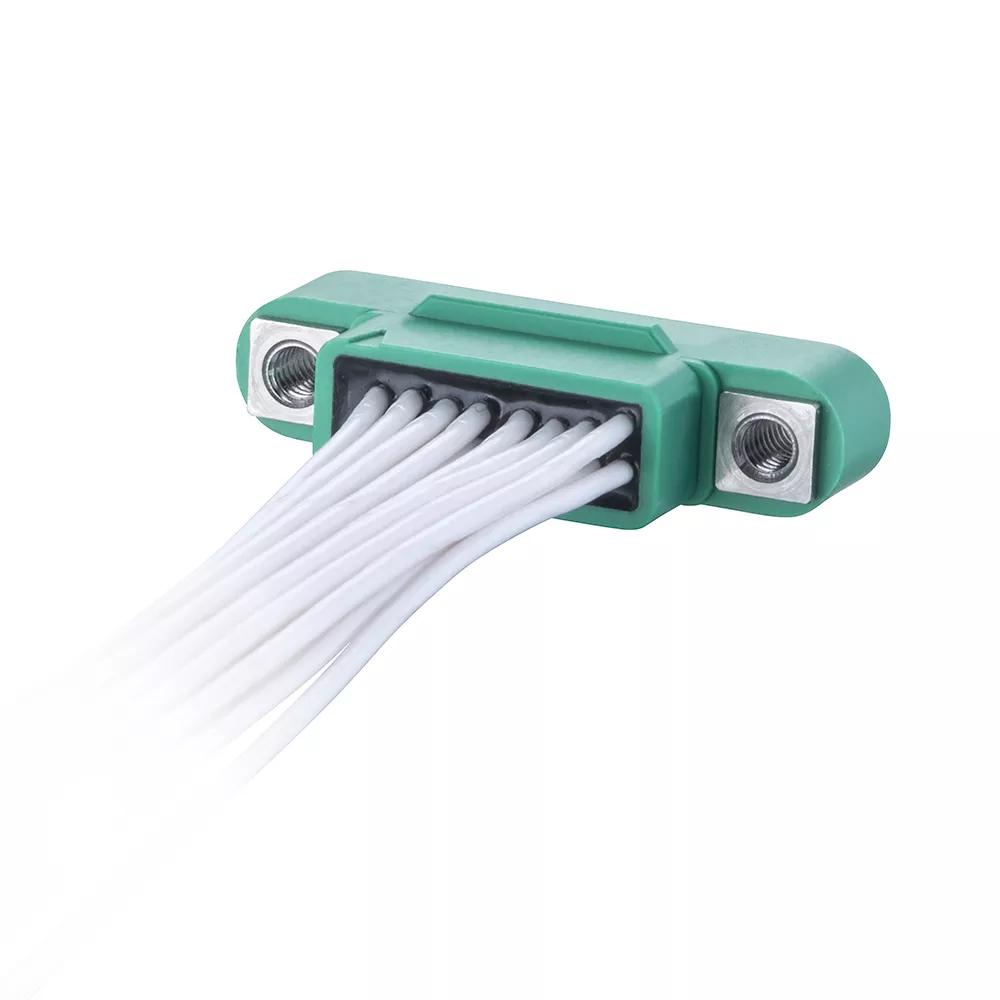

- Male-to-Female (Female-to-Male) with white 26 AWG cable, 300mm long – 20 contacts (10+10). Male connector housing is fitted with internally threaded Screw-Lok fixings. Female connector housing is floating Screw-Lok fixings, Hexagonal socket head, Mate-before-Lock.
- Manufactured with G125-1010005 male crimp contacts, G125-3242096M1 male Double Row crimp housing, G125-0010005 female crimp contacts and G125-2242096F1 female Double Row crimp housing. Gold finish on contact area.
- For complete pin numbering or pin out information, see Component Specification C125XX.
EU RoHS Status:
Male & Female
Cable Conductor Size:
Mating Pin Size:
2.8A max individual contact, 2A max simultaneous (25°C)
-65°C to +150°C
Style of Jackscrews:
Internal Thread Screw-Lok (Standard Gender Male) and Floating Screw-Lok with Hex Socket Head (Standard Gender Female)
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Brass (Male), Beryllium Copper (Female)
Polyamide (Nylon) 4T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
300.00 x 23.95 x 6.50
18 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Questions & Answers Ask a Question
What torque value should be used for these screw-loks?
The torque value for mating screw-loks is 16-18cmN. This value is given in the Component Specification C125xx (page 3).
What is the process or technician training certification ensured for pre-crimped and wired connectors?
Our operators assembling all our cable assemblies are trained and certified to IPC-A-620 requirements, as well as our own specific tooling instructions for the products involved.
