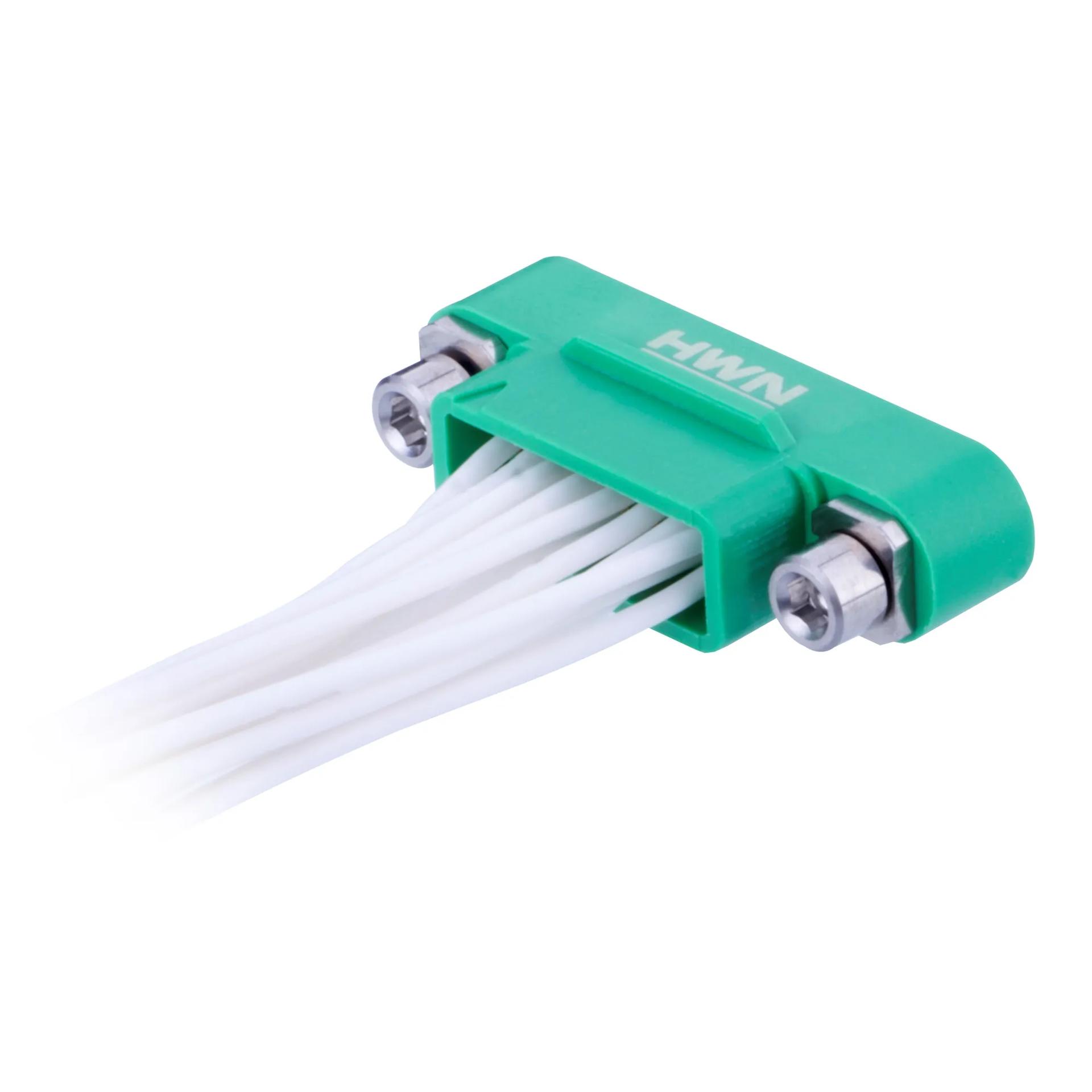

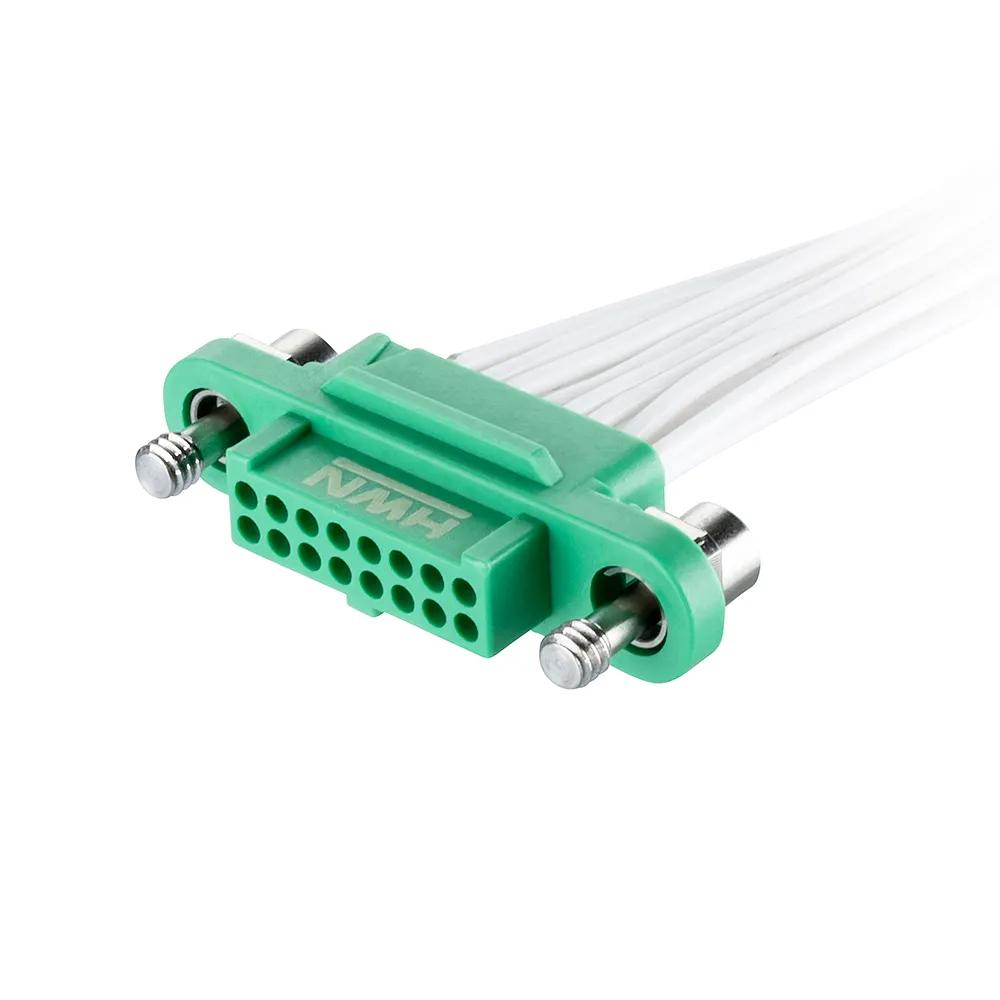

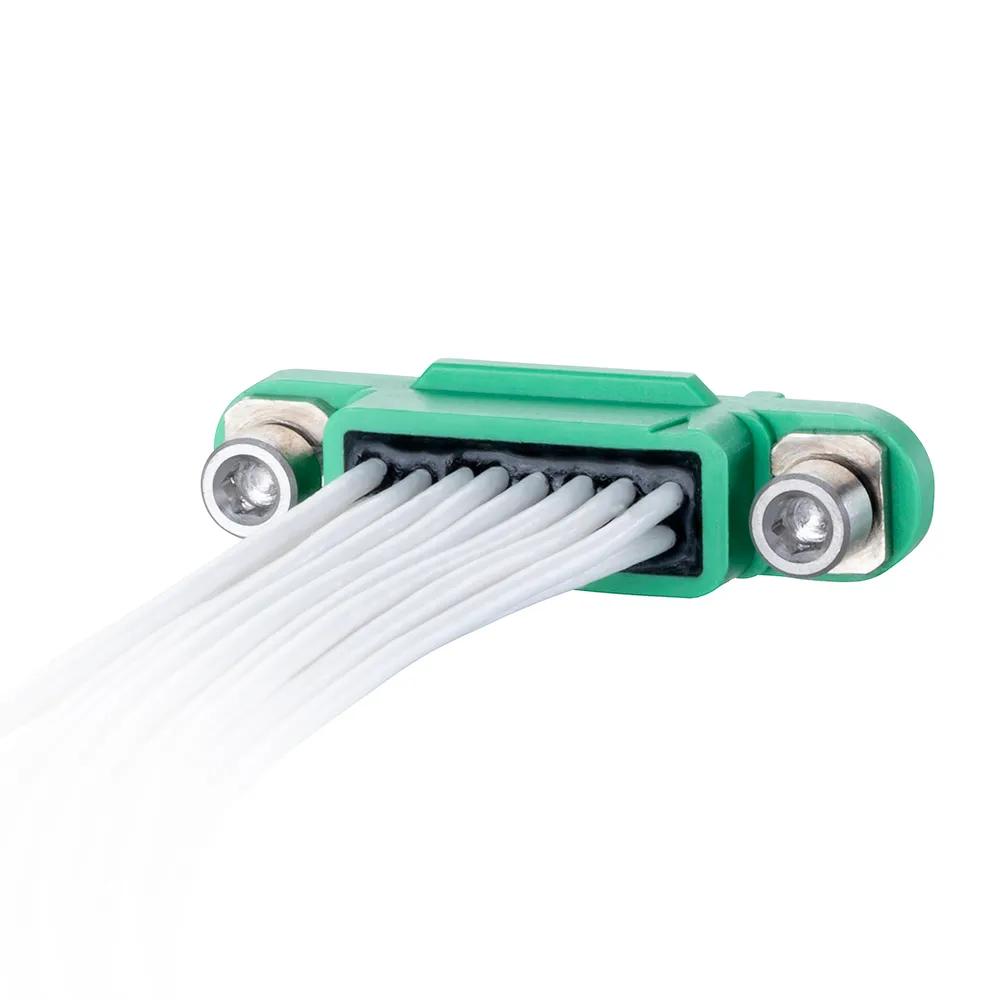

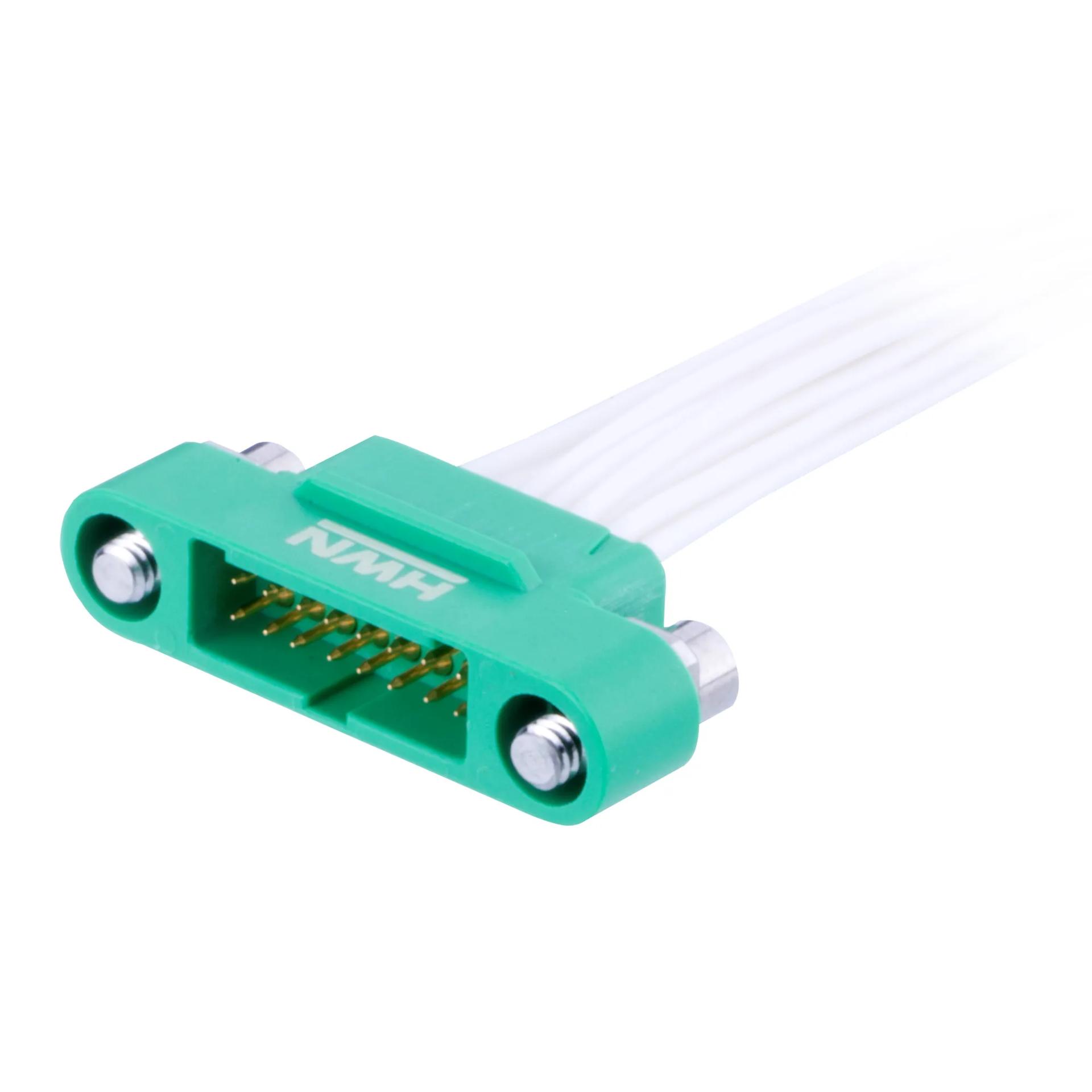

Male-to-Female (Female-to-Male) with white 26 AWG cable, 80mm long - 16 contacts (8+8). Connector housings are fitted with with floating Screw-Lok fixings, Hexagonal socket head, Mate-before Lock - female is standard gender, male is reverse fixing.
Manufactured with G125-1010005 male crimp contacts, G125-3241696M3 male Double Row cable housing, G125-0010005 female crimp contacts and G125-2241696F1 female Double Row cable housing. Gold finish on contact area.
For complete pin numbering or pin out information, see Component Specification C125XX.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Style of Jackscrews
Screw Fixing (floating) with Hex Socket Head
Mating Pin Size
Ø0.4mm
Number of Rows
2
Connector Orientation
Straight
Country of Origin
US
Side Stackable
No
Number of Signal Contacts
16
Operating Temperature
-65°C to +150°C
RoHS Status
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating
2.8A max individual contact, 2A max simultaneous (25°C)
Polarised
Yes
Cuttable
No
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
Polyamide (Nylon) 4T
Base Material of Contact
Brass (Male), Beryllium Copper (Female)
Flammability Rating
UL94V-0
Packaging Style
Bulk/Loose
Finish / Plating on Termination
Gold
Housing Colour
Green
Dimensions
Contact Pitch
1.25mm (0.049")
Weight
4.758g
Dimensions
80.00 x 21.45 x 6.50
Thread Size
M2
Wire Size
26 AWG
