G125-MC11605M1-0300M1

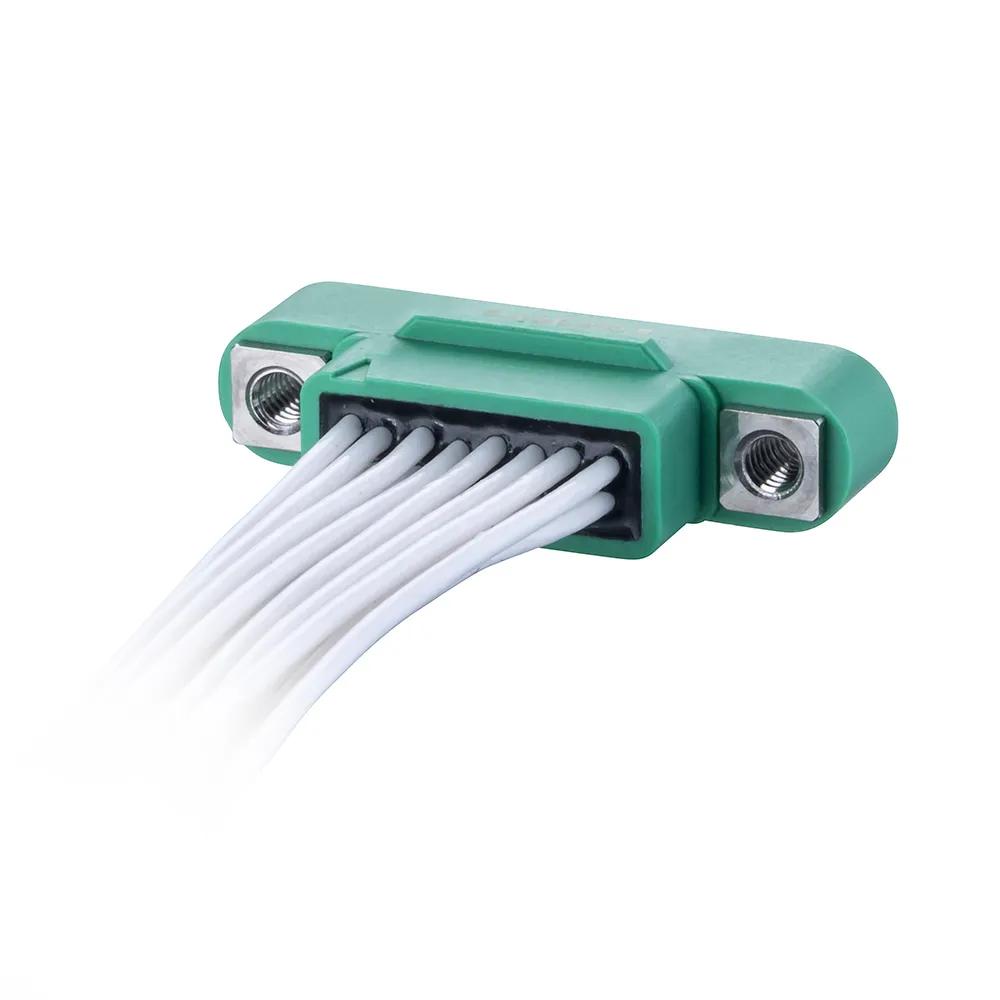

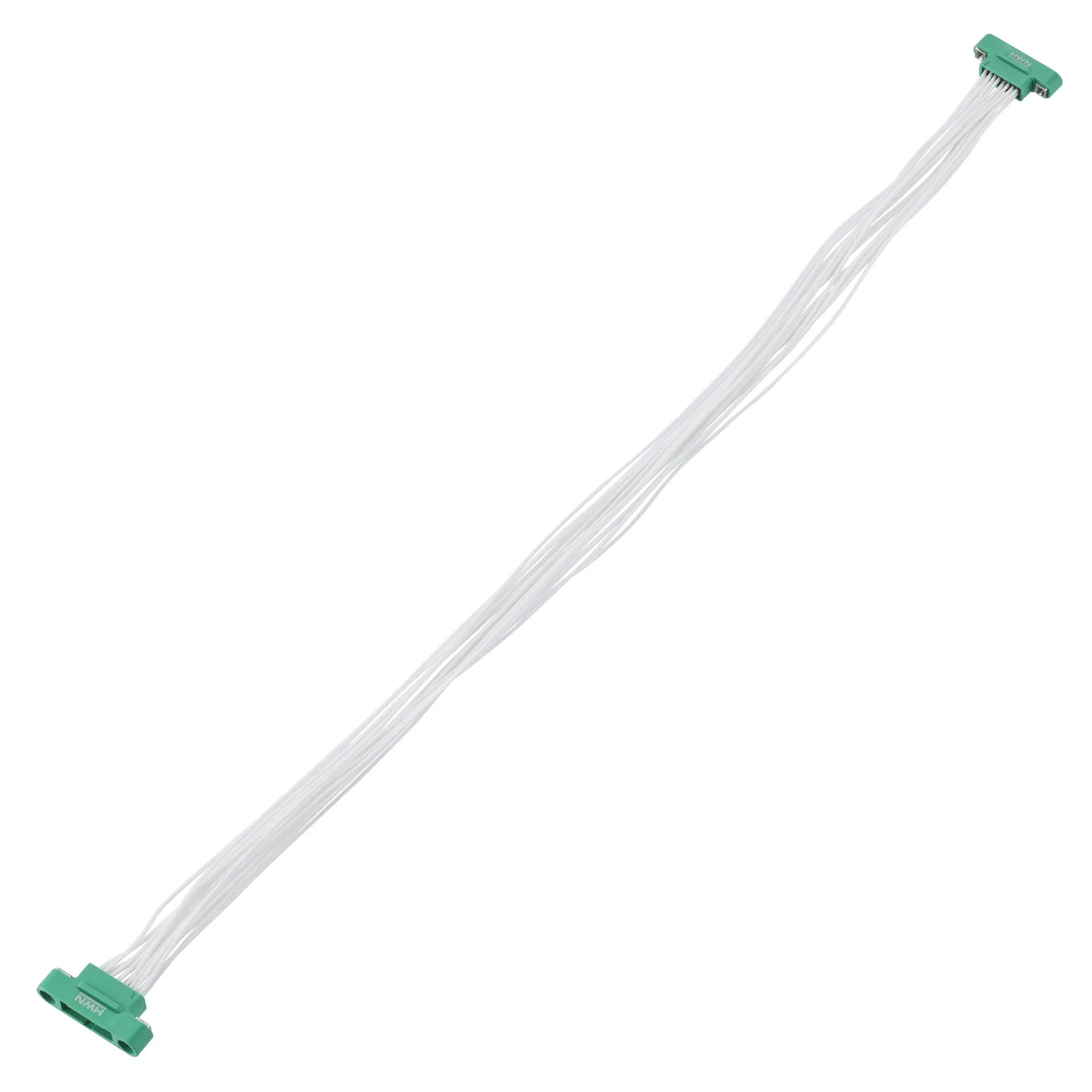

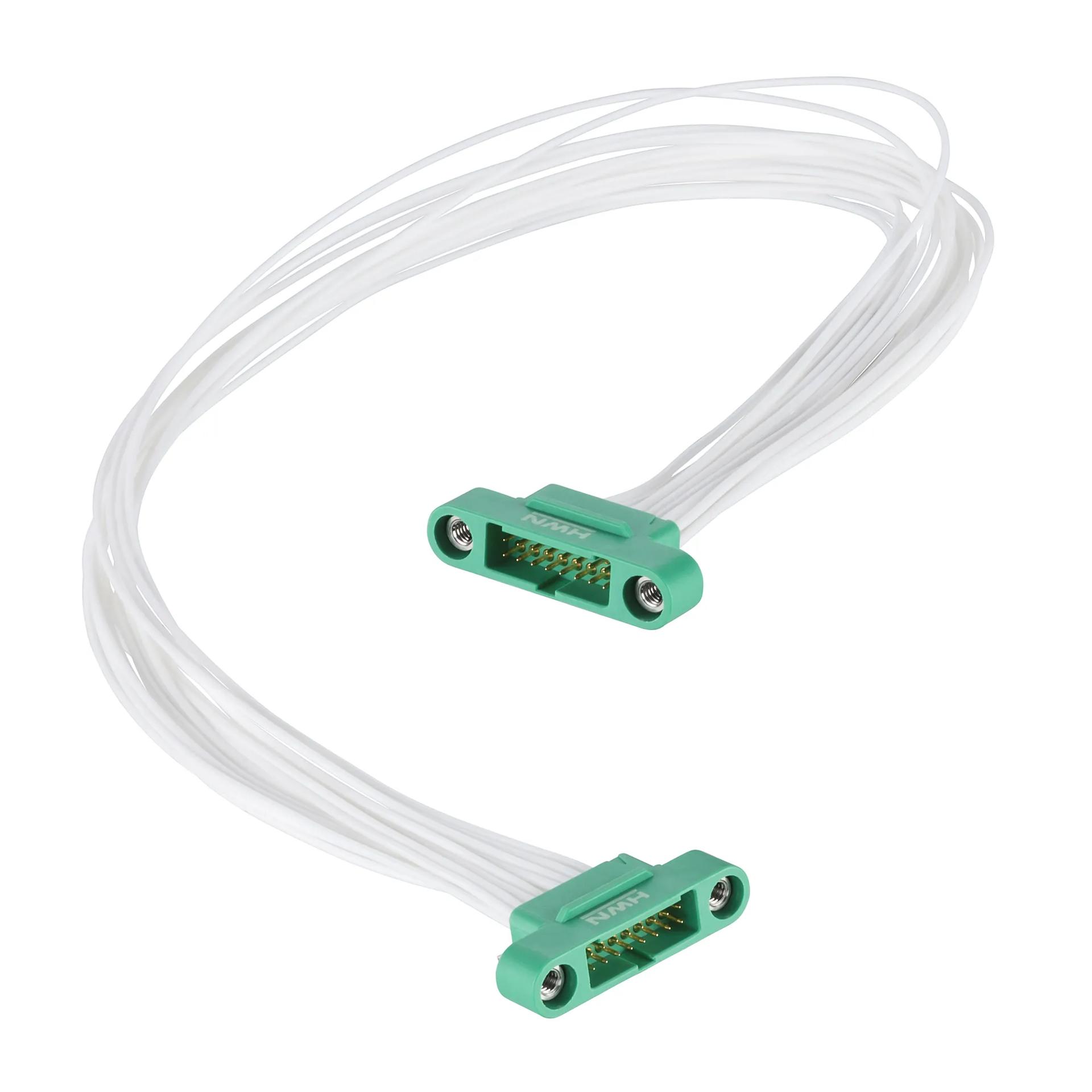

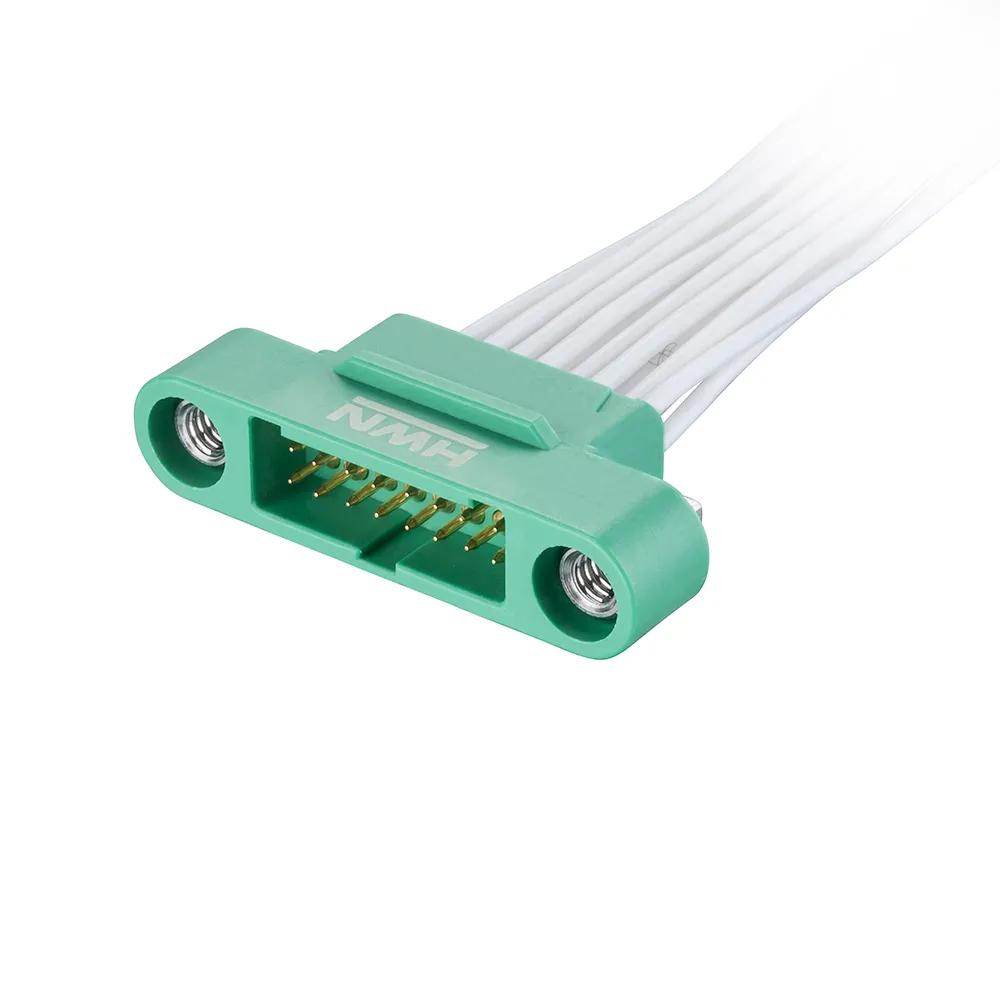

8+8 Pos. Male DIL 26AWG Cable Assembly, 300mm, double-end, Screw-Lok

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

  • Male-to-Male with white 26 AWG cable, 300mm long – 16 contacts (8+8).
  • Manufactured with G125-1010005 male crimp contacts and G125-3241696M1 male Double Row crimp housing.
  • Fitted with internally threaded Screw-Lok fixings.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable Assembly

Cable Conductor Size:

26AWG

Mating Pin Size:

Ø0.4mm

Current Rating:

2A

Operating Temperature:

-65°C to +150°C

Style of Jackscrews:

Screw-Lok

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

16

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

11.045g

Overall Dimensions (L x W x D) in mm:

300.00 x 21.45 x 6.50

Thread Size:

M2

Availability

Popular product
Distributor Location Quantity
Digi-Key
Global
Status10
Harwin
Europe
Status170
Mouser Electronics Inc
Global
Status10

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

No questions have been asked yet

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - G125-MCXXX05M1-XXXXM1.pdf

ZIP

G125-MC11605M1-0300M1 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

PDF

C049XX Component Specification - Cable Assembly Specifications for all product groups

TEST REPORTS

PDF

Test Report HT030 - Gecko (G125 Series) - Electrical, Mechanical and Environmental

PDF

Test Report HT067 - Gecko-SL (G125 Series) - Mechanical Screw-Lok test

PDF

Test Report HT069 - Gecko Cable Assemblies - Backpotting Temperature

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (12-Feb-2020) including 205 SVHC (16-Jan-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 5.12) - Company Summary Statement

PDF

Material composition for G125-MC1XX05M1-YYYYM1 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Gecko Screw-Lok range, 1.25mm pitch High-Reliability

OTHER DOWNLOADS

PDF

Catalog page - Gecko Screw-Lok Male Cable Assemblies

PDF

Catalog page - Gecko Screw-Lok Specification, Pin Numbering

PDF

Catalog page - Gecko Screw-Lok Mating Profiles

PDF

Catalog page - Gecko Introduction
