8+8 Pos. Male DIL 26AWG Cable Assembly, 450mm, single-end, Latches
1.25mm Pitch High-Reliability Connector - Gecko with Latches

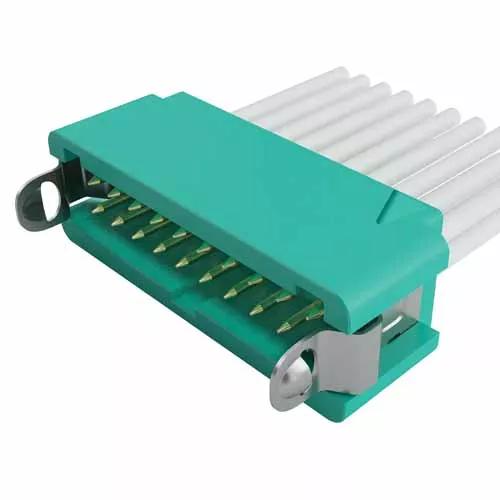

- Male Single-Ended with white 26 AWG cable, 450mm long – 16 contacts (8+8). Connector housing is fitted with copper alloy latches.
- Manufactured with G125-1010005 male crimp contacts and G125-3041696L4 male Double Row crimp housing. Gold finish on contact area.
- For complete pin numbering or pin out information, see Component Specification C125XX.
EU RoHS Status:
Cable Conductor Size:
Mating Pin Size:
2.8A max individual contact, 2A max simultaneous (25°C)
-65°C to +150°C
Style of Latches:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 4T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
450.00 x 13.95 x 4.90
152 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Stock held by Harwin: contact distributor to purchase.
Questions & Answers Ask a Question
What is the process or technician training certification ensured for pre-crimped and wired connectors?
Our operators assembling all our cable assemblies are trained and certified to IPC-A-620 requirements, as well as our own specific tooling instructions for the products involved.
Do you have a tool to help separate this connector when it is latched to the mating half?
The tool you need is the Z125-9261600 – this will help push in the two latch buttons when the connectors are engaged, so you can then separate the mated connectors. Consult the training video for more information on using this tool. It is also possible to push in the two buttons by hand as well, if you have good access.
