G125-MC11205L4-0150F
6+6 Pos. Male DIL 26AWG Cable Assembly, 150mm, Female 2nd end, Latches
1.25mm Pitch High-Reliability Connector - Gecko with Latches
Made to order
11 similiar products View products
Samacsys account required
No login is required
Product Description

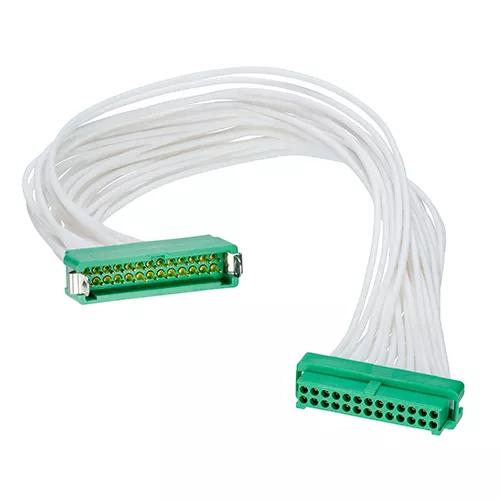

- Male-to-Female (Female-to-Male) with white 26 AWG cable, 150mm long – 12 contacts (6+6). Male connector housing is fitted with copper alloy latches. Female connector housing is compatible for mating to male connectors with latches.
- Manufactured with G125-1010005 male crimp contacts, G125-3041296L4 male Double Row crimp housing, G125-0010005 female crimp contacts and G125-2041296L0 female Double Row crimp housing. Gold finish on contact area.
- For complete pin numbering or pin out information, see Component Specification C125XX.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.25mm (0.049")
Contact Gender:
Male & Female
Connector Orientation:
Straight
Connection Type:
Cable Assembly
Cable Conductor Size:
26AWG
Mating Pin Size:
Ø0.4mm
Current Rating:
2.8A max individual contact, 2A max simultaneous (25°C)
Operating Temperature:
-65°C to +150°C
Style of Latches:
Locking Latch
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
12
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Brass (Male), Beryllium Copper (Female)
Housing Material:
Polyamide (Nylon) 4T
Housing Colour:
Green
Housing Material UL Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
4.297g
Overall Dimensions (L x W x D) in mm:
150.00 x 11.45 x 4.90
Mating Profiles:
Frequently Asked Questions Ask a Question
What is the process or technician training certification ensured for pre-crimped and wired connectors?
Our operators assembling all our cable assemblies are trained and certified to IPC-A-620 requirements, as well as our own specific tooling instructions for the products involved.
Was this answer useful?
Do you have a tool to help separate this connector when it is latched to the mating half?
The tool you need is the Z125-9261200 – this will help push in the two latch buttons when the connectors are engaged, so you can then separate the mated connectors. Consult the training video for more information on using this tool. It is also possible to push in the two buttons by hand as well, if you have good access.
