G125-MC11005M1-0450L

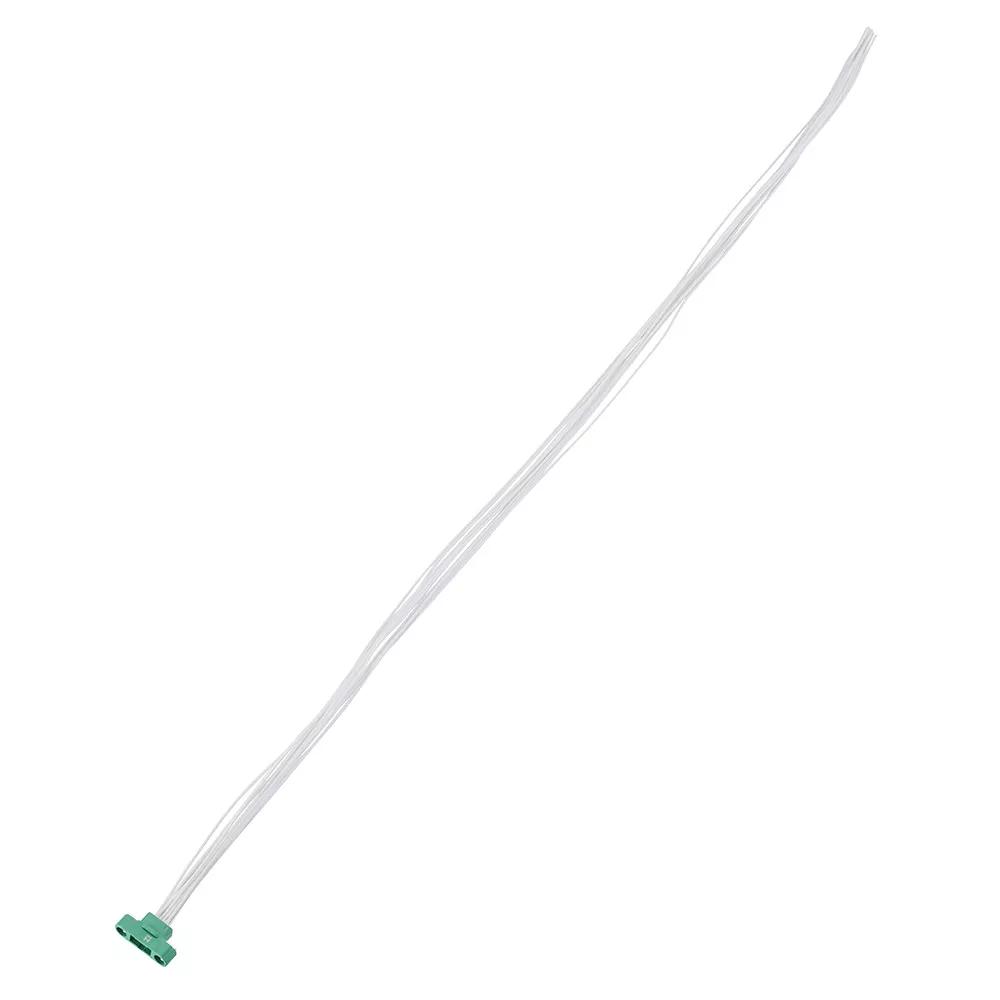

5+5 Pos. Male DIL 26AWG Cable Assembly, 450mm, single-end, Screw-Lok

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

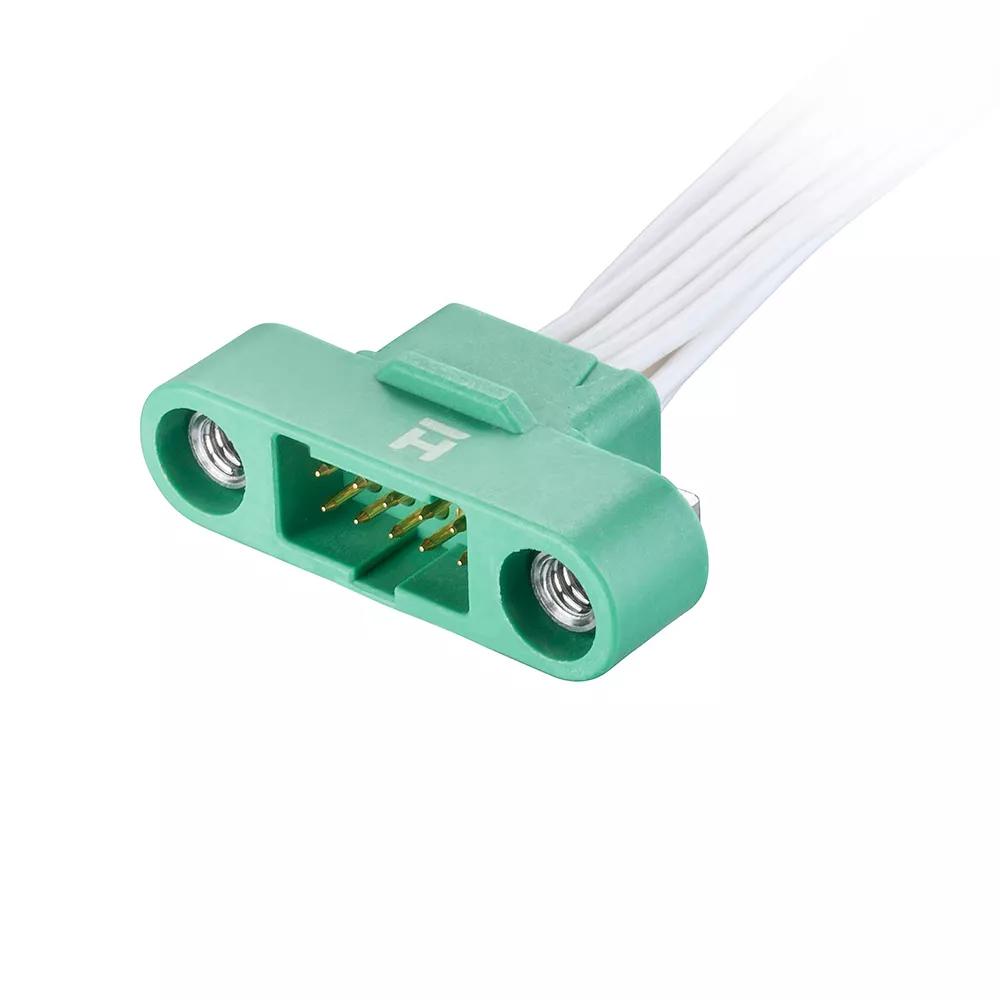

  • Male Single-Ended with white 26 AWG cable, 450mm long – 10 contacts (5+5). Fitted with internally threaded Screw-Lok fixings.

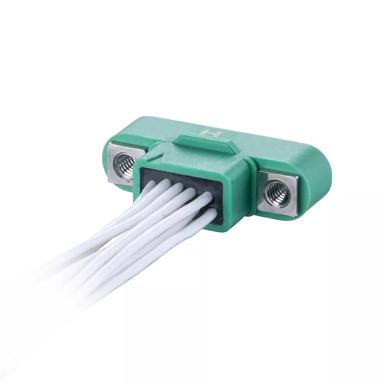

  • Manufactured with G125-1010005 male crimp contacts and G125-3241096M1 male Double Row crimp housing. Gold finish on contact area.
  • For complete pin numbering or pin out information, see Component Specification C125XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable Assembly

Cable Conductor Size:

26AWG

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Style of Jackscrews:

Internal Thread Screw-Lok (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

10

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

9.772g

Overall Dimensions (L x W x D) in mm:

450.00 x 17.70 x 6.50

Thread Size:

M2

Availability

16 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 12
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 4

Questions & Answers Ask a Question

What torque value should be used for these screw-loks?

The torque value for mating screw-loks is 16-18cmN. This value is given in the Component Specification C125xx (page 3).

What is the process or technician training certification ensured for pre-crimped and wired connectors?

Our operators assembling all our cable assemblies are trained and certified to IPC-A-620 requirements, as well as our own specific tooling instructions for the products involved.
