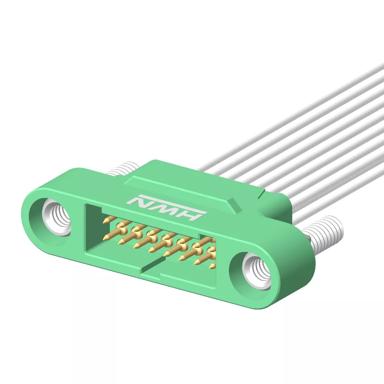

3+3 Pos. Male DIL 26AWG Cable Assembly, 150mm, single-end, Screw-Lok Panel Mount
1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok
- Male Single-Ended with white 26 AWG cable, 150mm long – 6 contacts (3+3). Fitted with threaded Screw-Lok fixings with 5.2mm panel mount studs. Use slotted nut G125-4510000B for front panel mounting.
- Manufactured with G125-1010005 crimp contacts, G125-3240696M2 Double Row crimp housing. Gold finish on contact area. Compatible with metal backshell for panel mount (G125-9600602).
- For complete pin numbering or pin out information, see Component Specification C125XX.
EU RoHS Status:
Cable Conductor Size:
Mating Pin Size:
2.8A max individual contact, 2A max simultaneous (25°C)
-65°C to +150°C
Style of Jackscrews:
Internal Thread Screw-Lok with Front Panel Mount Stud (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 4T
Housing Material UL Rating:
Overall Dimensions (L x W x D) in mm:
150.00 x 15.20 x 6.50
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
* Please request minimum quantities, lead times and pricing from an authorized distributor.
