Image may be representative. Refer to the product title for more information.

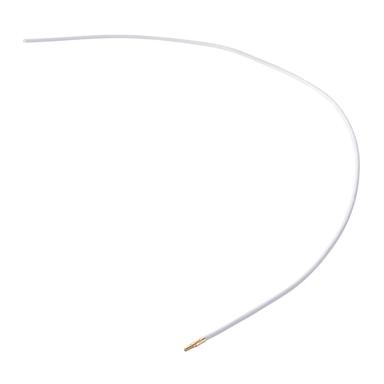

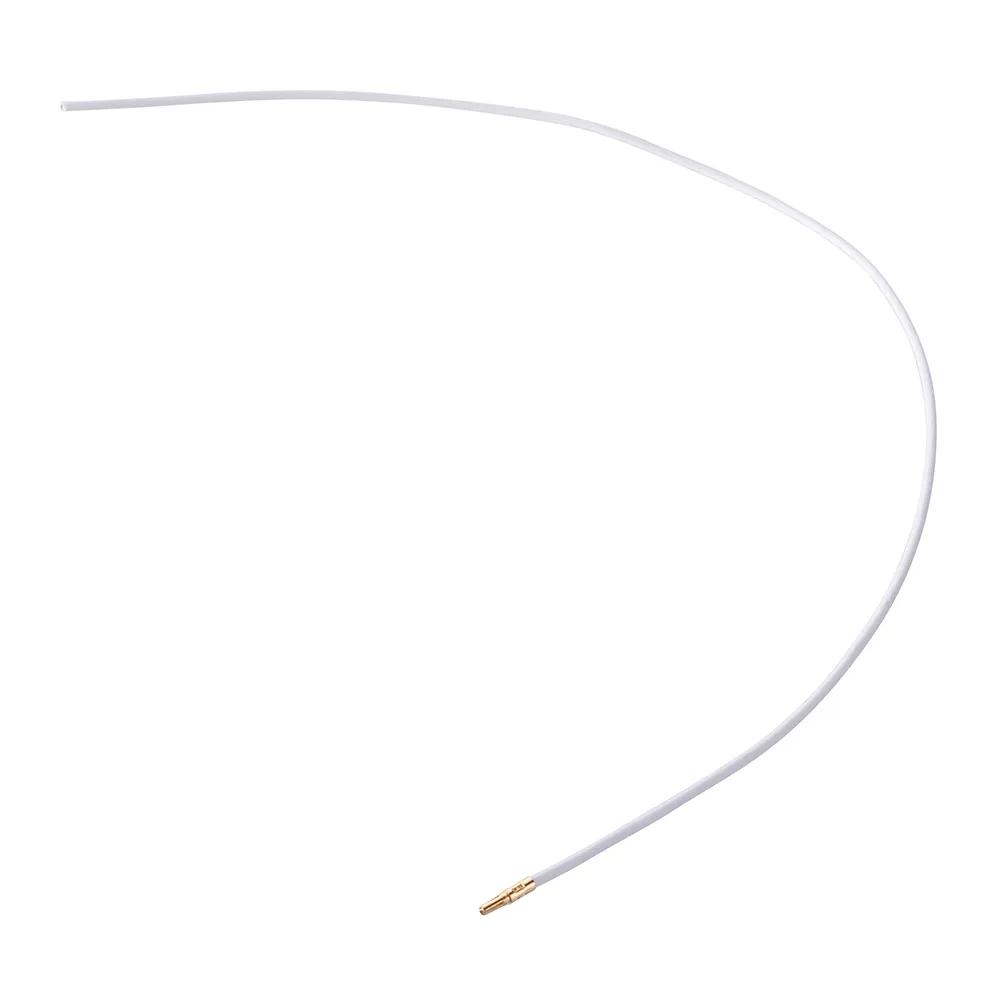

Single Pre-Crimped Contact, Female Single-Ended with white 26 AWG cable, 150mm (6") long.
Manufactured with the G125-0010005 crimp contacts. Gold finish on contact area.
To be used in Gecko-SL or Gecko-MT crimp housings (G125-224 series) and Gecko Latch crimp housings (G125-204 series).
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Product Change Notifications
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
Mating Pin Size
Ø0.4mm
Connector Orientation
Straight
Country of Origin
GB
Number of Signal Contacts
1
Operating Temperature
-65°C to +150°C
RoHS Status
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating
2.8A max individual contact, 2A max simultaneous (25°C)
Materials
Finish / Plating on Contact Surface
Gold
Base Material of Contact
Beryllium Copper
Packaging Style
Bulk/Loose
Finish / Plating on Termination
Gold
Dimensions
Contact Pitch
1.25mm (0.049")
Weight
0.305g
Dimensions
150.00 x Ø1.03
Wire Size
26 AWG
Downloads
Product Change Notifications
Obsolescence Notification 08-Nov-2024 - Gecko Pre-Cabled Signal Contact part number change
Technical Documentation
Technical Drawing / Datasheet - G125-XXXXXXXXXXXXXX.pdf
C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Plating thickness on Gecko contacts (signal and power)
Product Information
Product Training Module - Introduction to the Gecko connectors + 1.25mm pitch High-Reliability
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
IS-38 - Z125-902 Assembly Tool Instruction Sheet
Product Datasheet - Gecko range: signal connectors (HRi)
Product Datasheet - Gecko-MT range (HRi)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for G125-FWXXXXXAAL9400 series
RoHS Declaration - G125-FW10150AAL9400
