Home > G125-FV22605L0P
Active

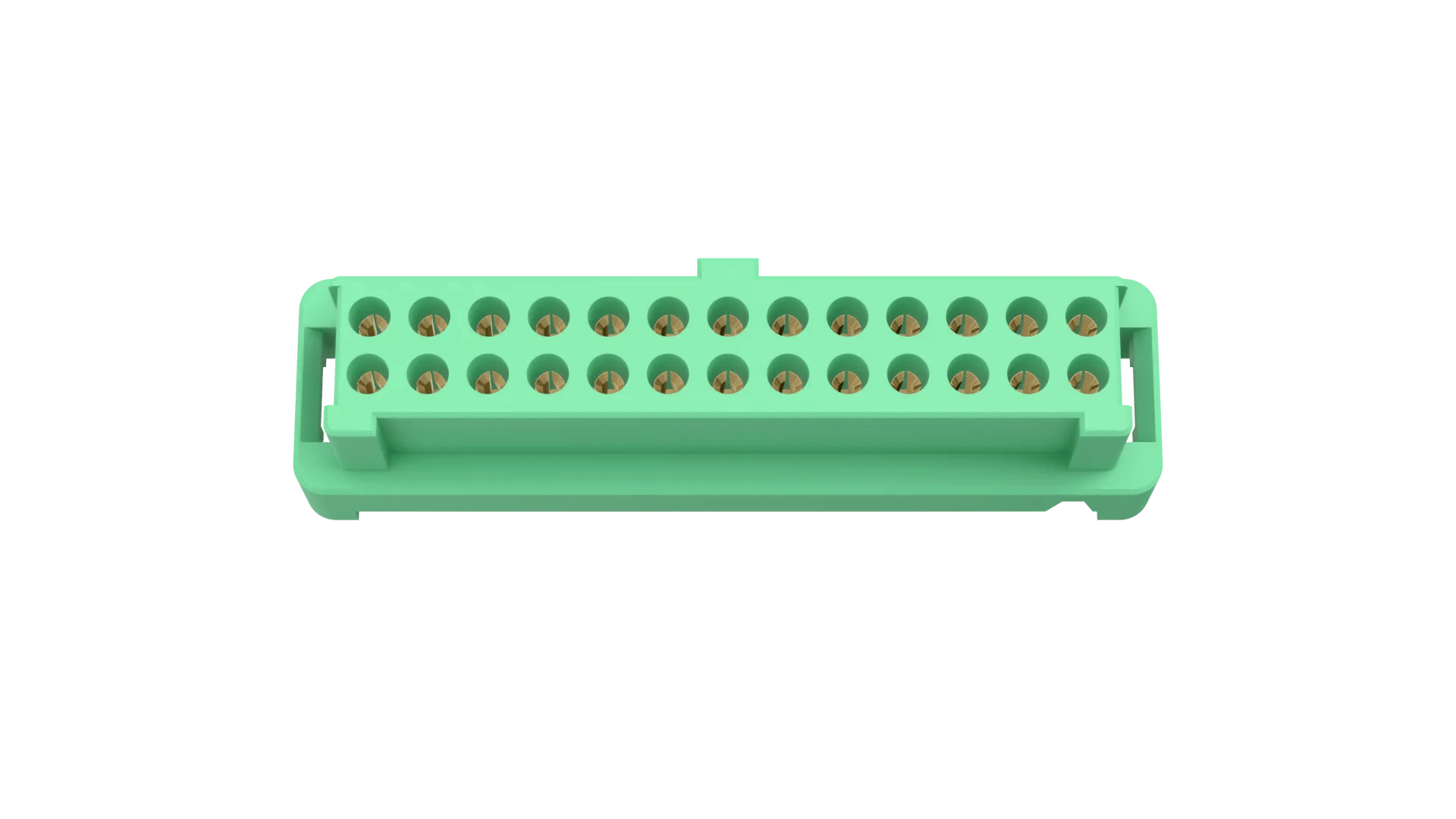

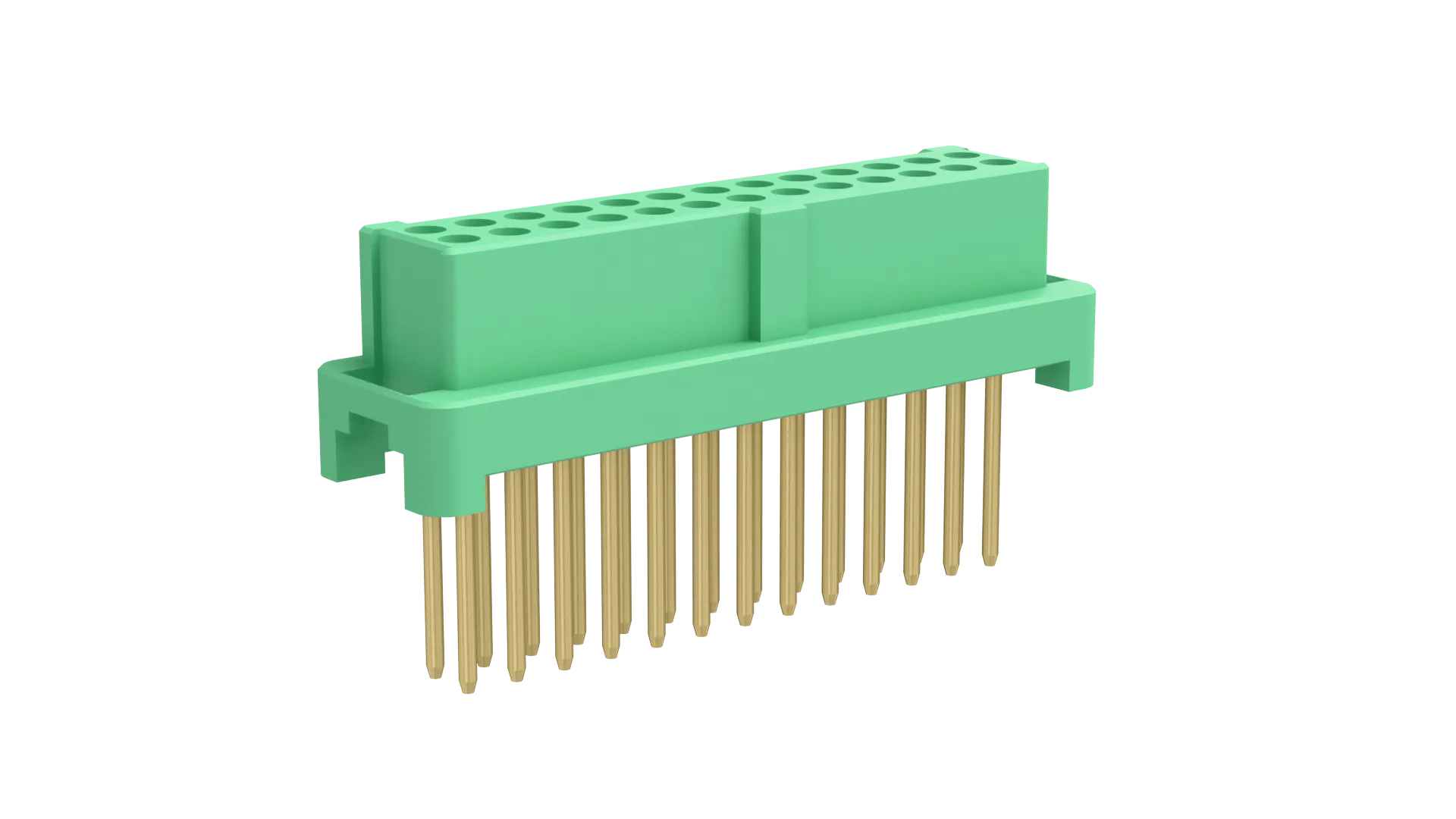

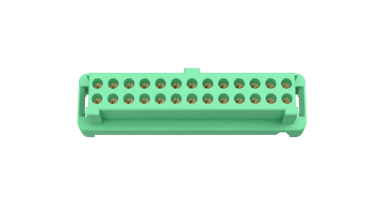

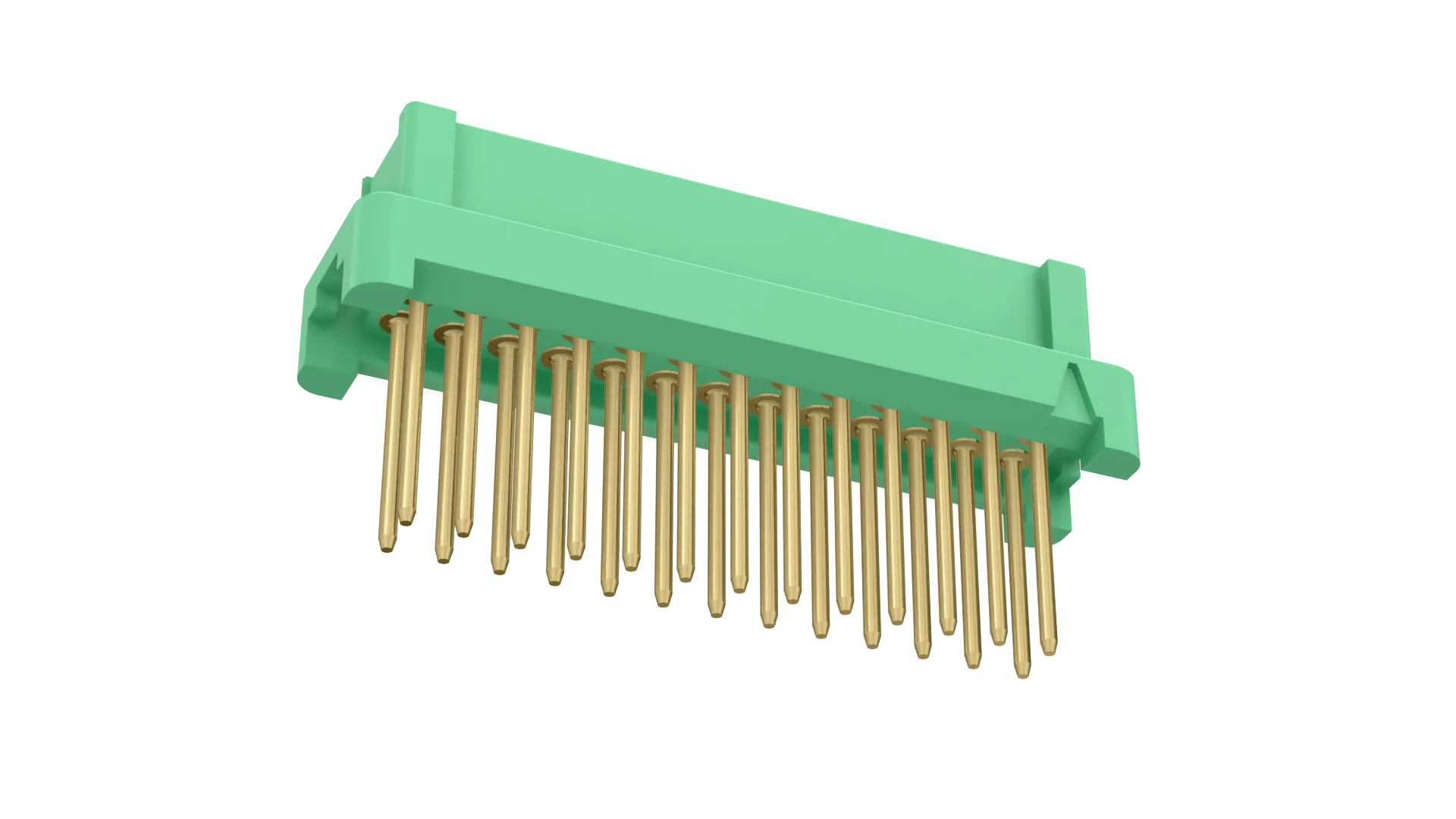

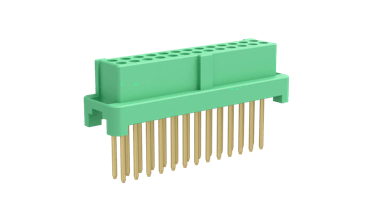

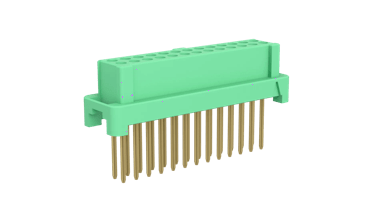

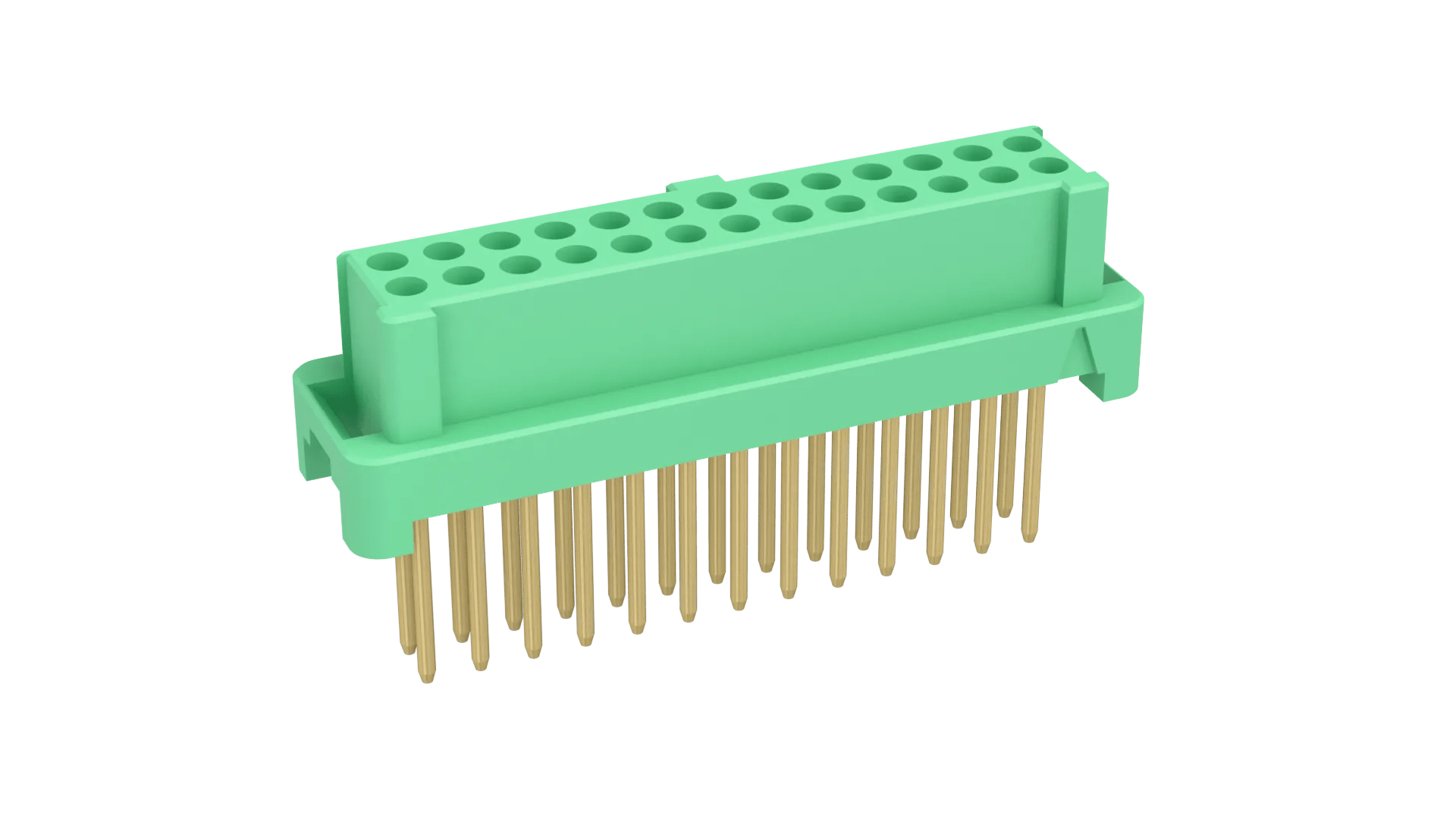

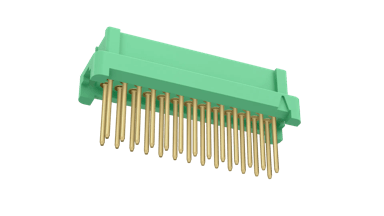

G125-FV22605L0P

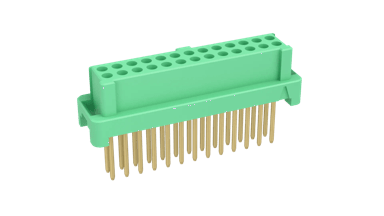

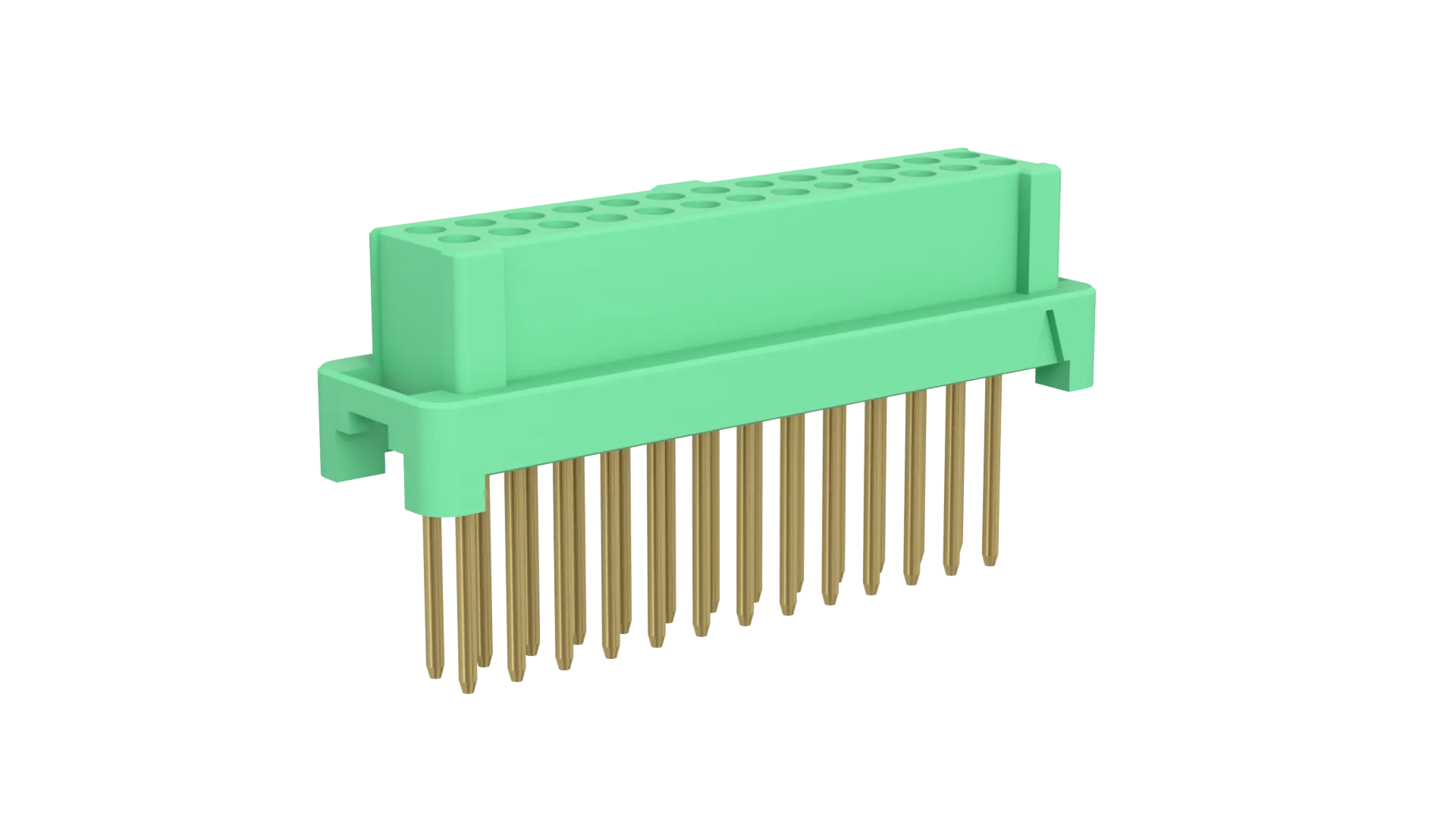

13+13 Pos. Female DIL Vertical Throughboard Conn. for Latches

1.25mm Pitch High-Reliability Connector - Gecko with Latches

  • Female Double Row Vertical 4.5mm PC Tail connector – 26 contacts (13+13). Compatible housing style for male connectors with latches.
  • Supplied in tape strips with pick and place cap. Gold finish on contact area and termination.
  • For complete pin numbering or pin out information, see Component Specification C125XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Latches:

Compatible with latches

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

26

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel Strip

Dimensions

Individual Part Weight:

0.865g

Overall Dimensions (L x W x D) in mm:

18.80 x 4.90 x 9.75

Height of Connector above PCB:

5.25mm

Length of Throughboard Tail:

4.50mm

Availability

140 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 33
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 12
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 11

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 84

Questions & Answers Ask a Question

Looking at the datasheet, starting from the “CONTACT No. 1 IDENT” marking, which direction does the pin numbering go? Looking at the footprint from the top with the IDENT at the top left, is pin 2 below pin 1 or to the right of pin 1?

Pin 2 is next to pin 1 in the same row. Pin numbering for Gecko travels across the row, then starts the second row under pin 1, and travels across the row again. You can see the pin numbering layout in the C125XX Component Specification (listed in Downloads under “Technical Documents”). There is also a Support article on pin numbering.

The only mating connectors I can find are PCB board mount. Do you have crimp type connectors that would mate with this?

When you are looking at the “Mating” connectors (under Related Products, click on the “Mating” tab), there are arrows under the 4 items initially shown. You can scroll left and right through the list of items. If you scroll right once, you will see the cable housings. Scroll further, and you will also see ready-made cable assemblies. Alternatively, you can look through the Gecko with Latches section of the catalog – all the latching Gecko products mate together.

Do you have a tool to help separate this connector when it is latched to the mating half?

The tool you need is the Z125-9262600 – this will help push in the two latch buttons when the connectors are engaged, so you can then separate the mated connectors. Consult the training video for more information on using this tool. It is also possible to push in the two buttons by hand as well, if you have good access.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - G125-FVXXX05L0P.pdf

ZIP

G125-FV22605L0x CAD Model (ZIP file containing STP and IGES)

Download
PDF

C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

TEST REPORTS

PDF

Test Report HT030 - Gecko (G125 Series) - Electrical, Mechanical and Environmental

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (16-Oct-2019) - includes all material legislations

PDF

Material composition for Gecko G125-FVXXX05L0X series

INSTRUCTION SHEETS

PDF

Product Training Module - Introduction to the Gecko connectors, 1.25mm pitch High-Reliability

OTHER DOWNLOADS

PDF

3D PDF file - G125-FV22605L0P_3D.pdf

PDF

Catalog page - Gecko with Latches Female Throughboard

PDF

Catalog page - Gecko with Latches Specifications, Pin Numbering

PDF

Catalog page - Gecko with Latches Mating Profiles

PDF

Catalog page - Gecko Introduction
