Home > G125-FV15005F2P
Active

G125-FV15005F2P

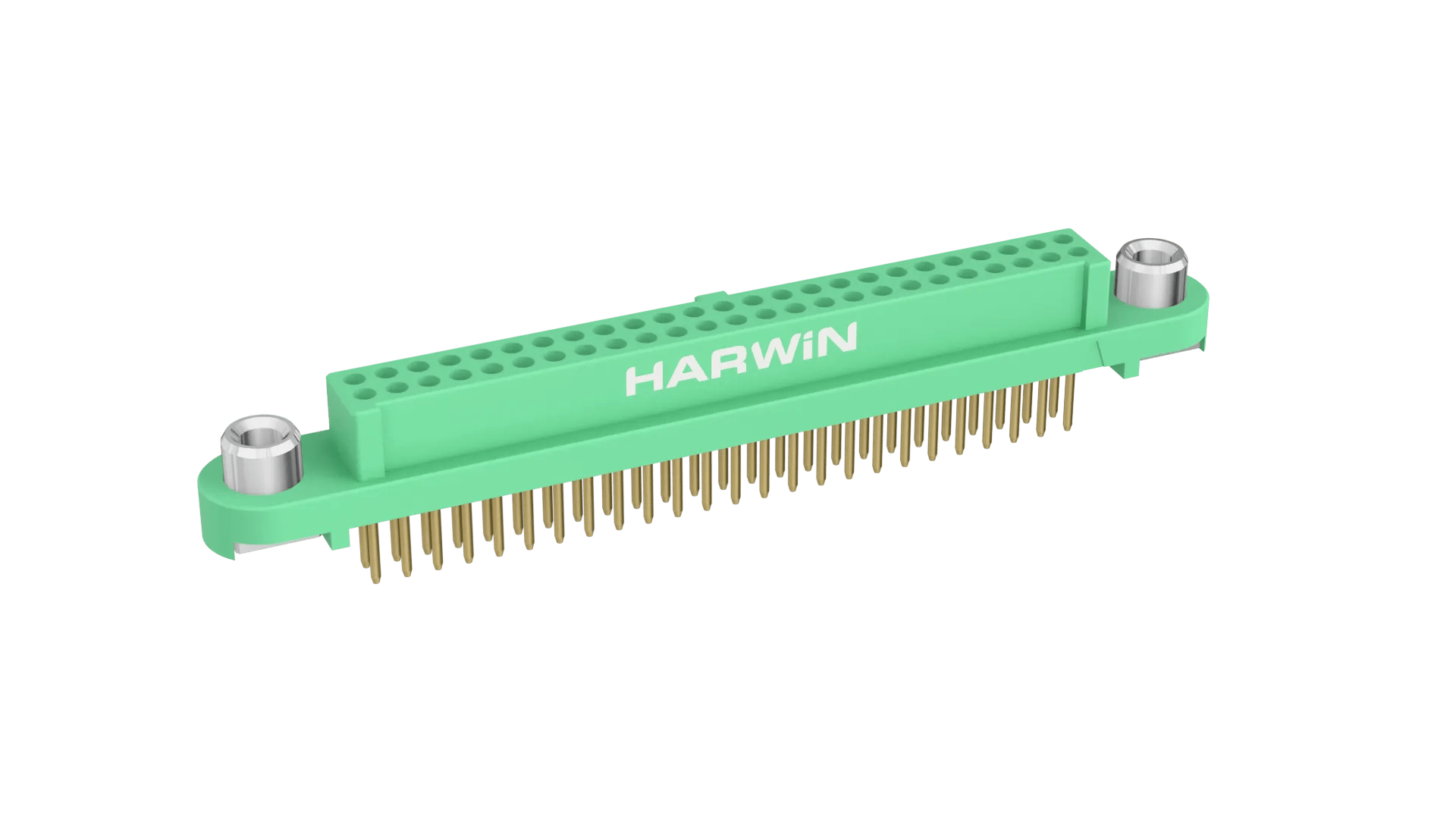

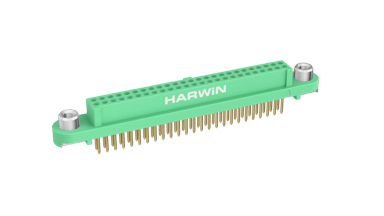

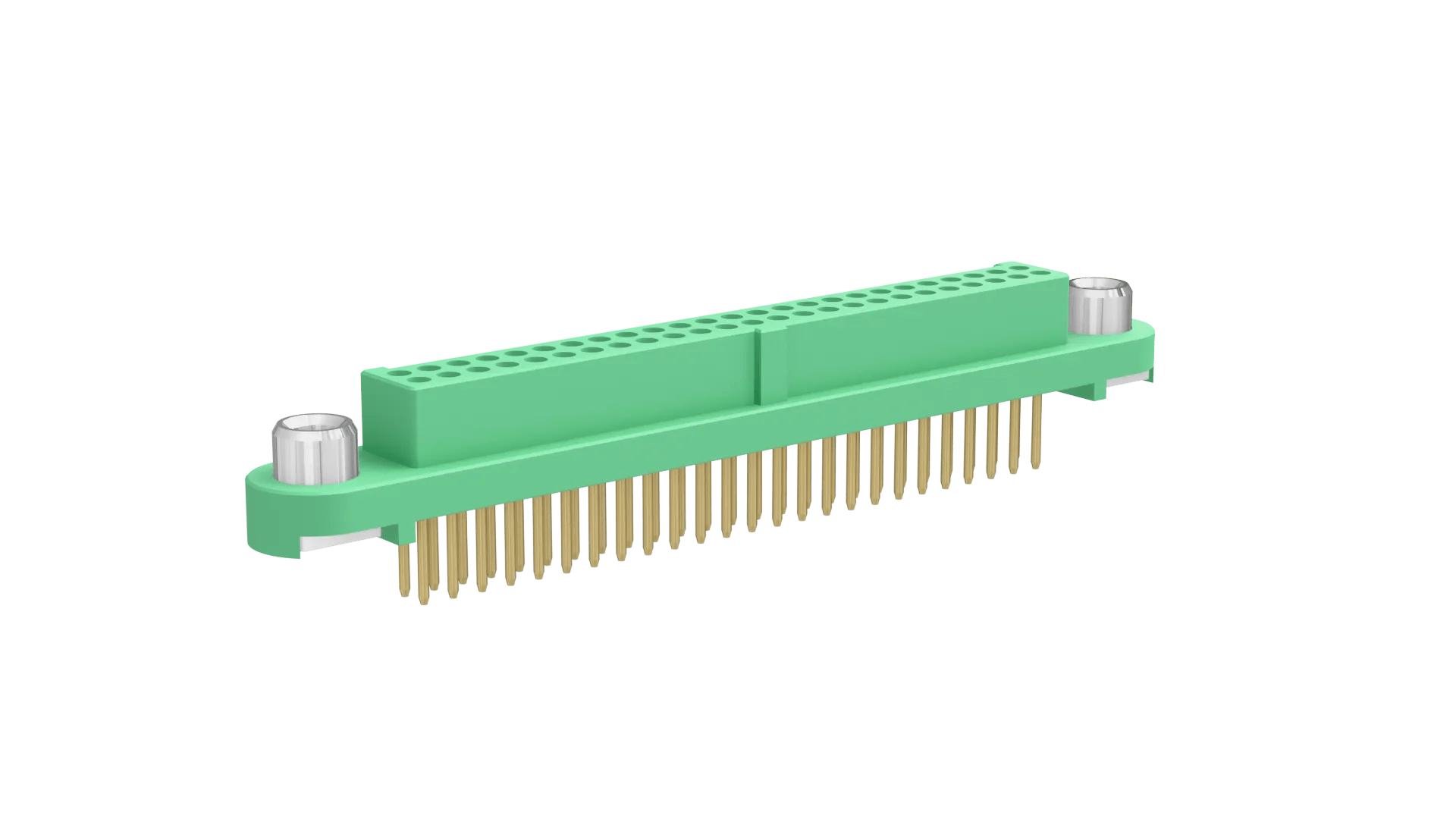

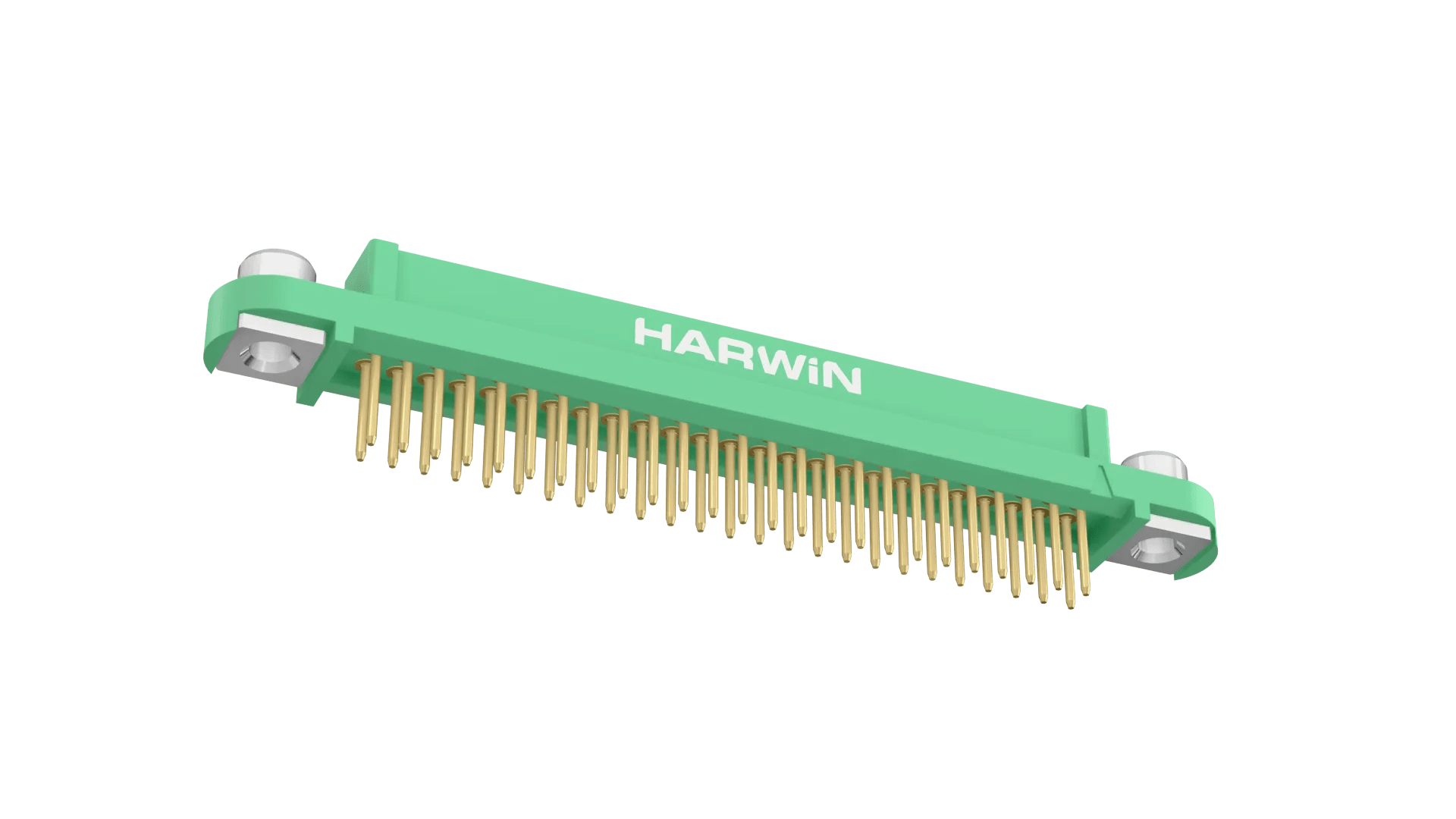

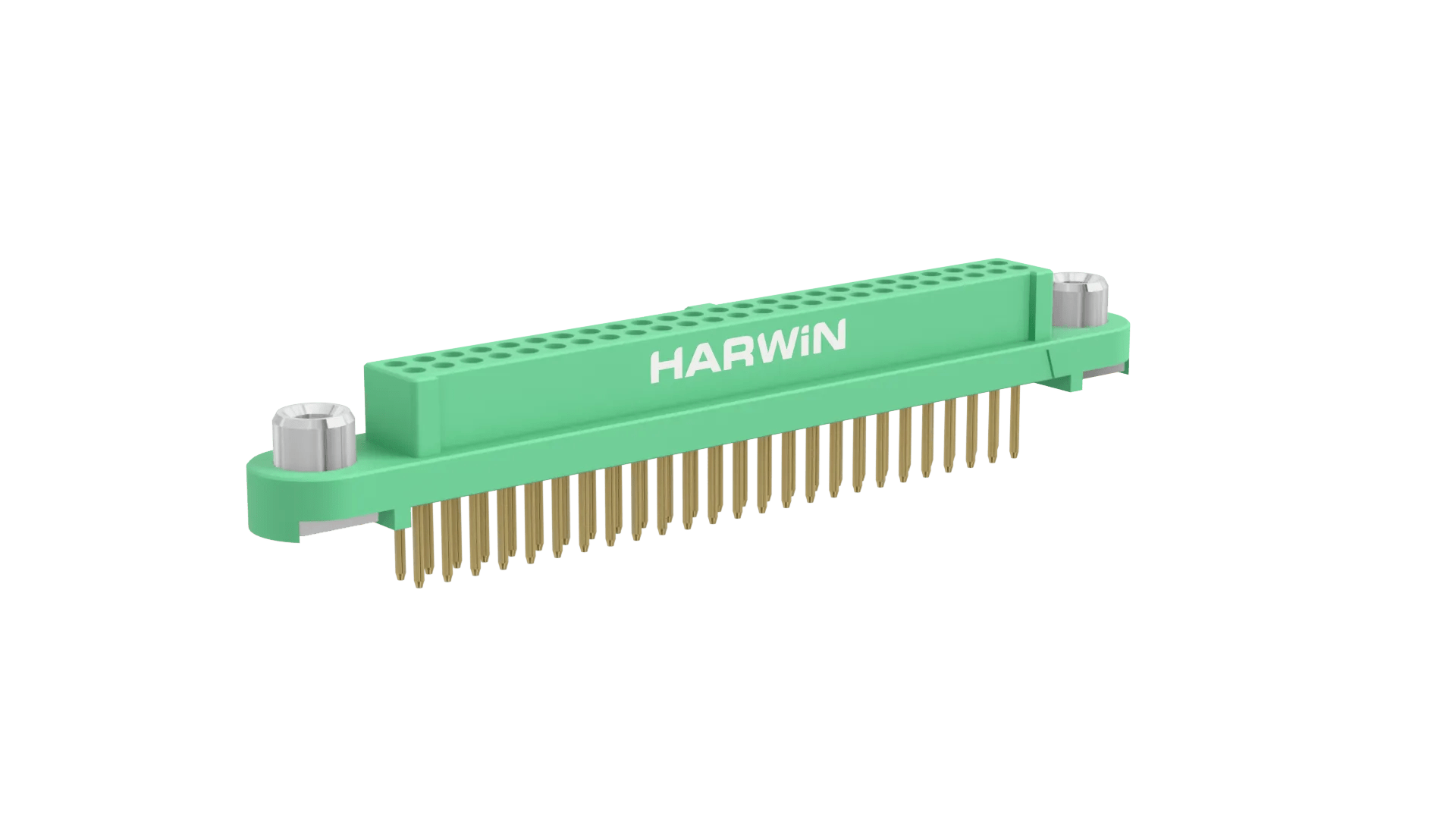

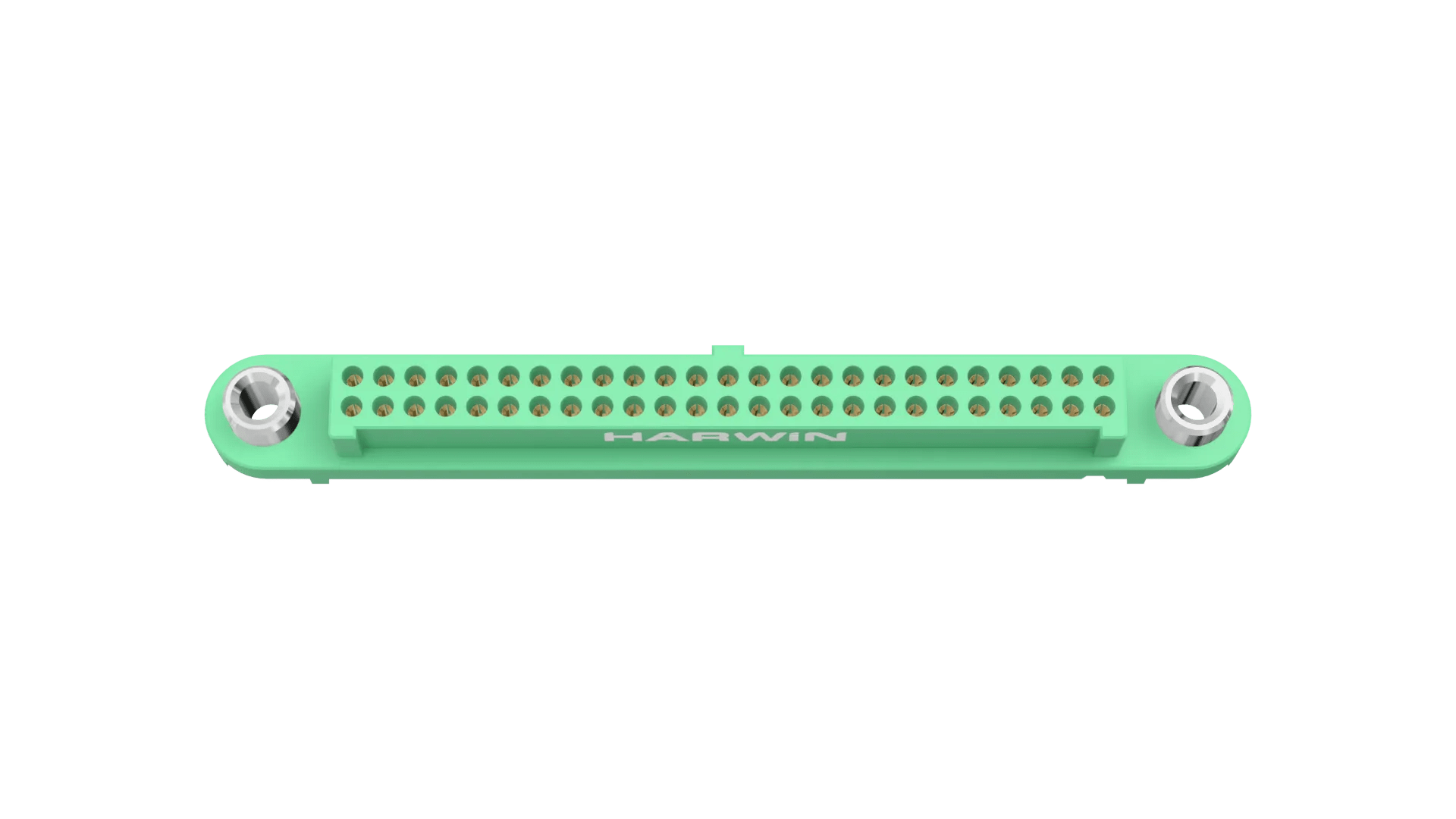

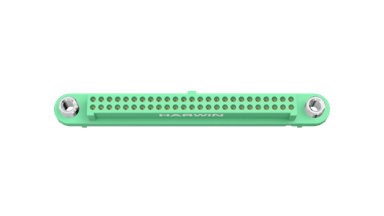

25+25 Pos. Female DIL Vertical Throughboard Conn. Screw-Lok Reverse Fix

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

  • Female Double Row Vertical 3mm PC Tail connector – 50 contacts (25+25). Fitted with internally threaded Screw-Lok fixings, for reverse fixing.
  • Supplied in tape strips with pick and place cap. Gold finish on contact area and termination.
  • For complete pin numbering or pin out information, see Component Specification C125XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Internal Thread Screw-Lok (Reverse Fix)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

50

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel Strip

Dimensions

Individual Part Weight:

1.775g

Overall Dimensions (L x W x D) in mm:

42.70 x 4.90 x 8.25

Thread Size:

M2

Height of Connector above PCB:

5.25mm

Length of Throughboard Tail:

3.00mm

Availability

91 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Newark
Location USA
Quantity (Updated Daily) 44
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 28
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 13
Distributor Farnell
Location Europe
Quantity (Updated Daily) 6

Questions & Answers Ask a Question

What torque value should be used for these screw-loks?

The torque value for mating screw-loks is 16-18cmN. This value is given in the Component Specification C125xx (page 3).

Looking at the datasheet, starting from the “CONTACT No. 1 IDENT” marking, which direction does the pin numbering go? Looking at the footprint from the top with the IDENT at the top left, is pin 2 below pin 1 or to the right of pin 1?

Pin 2 is next to pin 1 in the same row. Pin numbering for Gecko travels across the row, then starts the second row under pin 1, and travels across the row again. You can see the pin numbering layout in the C125XX Component Specification (listed in Downloads under “Technical Documents”). There is also a Support article on pin numbering.
